BSA Scrambler 650 · ASSEMBLY 2 · REV 03
Crankcase LH
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 3Original parts list ↗
Parts in this drawing
18 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Kit Crankcase LH With Bushing And Sleeve Black Raven Texture Shadow BlackT0202CVF0850E | 1 | |
| 2 | Oil Retaining PlateT0202CVF0720N | 1 | |
| 3 | Bearing Ball I/P Shaft 25X52X15 (6205 )SP010102901 | 1 | |
| 4 | Bearing Ball O/P Shaft 17X47X14 (6303)T18050UF0320N | 1 | |
| 5 | Ball Bearing (20X52X15) (C3) Balancer GearSP010100800 | 1 | |
| 6 | Screw Flcs Sk Sl M5X0.8X16X8.8SF0209017 | 6 | |
| 7 | Oil Strainer (Sieve)T0202CVF0120N | 1 | |
| 8 | Strainer Guide (Oil Guide)T0202CVF0130N | 1 | |
| 9 | Screw Hex M5X.8X16X8.8XznSF0201050 | 2 | |
| 10 | Washer Drain PlugT0202CVF0140N | 1 | |
| 11 | Magnetic Drain Plug M24X2 L8T0202CVF0240N | 1 | |
| 12 | Stud M10X223 (Tower Stud)T0202CVF0150N | 2 | |
| 13 | Dowel Pin, Hollow (Ø8*12)MJ01760000500 | 4 | |
| 14 | Hollow Drive Pin (Dowel) Dia. 5Xl10T0202CVF0470N | 2 | |
| 15 | Al Washer Sealing (8.2X14X1.25)MJ01700005800 | 1 | |
| 16 | Bolt M8 X 20 ( Tdc Positioning )95701-08020-07 | 1 | |
| 17 | Assembly Pressure Side Oil PumpT0203AVF0110N | 1 | |
| 18 | Assembly Suction Side Oil PumpT0203AVF0030N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

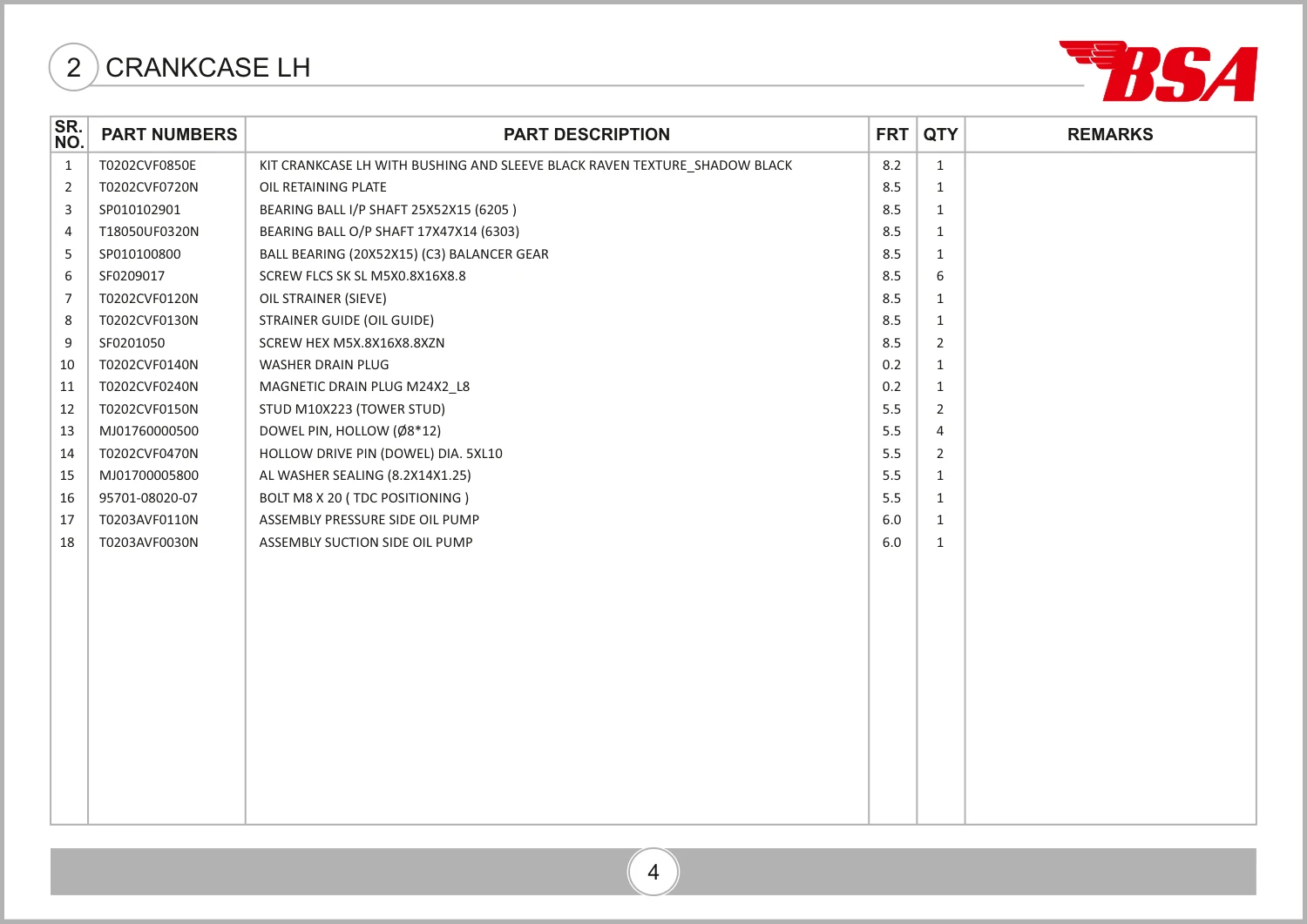

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 13, parts table page 14. View original parts table ↗
