Balancer Shaft Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 19Original parts list ↗
Parts in this drawing
9 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Assembly, Balancer ShaftT0210DVF0020N | 1 | |
| 2 | Woodrof Key 4X5 Din 6888SF0801013 | 1 | |
| 3 | Gear Water Pump Drive 15TT0401EVF0240N | 1 | |
| 4 | Spacer Balancer ShaftT0210DVF0110N | 1 | |
| 4.1 | Spacer Balancer 20 X41X0.8 ThkT0210DVF0050N | 1 | |
| 4.2 | Spacer Balancer 20 X41X1 ThkT0210DVF0080N | 1 | |
| 4.3 | Spacer Balancer 20 X41X1.2 ThkT0210DVF0090N | 1 | |
| 4.4 | Spacer Balancer 20 X41X1.4 ThkT0210DVF0100N | 1 | |
| 5 | Pin Needle Water Pump Drive Gear B 4X19.8T0401EVF0020N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

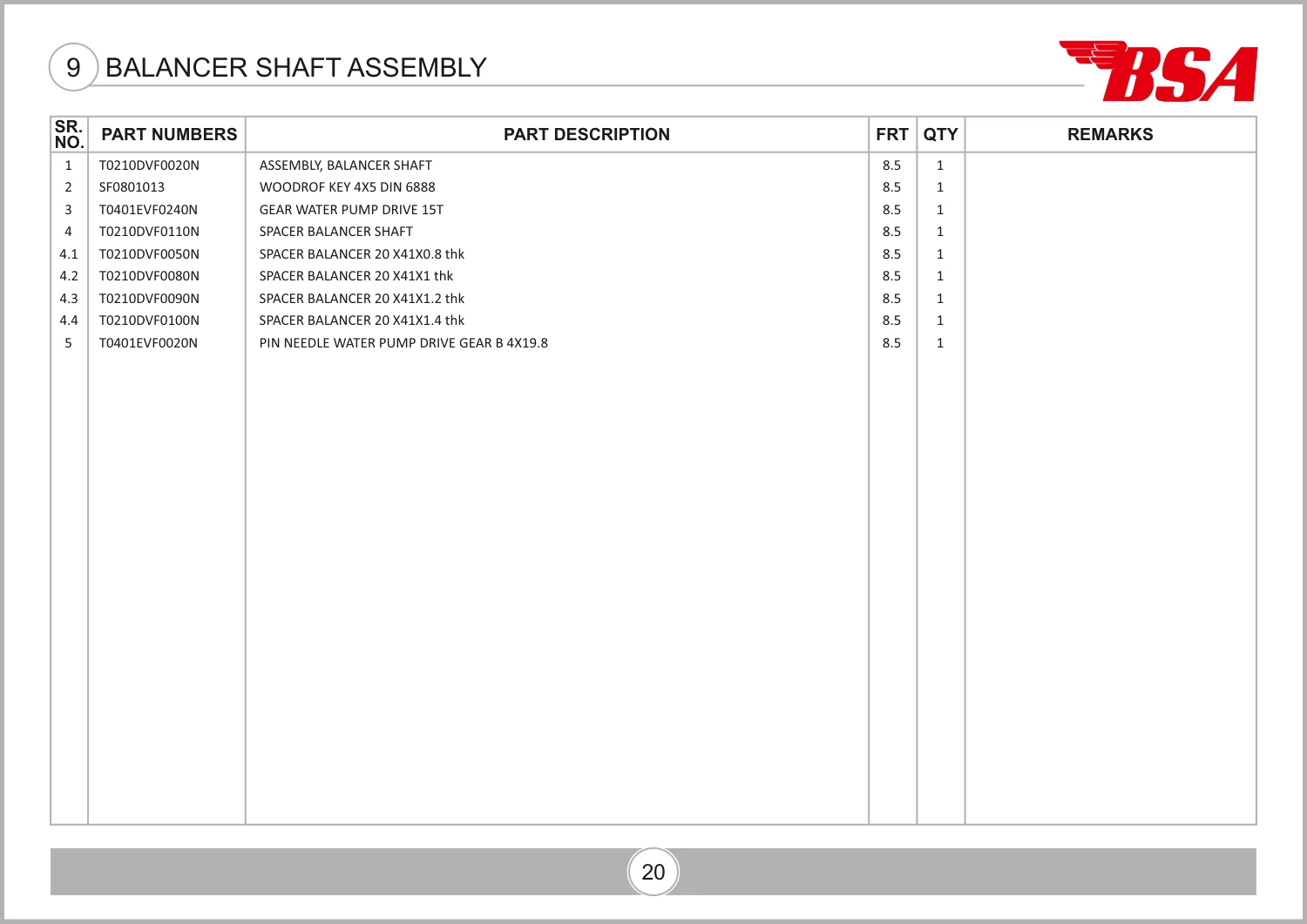

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 29, parts table page 30. View original parts table ↗
