BSA Scrambler 650 · ASSEMBLY 10 · REV 03

Transmission System

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Scrambler 650 · Rev 03 · p. 21Original parts list ↗

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Shaft, Input T/MT0215DVF0010N	1	Enquiry ↗
2	Gear, 4Th DriveT0215DVF0050N	1	Enquiry ↗
3	Thrust Washer Plain 25.6X28.5X1.5T0215DVF0160N	1	Enquiry ↗
4	Snap Ring 25T0215DVF0190N	4	Enquiry ↗
5	Gear, 3Rd DriveT0215DVF0060N	1	Enquiry ↗
6	Thrust Washer 21.2X27.5X1T0215DVF0170N	1	Enquiry ↗
7	Needle Bearing 21X25X13T0215BVF0010N	1	Enquiry ↗
8	Gear, 5Th DriveT0215DVF0070N	1	Enquiry ↗
9	Gear, 2Nd DriveT0215DVF0080N	1	Enquiry ↗
10	Output ShaftT0215DVF0020N	1	Enquiry ↗
11	Needle Bearing 22X26X10T0215BVF0020N	1	Enquiry ↗
12	Gear, 2Nd DrivenT0215DVF0100N	1	Enquiry ↗
13	Thrust Washer Spline 22.35X31.4X2T0215DVF0180N	2	Enquiry ↗
14	Gear, 5Th DrivenT0215DVF0110N	1	Enquiry ↗
15	Needle Bearing 22X26X13T0215BVF0030N	1	Enquiry ↗
16	Gear, 3Rd DrivenT0215DVF0120N	1	Enquiry ↗
17	Step Thrust/Spline Washer 22.35X25.5X2.9T0215DVF0200N	1	Enquiry ↗
18	Gear, 4Th DrivenT0215DVF0130N	1	Enquiry ↗
19	Thrust Washer 21.2X30X1T0215DVF0210N	1	Enquiry ↗
20	Needle Bearing 21X25X10T0215BVF0040N	1	Enquiry ↗
21	Gear, 1St DrivenT0215DVF0140N	1	Enquiry ↗
22	Thrust Washer 17.2X30X1T0215DVF0220N	1	Enquiry ↗
23	Assembly, Input ShaftT0215DVF0040N	1	Enquiry ↗
24	Assembly, Output ShaftT0215DVF0090N	1	Enquiry ↗
25	Bearing Dg Ball Sr 17X47X14SP010103001	1	Enquiry ↗
26	Bearing Dg Ball Sr 25X52X15SP010102901	1	Enquiry ↗
27	Bearing Dg Ball Sr 25X62X17SP010100900	1	Enquiry ↗
28	Bearing Dg Ball Sr 17X47X14T18050UF0320N	1	Enquiry ↗
29	Oil Seal 24X38X6T0202CVF0180N	1	Enquiry ↗
30	Front Drive SprocketT1201MB40020N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

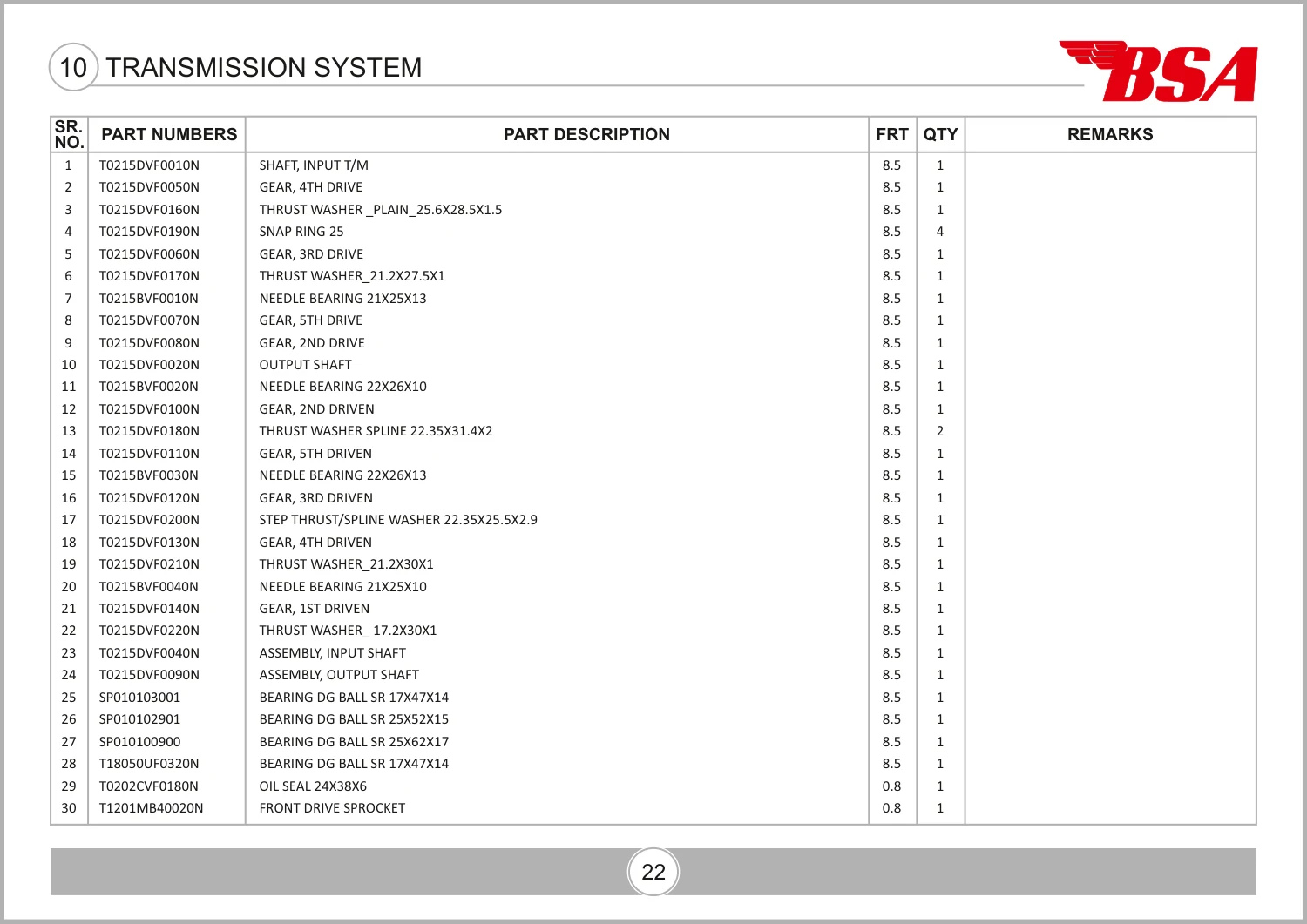

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 31, parts table page 32. View original parts table ↗
