BSA Scrambler 650 · ASSEMBLY 22 · REV 03

Foot Rest Assembly And Rear Brake Pedal

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Scrambler 650 Foot Rest Assembly And Rear Brake Pedal exploded assembly diagram, catalogue page 47

BSA Scrambler 650 · Rev 03 · p. 47Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Pillion Footrest Assembly RHT2201BB40020N	1	Enquiry ↗
2	Sprocket CoverT0202DVF0420N	1	Enquiry ↗
3	Washer Spring L M8X14.8X2SF0402051	4	Enquiry ↗
4	Screw Socket M8X1.25X28X10.9SF0224181	5	Enquiry ↗
5	Pivot Rider FootrestT2201BY50080N	4	Enquiry ↗
6	Nut Hex Fl Pr M8X1.25X8X8SF0303059	2	Enquiry ↗
7	Bolt, Socket Head M5X0.8X10 White PassivationTSF0224077	4	Enquiry ↗
8	Rubber Pillion FootpegT2201BY50030N	2	Enquiry ↗
9	Clevis, Pillion FootrestT2201BB10030N	2	Enquiry ↗
10	Ball Steel(Under)96211-08000	2	Enquiry ↗
11	Bracket Footrest GripT2201BB10070N	4	Enquiry ↗
12	Socket Head Screw M8X40TSF0212015	1	Enquiry ↗
13	Rotation SpringMH01820003800	2	Enquiry ↗
14	Detent Plate, Pillion FootrestT2201BB10080N	2	Enquiry ↗
15	Seeger Diameter 5 Uni 7434MH01890000800	4	Enquiry ↗
16	Pillion Footrest RH BlackT2201BB10040E	1	Enquiry ↗
17	Screw Rdskt M6X1X12Xa2-70SF0212026	4	Enquiry ↗
18	Heel Guard LHT22000B40010F	1	Enquiry ↗
19	Heel Guard RHT22000B40020F	1	Enquiry ↗
20	Lever Comp, Rear Brake Pedal B4T20010B40020E	1	Enquiry ↗
21	Rider Footpeg RHT2201AY50060N	1	Enquiry ↗
22	Hex Soc Cap Head Screw M5160.8SF0105067	4	Enquiry ↗
23	Special Bolt M8X1.25X40X8.8T2201AB10100N	1	Enquiry ↗
24	Rubber FootrestT2201AB40050E	2	Enquiry ↗
25	Spring Torsion Rider FootrestT2201AKW0130E	2	Enquiry ↗
26	Bush Rear Brake PedalMH01800004900	1	Enquiry ↗
27	Special Washer M8SF0400018	1	Enquiry ↗
28	Return Spring, Rear Brake Pedal B1T20010B10020N	1	Enquiry ↗
29	Clevis, Rider Footrest RHT2201AB10050N	1	Enquiry ↗
30	Clevis, Rider Footrest LHT2201AB40020N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

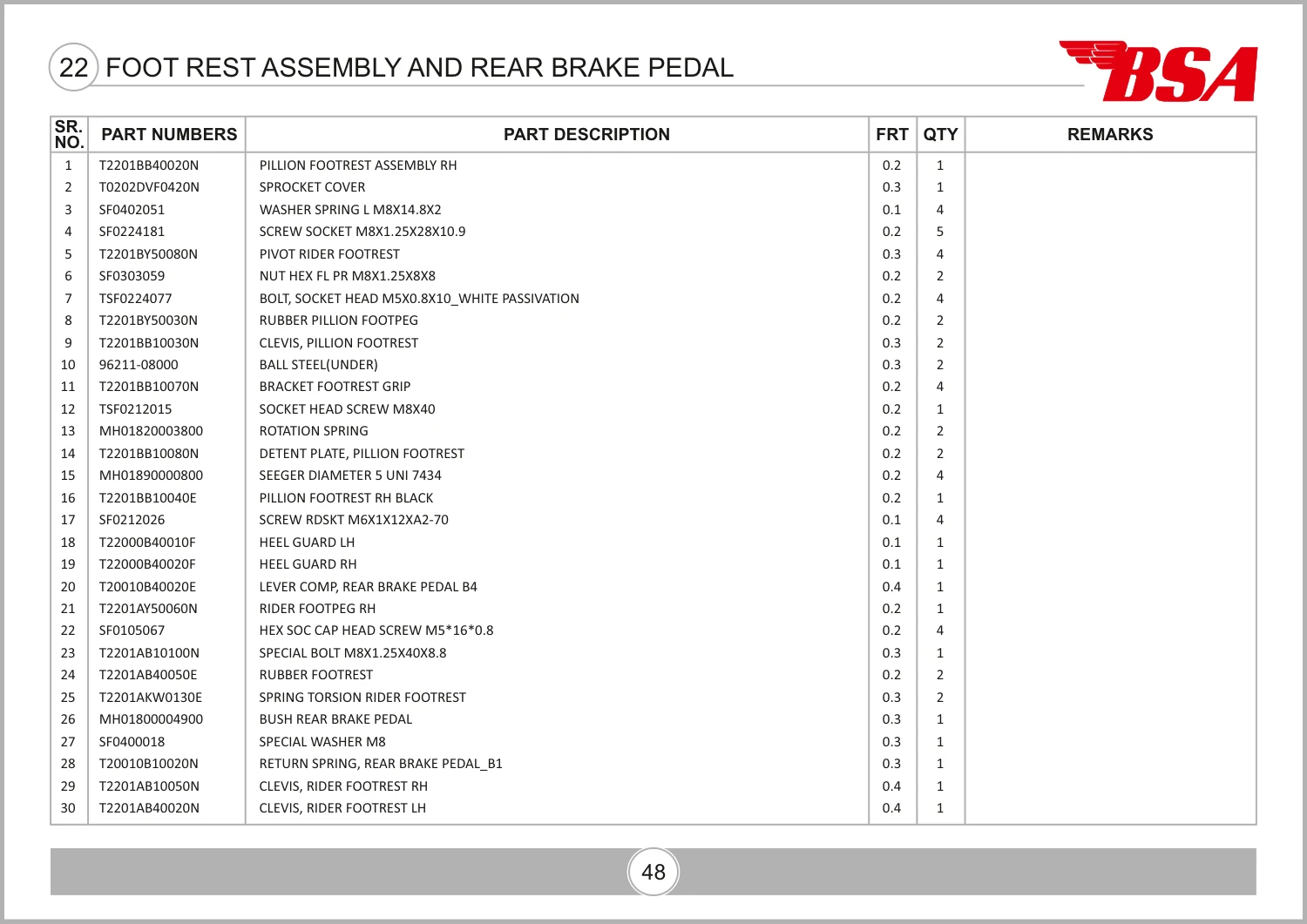

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 57, parts table page 58. View original parts table ↗
