BSA Scrambler 650 · ASSEMBLY 30 · REV 03
Silencer Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 71Original parts list ↗

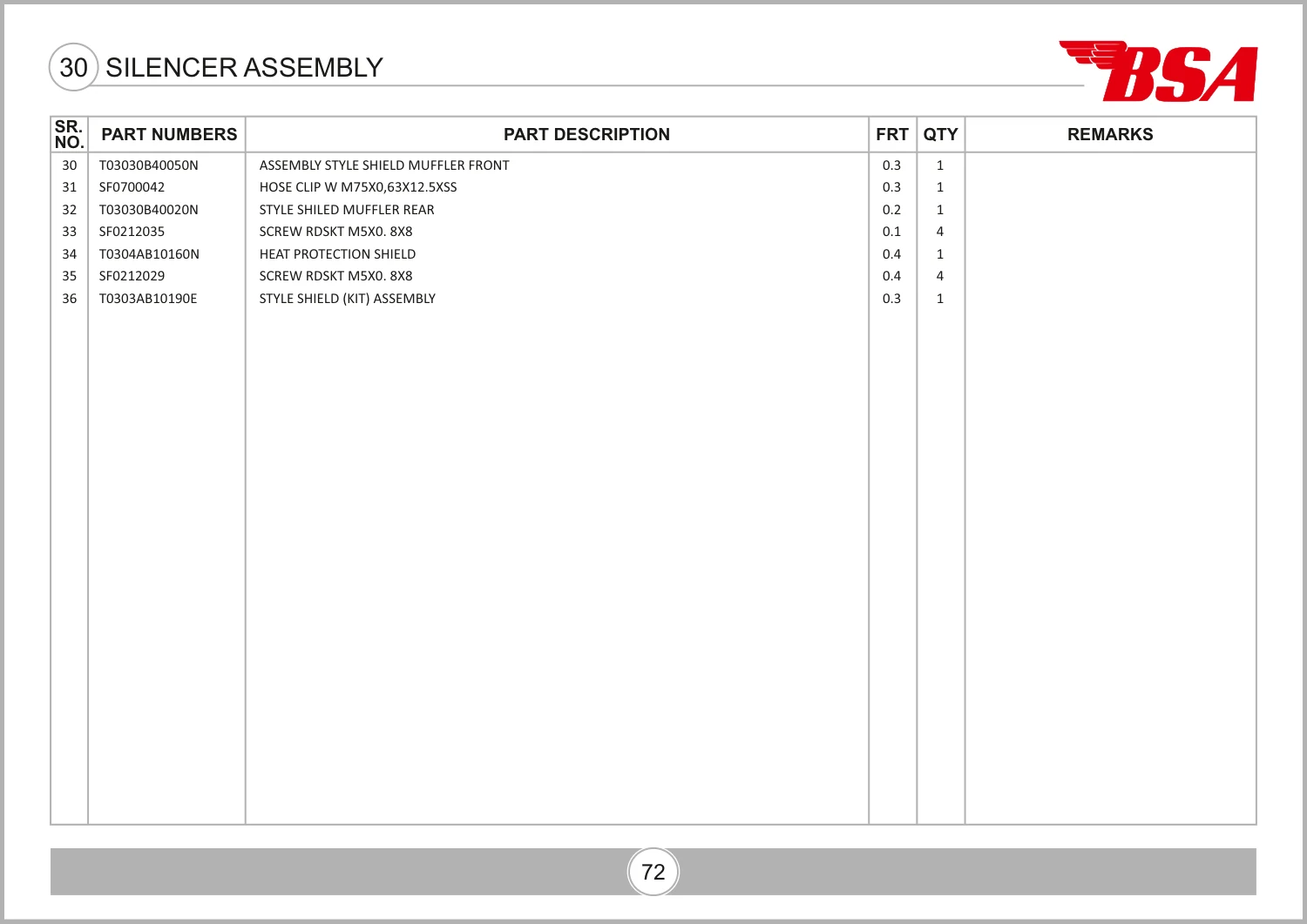

Parts in this drawing
7 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 30 | Assembly Style Shield Muffler FrontT03030B40050N | 1 | |
| 31 | Hose Clip W M75X0,63X12.5XssSF0700042 | 1 | |
| 32 | Style Shiled Muffler RearT03030B40020N | 1 | |
| 33 | Screw Rdskt M5X0. 8X8SF0212035 | 4 | |
| 34 | Heat Protection ShieldT0304AB10160N | 1 | |
| 35 | Screw Rdskt M5X0. 8X8SF0212029 | 4 | |
| 36 | Style Shield (Kit) AssemblyT0303AB10190E | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 81, parts table page 82. View original parts table ↗
