Steering
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 73Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Under Bracket- Stem Assy B1T05020B10010N | 1 | |
| 2 | Screw Socket M10X1.25X40X8.8SF0224163 | 2 | |
| 3 | Steering Dust Seal B1T0505BB10010N | 2 | |
| 4 | Inner Ball RaceT0505AB10010N | 2 | |
| 5 | Steering Ball (Dia 7.9375) With CageT05010B10050N | 2 | |
| 6 | Outer Ball RaceT0505LB10010N | 2 | |
| 7 | Dust Cap, SteeringT0505BB10020N | 1 | |
| 8 | Steering NutT0505CY50010E | 1 | |
| 9 | Washer, Steering LocknutT0505CB10030N | 1 | |
| 10 | Steering Lock NutT0505CY50020E | 1 | |
| 11 | Washer Spring L M10X18.1X2.2Xzn5SF0402011 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

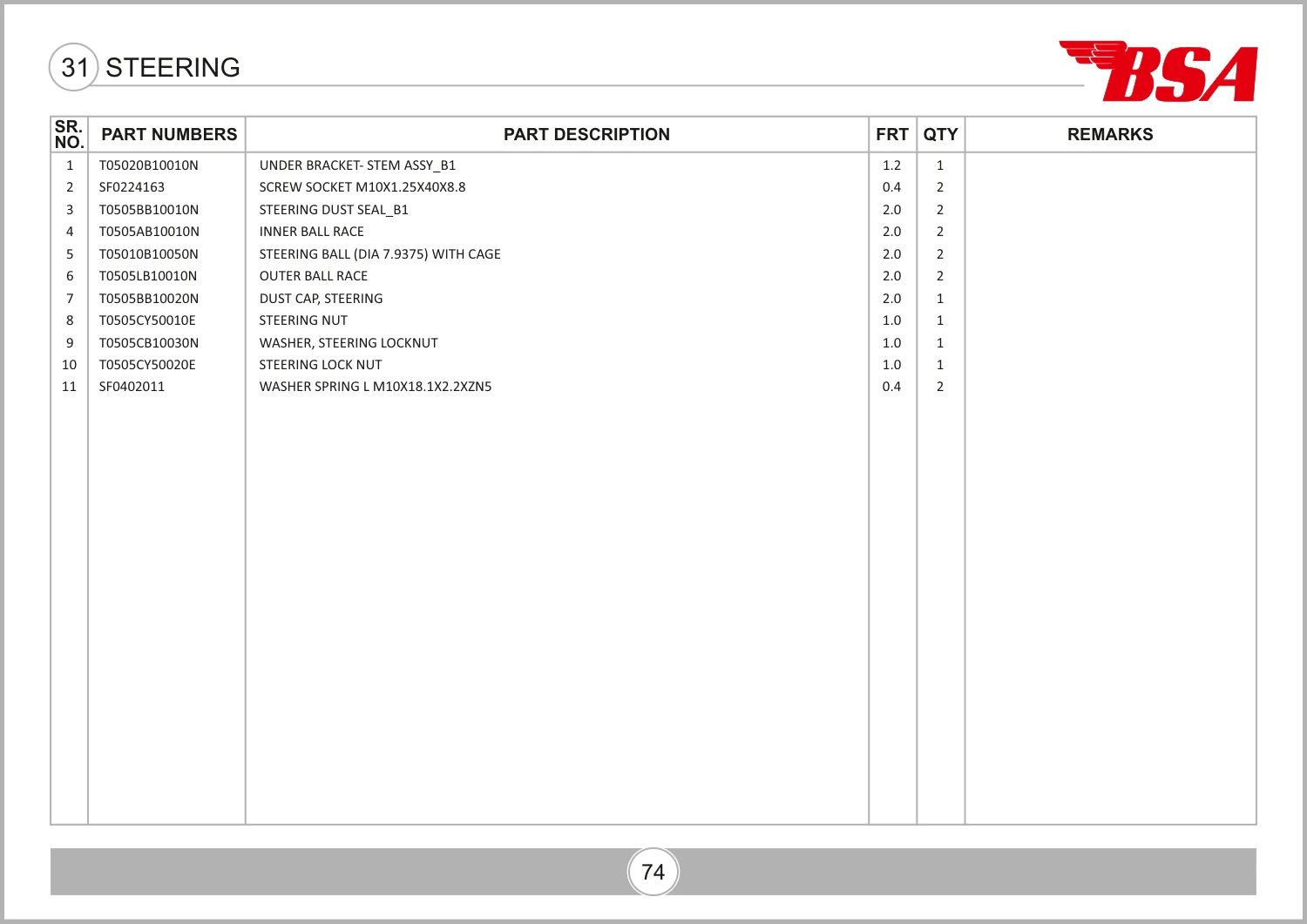

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 83, parts table page 84. View original parts table ↗
