BSA Scrambler 650 · ASSEMBLY 32 · REV 03
Front Fork Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 75Original parts list ↗
Parts in this drawing
27 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | B401 Front Fork AssemblyT05010B40010N | 1 | |
| 2 | Front Fork Leg Assembly -LHT05030B40010N | 1 | |
| 3 | Front Fork Leg Assembly -RHT05040B40010N | 1 | |
| 4 | Outer Tube-LHT05010B40040N | 1 | |
| 5 | Outer Tube-RHT05010B40050N | 1 | |
| 6 | Dust SealT05010B10160N | 2 | |
| 7 | Circlip (Snap Ring)T05010B10150N | 2 | |
| 8 | Oil SealT05010B10140N | 2 | |
| 9 | Guide Bush WasherT05010B10130N | 2 | |
| 10 | Guide BushT05010B10120N | 2 | |
| 11 | GasketT05010KW0140N | 2 | |
| 12 | Bolt M10X1T05010KW0150N | 2 | |
| 13 | Slide BushT05010B10080N | 2 | |
| 14 | Inner Tube AssemblyT05010B40030N | 2 | |
| 15 | Bolt Cap With 'O' Ring Sub AssemblyT05000Y50060N | 2 | |
| 16 | Washer-2T05000J20090N | 2 | |
| 17 | SpacerT05010B40070N | 2 | |
| 18 | Washer Spring TopT05010B10190N | 2 | |
| 19 | Spring-1T05000J20070N | 2 | |
| 20 | Piston(Piston+Piston Ring)T05010B40020N | 2 | |
| 21 | Recoil SpringT05000B10010N | 2 | |
| 22 | Spindle TaperT05010B10090N | 2 | |
| 23 | Socket Head Bolt (M8X1.25X42)T0502BB10010N | 1 | |
| 24 | Screw Phcr M4X0.7X10X8.8SF0207110 | 2 | |
| 25 | Clamp For Fork BellowT05000Y50020N | 2 | |
| 26 | Fork Rubber BellowT05000J20110N | 2 | |
| 27 | Side Reflex Reflector AssyT1501FB10020N | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

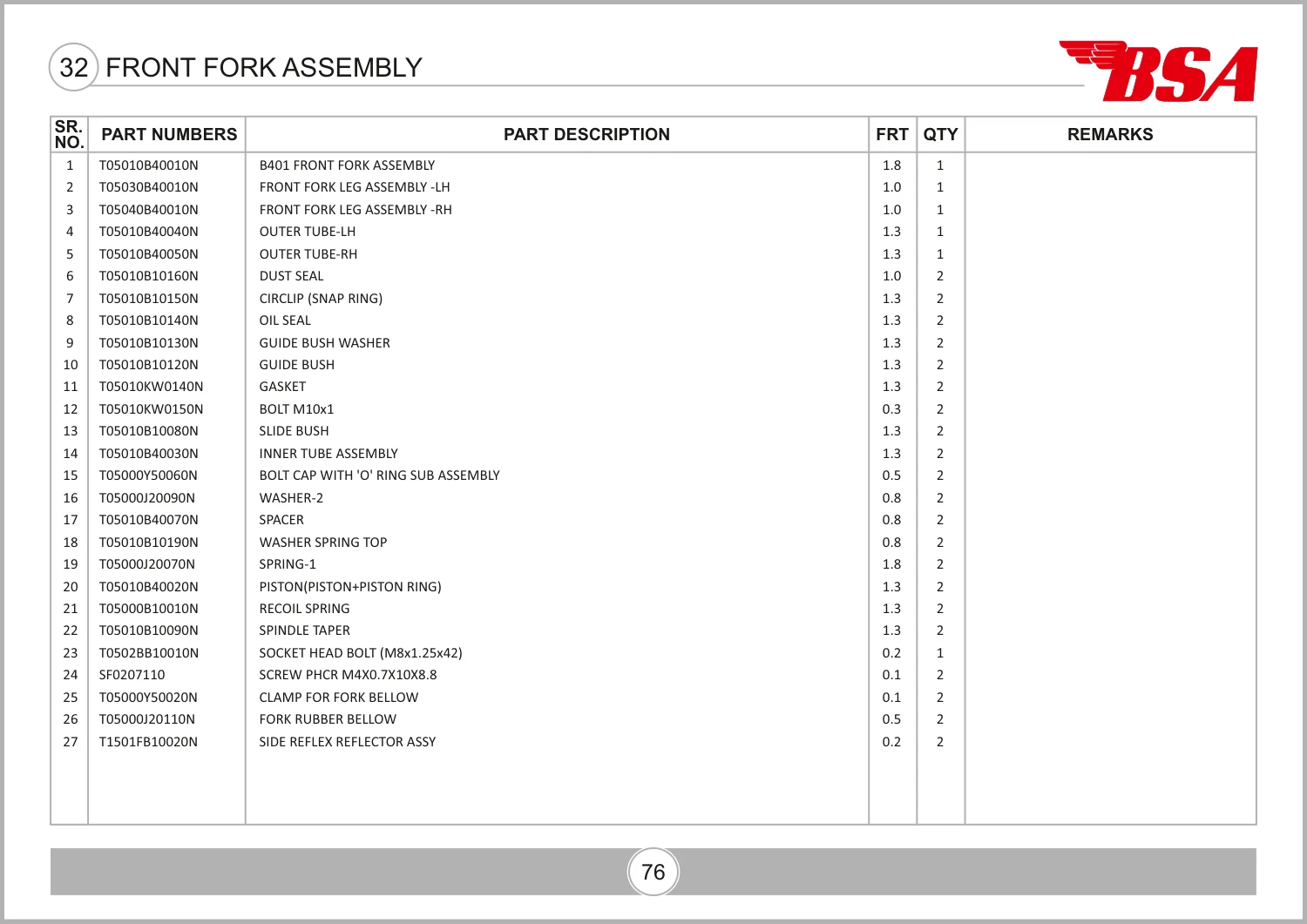

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 85, parts table page 86. View original parts table ↗
