BSA Scrambler 650 · ASSEMBLY 34 · REV 03

Side Panels RH & LH / Bash Plate / ECU Cover/ Lock Set

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Scrambler 650 Side Panels RH & LH / Bash Plate / ECU Cover/ Lock Set exploded assembly diagram, catalogue page 79

BSA Scrambler 650 · Rev 03 · p. 79Original parts list ↗

Parts in this drawing

29 entries

Ref.	Part name / number	Assembly qty.	Action
1	Side Panel LH Ebony BlackT13100B40020E	1	Enquiry ↗
2	Number Board LH Jawa Grey GlossT13100B40030L THUNDER GREY	1	Enquiry ↗
2.1	Number Board LH Ebony BlackT13100B40030E RAVEN BLACK	1	Enquiry ↗
2.2	Number Board LH Adventure White GlossT13100B40030B VICTOR YELLOW	1	Enquiry ↗
3	Side Panel RH Ebony BlackT13100B40010E	1	Enquiry ↗
4	Number Board RH Jawa Grey GlossT13100B40040L THUNDER GREY	1	Enquiry ↗
4.1	Number Board RH Ebony BlackT13100B40040E RAVEN BLACK	1	Enquiry ↗
4.2	Number Board RH Adventure White GlossT13100B40040B VICTOR YELLOW	1	Enquiry ↗
5	Screw Rdskt M5X0.8SF0212024	4	Enquiry ↗
6	Screw Rdskt M6X1X12X8.8SF0212037	4	Enquiry ↗
7	Rubber Grommet RoundT13010B10090N	2	Enquiry ↗
8	Rubber GrommetT13010B10080N	4	Enquiry ↗
9	Cap Swing Arm PivotT13010B10070N	1	Enquiry ↗
10	Air Filter Dust CoverT13010B10050N	1	Enquiry ↗
11	Grommet Silencer Mtg,RearT0302CKU0020N	2	Enquiry ↗
12	ABS CoverT08000B10170N	1	Enquiry ↗
13	Collar M6X3LT18000KG0130N	2	Enquiry ↗
14	Screw Rdskt M6X1X12X8.8SF0212037	10	Enquiry ↗
15	ECU CoverT13010B10060N	1	Enquiry ↗
16	Bash PlateT14050B10010N	1	Enquiry ↗
17	Owner'S Manual - BSA Scrambler IndiaT14090B40030N	1	Enquiry ↗
18	Radiator Cover LH Roadster Grey + Red DecalT0401BB40020L THUNDER GREY	1	Enquiry ↗
18.1	Radiator Cover LH Ebony Black + Red DecalT0401BB40020E RAVEN BLACK	1	Enquiry ↗
18.2	Radiator Cover LH Ebony Black +Yellow DecalT0401BB40020D VICTOR YELLOW	1	Enquiry ↗
19	Radiator Cover RH Roadster Grey + Red DecalT0401BB40030L THUNDER GREY	1	Enquiry ↗
19.1	Radiator Cover RH Ebony Black + Red DecalT0401BB40030E RAVEN BLACK	1	Enquiry ↗
19.2	Radiator Cover RH Ebony Black +Yellow DecalT0401BB40030D VICTOR YELLOW	1	Enquiry ↗
20	Lock Set KitT1501NB10080N	1	Enquiry ↗
21	Tool KitT14010B10030N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

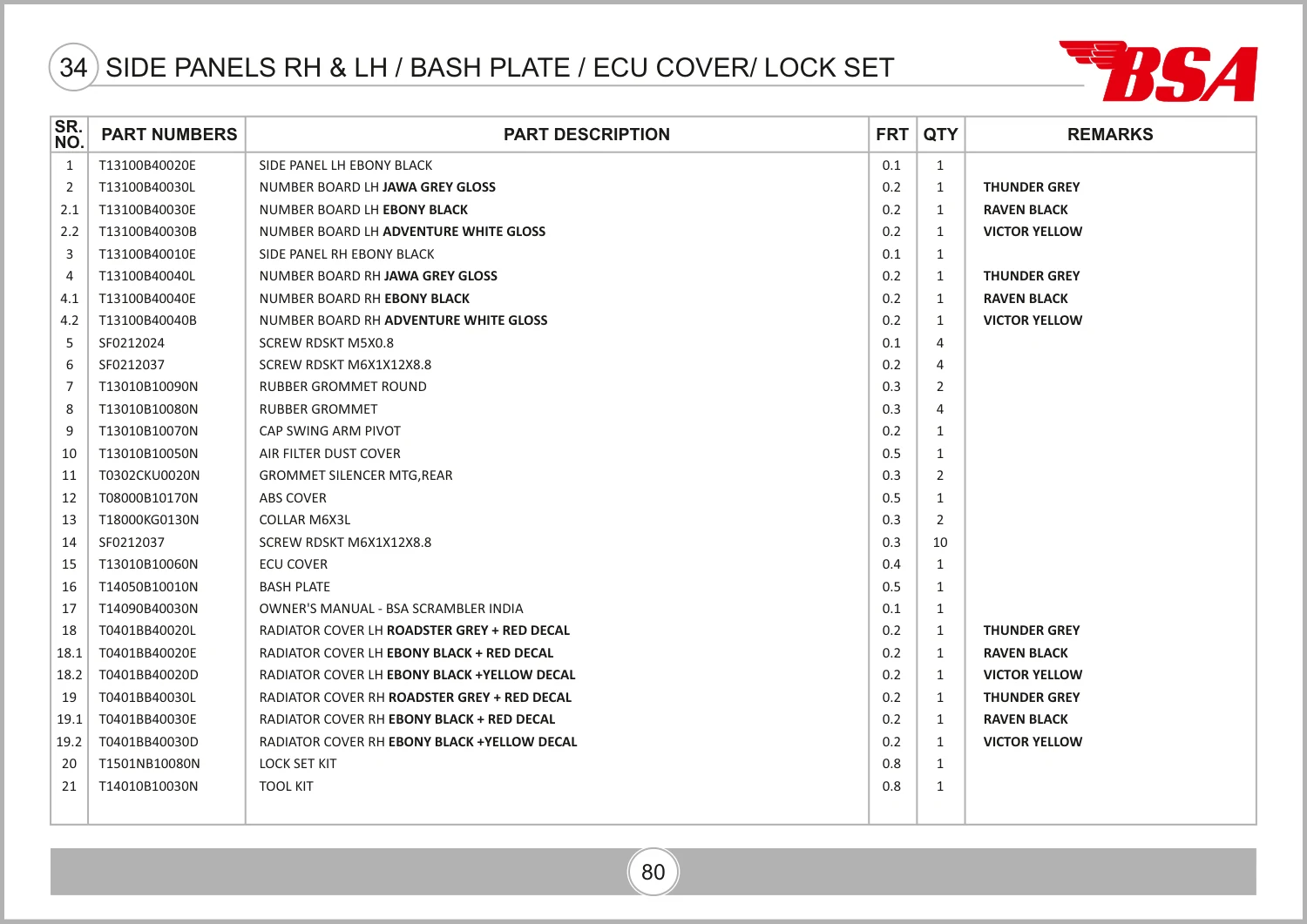

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 89, parts table page 90. View original parts table ↗
