BSA Scrambler 650 · ASSEMBLY 35 · REV 03
Frame, Sub Frame & Mountings - (1/2)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 81Original parts list ↗
Parts in this drawing
22 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Frame Assembly KitT08000B40120N | 1 | |
| 2 | Pad Battery BoxT1503DKE0250N | 1 | |
| 3 | Bolt Fl.6 X 1295701-06012-00 | 7 | |
| 4 | Bracket ECU & FlasherT08000B10510N | 1 | |
| 5 | Clamp ECUT08000B10220N | 1 | |
| 6 | Bracket Loose Cat Box Mounting RHT08000B10480N | 1 | |
| 7 | Screw Hex Fl Sl M8X1.25X20X8.8SF0202054 | 2 | |
| 8 | Grommet Silencer Mtg. Rear(M102)T0302CKU0020N | 1 | |
| 9 | Starter Motor Ground BracketT08000B10400N | 1 | |
| 10 | Clip Windshield Washer Tube0116CAG01001N | 1 | |
| 11 | Screw Rdskt M6X1X16X8.8SF0212048 | 2 | |
| 12 | Socket Head Screw M8X18 (Black)SP0224002 | 2 | |
| 13 | Pop Rivrt 3.20Dia.X8 LongSF0508001 | 2 | |
| 14 | Clamp Throttle CableT0702JKE0010N | 1 | |
| 15 | Holding Bkt Starter HarnessT1503BB10040N | 1 | |
| 16 | Bolt, Socket Head M5X0.8X10 White PassivationTSF0224077 | 1 | |
| 17 | RR Mounting BracketT08000B10440N | 1 | |
| 18 | Saree GuardT14050B40020N | 1 | |
| 19 | Screw Hex Fl Sl M8X1.25X20X8.8SF0202054 | 1 | |
| 20 | Nut Hex Fl Pr M8X1.25X8X8SF0303059 | 1 | |
| 21 | Grab Rail AssemblyT14000B40210N | 1 | |
| 22 | Socket Head Screw M8X70TSF0212016 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

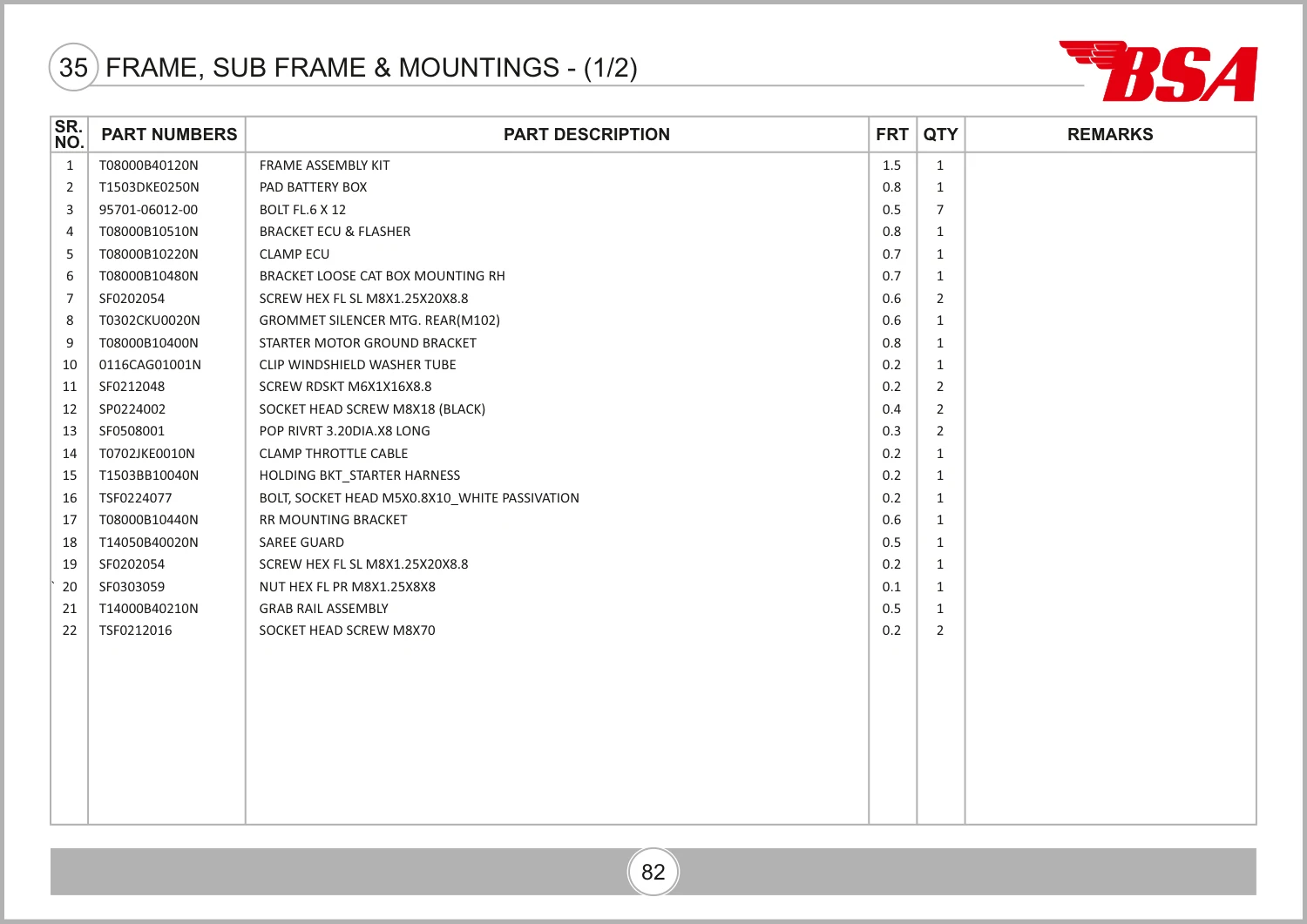

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 91, parts table page 92. View original parts table ↗
