BSA Scrambler 650 · ASSEMBLY 42 · REV 03

Wiring Harness & Battery With Starter Relay And Relay Cordset

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

BSA Scrambler 650 Wiring Harness & Battery With Starter Relay And Relay Cordset exploded assembly diagram, catalogue page 101

BSA Scrambler 650 · Rev 03 · p. 101Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Wiring HarnessT1501AB40070N	1	Enquiry ↗
2	Wiring Battery PositiveT1503AB10020N	1	Enquiry ↗
3	Wiring Battery NegativeT1503AB10030N	1	Enquiry ↗
4	Noise Suppresor Cap - B101T1502FB10020N FITTED TILL - XXXXXX	2	Enquiry ↗
4.1	Noise Suppresor Cap - B101T1502FB10030N FITTED FROM - XXXXXX	2	Enquiry ↗
5	Hazard Relay-Led IndicatorsT1501FY50030N	1	Enquiry ↗
6	Regulator RectifierT1501CB10010N	1	Enquiry ↗
7	Speed Sensor Front Wheel M104T0602FKE0010N	2	Enquiry ↗
8	Cable Strap 200MmT1501AKE2050E	15	Enquiry ↗
9	Noise Suppressor CapT1502FB10020N	2	Enquiry ↗
10	Starter RelayT1503CKE0730E	1	Enquiry ↗
11	Wiring Starter Motor PositiveT1503BB10020N	1	Enquiry ↗
12	Mini Relay (Resistor Type)T1501FKW0120N	5	Enquiry ↗
13	Holder For Hazard RelayT1501JJ20010N	1	Enquiry ↗
14	Spare Fuse Kit AssyT1501QB40050N	1	Enquiry ↗
14.1	Fuse 7.5A MiniT1501QB10030N	1	Enquiry ↗
14.2	Fuse 10A MiniT1501AY50060N	1	Enquiry ↗
14.3	Fuse 15A MiniT1501AY50070N	1	Enquiry ↗
14.4	Fuse 20A MiniT1501AY50080N	1	Enquiry ↗
14.5	Fuse 30A MiniT1501AY50090N	1	Enquiry ↗
15	Lambda SensorT15000B10030N	1	Enquiry ↗
16	Battery PadT1503DKE0250N	1	Enquiry ↗
17	Electronic Control Unit-B401T1502GB40010N	1	Enquiry ↗
17.1	Electronic Control Unit Hardware (Twin Spark) Euro-5+T1502GB10040N ONLY HARDWARE	1	Enquiry ↗
18	Bracket ECU & FlasherT08000B10510N	1	Enquiry ↗
19	Bolt Fl6 X 12.95701-06012-00	2	Enquiry ↗
20	Lambda Sensor (Downstream)T15000B10050N	1	Enquiry ↗
21	Wiring Starter Motor GroundT1503BB10030N	1	Enquiry ↗
22	Wiring Engine SensorT1501AB10050N	1	Enquiry ↗
23	Wiring Rear LampsT1501AB40020N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

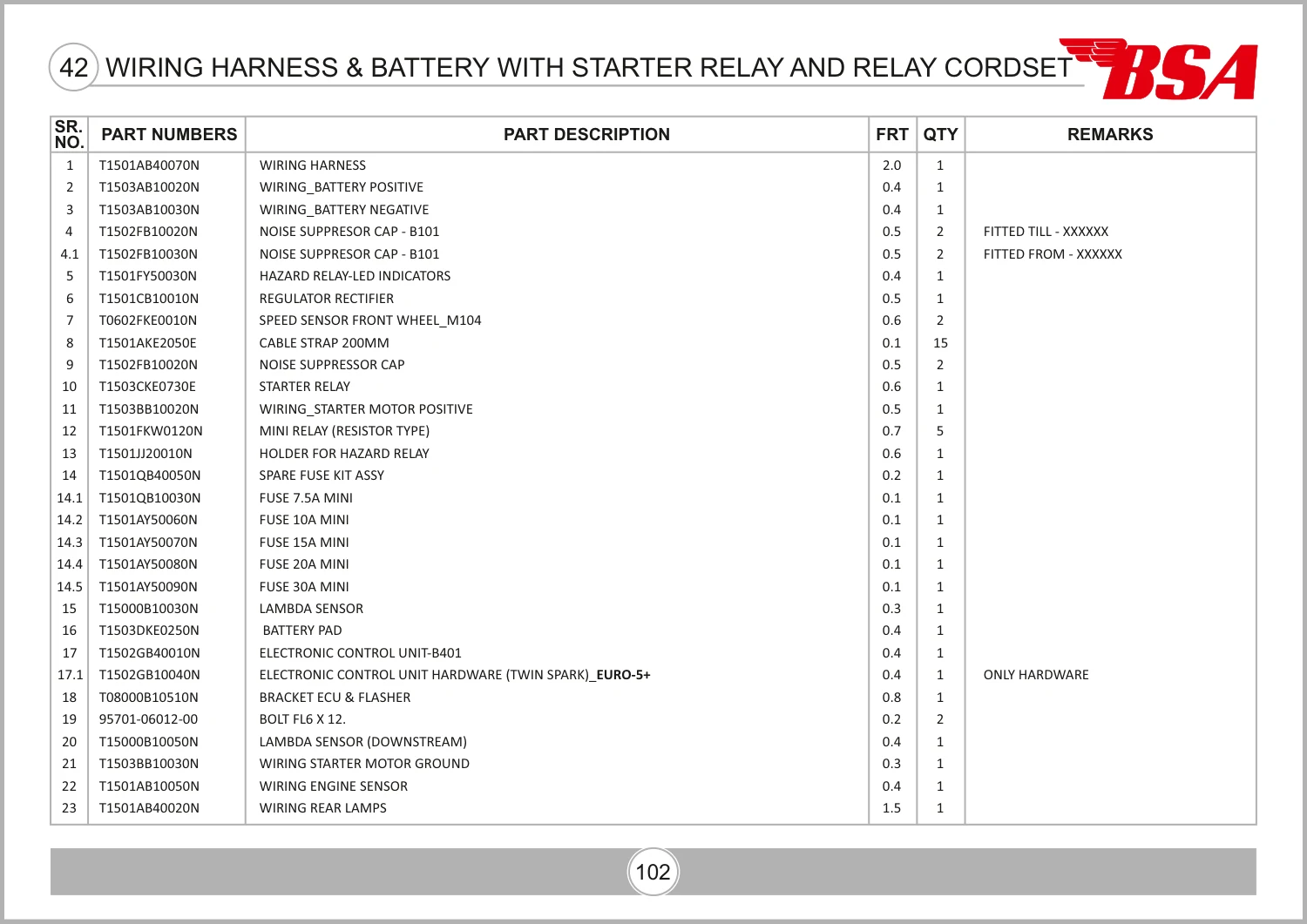

Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 111, parts table page 112. View original parts table ↗
