BSA Scrambler 650 · ASSEMBLY 43 · REV 03
Electronic Fuel Injection (EFI) Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
BSA Scrambler 650 · Rev 03 · p. 103Original parts list ↗

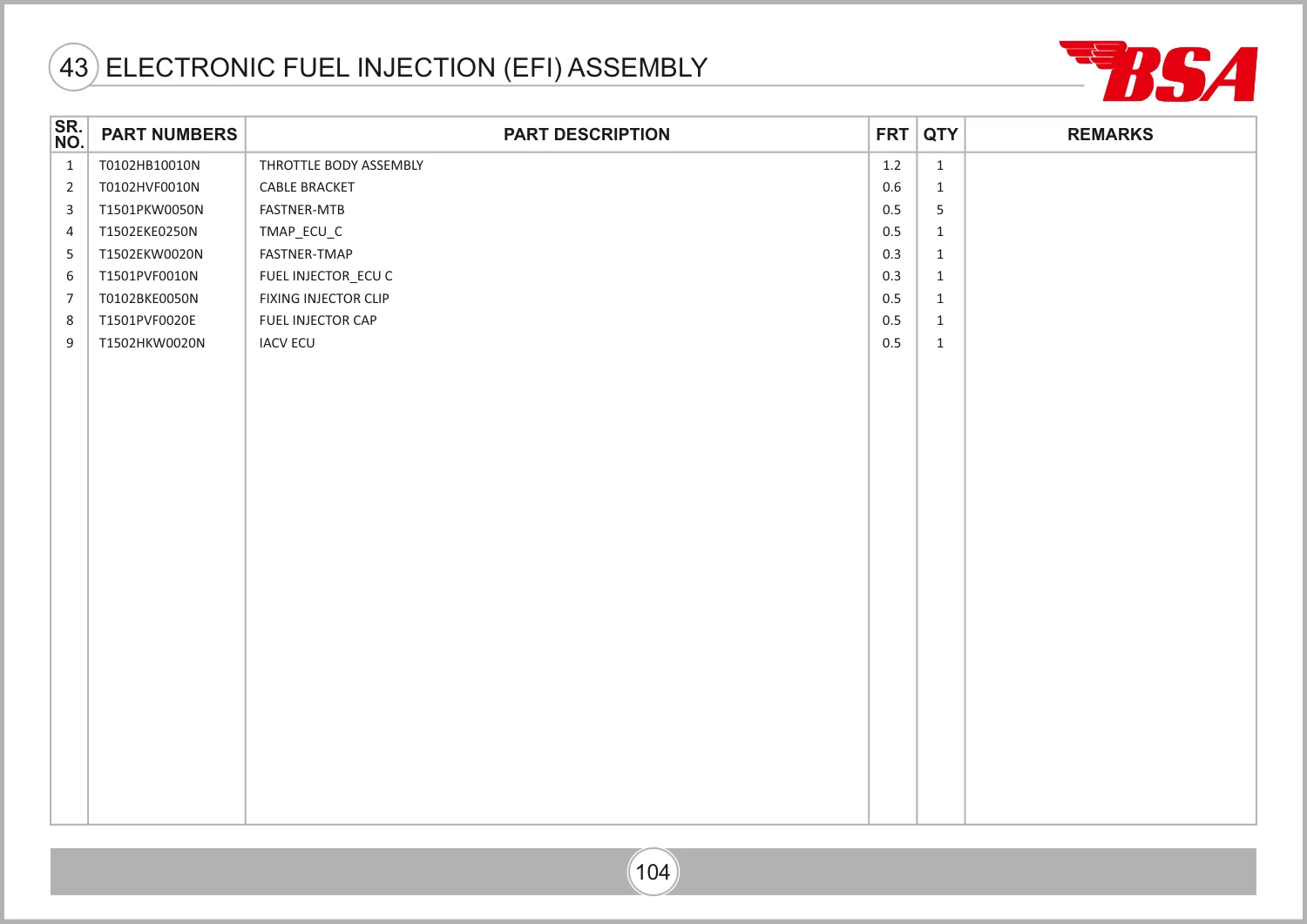

Parts in this drawing
9 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Throttle Body AssemblyT0102HB10010N | 1 | |
| 2 | Cable BracketT0102HVF0010N | 1 | |
| 3 | Fastner-MtbT1501PKW0050N | 5 | |
| 4 | Tmap ECU CT1502EKE0250N | 1 | |
| 5 | Fastner-TmapT1502EKW0020N | 1 | |
| 6 | Fuel Injector ECU CT1501PVF0010N | 1 | |
| 7 | Fixing Injector ClipT0102BKE0050N | 1 | |
| 8 | Fuel Injector CapT1501PVF0020E | 1 | |
| 9 | Iacv ECUT1502HKW0020N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - BSA SCRAMBLER_REV_03.pdf · PDF diagram page 113, parts table page 114. View original parts table ↗
