Jawa 350 · ASSEMBLY 20 · REV 05
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 350 · Rev 05 · p. 53Original parts list ↗
Parts in this drawing
6 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 30 | Bracket Heel Guard Mounting LHT22000KW0030N | 1 | |
| 31 | Hell Guard LHT22000KW0010X | 1 | |
| 32 | Bracket Heel Guard Mounting RHT22000KW0040N | 1 | |
| 33 | Hell Guard RHT22000KW0020X | 1 | |
| 34 | Screw Rdskt M6X1X12X8.8SF0212026 | 4 | |
| 35 | Pin , Pendal Return SpringT2201AKW0150N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

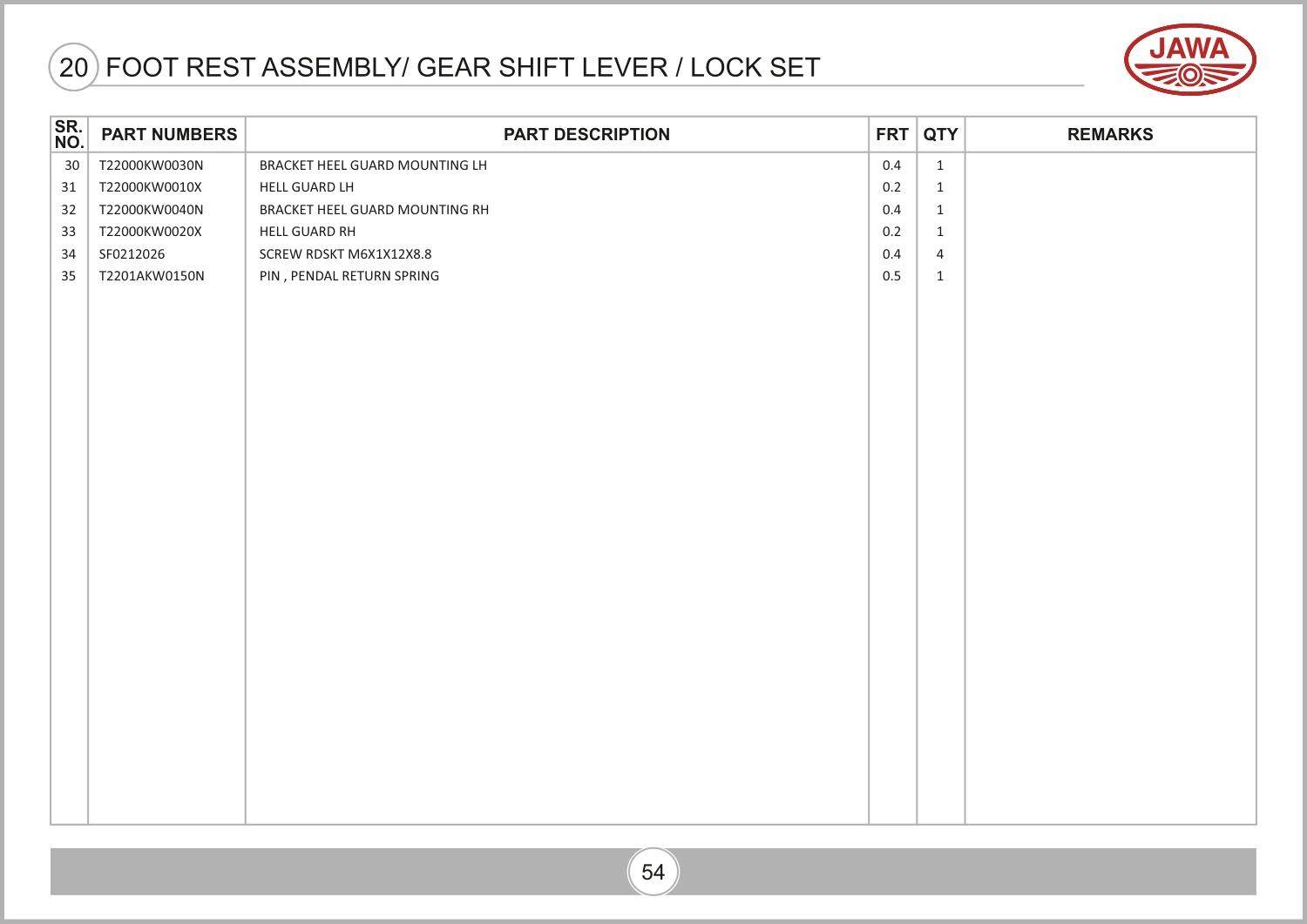

Source: PARTS CATALOGUE - JAWA 350_REV-05.pdf · PDF diagram page 63, parts table page 64. View original parts table ↗
