Jawa 350 spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 57 diagram sheets and 1,090 parts entries, including repeated parts used in different assemblies.
Assembly 1

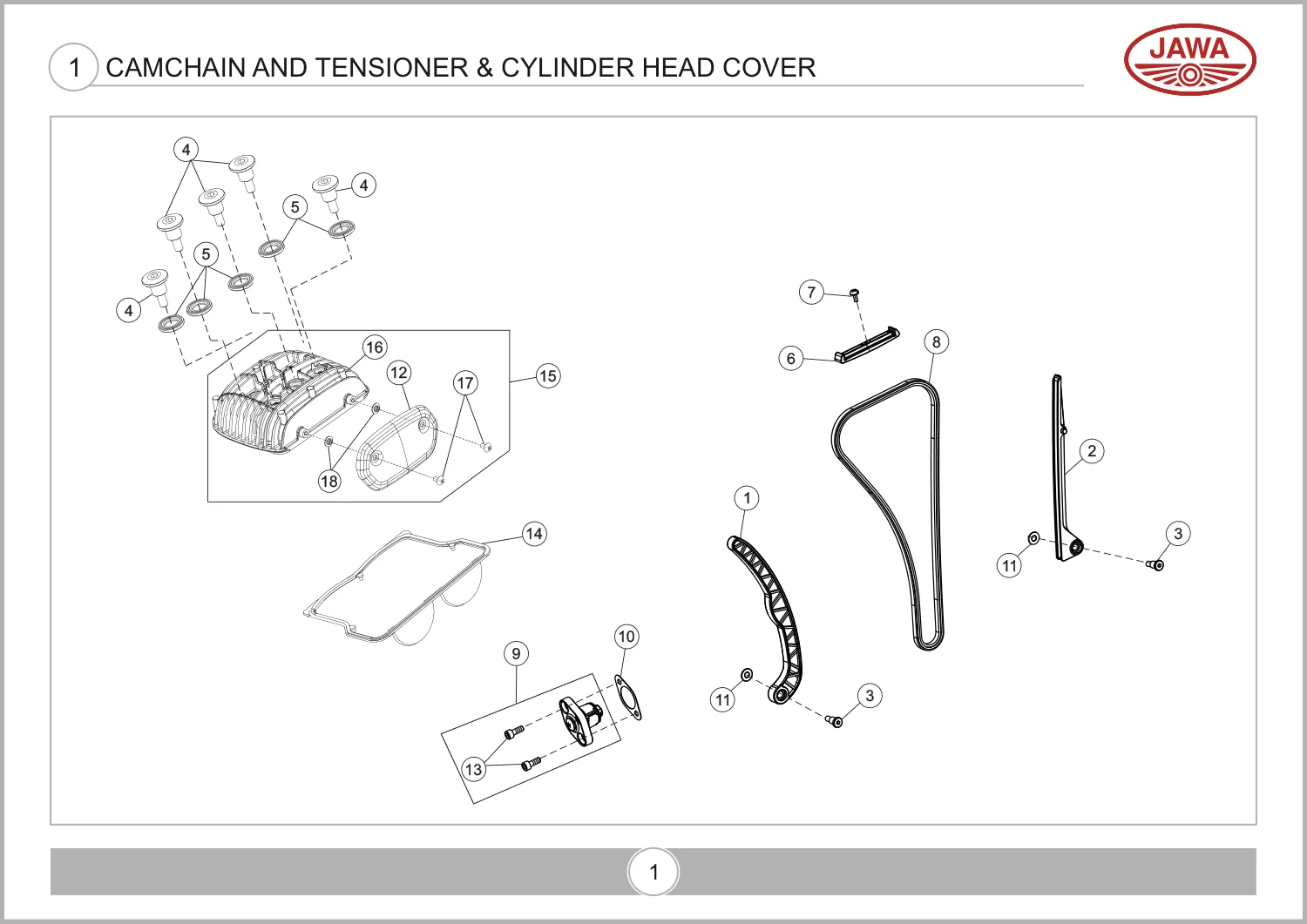

Camchain And Tensioner & Cylinder Head Cover
Page 1 · 18 parts
Assembly 2
Crankcase LH
Page 3 · 27 parts
Assembly 3
Crankcase RH
Page 5 · 20 parts
Assembly 4
Cylinder Head Explosion
Page 7 · 25 parts
Assembly 5
Drum Asm & Shift Shaft Mech Cambine
Page 9 · 24 parts
Assembly 6
Magneto Assembly - OBD II
Page 11 · 11 parts
Assembly 7
Starting System & Starter Motor
Page 13 · 16 parts
Assembly 8

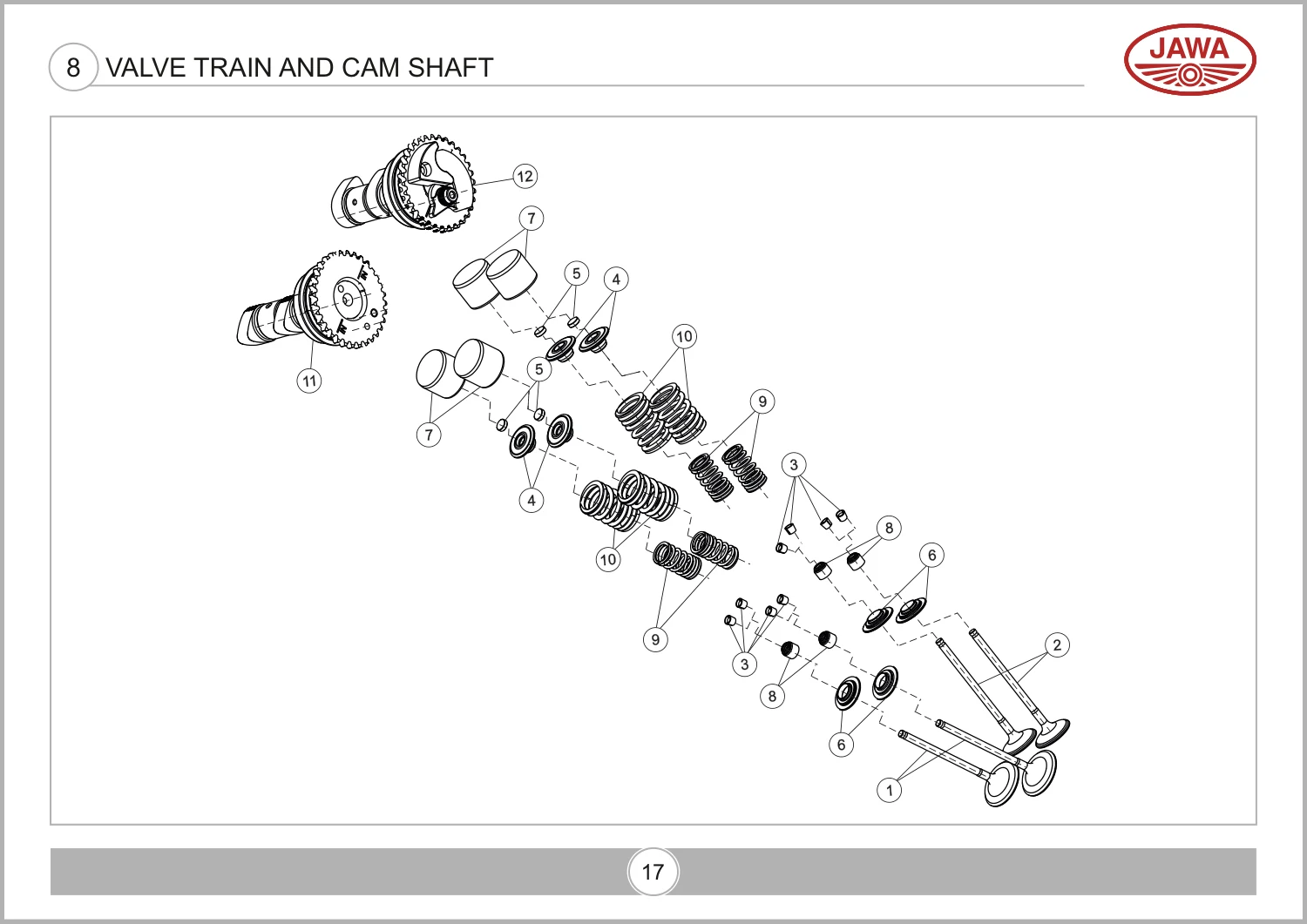

Valve Train And Cam Shaft
Page 15 · 30 parts
Assembly 8
Valve Train And Cam Shaft
Page 17 · 30 parts
Assembly 8
Valve Train And Cam Shaft
Page 19 · 2 parts
Assembly 9
Balancer Shaft Assembly
Page 21 · 9 parts
Assembly 10
Transmission System - OBD II
Page 23 · 30 parts
Assembly 10
Transmission System - OBD II
Page 25 · 11 parts
Assembly 11

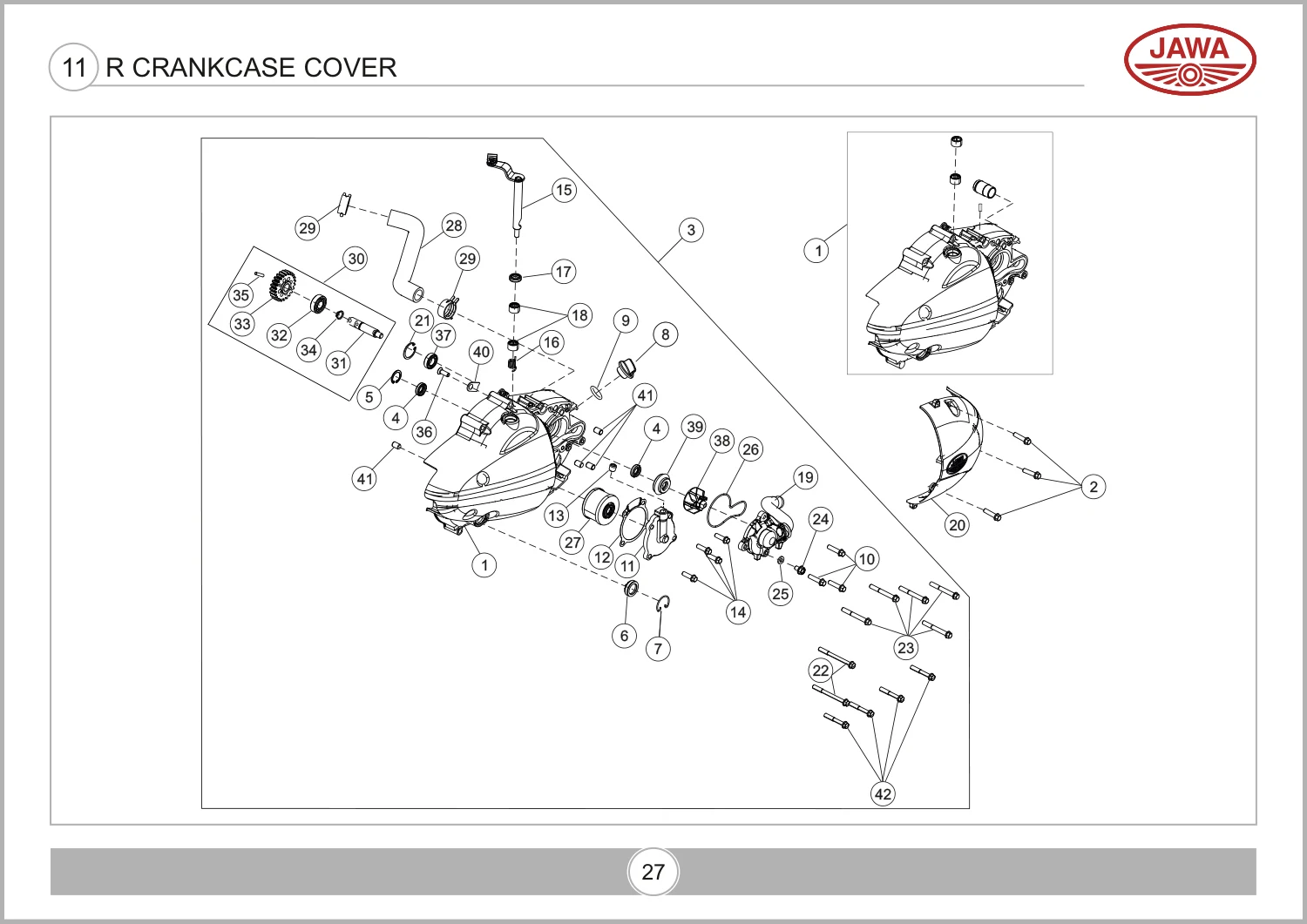

R Crankcase Cover
Page 27 · 30 parts
Assembly 11
R Crankcase Cover
Page 29 · 12 parts
Assembly 12
Crankshaft And Piston
Page 31 · 20 parts
Assembly 13
Magneto Cover LH
Page 33 · 24 parts
Assembly 14

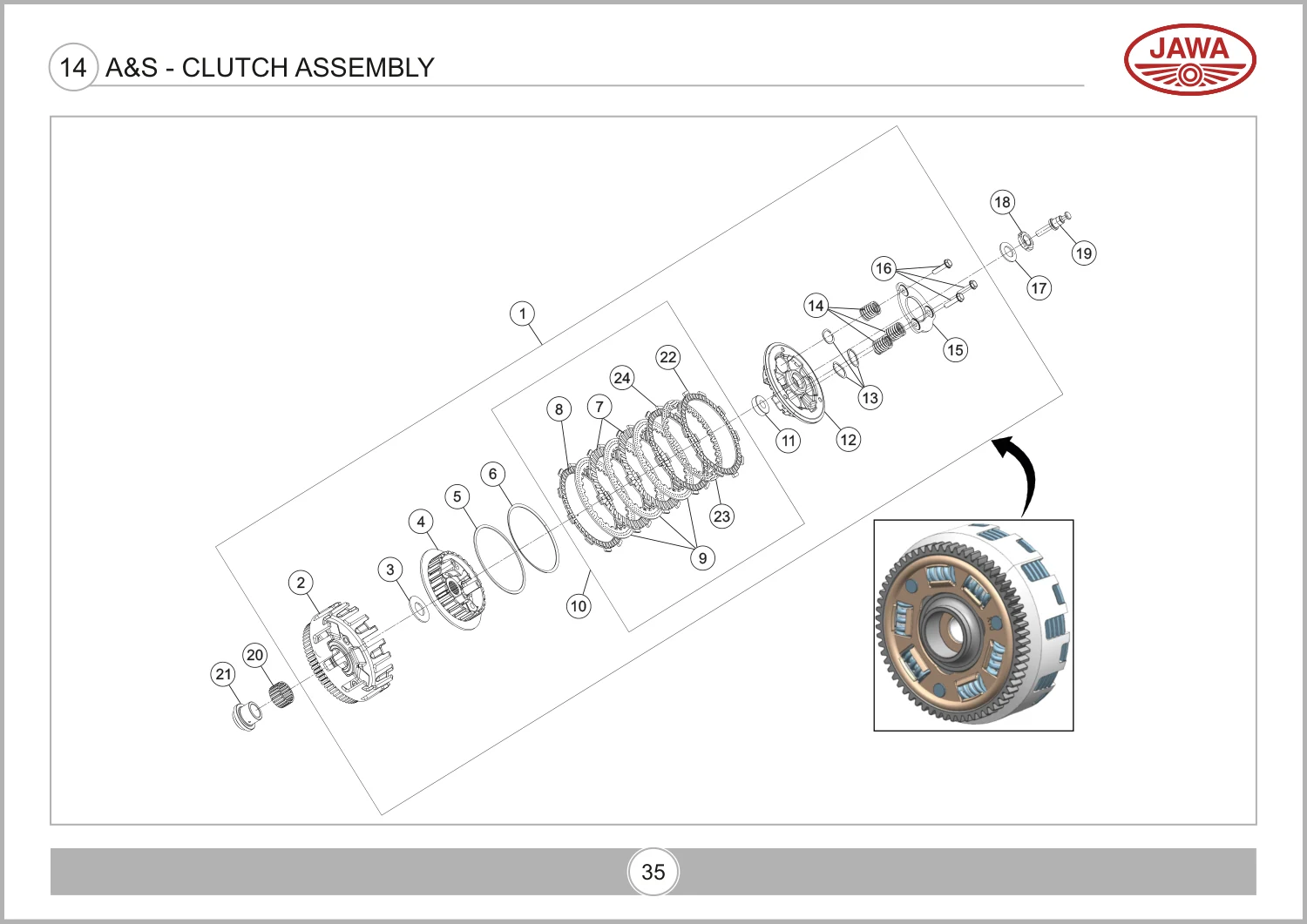

A&S - Clutch Assembly
Page 35 · 24 parts
Assembly 15
Evaporative Emission System
Page 37 · 12 parts
Assembly 16
Air Filter Assembly
Page 39 · 30 parts
Assembly 16
Air Filter Assembly
Page 41 · 2 parts
Assembly 17
Brake System Front
Page 43 · 25 parts
Assembly 18
Brake System - Front & Rear (Dual Channel ABS)
Page 45 · 30 parts
Assembly 18
Brake System - Front & Rear (Dual Channel ABS)
Page 47 · 5 parts
Assembly 19
Anti-Lock Braking System (ABS)-Dual Channel
Page 49 · 5 parts
Assembly 20Page 51 · 30 parts
Assembly 20Page 53 · 6 parts
Assembly 21
Front Wheel Assembly
Page 55 · 22 parts
Assembly 22
Fuel Tank Assembly
Page 57 · 30 parts
Assembly 22
Fuel Tank Assembly
Page 59 · 7 parts
Assembly 23
Mudguard Assembly
Page 61 · 12 parts
Assembly 24

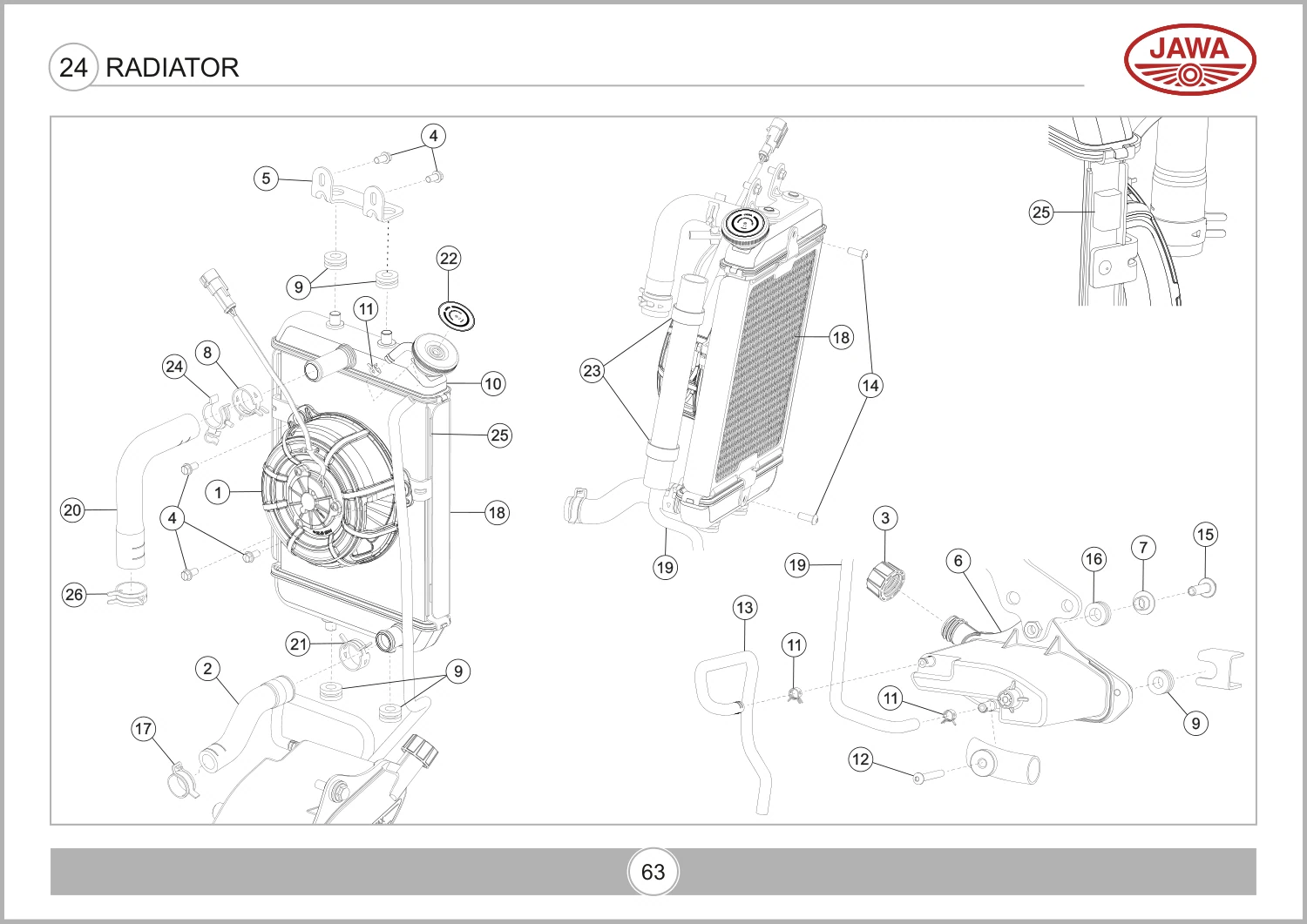

Radiator
Page 63 · 26 parts
Assembly 25
Rear Fender Assembly
Page 65 · 30 parts
Assembly 25
Rear Fender Assembly
Page 67 · 17 parts
Assembly 26
Rear Wheel Assembly - Dual Channel ABS
Page 69 · 30 parts
Assembly 27

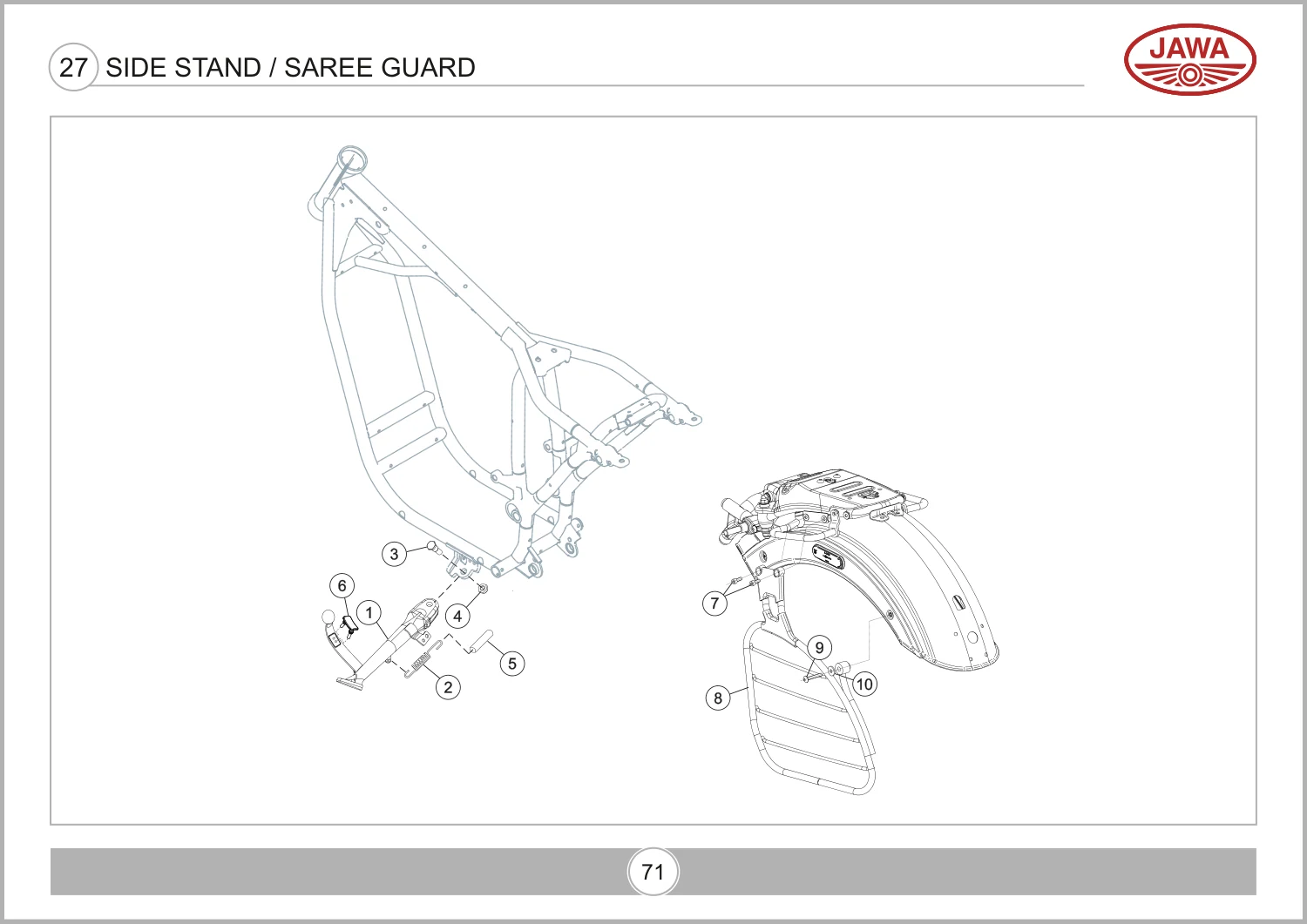

Side Stand / Saree Guard
Page 71 · 10 parts
Assembly 28
Seat Assembly
Page 73 · 9 parts
Assembly 29
Silencer Assembly
Page 75 · 31 parts
Assembly 30
Steering
Page 77 · 12 parts
Assembly 31
Front Fork Assembly
Page 79 · 24 parts
Assembly 32
Front Fork Mountings
Page 81 · 28 parts
Assembly 33
Fairing Assembly
Page 83 · 30 parts
Assembly 33
Fairing Assembly
Page 85 · 9 parts
Assembly 34

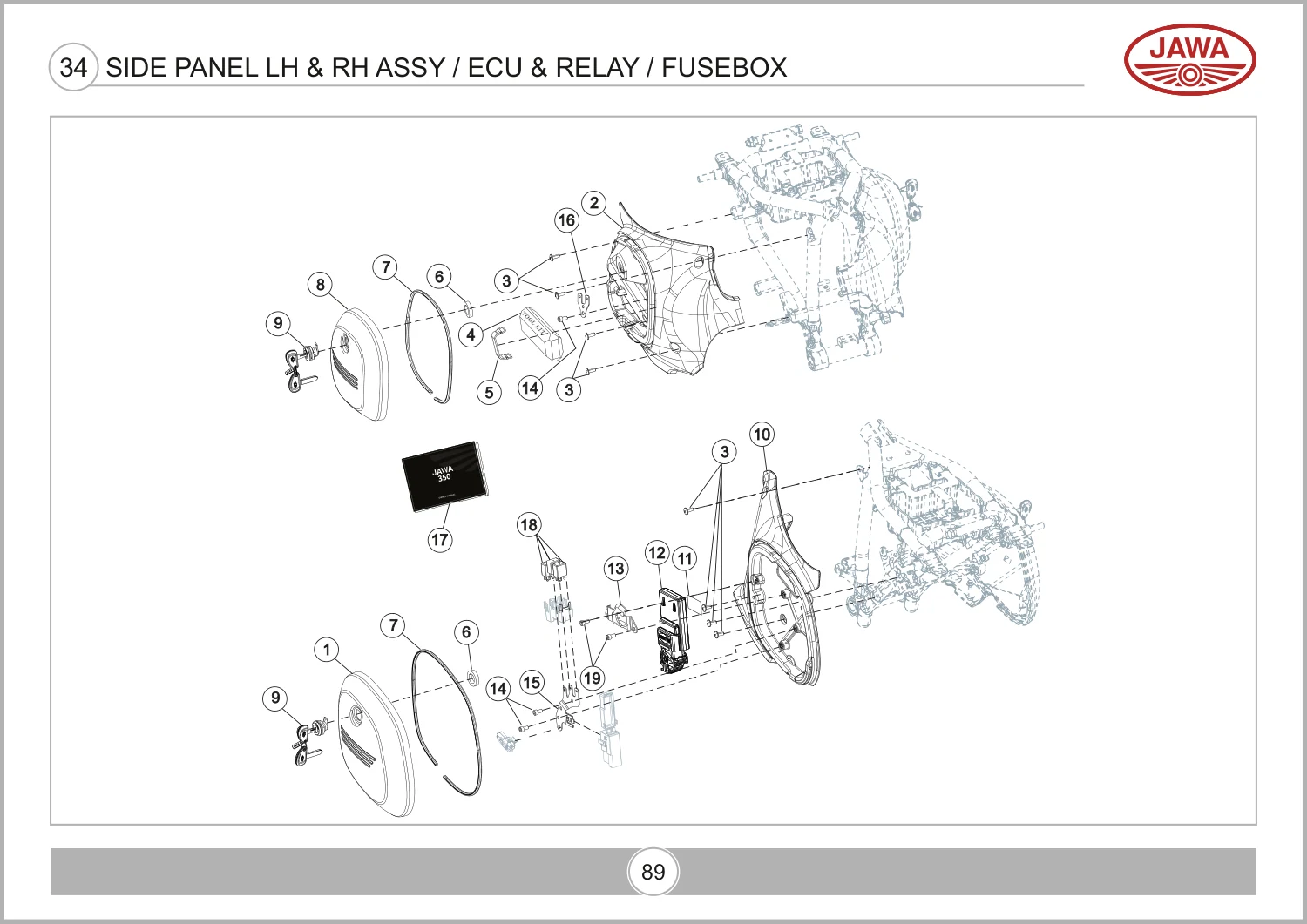

Side Panel LH & RH Assy / ECU & Relay / Fusebox
Page 87 · 30 parts
Assembly 34
Side Panel LH & RH Assy / ECU & Relay / Fusebox
Page 89 · 4 parts
Assembly 35
Frame Assembly/ Sub Frame Assembly
Page 91 · 28 parts
Assembly 36
Engine Mounting System
Page 93 · 12 parts
Assembly 37

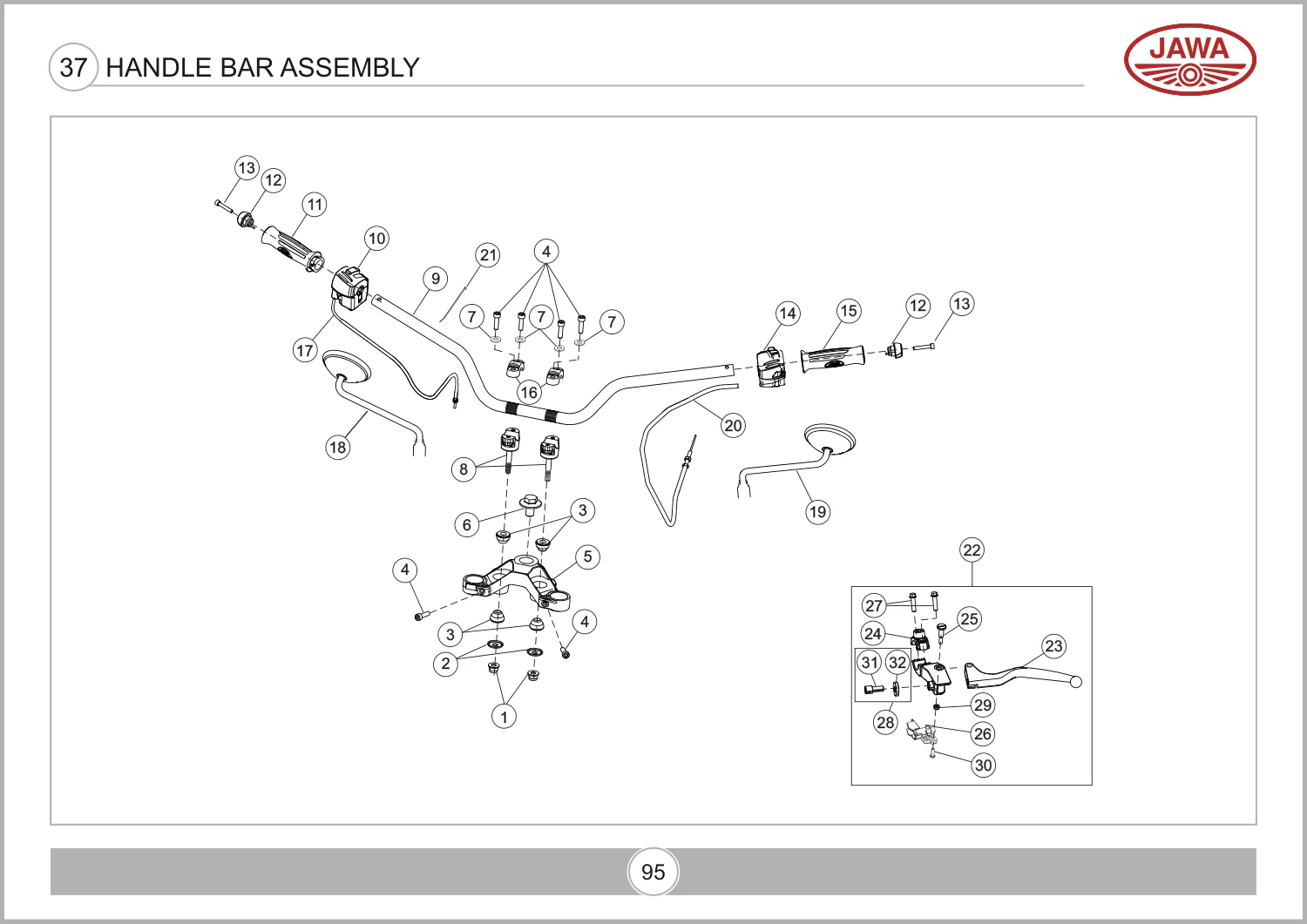

Handle Bar Assembly
Page 95 · 30 parts
Assembly 37
Handle Bar Assembly
Page 97 · 2 parts
Assembly 38

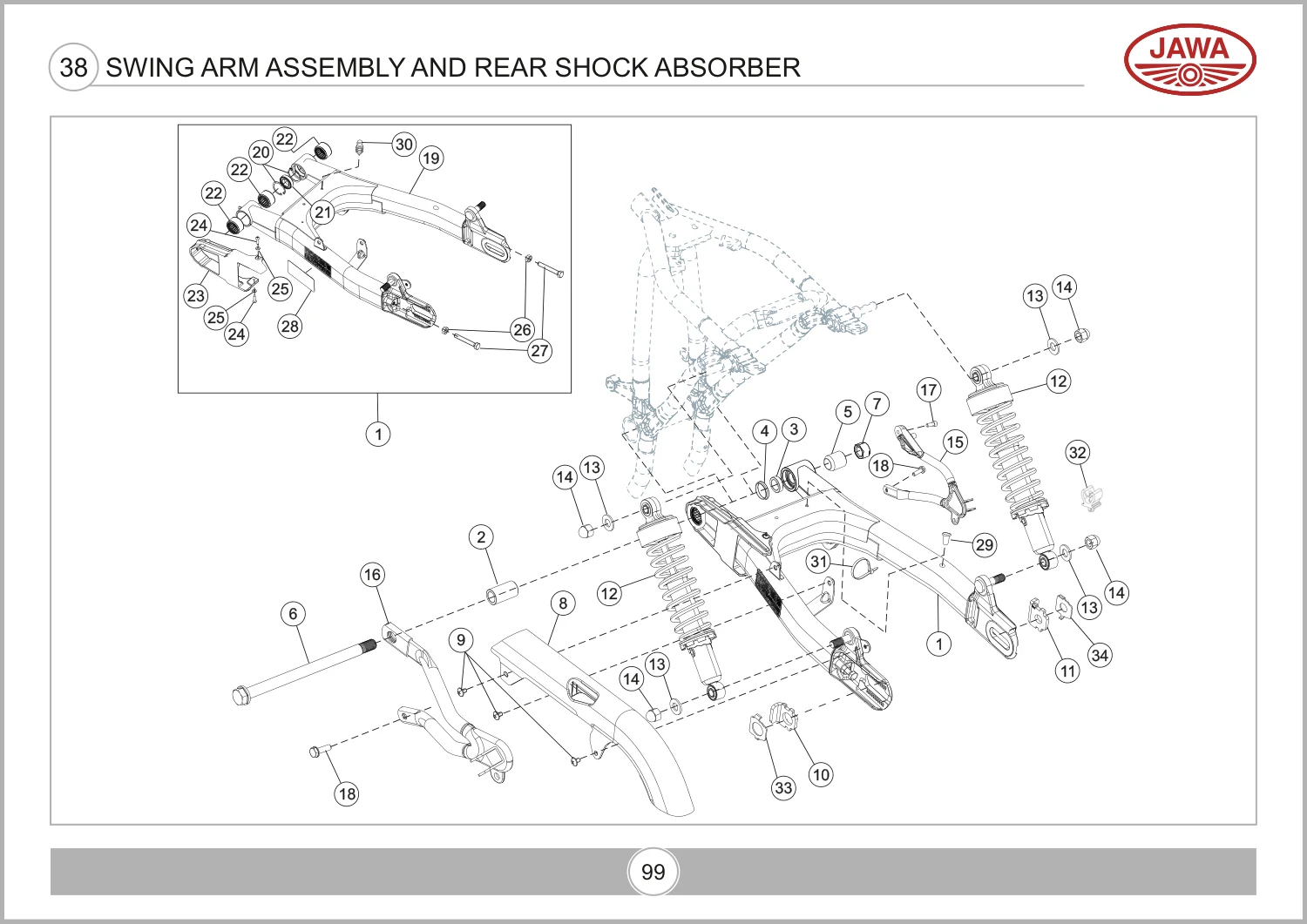

Swing Arm Assembly And Rear Shock Absorber
Page 99 · 30 parts
Assembly 38
Swing Arm Assembly And Rear Shock Absorber
Page 101 · 4 parts
Assembly 39
Headlamp, Tail Lamp & Speedometer Assembly
Page 103 · 30 parts
Assembly 39
Headlamp, Tail Lamp & Speedometer Assembly
Page 105 · 5 parts
Assembly 40
Wiring Harness,Cordset Dual Channel ABS
Page 107 · 26 parts
Assembly 41

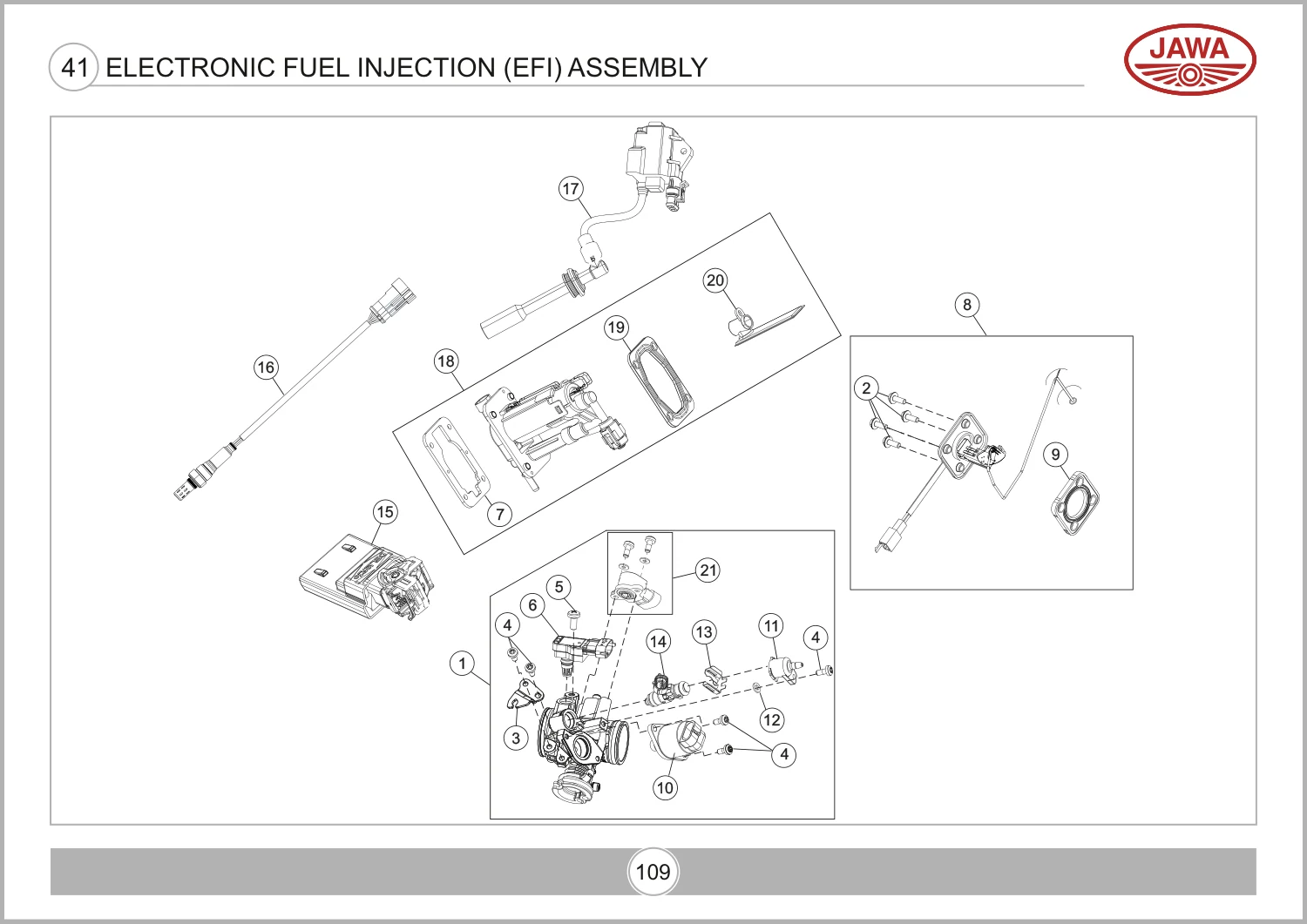

Electronic Fuel Injection (EFI) Assembly
Page 109 · 22 parts
Assembly 42
Decals - Jawa 350
Page 111 · 20 parts
Assembly 43
Decals - Jawa 350
Page 113 · 12 partsNo matching assemblies. Try a broader name.
