Jawa 350 · ASSEMBLY 28 · REV 05
Seat Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 350 · Rev 05 · p. 73Original parts list ↗
Parts in this drawing
9 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Seat AssemblyT09000KW0050N | 1 | |
| 2 | Seat Tongue Rubber DamperT0901EKW0010N | 1 | |
| 3 | Pillion Seat Mtg Bracket LHT09010J20240N | 1 | |
| 4 | Pillion Seat Mtg Bracket RHT09010J20250N | 1 | |
| 5 | Flanged Head Bolt-Sh M6X12SP0906041 | 4 | |
| 6 | Grommet Seat Rear MountingT09000KW0080N | 1 | |
| 7 | Washer Plain M6X18X1.6SF0401090 | 2 | |
| 8 | Screw Rdskt M6X1X12Xa2-70SF0212023 | 4 | |
| 9 | Seat Rear Mounting BracketT08000KW0730N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

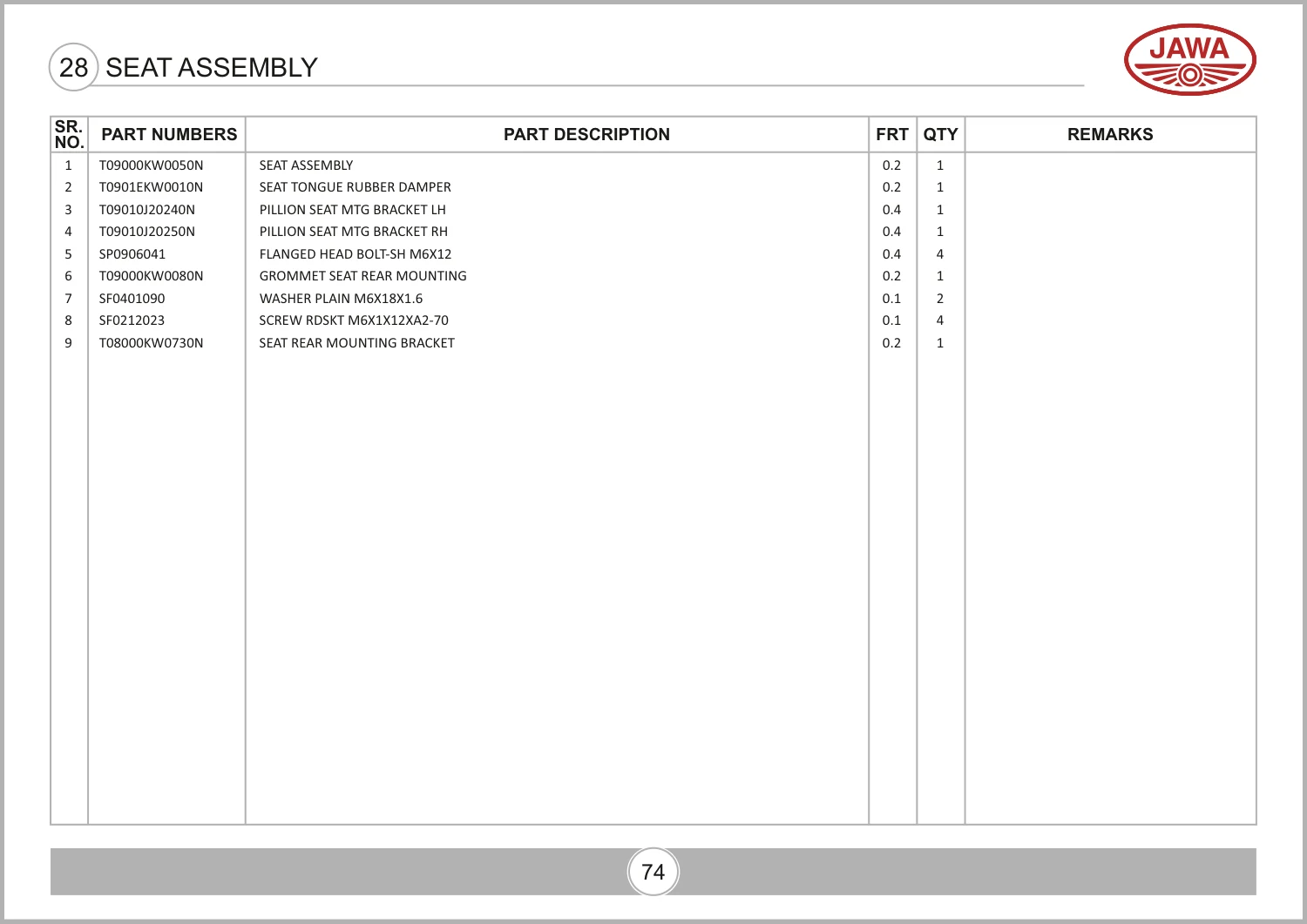

Source: PARTS CATALOGUE - JAWA 350_REV-05.pdf · PDF diagram page 83, parts table page 84. View original parts table ↗
