Jawa 350 · ASSEMBLY 23 · REV 05
Mudguard Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 350 · Rev 05 · p. 61Original parts list ↗
Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Front Fender-Cowl Maroon Ral3005 Jawa 350T13060KW0070A | 1 | |
| 1.1 | Front Fender-Cowl Black 6C Jawa 350T13060KW0070E | 1 | |
| 1.2 | Front Fender-Cowl Mystic Orange Jawa 350T13060KW0070J | 1 | |
| 1.3 | Front Fender-Cowl Metallic Silver Jawa 350T13060KW0070F | 1 | |
| 1.4 | Front Fender-Cowl Obsidian Black Jawa 350T13060KW0070X | 1 | |
| 1.5 | Front Fender-Cowl Deep Forest Jawa 350T13060KW0070G | 1 | |
| 1.6 | Front Fender-Cowl Grey Jawa 350T13060KW0070Y | 1 | |
| 1.7 | Front Fender-Cowl White Chrome Jawa 350T13060KW0070B | 1 | |
| 2 | Screw Rdskt M6X1X8Xa2-70SF0212030 | 4 | |
| 3 | Front Fender Stay-Tubular Chrome PlatedT13060KW0080N | 4 | |
| 4 | Screw Rdskt M6X1X12Xa2-70SF0212023 | 4 | |
| 5 | Nut Hex Fl M6X1X6X8 GrSF0303005 | 8 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

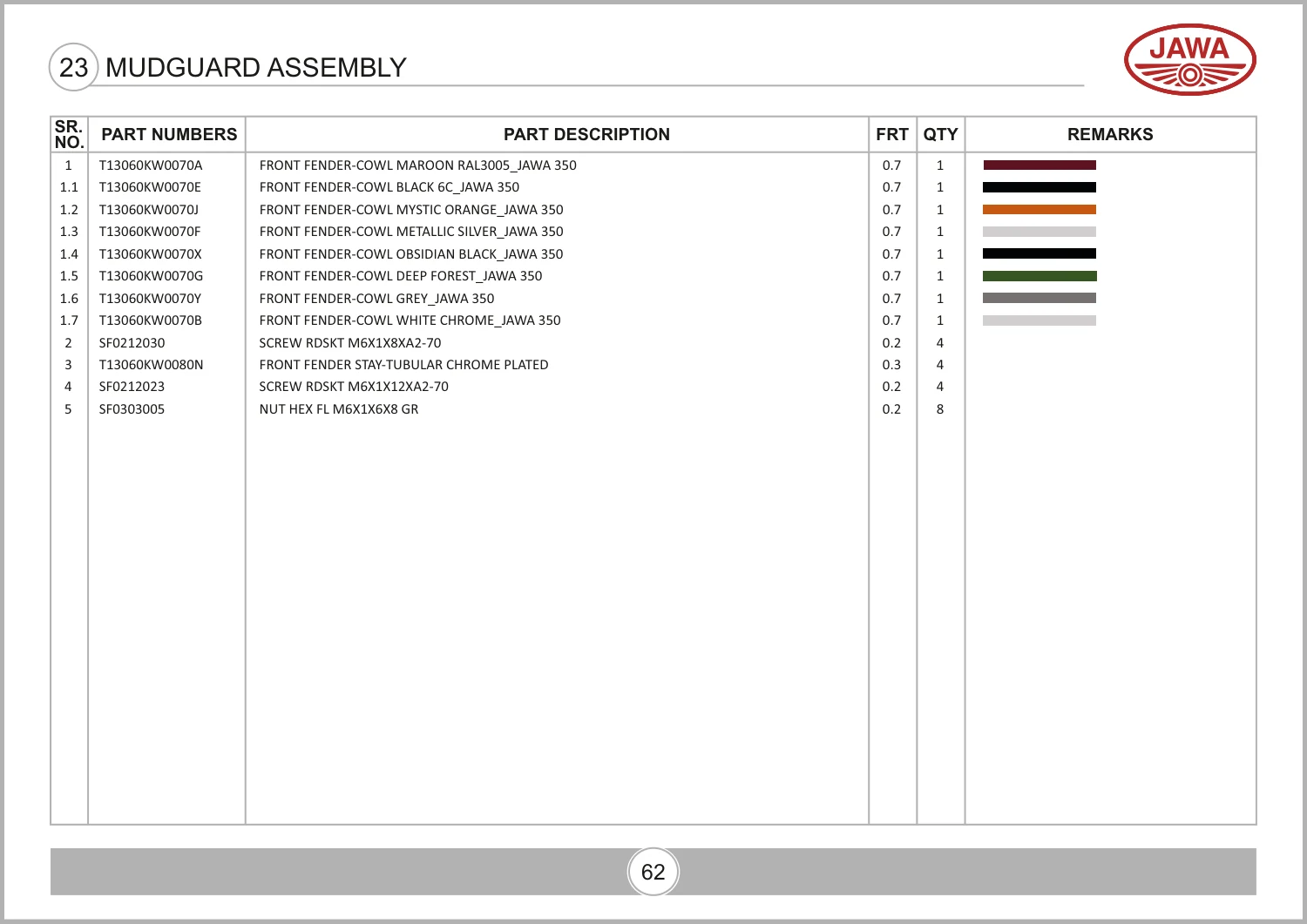

Source: PARTS CATALOGUE - JAWA 350_REV-05.pdf · PDF diagram page 71, parts table page 72. View original parts table ↗
