Jawa 350 · ASSEMBLY 31 · REV 05
Front Fork Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 350 · Rev 05 · p. 79Original parts list ↗

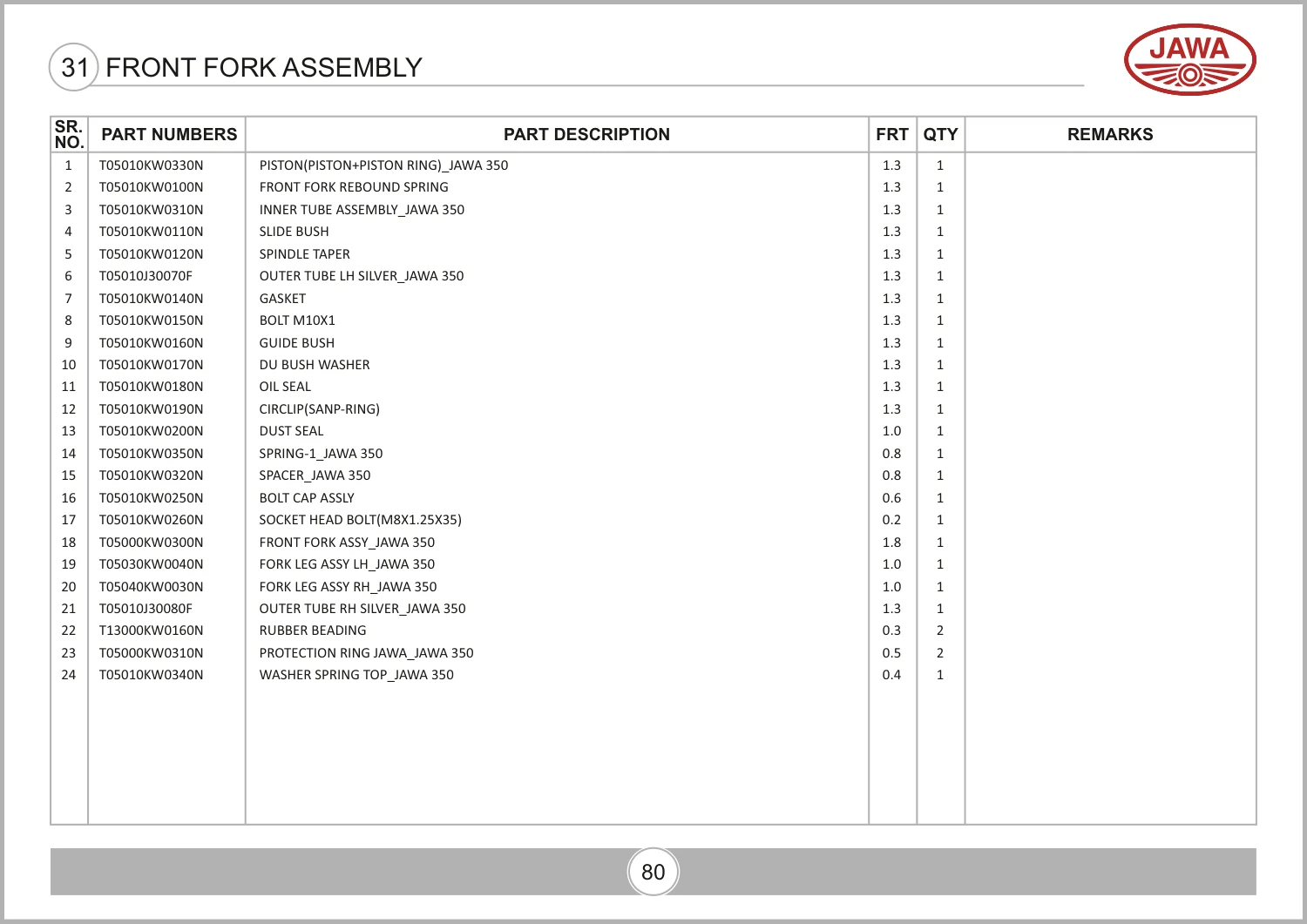

Parts in this drawing
24 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Piston(Piston+Piston Ring) Jawa 350T05010KW0330N | 1 | |
| 2 | Front Fork Rebound SpringT05010KW0100N | 1 | |
| 3 | Inner Tube Assembly Jawa 350T05010KW0310N | 1 | |
| 4 | Slide BushT05010KW0110N | 1 | |
| 5 | Spindle TaperT05010KW0120N | 1 | |
| 6 | Outer Tube LH Silver Jawa 350T05010J30070F | 1 | |
| 7 | GasketT05010KW0140N | 1 | |
| 8 | Bolt M10X1T05010KW0150N | 1 | |
| 9 | Guide BushT05010KW0160N | 1 | |
| 10 | Du Bush WasherT05010KW0170N | 1 | |
| 11 | Oil SealT05010KW0180N | 1 | |
| 12 | Circlip(Sanp-Ring)T05010KW0190N | 1 | |
| 13 | Dust SealT05010KW0200N | 1 | |
| 14 | Spring-1 Jawa 350T05010KW0350N | 1 | |
| 15 | Spacer Jawa 350T05010KW0320N | 1 | |
| 16 | Bolt Cap AsslyT05010KW0250N | 1 | |
| 17 | Socket Head Bolt(M8X1.25X35)T05010KW0260N | 1 | |
| 18 | Front Fork Assy Jawa 350T05000KW0300N | 1 | |
| 19 | Fork Leg Assy LH Jawa 350T05030KW0040N | 1 | |
| 20 | Fork Leg Assy RH Jawa 350T05040KW0030N | 1 | |
| 21 | Outer Tube RH Silver Jawa 350T05010J30080F | 1 | |
| 22 | Rubber BeadingT13000KW0160N | 2 | |
| 23 | Protection Ring Jawa Jawa 350T05000KW0310N | 2 | |
| 24 | Washer Spring Top Jawa 350T05010KW0340N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA 350_REV-05.pdf · PDF diagram page 89, parts table page 90. View original parts table ↗
