Jawa 350 · ASSEMBLY 33 · REV 05

Fairing Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 350 Fairing Assembly exploded assembly diagram, catalogue page 83

Jawa 350 · Rev 05 · p. 83Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
2	Collar Tail Lamp MtgMF01730000300	2	Enquiry ↗
3	Fr Fairing Lower Cowl Maroon Ral3005 Jawa 350T13160KW0360A	1	Enquiry ↗
3.1	Fr Fairing Lower Cowl Black 6C Jawa 350T13160KW0360E	1	Enquiry ↗
3.2	Fr Fairing Lower Cowl Mystic Orange Jawa 350T13160KW0360J	1	Enquiry ↗
3.3	Fr Fairing Lower Cowl Metallic Silver Jawa 350T13160KW0360F	1	Enquiry ↗
3.4	Fr Fairing Lower Cowl Obsidian Black Jawa 350T13160KW0360X	1	Enquiry ↗
3.5	Fr Fairing Lower Cowl Deep Forest Jawa 350T13160KW0360G	1	Enquiry ↗
3.6	Fr Fairing Lower Cowl Grey Jawa 350T13160KW0360Y	1	Enquiry ↗
3.7	Fr Fairing Lower Cowl White Chrome Jawa 350T13160KW0360B	1	Enquiry ↗
4	Screw Rdskt M8X1.25X16Xa2-70SF0212025	3	Enquiry ↗
5	Fr Fairing Upper Cowl Maroon Ral3005 Jawa 350T13160KW0350A	1	Enquiry ↗
5.1	Fr Fairing Upper Cowl Black 6C Jawa 350T13160KW0350E	1	Enquiry ↗
5.2	Fr Fairing Upper Cowl Mystic Orange Jawa 350T13160KW0350J	1	Enquiry ↗
5.3	Fr Fairing Upper Cowl Metallic Silver Jawa 350T13160KW0350F	1	Enquiry ↗
5.4	Fr Fairing Upper Cowl Obsidian Black Jawa 350T13160KW0350X	1	Enquiry ↗
5.5	Fr Fairing Upper Cowl Deep Forest Jawa 350T13160KW0350G	1	Enquiry ↗
5.6	Fr Fairing Upper Cowl Grey Jawa 350T13160KW0350Y	1	Enquiry ↗
5.7	Fr Fairing Upper Cowl White Chrome Jawa 350T13160KW0350B	1	Enquiry ↗
6	Grommet Tail CoverT13030KG0130N	1	Enquiry ↗
7	Plug Handle Bar LHT13160KW0010N	1	Enquiry ↗
8	Plug Handle Bar RHT13160KW0020N	1	Enquiry ↗
9	Speedoemter Assembly Jawa 350T1501HKW0140N	1	Enquiry ↗
10	Washer Plain M6X18X1.6SF0401090	4	Enquiry ↗
11	Head Lamp Assembly - J1-AT1501DKW0010N	1	Enquiry ↗
12	Screw Rdskt M6X1X12Xa2-70SF0212026	2	Enquiry ↗
13	Horn Assembly - 70 DiaT1501BKW0010E	1	Enquiry ↗
14	Button Head Socket Screw M6X30TSF0214019	2	Enquiry ↗
15	Turn Signal Indicator Front LHT1501GKW0010N	1	Enquiry ↗
16	Turn Signal Indicator Front RHT1501GKW0020N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

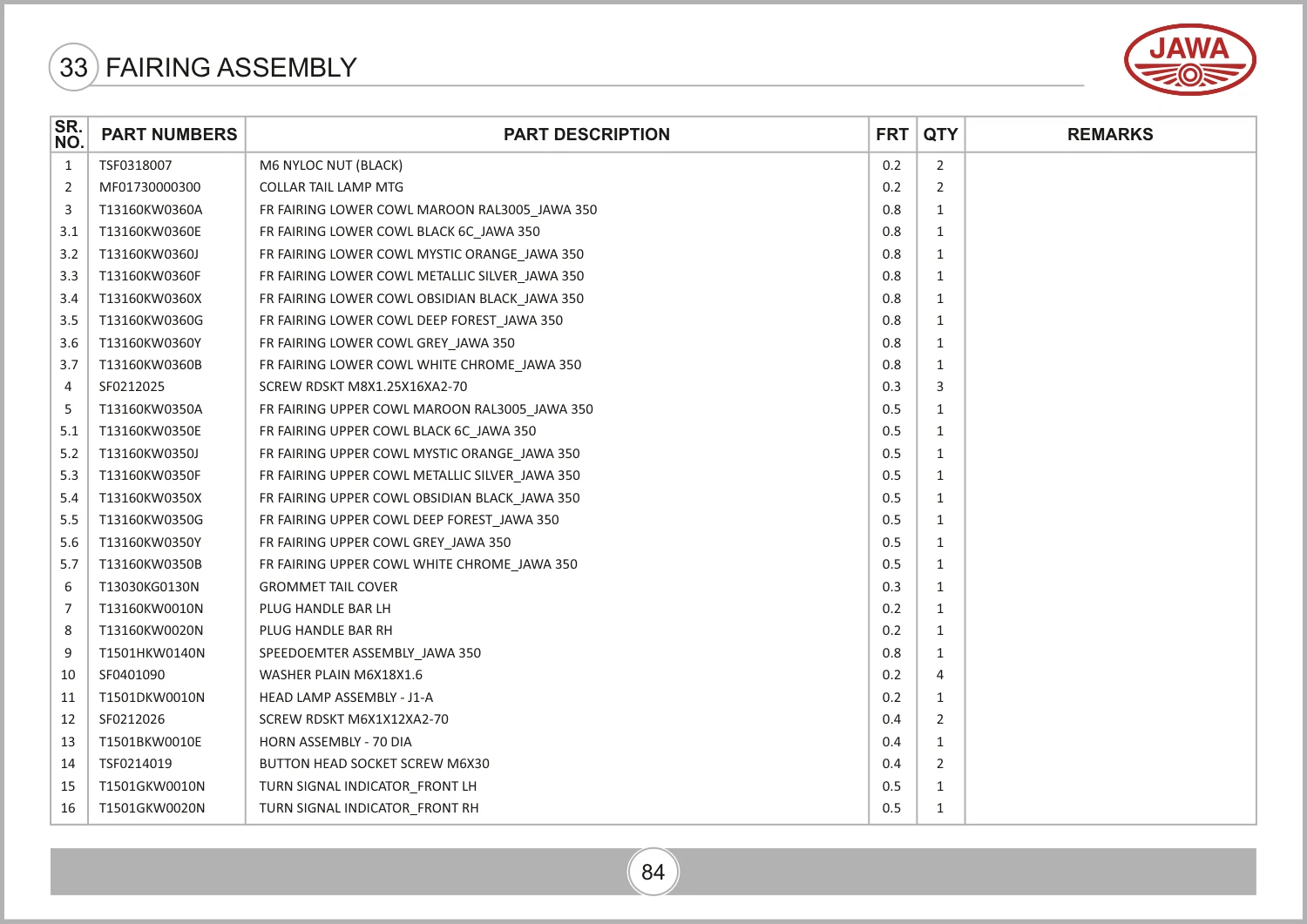

Source: PARTS CATALOGUE - JAWA 350_REV-05.pdf · PDF diagram page 93, parts table page 94. View original parts table ↗
