Jawa 350 · ASSEMBLY 25 · REV 05

Rear Fender Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 350 Rear Fender Assembly exploded assembly diagram, catalogue page 65

Jawa 350 · Rev 05 · p. 65Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Number Plate-FrontT14000AB0430B	1	Enquiry ↗
2	Rear Mudguard Maroon Ral3005 Jawa 350T13070KW0140A	1	Enquiry ↗
2.1	Rear Mudguard Black 6C Jawa 350T13070KW0140E	1	Enquiry ↗
2.2	Rear Mudguard Mystic Orange Jawa 350T13070KW0140J	1	Enquiry ↗
2.3	Rear Mudguard Metallic Silver Jawa 350T13070KW0140F	1	Enquiry ↗
2.4	Rear Mudguard Obsidian Black Jawa 350T13070KW0140X	1	Enquiry ↗
2.5	Rear Mudguard Deep Forest Jawa 350T13070KW0140G	1	Enquiry ↗
2.6	Rear Mudguard Grey Jawa 350T13070KW0140Y	1	Enquiry ↗
2.7	Rear Mudguard White Chrome Jawa 350T13070KW0140B	1	Enquiry ↗
3	Rear Mudguard - Side Cover LH Maroon Jawa 350T13070J20150A	1	Enquiry ↗
3.1	Rear Mudguard - Side Cover LH Black Jawa 350T13070J20150H	1	Enquiry ↗
3.2	Rear Mudguard - Side Cover LH Mystic Orange Jawa 350T13070J20150J	1	Enquiry ↗
3.3	Rear Mudguard - Side Cover LH Metallic Silver Jawa 350T13070J20150F	1	Enquiry ↗
3.4	Rear Mudguard - Side Cover LH Obsidian Black Jawa 350T13070J20150X	1	Enquiry ↗
3.5	Rear Mudguard - Side Cover LH Deep Forest Jawa 350T13070J20150G	1	Enquiry ↗
3.6	Rear Mudguard - Side Cover LH Grey Jawa 350T13070J20150Y	1	Enquiry ↗
3.7	Rear Mudguard - Side Cover LH White Chrome Jawa 350T13070J20150B	1	Enquiry ↗
4	Rear Mudguard - Side Cover RH Maroon Jawa 350T13070J20160A	1	Enquiry ↗
4.1	Rear Mudguard - Side Cover RH Black Jawa 350T13070J20160H	1	Enquiry ↗
4.2	Rear Mudguard - Side Cover RH Mystic Orange Jawa 350T13070J20160J	1	Enquiry ↗
4.3	Rear Mudguard - Side Cover RH Metallic Silver Jawa 350T13070J20160F	1	Enquiry ↗
4.4	Rear Mudguard - Side Cover RH Obsidian Black Jawa 350T13070J20160X	1	Enquiry ↗
4.5	Rear Mudguard - Side Cover RH Deep Forest Jawa 350T13070J20160G	1	Enquiry ↗
4.6	Rear Mudguard - Side Cover RH Grey Jawa 350T13070J20160Y	1	Enquiry ↗
4.7	Rear Mudguard - Side Cover RH White Chrome Jawa 350T13070J20160B	1	Enquiry ↗
5	Screw Rdskt M6X1X12Xa2-70SF0212026	4	Enquiry ↗
6	Screw Rdskt M6X1X12Xa2-70SF0212023	4	Enquiry ↗
7	Screw Rdskt M6X1X40Xa2-70SF0212027	4	Enquiry ↗
8	Rear Mudguard FrontT13000J20030N	1	Enquiry ↗
9	Bolt Flange 6X1295701-06012-08	6	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

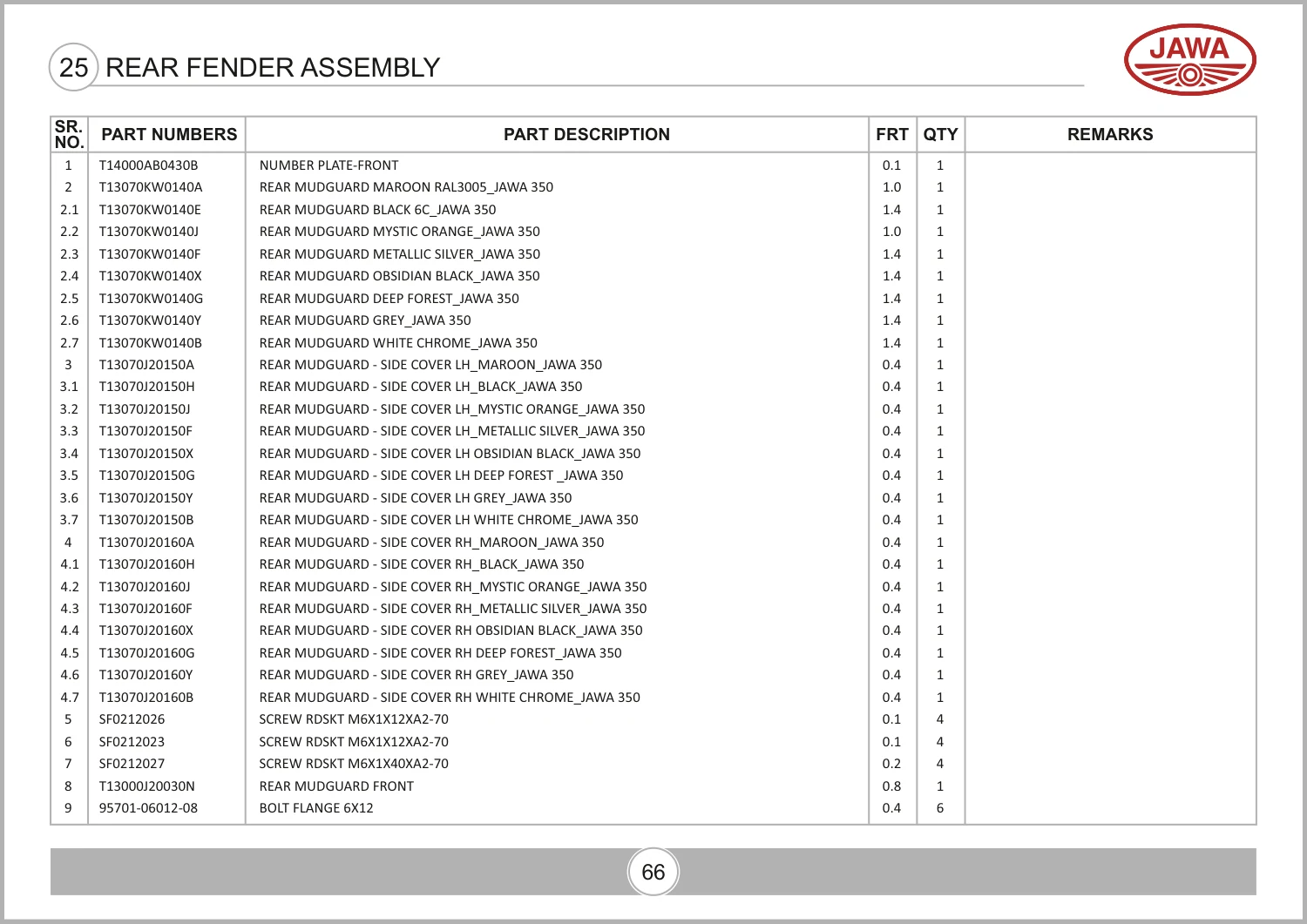

Source: PARTS CATALOGUE - JAWA 350_REV-05.pdf · PDF diagram page 75, parts table page 76. View original parts table ↗
