Jawa 350 · ASSEMBLY 38 · REV 05

Swing Arm Assembly And Rear Shock Absorber

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 350 Swing Arm Assembly And Rear Shock Absorber exploded assembly diagram, catalogue page 99

Jawa 350 · Rev 05 · p. 99Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Kit Comp Swing Arm Jawa 350T11010J10010N	1	Enquiry ↗
2	Bush Inner LHT1101AKW0010N	1	Enquiry ↗
3	Bush, Inner RHT1101AKW0020N	1	Enquiry ↗
4	Collar - Bush Inner RHT1101AKW0040N	1	Enquiry ↗
5	Bush Outer RHT1101AKW0030N	1	Enquiry ↗
6	Swing Arm Axle M16T1101CKW0010N	1	Enquiry ↗
7	Self Lock Nut M16TSF0318003	1	Enquiry ↗
8	Chain Cover Texture Black Jawa 350T1103AJ20010N	1	Enquiry ↗
9	Screw Rdskt M6X1X12X8.8 Jawa 350SF0212037	3	Enquiry ↗
10	Swing Arm Chain Adjustor LHT08000KW0610N	1	Enquiry ↗
11	Swing Arm Chain Adjustor RHT08000KW0620N	1	Enquiry ↗
12	Rear Shock Absorber J2 Classic Silver Jawa 350T11020J20010F	2	Enquiry ↗
13	Special WasherMF01700003500	4	Enquiry ↗
14	Cap Nut (M12X1.5P)SF0300040	4	Enquiry ↗
15	Pillion Footrest Holder RH Satin Black Jawa 350T22000J20070N	1	Enquiry ↗
16	Pillion Footrest Holder LH Satin Black Jawa 350T22000J20060N	1	Enquiry ↗
17	Socket Head Screw M8X20 (10.9 Grade)SP0308009	1	Enquiry ↗
18	Flange Bolt M8 X 1.25P X 25.5LSF0102057	2	Enquiry ↗
19	Swing Arm Maroon Black Powder Coated Jawa 350T11010J20020N	1	Enquiry ↗
20	Circlip Int - Lug 30X1.2XphSf0602002	2	Enquiry ↗
21	Bearing Dg Ball Sr 17X30X7SP010100119	1	Enquiry ↗
22	Needle Roller Bearing6801CAP00021N	3	Enquiry ↗
23	Chain Guide Jawa 350T1103BY50010N	1	Enquiry ↗
24	Tapping Screw M4X12TSF0214025	2	Enquiry ↗
25	Washer Plain M4X9X0.894101-04700	2	Enquiry ↗
26	Nut Hex M8X1.25Xx6.5X8XznSF0301245	2	Enquiry ↗
27	Screw Hex M8X1.25X55X8.8SF0201389	2	Enquiry ↗
28	Caution Sticker Chain & Tyre Jawa 350T08000J20180N	1	Enquiry ↗
29	Pin (Fr. Brake Cable)MF01770001300	1	Enquiry ↗
30	Cable Tie Clamp, Brake Hose Hellermann Jawa 42 Ug 2.2T24000Y40010N	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

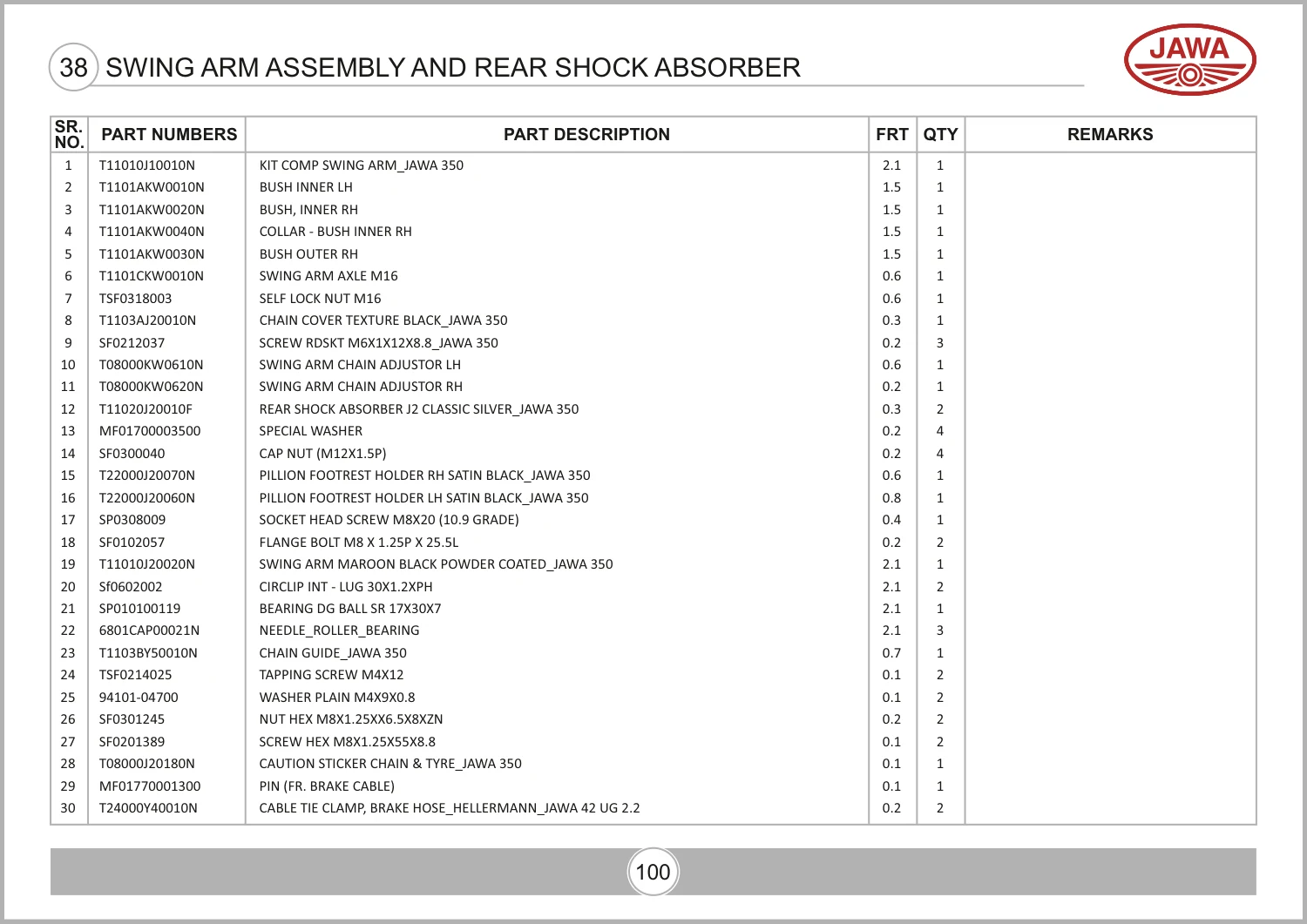

Source: PARTS CATALOGUE - JAWA 350_REV-05.pdf · PDF diagram page 109, parts table page 110. View original parts table ↗
