Jawa 42 Bobber · ASSEMBLY 10 · REV 17
Balancer Shaft Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 Bobber · Rev 17 · p. 25Original parts list ↗
Parts in this drawing
10 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Balancer Shaft Fixed GearT0204EUF0070N | 1 | |
| 2 | Plate SpringT0204EUF0100N | 1 | |
| 3 | Circlip (F30)T0204EUF0110N | 1 | |
| 4 | Cylinder SpringT0204EUF0090N | 2 | |
| 4.1 | Balancer Gear SpringT0204EVG0040N | 2 | |
| 5 | Balancer Gear, DampingT0204EUF0080N | 1 | |
| 6 | Circlip A17X1T0204EUF0120N | 1 | |
| 7 | Balancer Shaft (NVH)T0204EVG0020N | 1 | |
| 8 | Key LockT18080UF0030N | 1 | |
| 9 | Assembly, Balancer Shaft (NVH)T0204EVG0010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

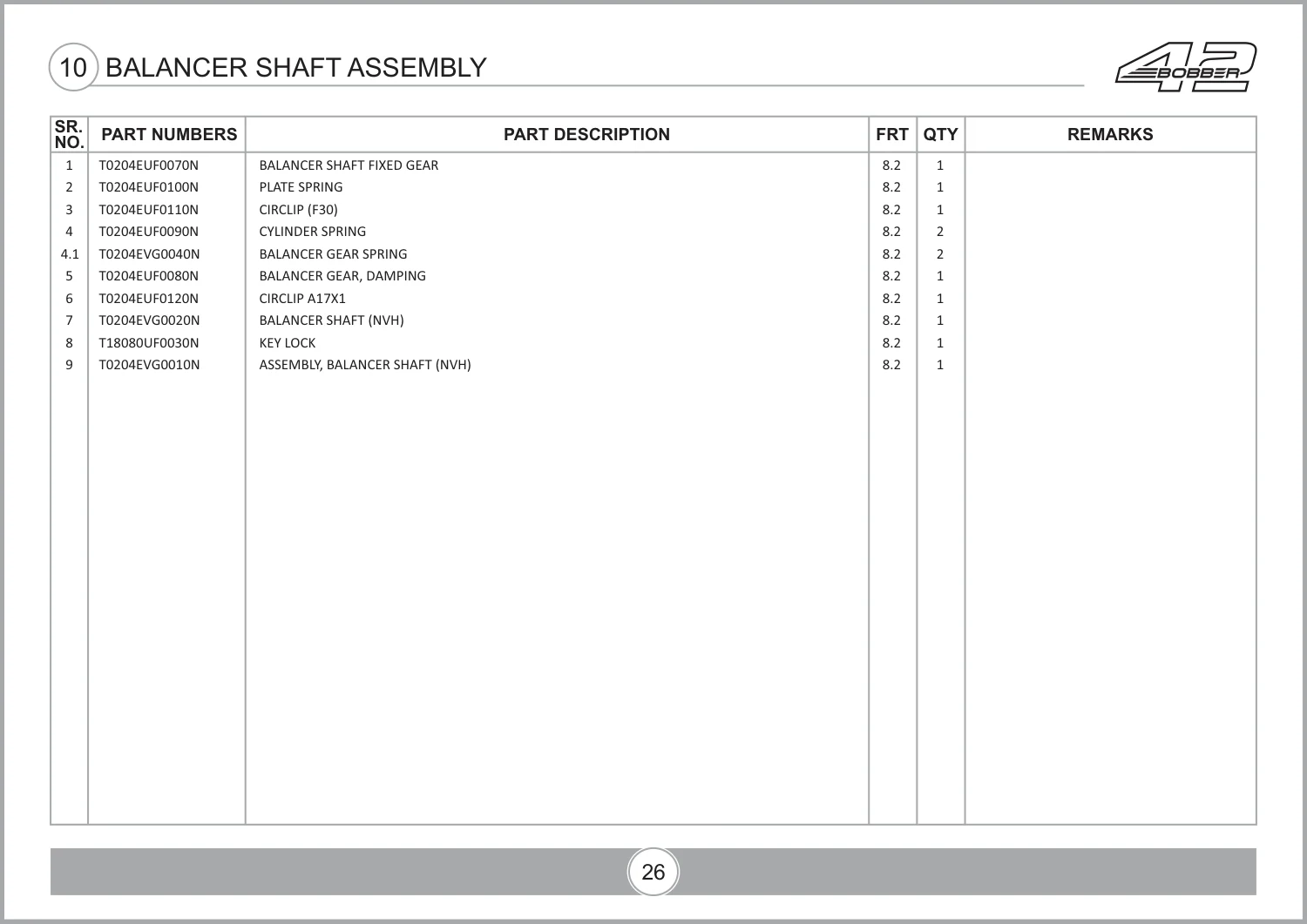

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 37, parts table page 38. View original parts table ↗
