Jawa 42 Bobber spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 79 diagram sheets and 1,492 parts entries, including repeated parts used in different assemblies.
Assembly 1
Camchain And Tensioner & Cylinder Head Cover
Page 1 · 24 parts
Assembly 2
Crankcase LH
Page 3 · 28 parts
Assembly 3
Crankcase RH
Page 5 · 22 parts
Assembly 4
Cylinder Head Explosion
Page 7 · 30 parts
Assembly 4
Cylinder Head Explosion
Page 9 · 7 parts
Assembly 5

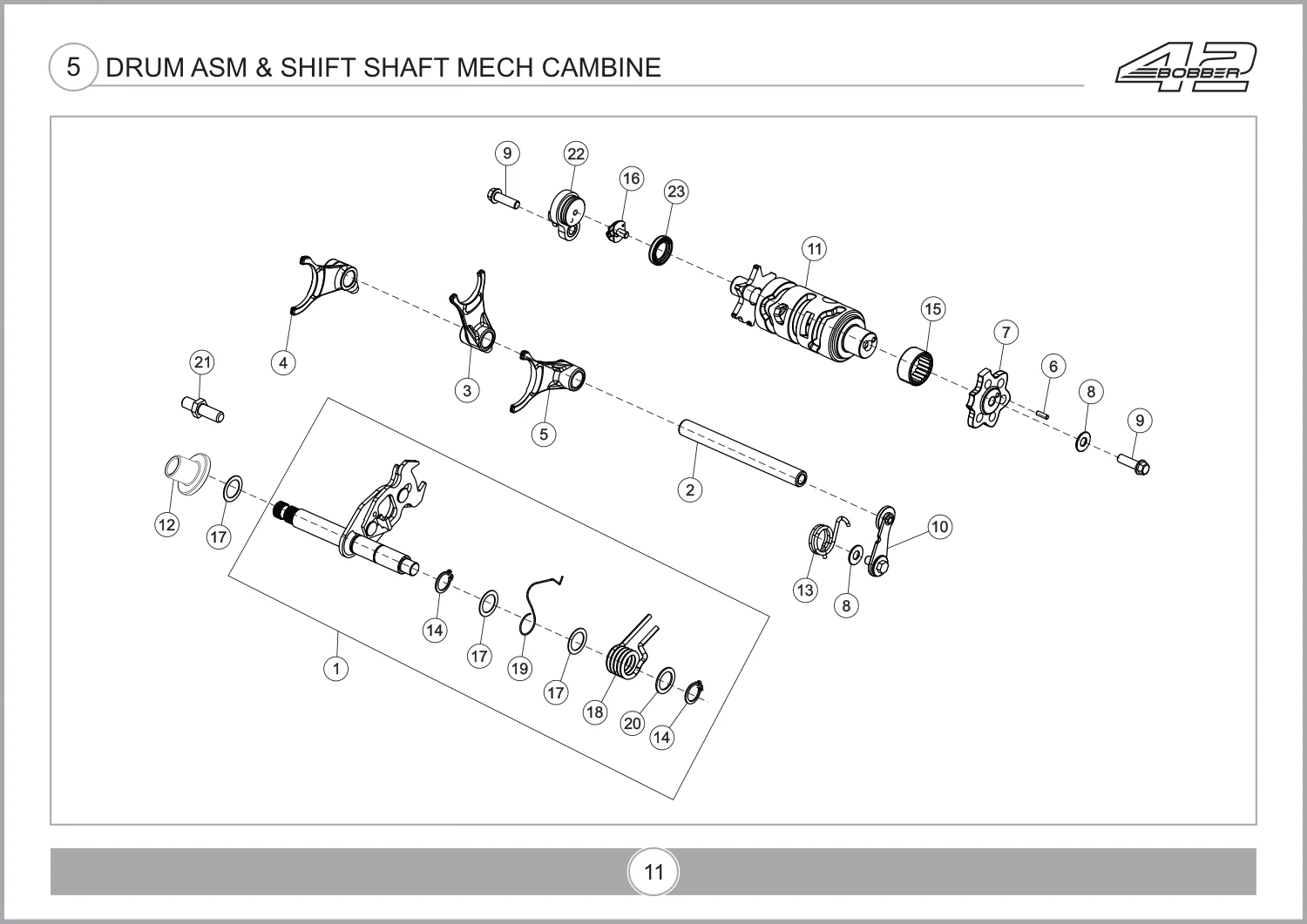

Drum Asm & Shift Shaft Mech Cambine
Page 11 · 23 parts
Assembly 6
Magneto Assembly - BSVI
Page 13 · 11 parts
Assembly 7

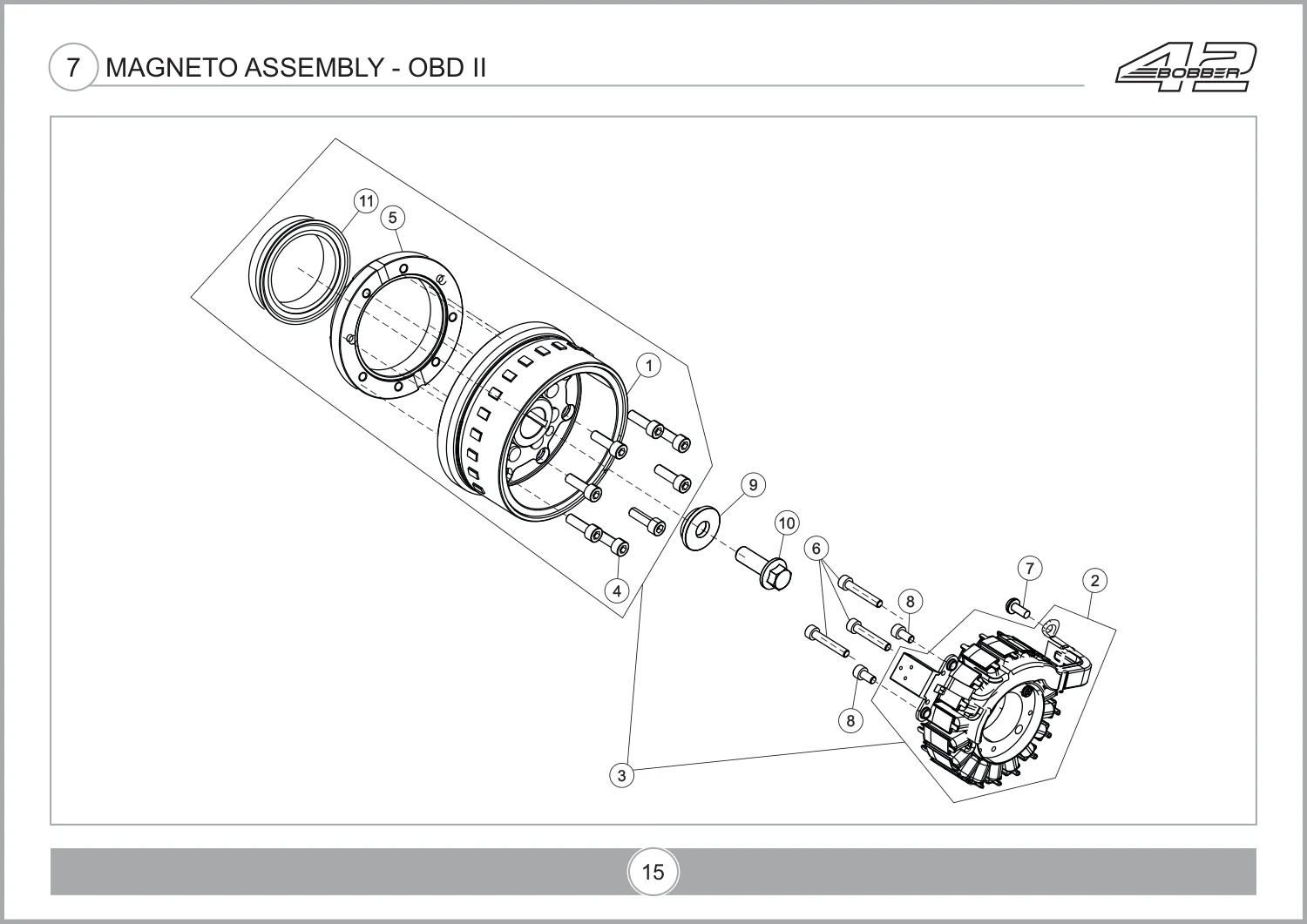

Magneto Assembly - OBD II
Page 15 · 11 parts
Assembly 8

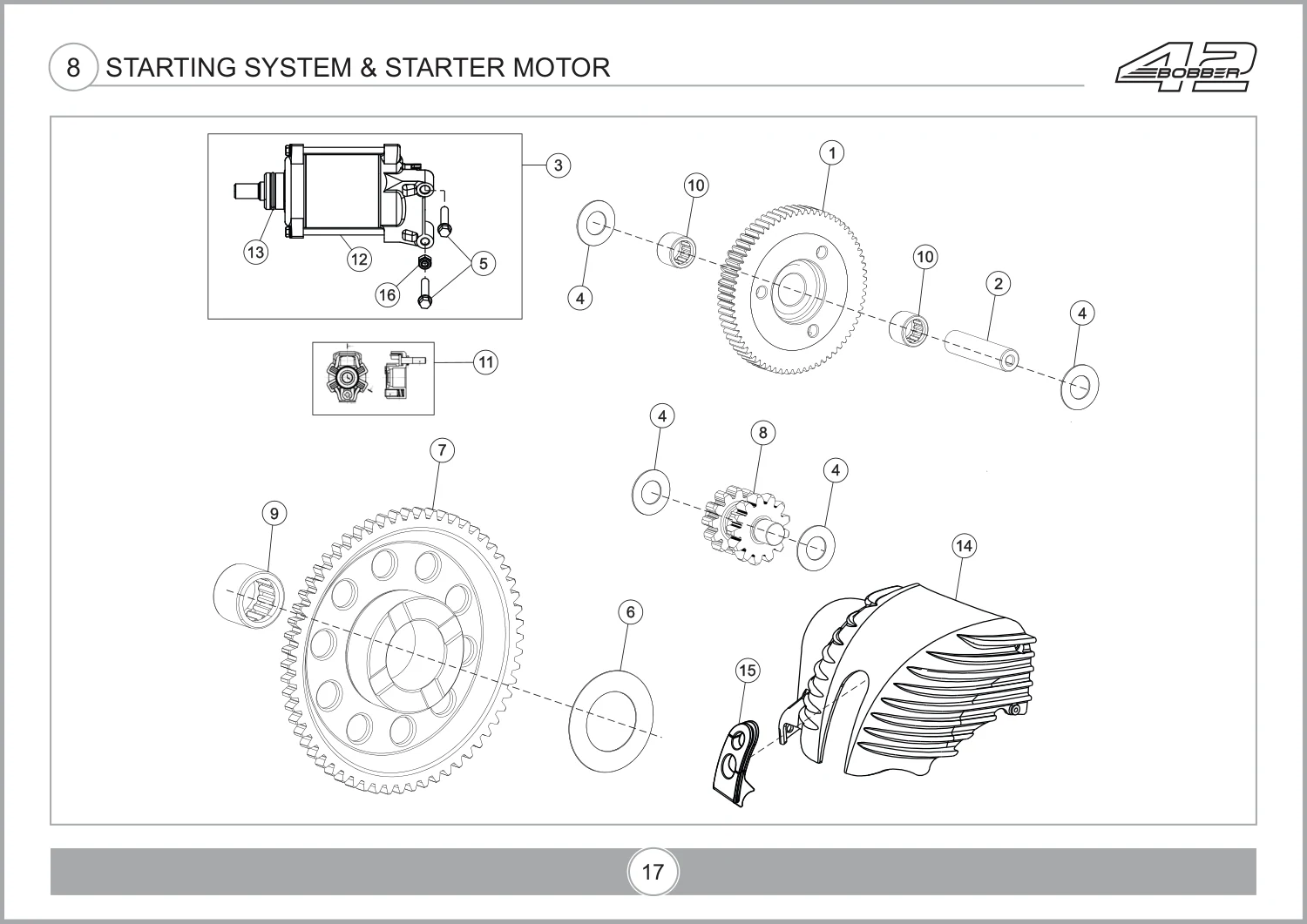

Starting System & Starter Motor
Page 17 · 17 parts
Assembly 9
Valve Train And Cam Shaft
Page 19 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 21 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 23 · 6 parts
Assembly 10
Balancer Shaft Assembly
Page 25 · 10 parts![Balancer Shaft Assembly - [Fitted From - Mzdj31C16R1G51948] drawing](/jawa-spare/assets/diagrams/jawa-42-bobber-p039.webp)
Assembly 11
Balancer Shaft Assembly - [Fitted From - Mzdj31C16R1G51948]
Page 27 · 7 parts
Assembly 12
Transmission System - BSVI
Page 29 · 30 parts
Assembly 12
Transmission System - BSVI
Page 31 · 10 parts
Assembly 13
Transmission System - OBD II
Page 33 · 30 parts
Assembly 13
Transmission System - OBD II
Page 35 · 10 parts![Transmission System - [Fitted From - Mzdj31C16R1E47437] drawing](/jawa-spare/assets/diagrams/jawa-42-bobber-p049.webp)
Assembly 14
Transmission System - [Fitted From - Mzdj31C16R1E47437]
Page 37 · 30 parts![Transmission System - [Fitted From - Mzdj31C16R1E47437] drawing](/jawa-spare/assets/diagrams/jawa-42-bobber-p051.webp)
Assembly 14
Transmission System - [Fitted From - Mzdj31C16R1E47437]
Page 39 · 6 parts
Assembly 15
R Crankcase Cover
Page 41 · 30 parts
Assembly 15
R Crankcase Cover
Page 43 · 23 parts
Assembly 16
Crankshaft And Piston - BSVI
Page 45 · 16 parts
Assembly 17

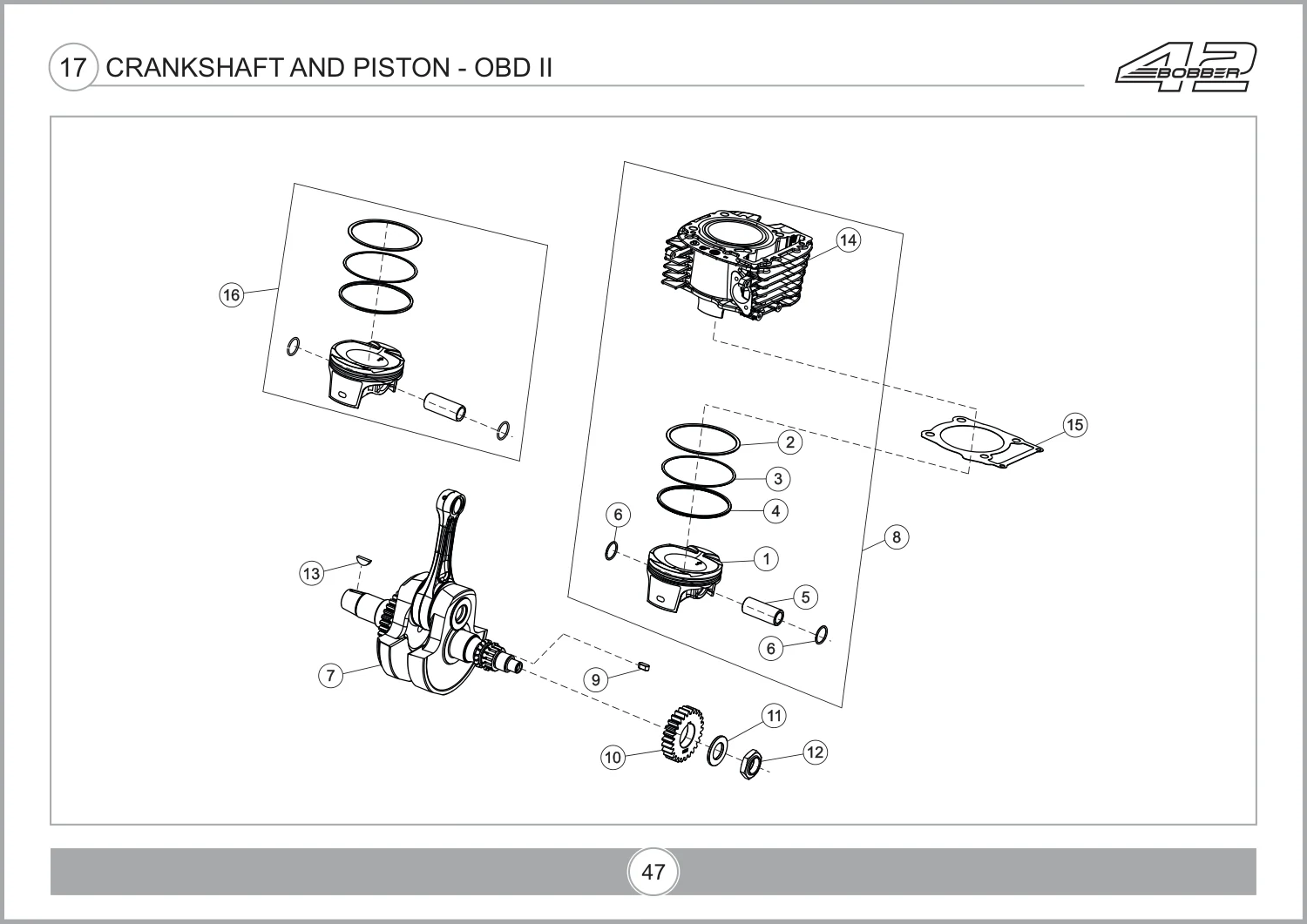

Crankshaft And Piston - OBD II
Page 47 · 26 parts
Assembly 18
Magneto Cover LH - BSVI
Page 49 · 25 parts
Assembly 19
Magneto Cover LH - OBD II
Page 51 · 30 parts
Assembly 19
Magneto Cover LH - OBD II
Page 53 · 3 parts
Assembly 20
Clutch Assembly
Page 55 · 24 parts
Assembly 21
Evaporative Emission System
Page 57 · 13 parts
Assembly 22

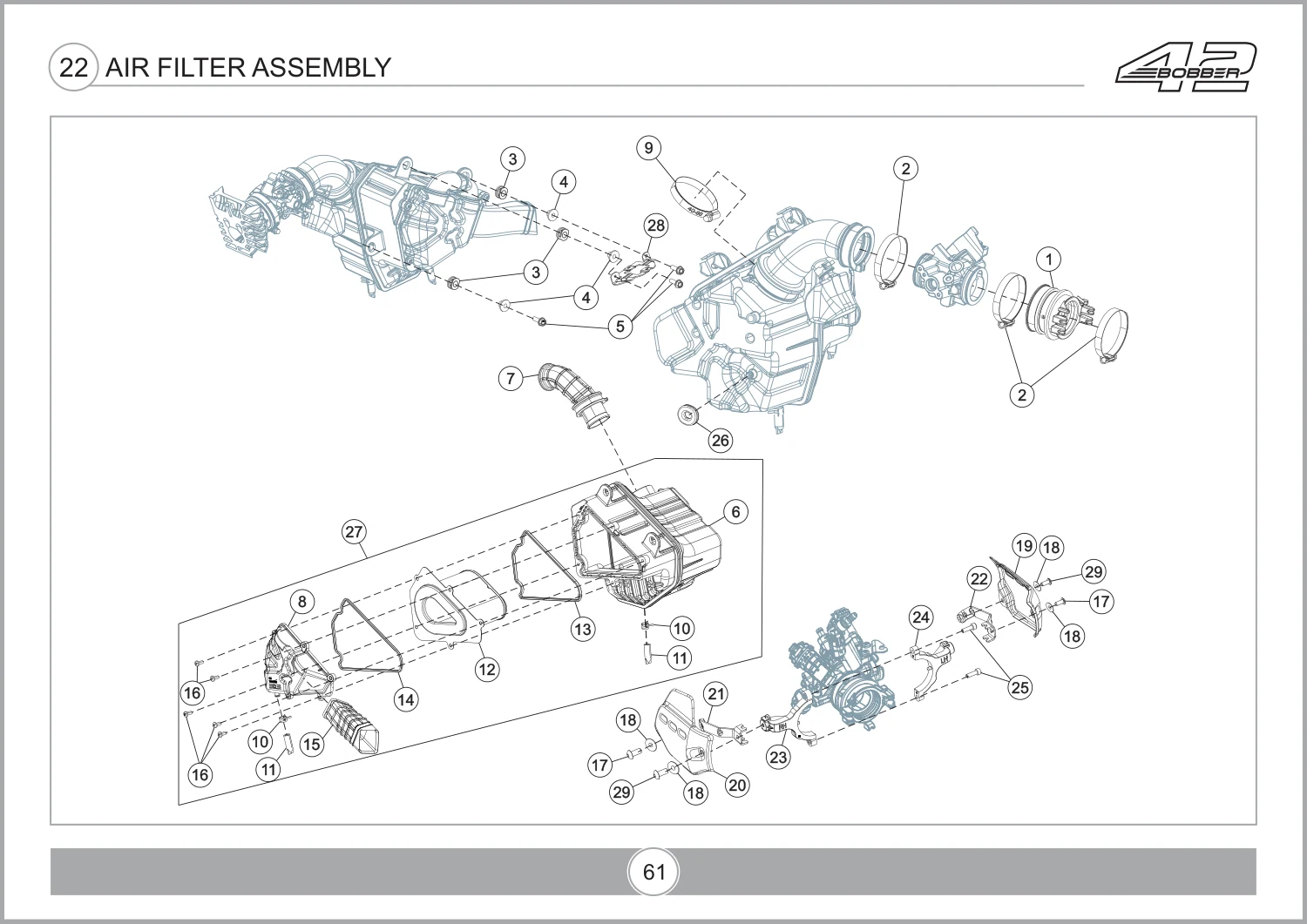

Air Filter Assembly
Page 59 · 30 parts
Assembly 22
Air Filter Assembly
Page 61 · 5 parts
Assembly 23
Brake System Front
Page 63 · 30 parts
Assembly 23
Brake System Front
Page 65 · 2 parts
Assembly 24

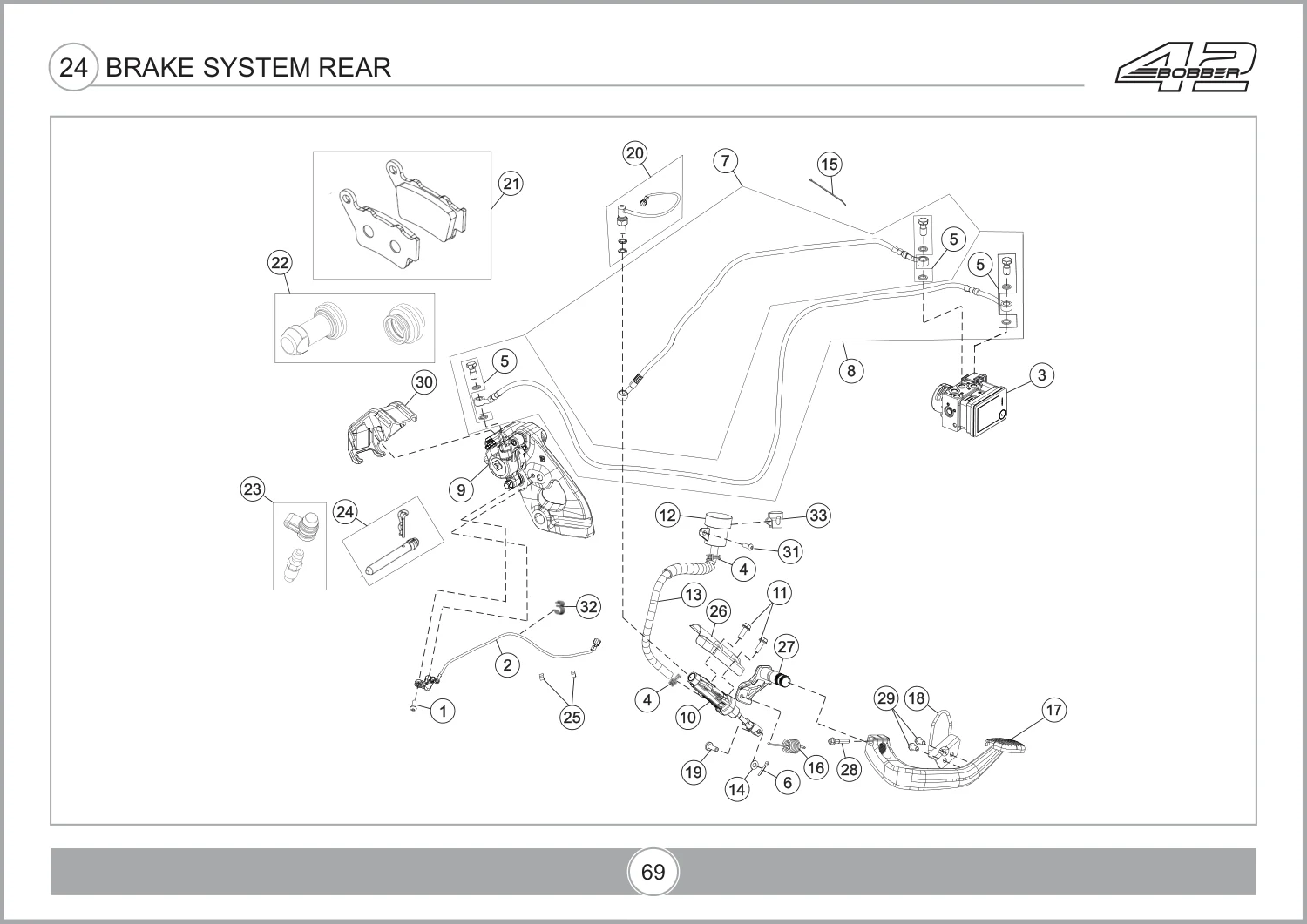

Brake System Rear
Page 67 · 30 parts
Assembly 24
Brake System Rear
Page 69 · 5 parts
Assembly 25
Anti-Lock Braking System (ABS)
Page 71 · 5 parts
Assembly 26
Front Wheel Assembly
Page 73 · 20 parts
Assembly 27

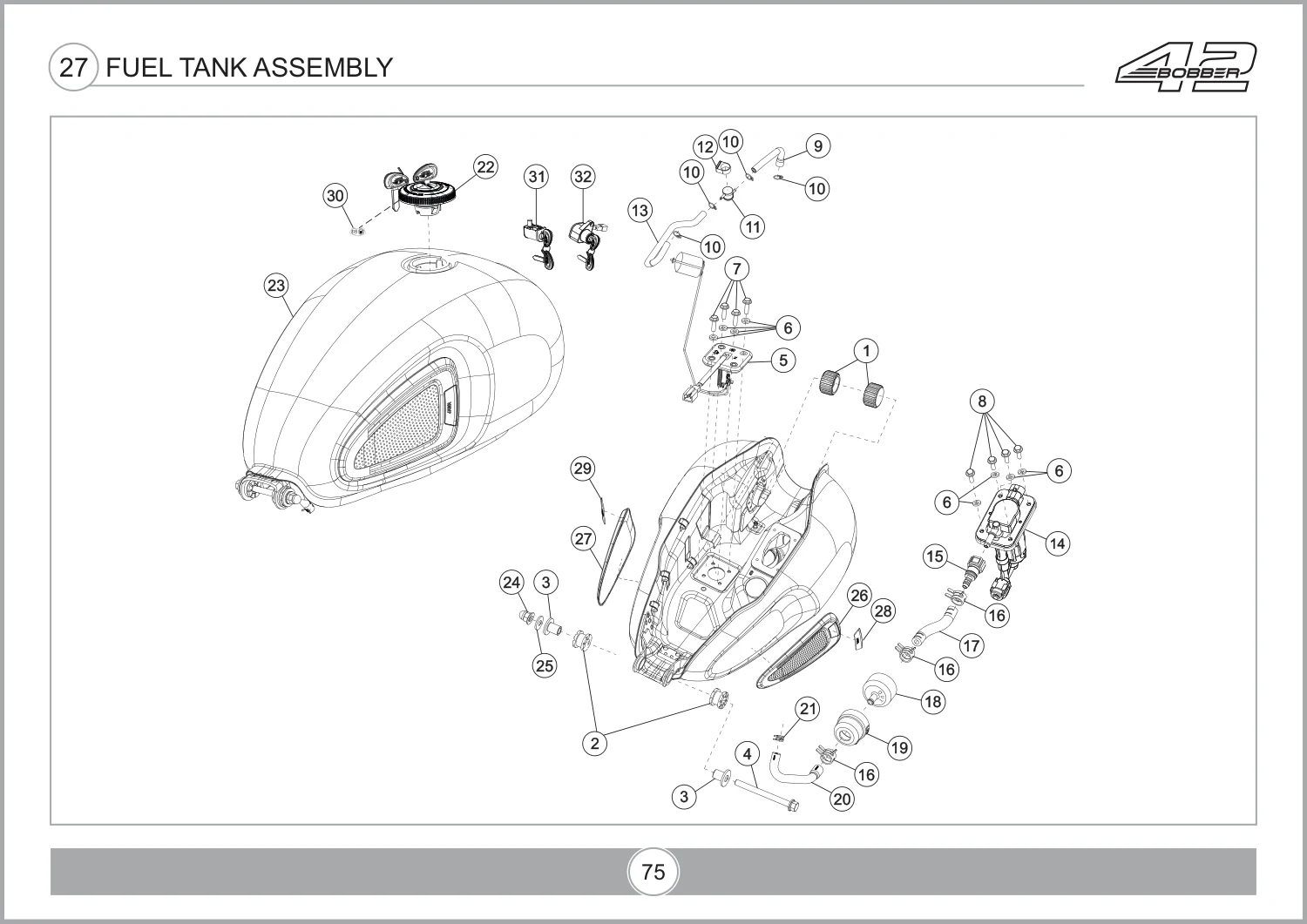

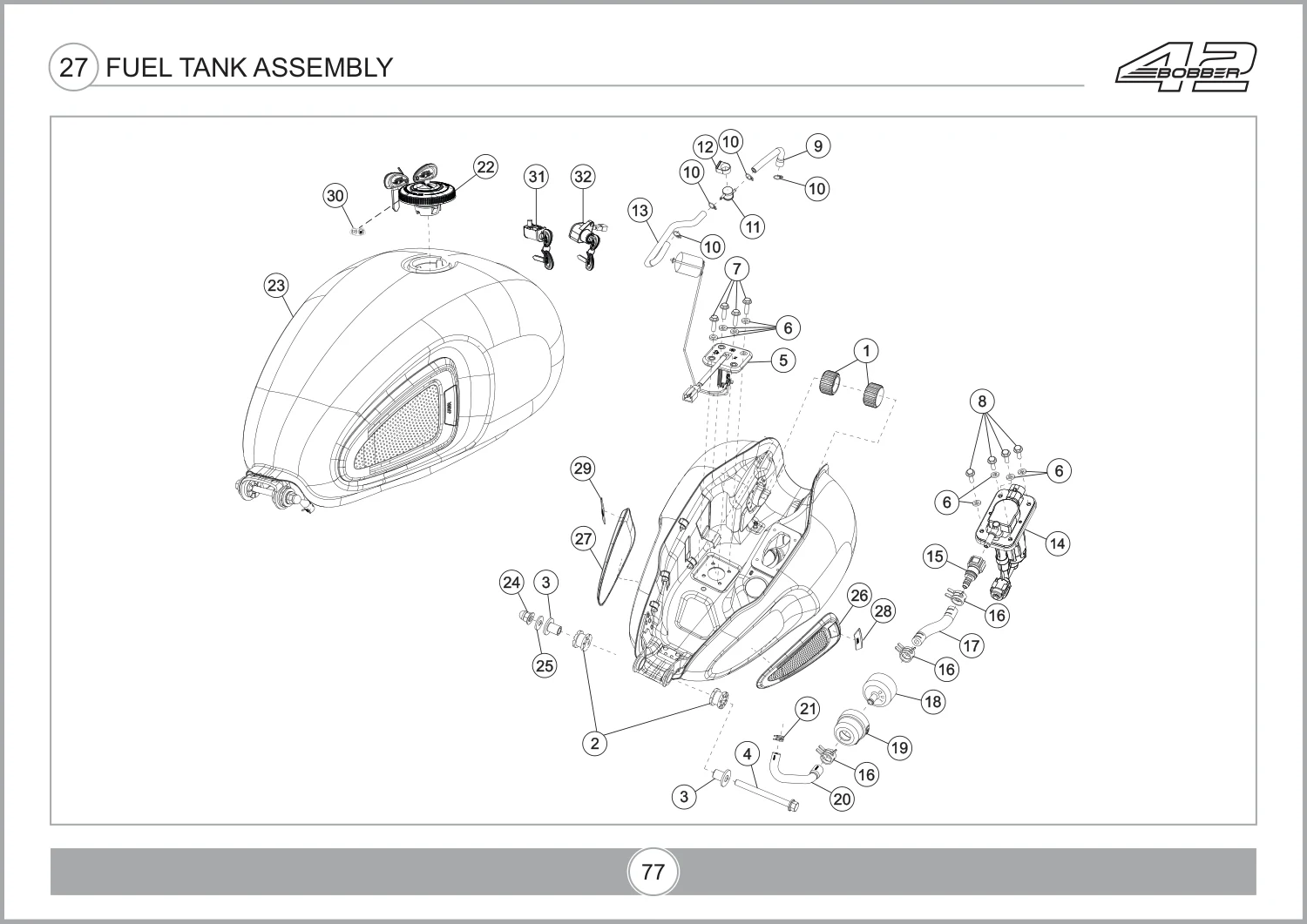

Fuel Tank Assembly
Page 75 · 30 parts
Assembly 27
Fuel Tank Assembly
Page 77 · 20 parts
Assembly 28
Front Mudguard Assembly
Page 79 · 14 parts
Assembly 29
Radiator
Page 81 · 30 parts
Assembly 29
Radiator
Page 83 · 25 parts
Assembly 30
Rear Fender Assembly (1/2)
Page 85 · 20 parts
Assembly 31
Rear Fender Assembly (2/2)
Page 87 · 18 parts
Assembly 32
Rear Wheel Assembly
Page 89 · 30 parts
Assembly 32
Rear Wheel Assembly
Page 91 · 2 parts
Assembly 33
Seat Assembly
Page 93 · 10 parts
Assembly 34
Silencer Assembly
Page 95 · 30 parts
Assembly 34
Silencer Assembly
Page 97 · 4 parts
Assembly 35
Silencer Assembly - OBD-II Phase-2
Page 99 · 30 parts
Assembly 35
Silencer Assembly - OBD-II Phase-2
Page 101 · 8 parts
Assembly 36
Steering
Page 103 · 13 parts
Assembly 37
Front Fork Assembly
Page 105 · 26 parts
Assembly 38
Front Fork Mountings
Page 107 · 23 parts
Assembly 39

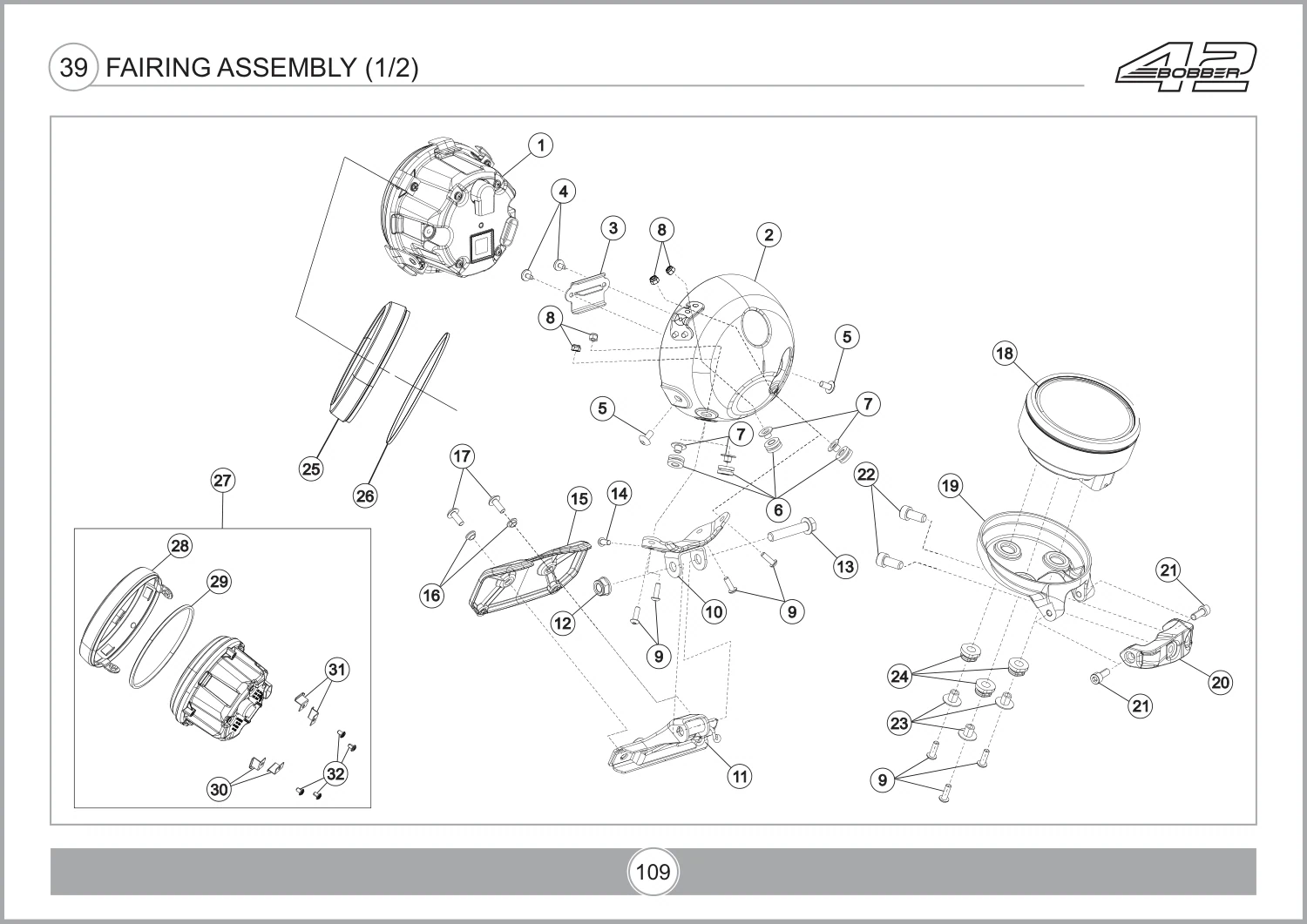

Fairing Assembly (1/2)
Page 109 · 30 parts
Assembly 39
Fairing Assembly (1/2)
Page 111 · 5 parts
Assembly 40
Fairing Assembly (2/2)
Page 113 · 23 parts
Assembly 41
Side Panel LH & RH Assy / ECU & Relay / Fusebox / Lock Set Kit
Page 115 · 30 parts
Assembly 41
Side Panel LH & RH Assy / ECU & Relay / Fusebox / Lock Set Kit
Page 117 · 20 parts
Assembly 42
Frame Assembly & Frame Mountings
Page 119 · 30 parts
Assembly 43
Footrest Assembly LH & RH
Page 121 · 30 parts
Assembly 43
Footrest Assembly LH & RH
Page 123 · 4 parts
Assembly 44
Engine Mounting System & Gear Shift Lever Assembly
Page 125 · 30 parts
Assembly 44
Engine Mounting System & Gear Shift Lever Assembly
Page 127 · 1 parts
Assembly 45
Handle Bar Assembly
Page 129 · 30 parts
Assembly 45
Handle Bar Assembly
Page 131 · 20 parts
Assembly 46
Swing Arm Assembly / Rear Shock Absorber / Side Stand Assembly
Page 133 · 30 parts
Assembly 46
Swing Arm Assembly / Rear Shock Absorber / Side Stand Assembly
Page 135 · 15 parts
Assembly 47

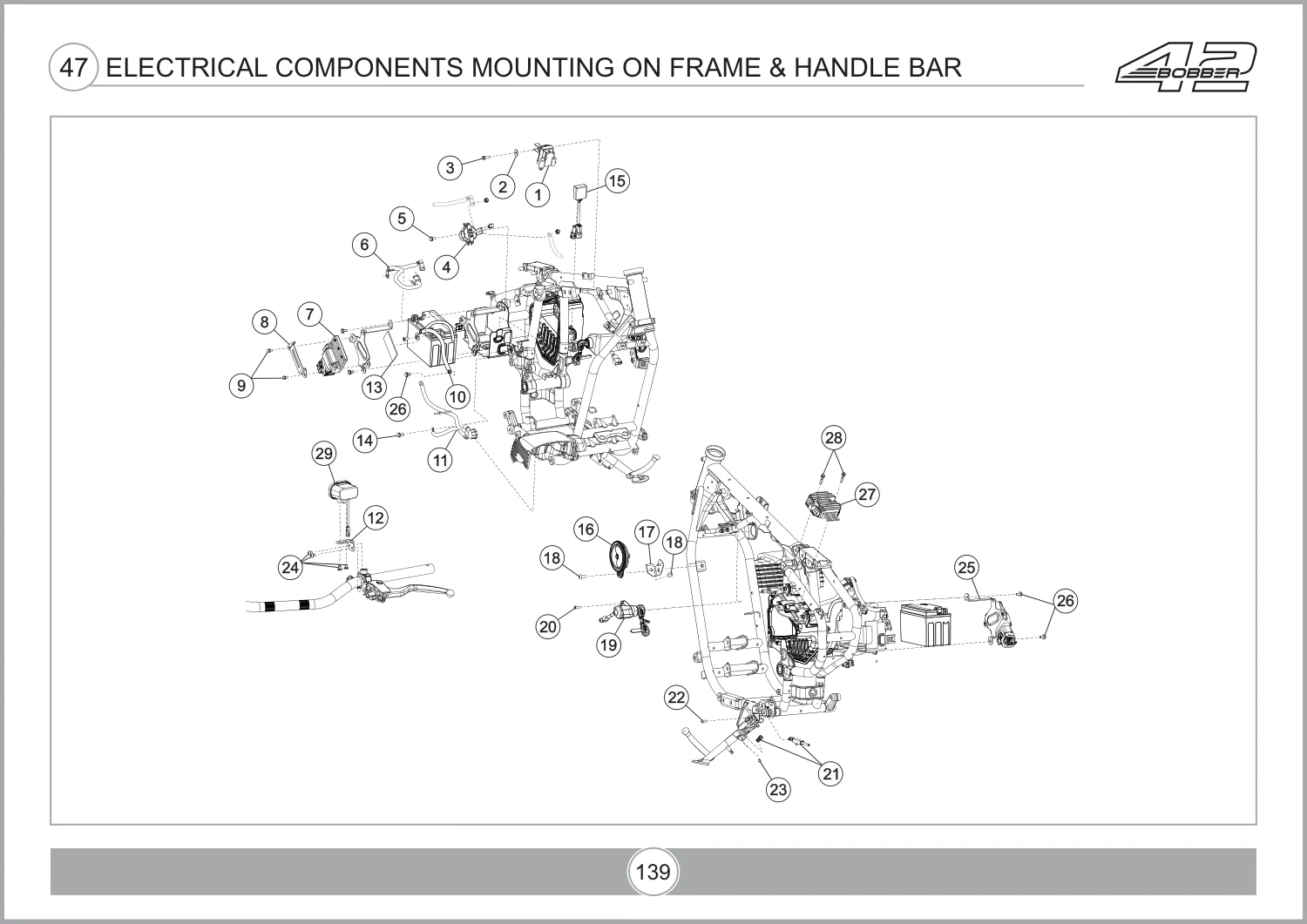

Electrical Components Mounting On Frame & Handle Bar
Page 137 · 30 parts
Assembly 47
Electrical Components Mounting On Frame & Handle Bar
Page 139 · 5 parts
Assembly 48
Wiring Harness & Battery With Starter Relay And Relay Cordset
Page 141 · 28 parts
Assembly 49
Electronic Fuel Injection (EFI) Assembly
Page 143 · 30 parts
Assembly 49
Electronic Fuel Injection (EFI) Assembly
Page 145 · 1 parts
Assembly 50
Decals
Page 147 · 9 parts
Assembly 51
Decals
Page 149 · 9 parts
Assembly 52
Decals
Page 151 · 9 parts
Assembly 53
Decals - Jawa 42 Bobber Ug - Chrome Black
Page 153 · 16 parts
Assembly 54

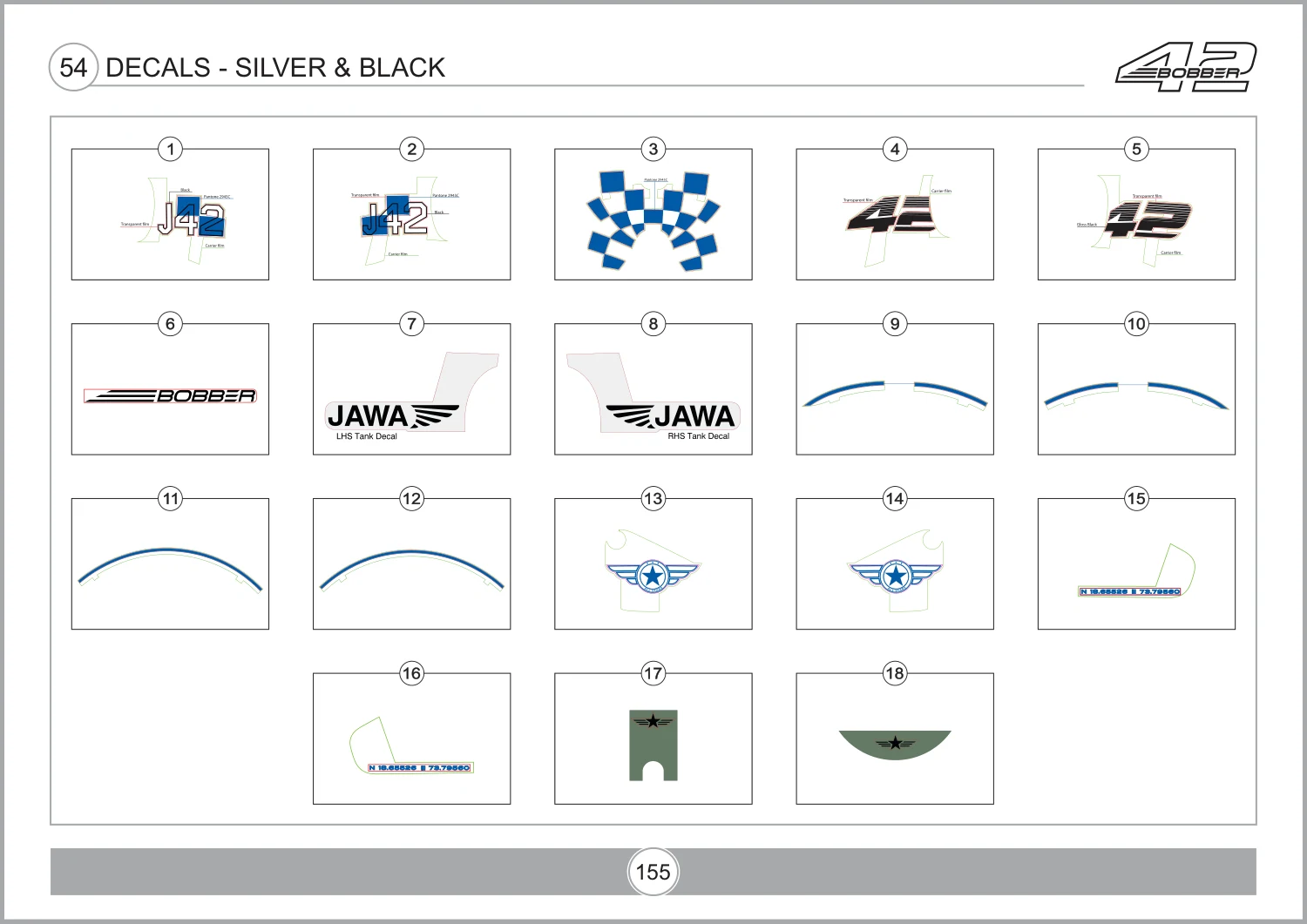

Decals - Silver & Black
Page 155 · 30 parts
Assembly 54
Decals - Silver & Black
Page 157 · 5 partsNo matching assemblies. Try a broader name.
Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf. Check the BS/OBD and variant notes in each drawing before requesting a part.
