Jawa 42 Bobber · ASSEMBLY 19 · REV 17

Magneto Cover LH - OBD II

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber Magneto Cover LH - OBD II exploded assembly diagram, catalogue page 51

Jawa 42 Bobber · Rev 17 · p. 51Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover LH Front High Inertia Magneto Chrome VariantT0202DVG0740N	1	Enquiry ↗
1.1	Cover LH Front High Inertia Magneto NVH Black VariantT0202DVG0540E	1	Enquiry ↗
1.2	Cover LH Front High Inertia Magneto Black Mat Raven TextureT0202DVG0990N	1	Enquiry ↗
2	Needle Brg Starter InterimT18050UF0160N	1	Enquiry ↗
3	Stator Assembly (Higher Inertia)T1502AVG0060N	1	Enquiry ↗
4	Bolt, Hex Socket Head - M5X30TSF0224075	3	Enquiry ↗
5	Bolt, Hex Socket Head - M5X10TSF0224077	2	Enquiry ↗
6	Pan Head Screw - M5X12SP0805020	1	Enquiry ↗
7	Gauge Inspection Cover Chrome VariantT0202DVE0240N	1	Enquiry ↗
7.1	Gauge Inspection Cover NVH Black VariantT0202DVG0200E	1	Enquiry ↗
7.2	Gauge Inspection Cover Black Mat Raven TextureT0202DVG1090N	1	Enquiry ↗
8	O-Ring, Gauge Inspection CoverMJ01660001800	1	Enquiry ↗
9	Rubber Grommet Magneto Cover Wire RoutingT0209DVE0010N	1	Enquiry ↗
10	Shaft, Starter CounterT0205BUF0350N	1	Enquiry ↗
11	Washer 10.3200.8 (Starter Intrm Gear)T18010UF0920N	2	Enquiry ↗
12	Cover Starter Counter Chrome VariantT0202DVE0070N	1	Enquiry ↗
12.1	Cover Starter Counter NVH Black VariantT0202DVG0190E	1	Enquiry ↗
12.2	Cover Starter Counter Black Mat Raven TextureT0202DVG1040N	1	Enquiry ↗
13	O-Ring, Cover Gear Starter CounterSP040111500	1	Enquiry ↗
14	Bolt, Hex Flange Sh-M6X12SP0906041	1	Enquiry ↗
15	Assembly, Slipper Clutch With NrbT0205BUF0610N	1	Enquiry ↗
16	Gasket- Magneto CoverT0209DUF0220N	1	Enquiry ↗
17	Bolt, Hex Flange Sh - M6X70SP0906038	4	Enquiry ↗
18	Bolt, Hex Flange Sh - M6X60SP0906043	3	Enquiry ↗
19	Bolt, Hex Flange Sh - M6X35TSF0102290	1	Enquiry ↗
20	Flange Head Bolt Sh M6X28SF0102034	3	Enquiry ↗
20.1	Screw Hex Fl M6X1X28X8.8 Bobber Ug 2.2SF0202349	3	Enquiry ↗
21	Cover LH Rear Half Chrome VariantT0202DVG0720N	1	Enquiry ↗
21.1	Cover LH Rear Half NVH Black VariantT0202DVG0590E	1	Enquiry ↗
21.2	Cover LH Rear Half Black Mat Raven TextureT0202DVG1000N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

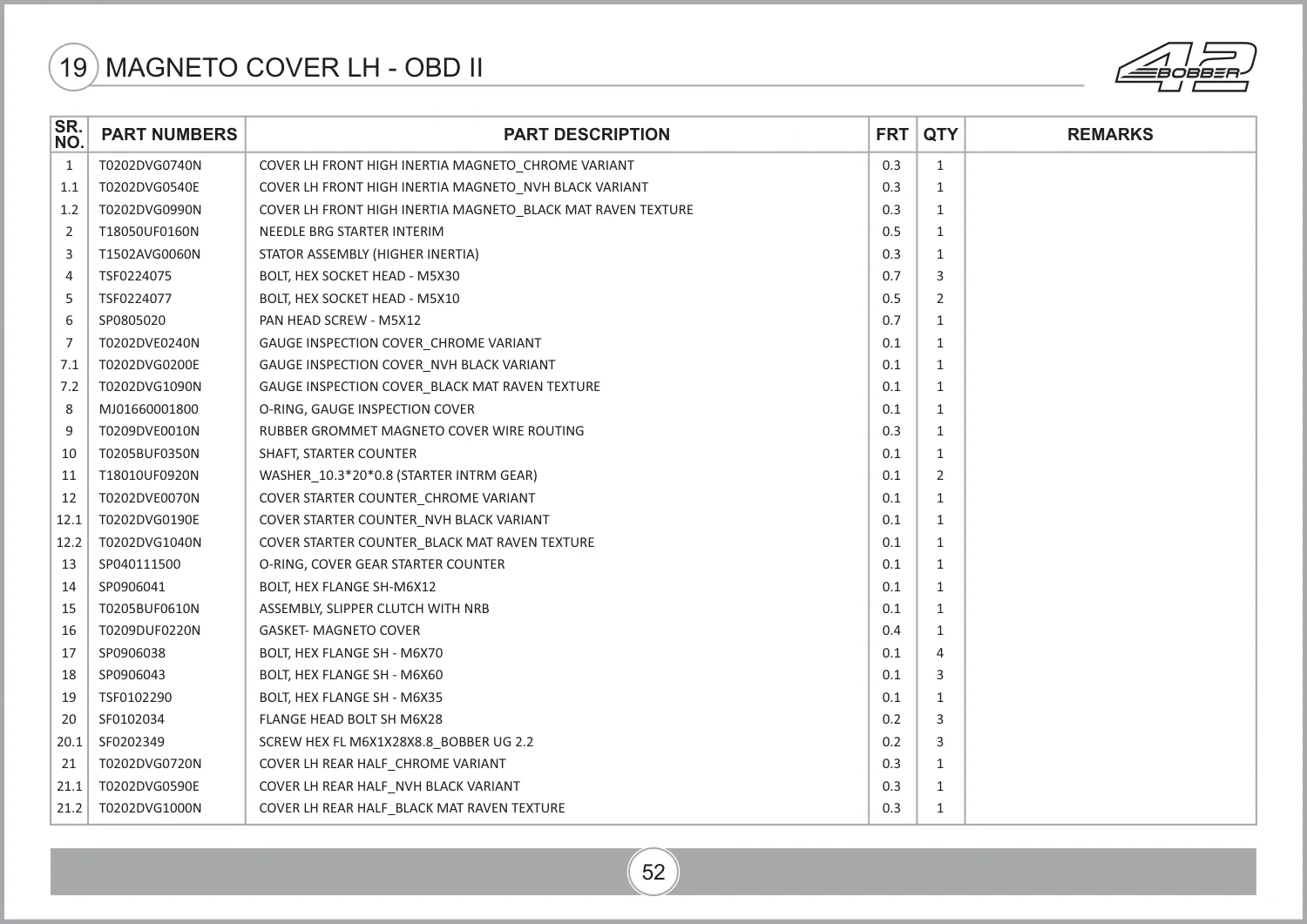

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 63, parts table page 64. View original parts table ↗
