This part is reference 6

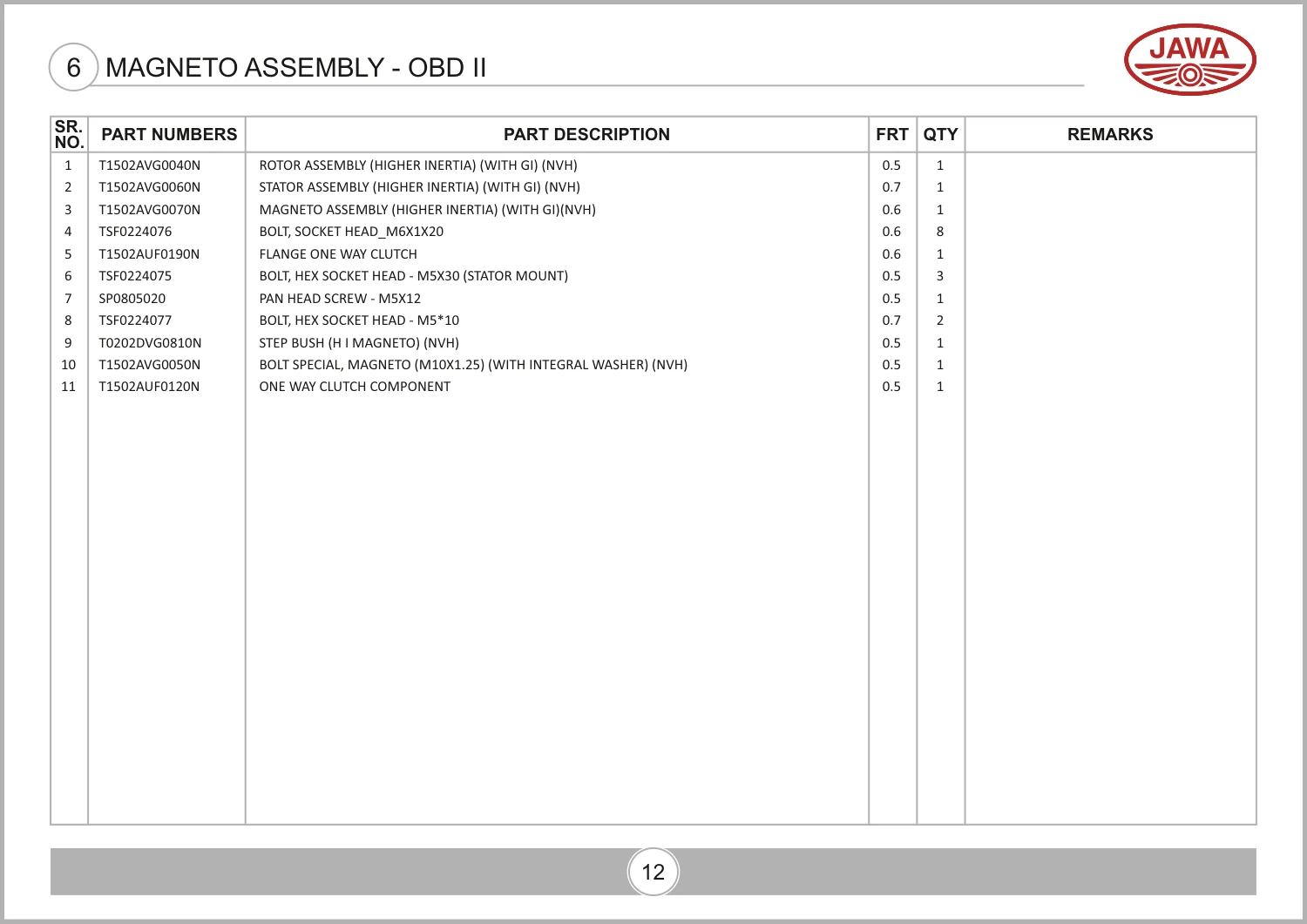

Bolt, Hex Socket Head - M5X30 (Stator Mount) TSF0224075 — reference 6 in the Jawa 350 Magneto Assembly - OBD II assembly drawing
Jawa 350 · Rev 05 · p. 11Original parts list ↗
This part is reference 6
Full-size Magneto Assembly - OBD II catalogue drawing
Highlighted catalogue reference 6. The image shows the complete assembly.
Model & variant notes ↓View all parts in this assembly →
PART IDENTIFICATION

Bolt, Hex Socket Head - M5X30 (Stator Mount) · TSF0224075

Listed in the supplied Jawa 350 catalogue, revision 05, under Magneto Assembly - OBD II. Match reference 6 in the drawing. Assembly quantity: 3. Choose the quantity you need in your enquiry above.

Other catalogue names for this part number
  • Bolt, Hex Socket Head - M5X30
  • Socket Bolt M5X30
EXACT PART DETAILS

Bolt, Hex Socket Head - M5X30 (Stator Mount) specifications & catalogue names

Part number
TSF0224075
Catalogue part name
BOLT, HEX SOCKET HEAD - M5X30 (STATOR MOUNT) / BOLT, HEX SOCKET HEAD - M5X30 / SOCKET BOLT M5X30

Bike catalogues listing this part number

Jawa 350 partsJawa 42 Bobber partsJawa 42 FJ partsJawa 42 OG All Star partsJawa Perak partsJawa & Jawa 42 Platform partsYezdi Roadster Mark II partsYezdi Roadster partsYezdi Scrambler LWE partsYezdi Scrambler partsYezdi Adventure parts

These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.

CHECK BEFORE ORDERING

Model & catalogue references

Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.

Model / revisionAssembly / referenceSource note
Jawa 350Bolt, Hex Socket Head - M5X30 (Stator Mount)Rev 05 · PDF p. 22Magneto Assembly - OBD IIRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa 350Bolt, Hex Socket Head - M5X30Rev 05 · PDF p. 44Magneto Cover LHRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 BobberBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 17 · PDF p. 26Magneto Assembly - BSVIRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 BobberBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 17 · PDF p. 28Magneto Assembly - OBD IIRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 BobberBolt, Hex Socket Head - M5X30Rev 17 · PDF p. 62Magneto Cover LH - BSVIRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 BobberBolt, Hex Socket Head - M5X30Rev 17 · PDF p. 64Magneto Cover LH - OBD IIRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 FJBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 09 · PDF p. 22Magneto AssemblyRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 FJSocket Bolt M5X30Rev 09 · PDF p. 24Magneto Assembly - Integrated Press Fitted Owc With RotorRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 FJBolt, Hex Socket Head - M5X30Rev 09 · PDF p. 46Magneto Cover LHRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 OG All StarBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 01 · PDF p. 23Magneto AssemblyRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa 42 OG All StarBolt, Hex Socket Head - M5X30Rev 01 · PDF p. 45Magneto Cover LHRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa PerakBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 24 · PDF p. 28Magneto Assembly - Bs ViRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa PerakBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 24 · PDF p. 30Magneto Assembly - OBD IIRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa PerakBolt, Hex Socket Head - M5X30Rev 24 · PDF p. 64Magneto Cover LH - Bs ViRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa PerakBolt, Hex Socket Head - M5X30Rev 24 · PDF p. 66Magneto Cover LH - OBD IIRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa & Jawa 42 PlatformBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 36 · PDF p. 31Magneto Assembly - BSIV & BSVIRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa & Jawa 42 PlatformBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 36 · PDF p. 33Magneto Assembly - OBD IIRef 6 · Assembly qty. 3Confirm exact bike variant.
Jawa & Jawa 42 PlatformBolt, Hex Socket Head - M5X30Rev 36 · PDF p. 67Magneto Cover LH - BSIV & BSVIRef 4 · Assembly qty. 3Confirm exact bike variant.
Jawa & Jawa 42 PlatformBolt, Hex Socket Head - M5X30Rev 36 · PDF p. 71Magneto Cover LH - OBD II (Jawa 42 Ug)Ref 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi Roadster Mark IISocket Bolt M5X30Rev 06 · PDF p. 24Magneto Assembly - Integrated Press Fitted Owc With RotorRef 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi Roadster Mark IIBolt, Hex Socket Head - M5X30Rev 06 · PDF p. 46Magneto Cover LHRef 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi RoadsterBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 22 · PDF p. 28Magneto Assembly - Bs Vi [Fitted Till - Mzdj21C16P1B18810]Ref 6 · Assembly qty. 3Confirm exact bike variant.
Yezdi RoadsterBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 22 · PDF p. 30Magneto Assembly - OBD II [Fitted From - Mzdj21C16P1B18811]Ref 6 · Assembly qty. 3Confirm exact bike variant.
Yezdi RoadsterBolt, Hex Socket Head - M5X30Rev 22 · PDF p. 62Magneto Cover LH - Bs Vi [Fitted Till - Mzdj21C16P1B18810]Ref 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi RoadsterBolt, Hex Socket Head - M5X30Rev 22 · PDF p. 66Magneto Cover LH - OBD II [Fitted From - Mzdj21C16P1B18811]Ref 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi Scrambler LWEBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 04 · PDF p. 23Magneto AssemblyRef 6 · Assembly qty. 3Confirm exact bike variant.
Yezdi Scrambler LWEBolt, Hex Socket Head - M5X30Rev 04 · PDF p. 45Magneto Cover LHRef 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi ScramblerBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 19 · PDF p. 24Magneto Assembly - BSVIRef 6 · Assembly qty. 3Confirm exact bike variant.
Yezdi ScramblerBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 19 · PDF p. 26Magneto Assembly - OBD-IIRef 6 · Assembly qty. 3Confirm exact bike variant.
Yezdi ScramblerBolt, Hex Socket Head - M5X30Rev 19 · PDF p. 52Magneto Cover LH - BSVIRef 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi ScramblerBolt, Hex Socket Head - M5X30Rev 19 · PDF p. 54Magneto Cover LH - OBD IIRef 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi AdventureBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 22 · PDF p. 27Magneto Assembly - Bs ViRef 6 · Assembly qty. 3Confirm exact bike variant.
Yezdi AdventureBolt, Hex Socket Head - M5X30 (Stator Mount)Rev 22 · PDF p. 29Magneto Assembly -OBD IIRef 6 · Assembly qty. 3Confirm exact bike variant.
Yezdi AdventureBolt, Hex Socket Head - M5X30Rev 22 · PDF p. 61Magneto Cover LH - Bs ViRef 4 · Assembly qty. 3Confirm exact bike variant.
Yezdi AdventureBolt, Hex Socket Head - M5X30Rev 22 · PDF p. 63Magneto Cover LH - OBD IIRef 4 · Assembly qty. 3Confirm exact bike variant.
