Jawa 42 FJ · ASSEMBLY 14 · REV 09

Magneto Cover LH

Select a diagram reference or a row below to enquire about the exact part.

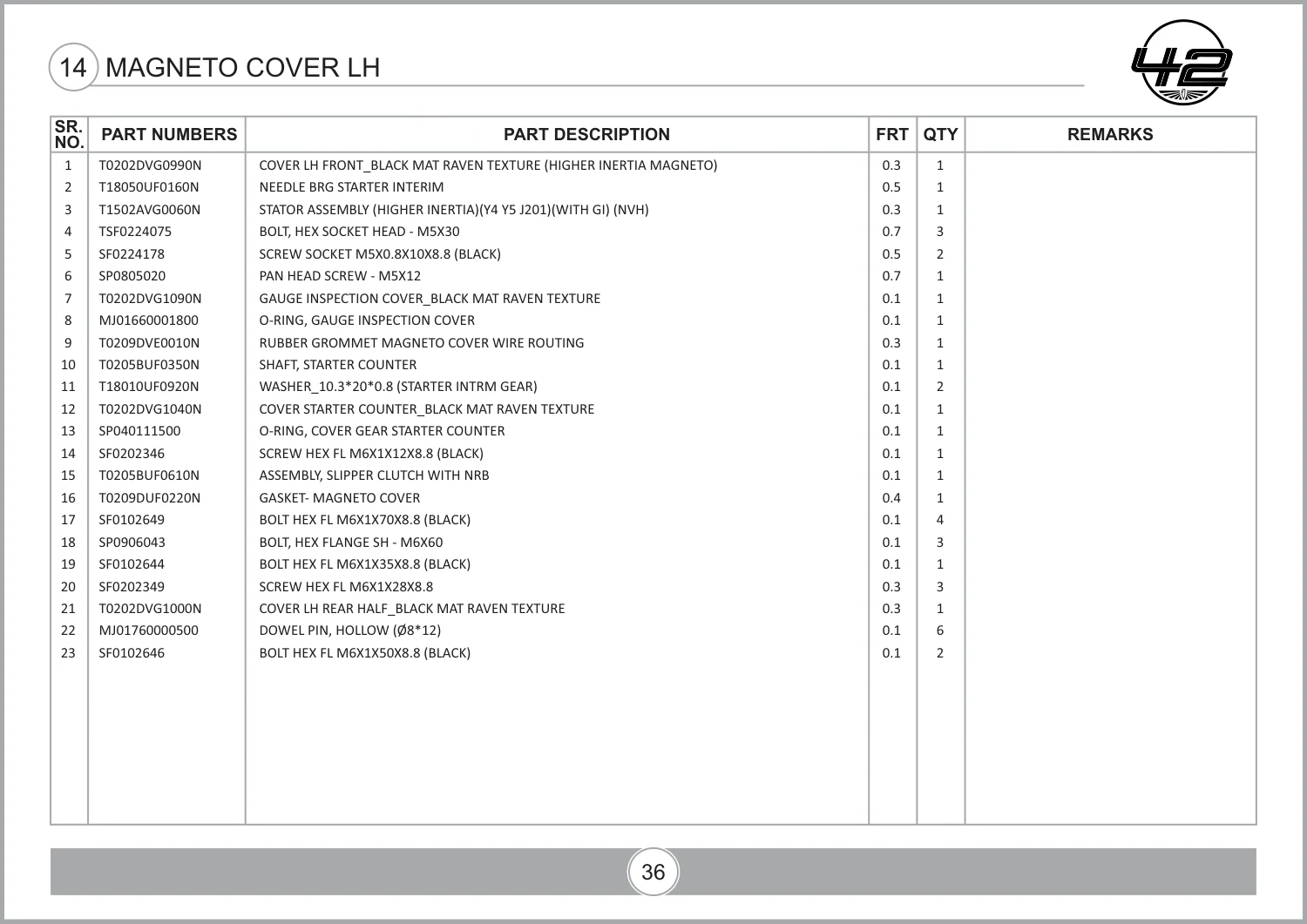

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 FJ · Rev 09 · p. 35Original parts list ↗

23 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover LH Front Black Mat Raven Texture (Higher Inertia Magneto)T0202DVG0990N	1	Enquiry ↗
2	Needle Brg Starter InterimT18050UF0160N	1	Enquiry ↗
3	Stator Assembly (Higher Inertia)(Y4 Y5 J201)(With Gi) (NVH)T1502AVG0060N	1	Enquiry ↗
4	Bolt, Hex Socket Head - M5X30TSF0224075	3	Enquiry ↗
5	Screw Socket M5X0.8X10X8.8 (Black)SF0224178	2	Enquiry ↗
6	Pan Head Screw - M5X12SP0805020	1	Enquiry ↗
7	Gauge Inspection Cover Black Mat Raven TextureT0202DVG1090N	1	Enquiry ↗
8	O-Ring, Gauge Inspection CoverMJ01660001800	1	Enquiry ↗
9	Rubber Grommet Magneto Cover Wire RoutingT0209DVE0010N	1	Enquiry ↗
10	Shaft, Starter CounterT0205BUF0350N	1	Enquiry ↗
11	Washer 10.3200.8 (Starter Intrm Gear)T18010UF0920N	2	Enquiry ↗
12	Cover Starter Counter Black Mat Raven TextureT0202DVG1040N	1	Enquiry ↗
13	O-Ring, Cover Gear Starter CounterSP040111500	1	Enquiry ↗
14	Screw Hex Fl M6X1X12X8.8 (Black)SF0202346	1	Enquiry ↗
15	Assembly, Slipper Clutch With NrbT0205BUF0610N	1	Enquiry ↗
16	Gasket- Magneto CoverT0209DUF0220N	1	Enquiry ↗
17	Bolt Hex Fl M6X1X70X8.8 (Black)SF0102649	4	Enquiry ↗
18	Bolt, Hex Flange Sh - M6X60SP0906043	3	Enquiry ↗
19	Bolt Hex Fl M6X1X35X8.8 (Black)SF0102644	1	Enquiry ↗
20	Screw Hex Fl M6X1X28X8.8SF0202349	3	Enquiry ↗
21	Cover LH Rear Half Black Mat Raven TextureT0202DVG1000N	1	Enquiry ↗
22	Dowel Pin, Hollow (Ø8*12)MJ01760000500	6	Enquiry ↗
23	Bolt Hex Fl M6X1X50X8.8 (Black)SF0102646	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 45, parts table page 46. View original parts table ↗
