Jawa 42 FJ spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 57 diagram sheets and 1,129 parts entries, including repeated parts used in different assemblies.
Assembly 1

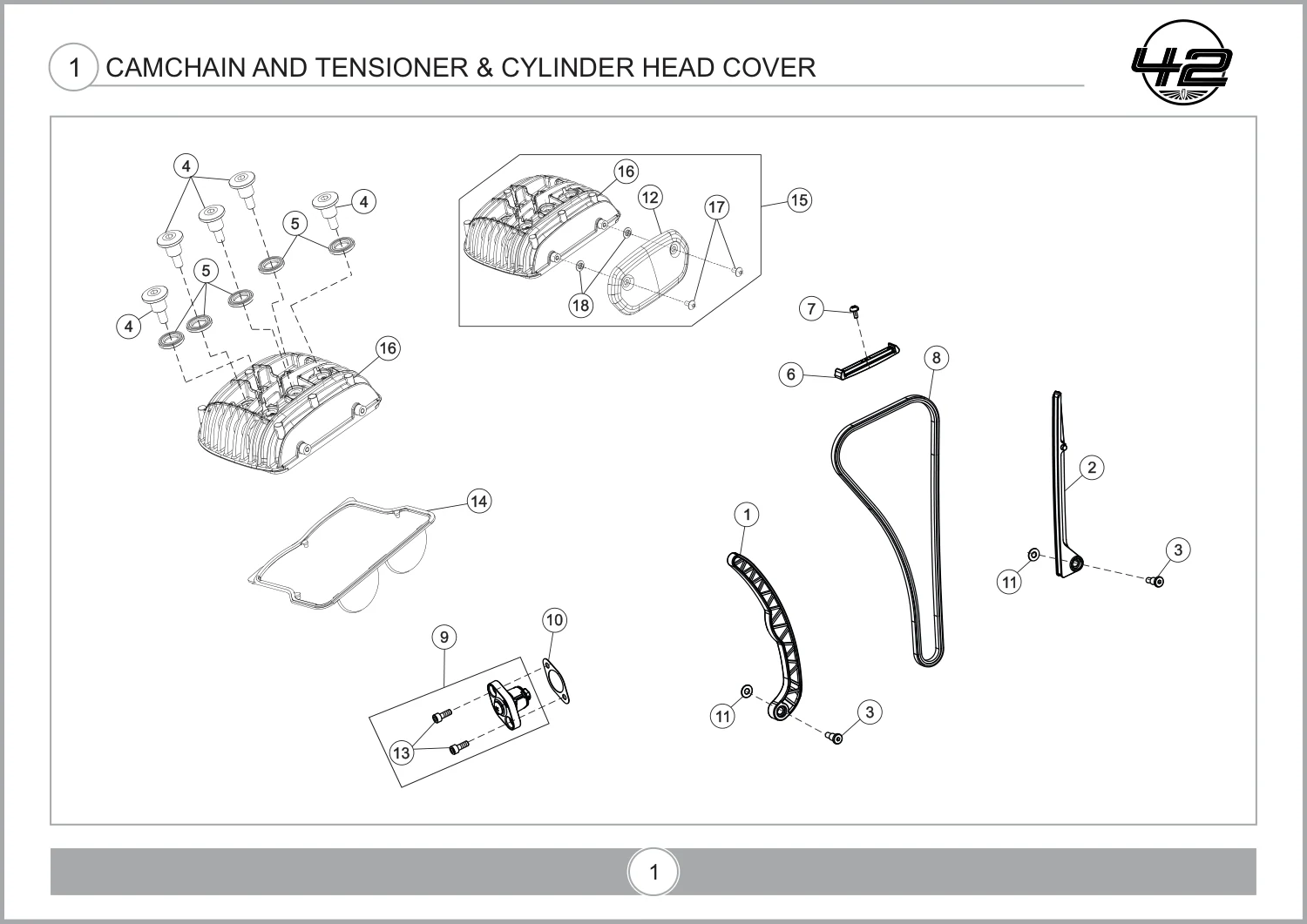

Camchain And Tensioner & Cylinder Head Cover
Page 1 · 18 parts
Assembly 2

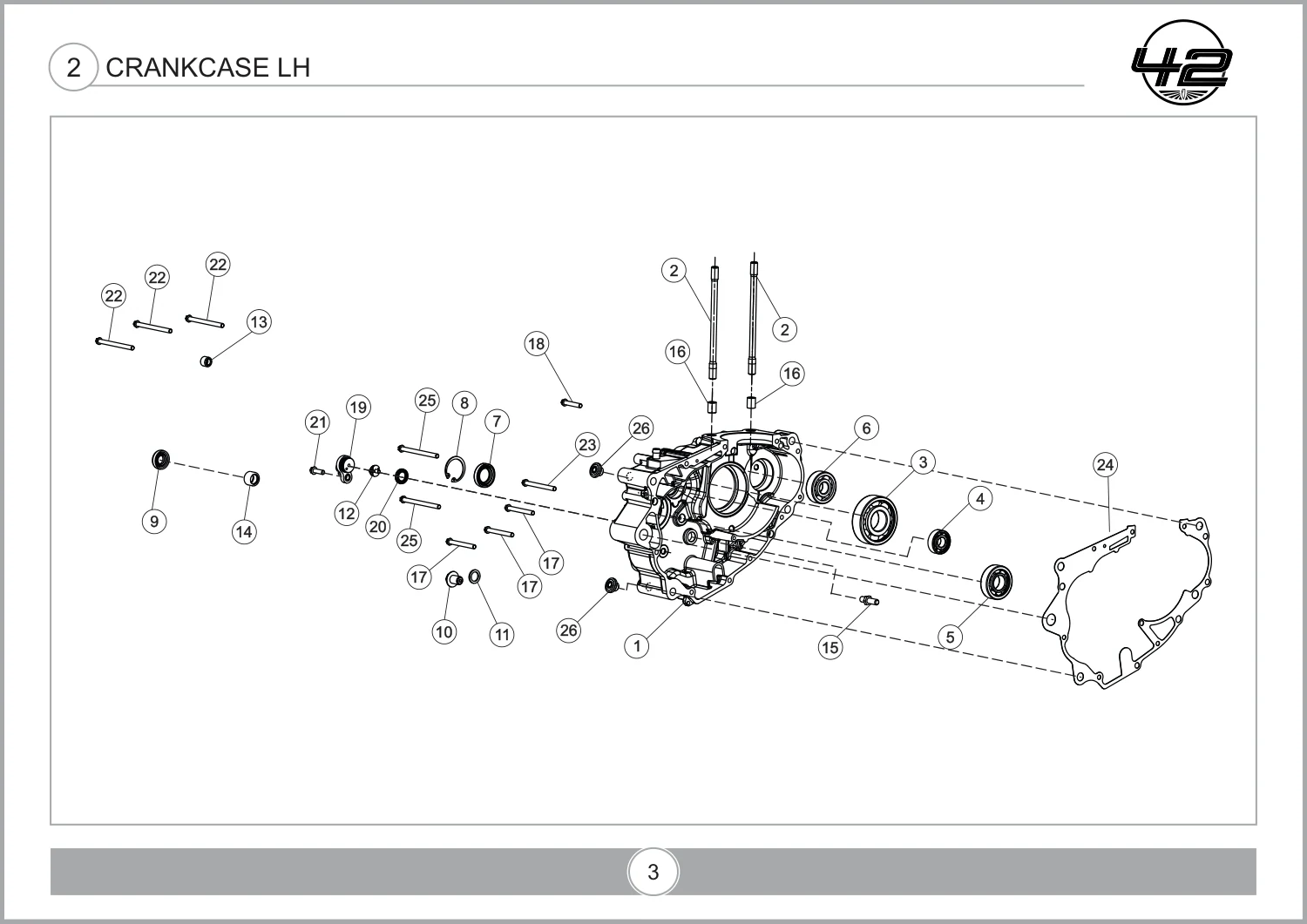

Crankcase LH
Page 3 · 26 parts

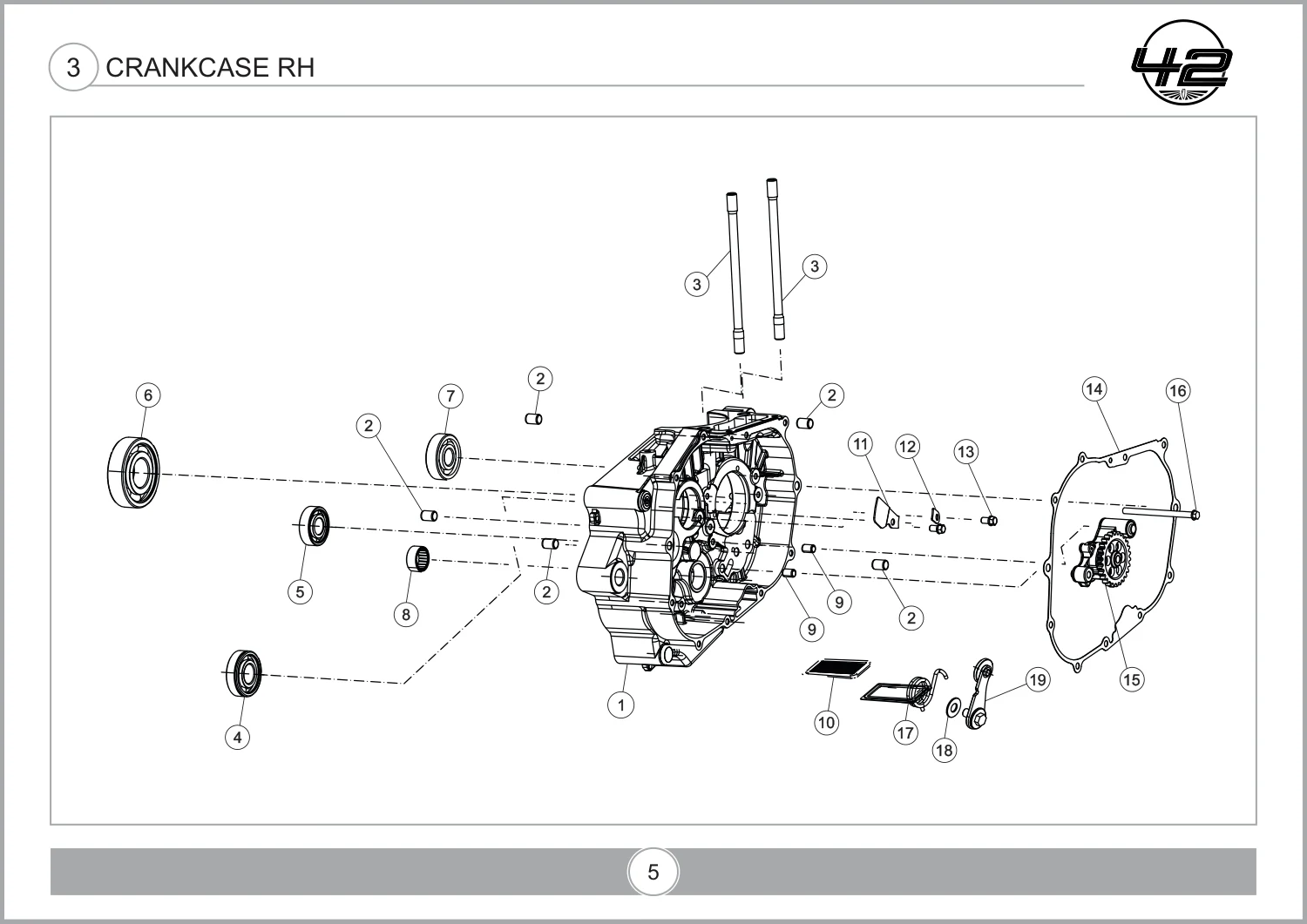

Assembly 3
Crankcase RH
Page 5 · 19 parts

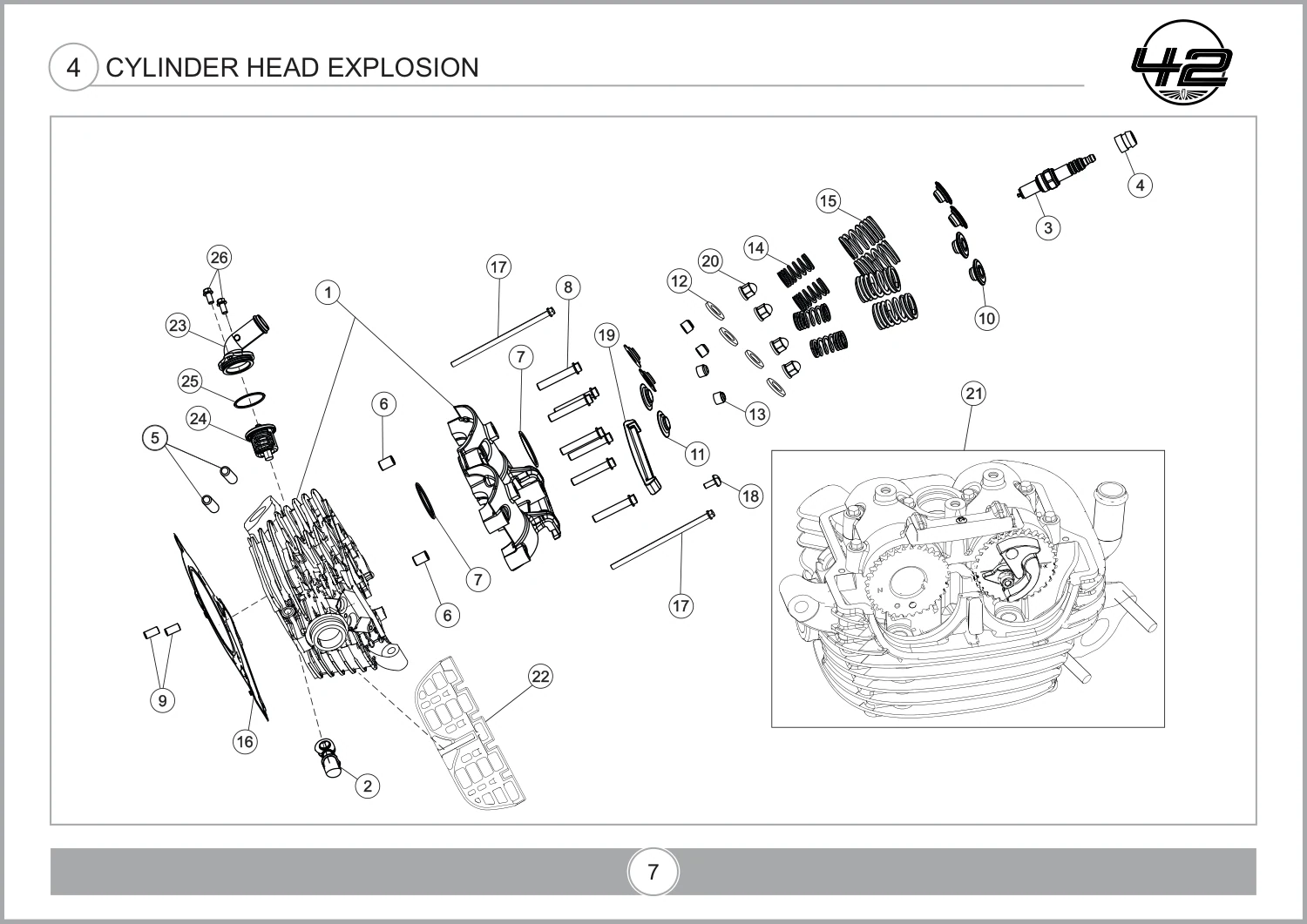

Assembly 4
Cylinder Head Explosion
Page 7 · 28 parts

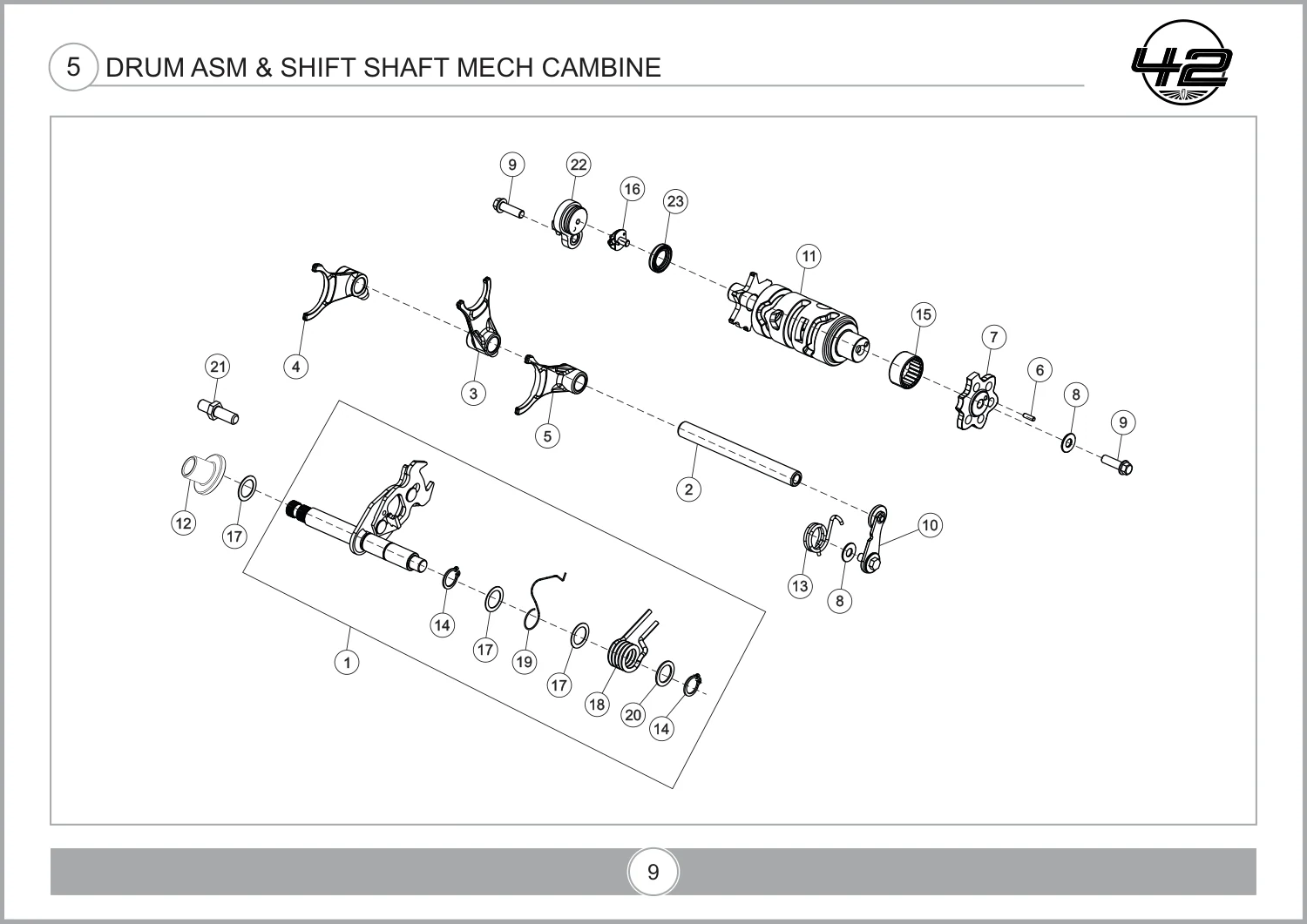

Assembly 5
Drum Asm & Shift Shaft Mech Cambine
Page 9 · 23 parts
Assembly 6

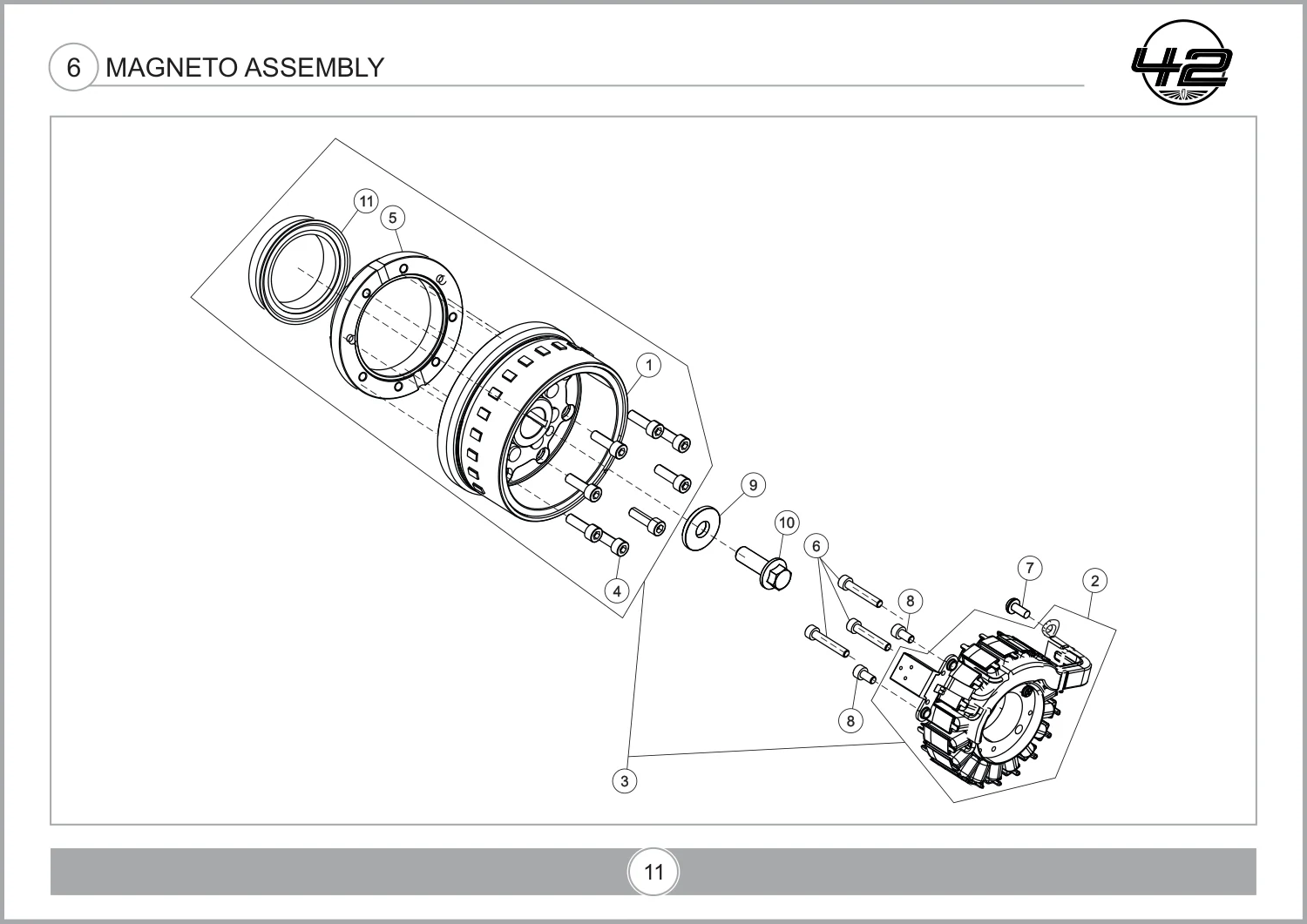

Magneto Assembly
Page 11 · 11 parts
Assembly 7
Magneto Assembly - Integrated Press Fitted Owc With Rotor
Page 13 · 10 parts
Assembly 8

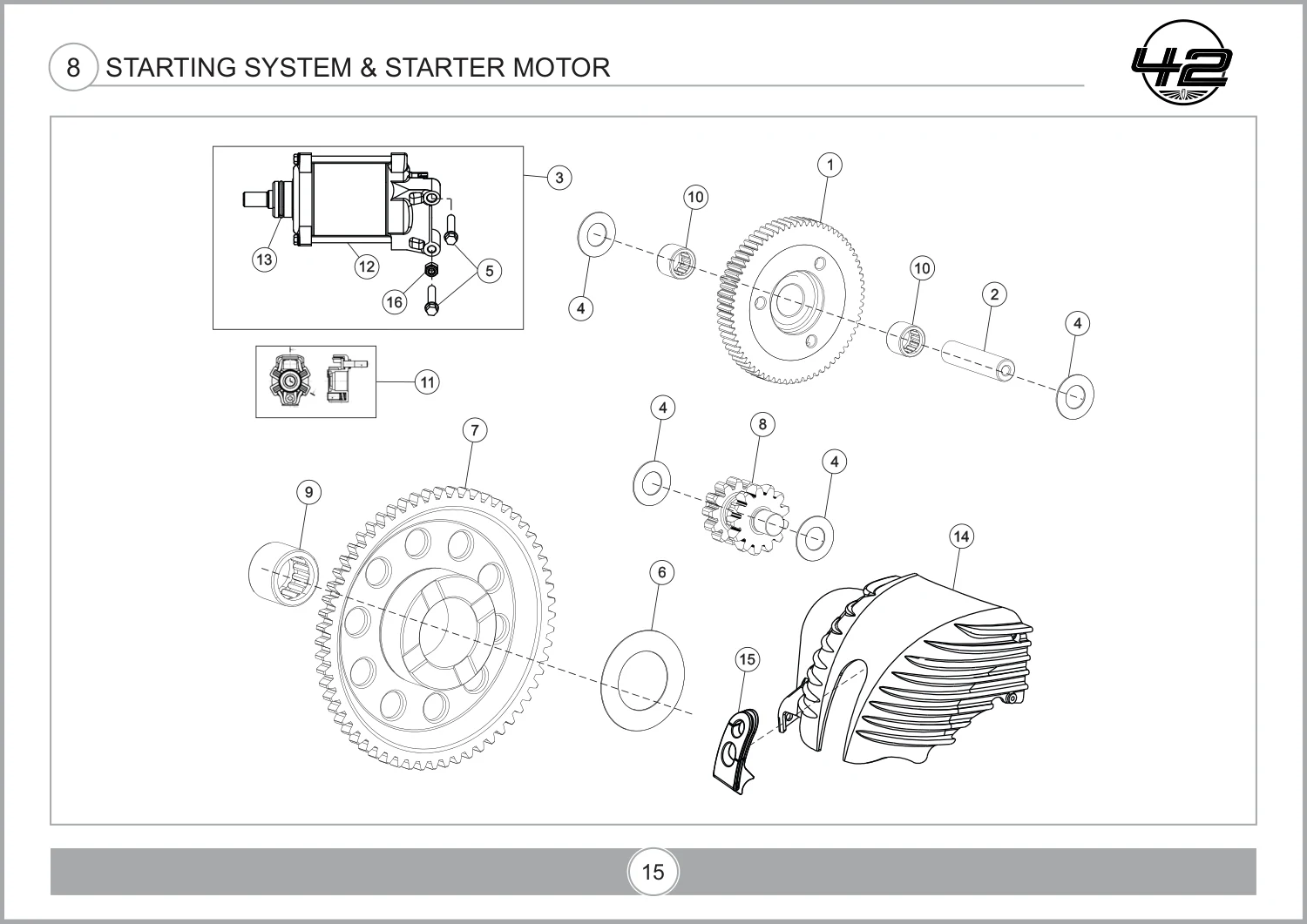

Starting System & Starter Motor
Page 15 · 17 parts
Assembly 9
Valve Train And Cam Shaft
Page 17 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 19 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 21 · 2 parts

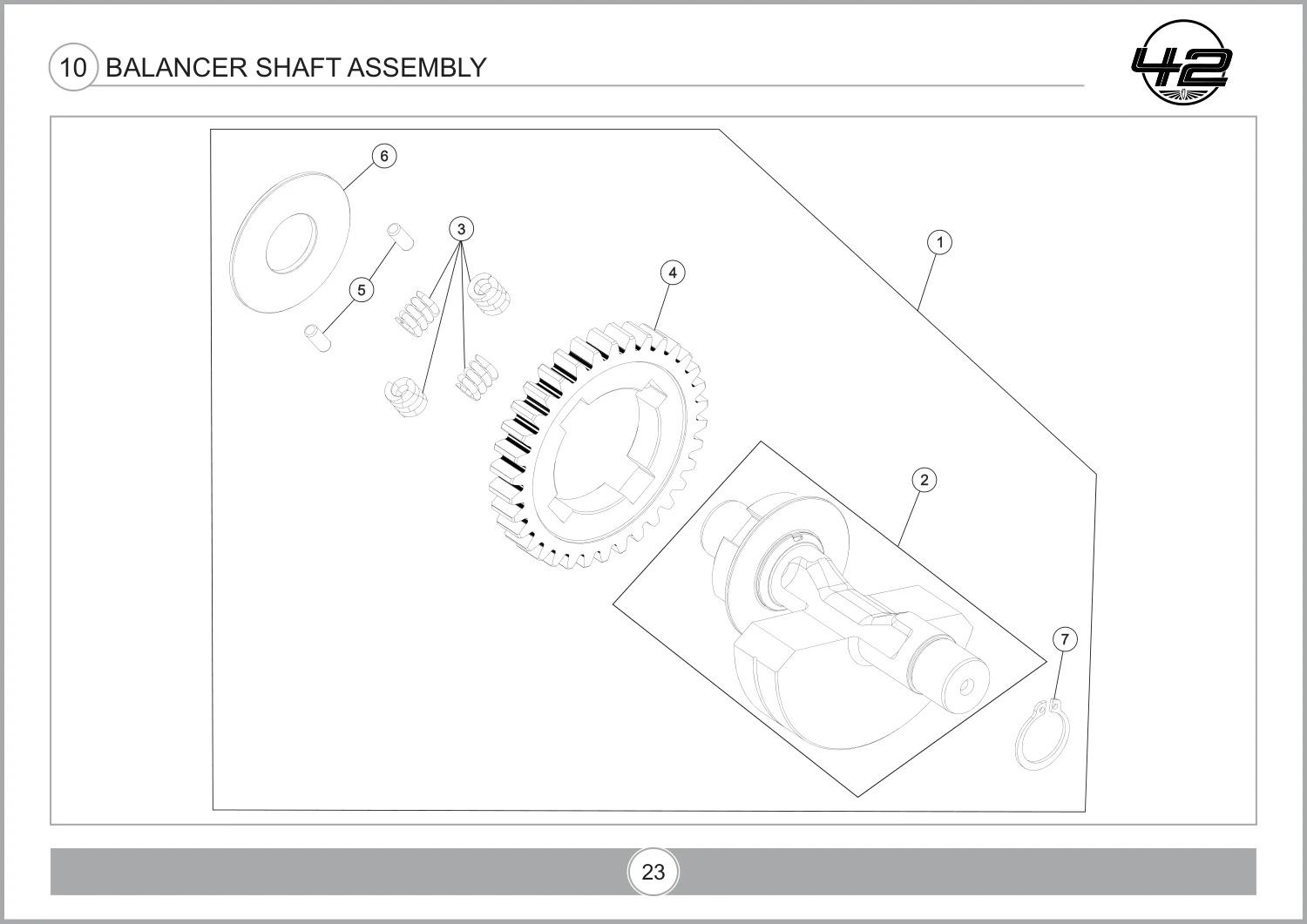

Assembly 10
Balancer Shaft Assembly
Page 23 · 7 parts
Assembly 11

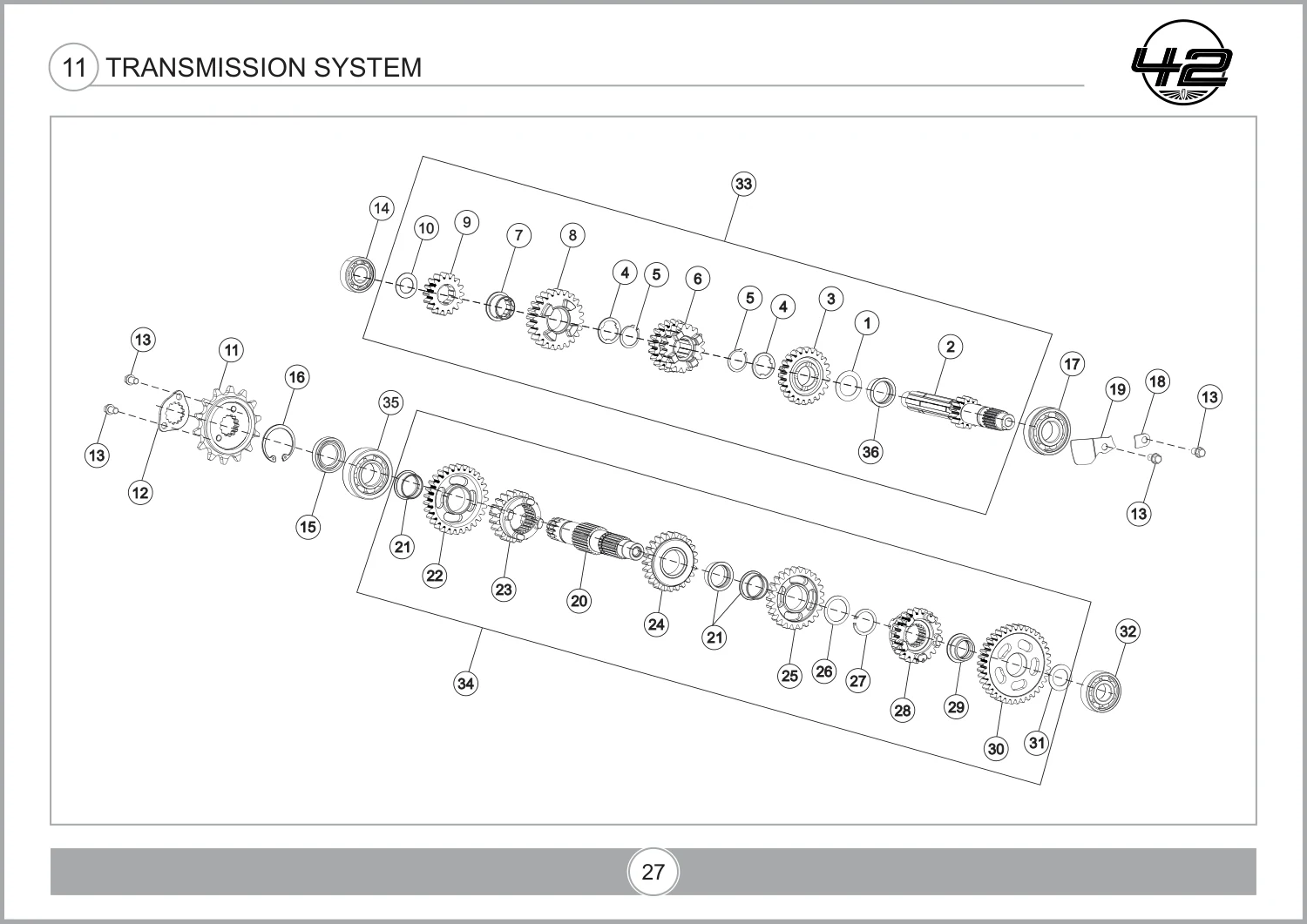

Transmission System
Page 25 · 30 parts
Assembly 11
Transmission System
Page 27 · 6 parts

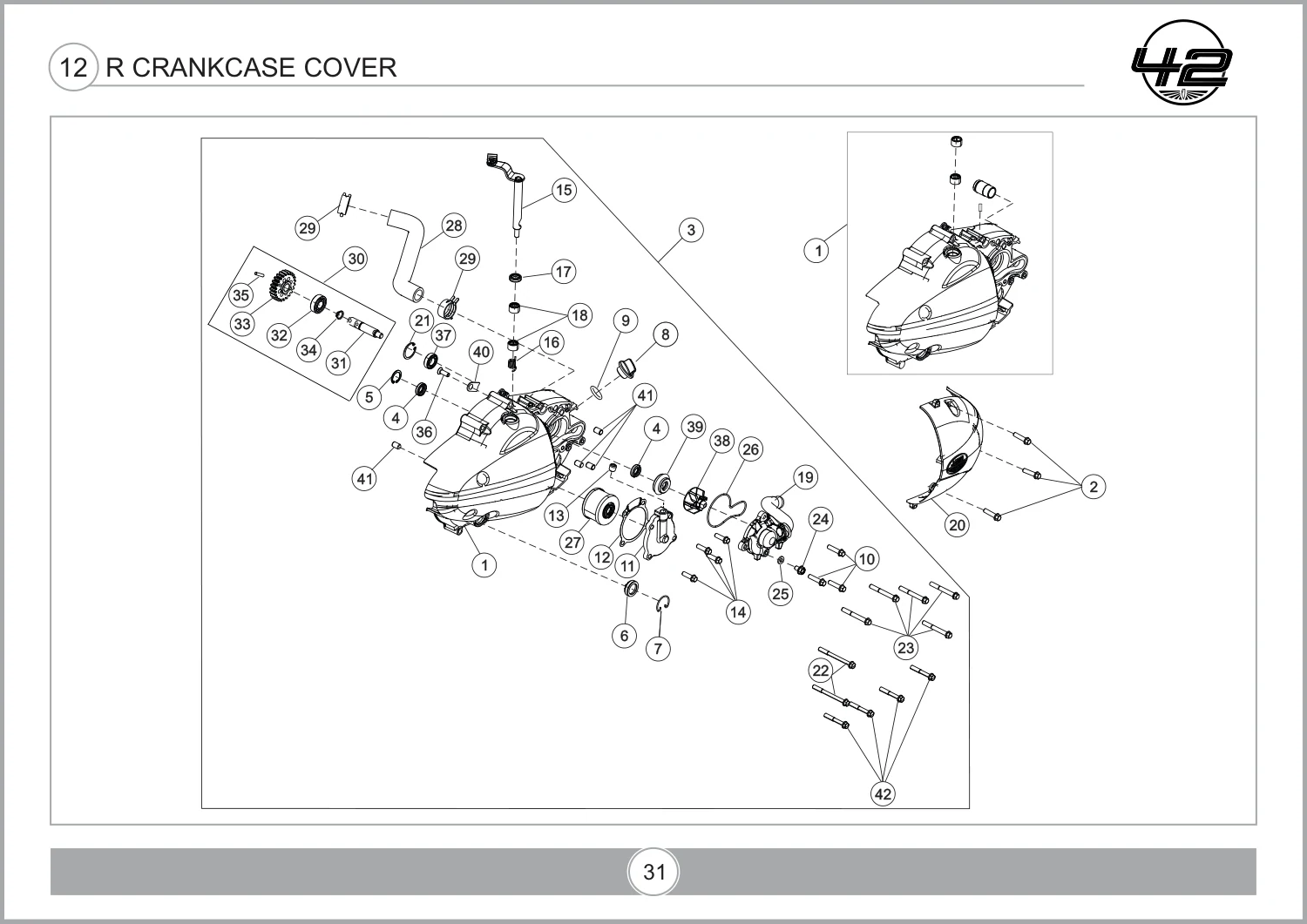

Assembly 12
R Crankcase Cover
Page 29 · 30 parts
Assembly 12
R Crankcase Cover
Page 31 · 12 parts

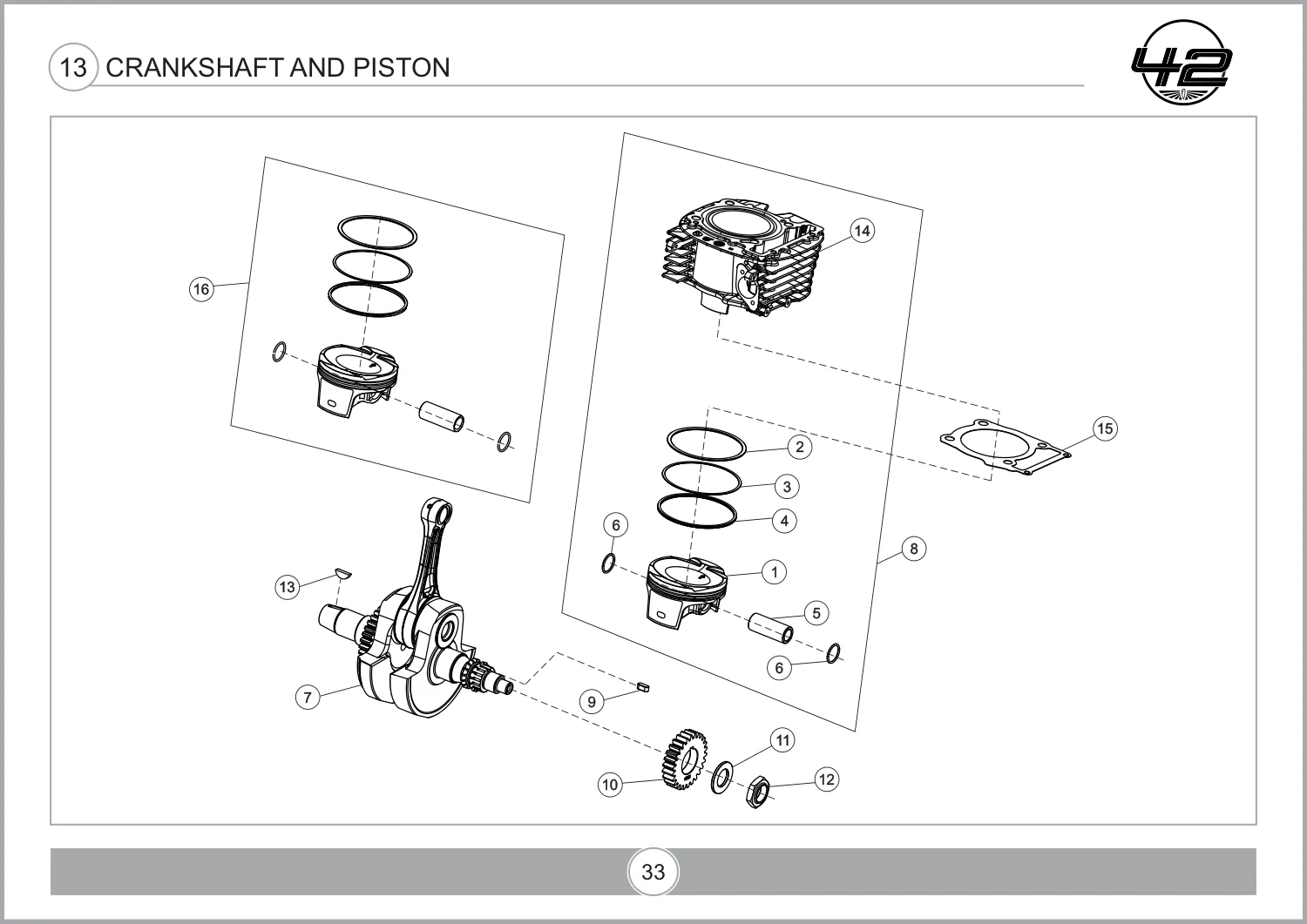

Assembly 13
Crankshaft And Piston
Page 33 · 20 parts
Assembly 14
Magneto Cover LH
Page 35 · 23 parts
Assembly 15
A&S - Clutch Assembly
Page 37 · 24 parts

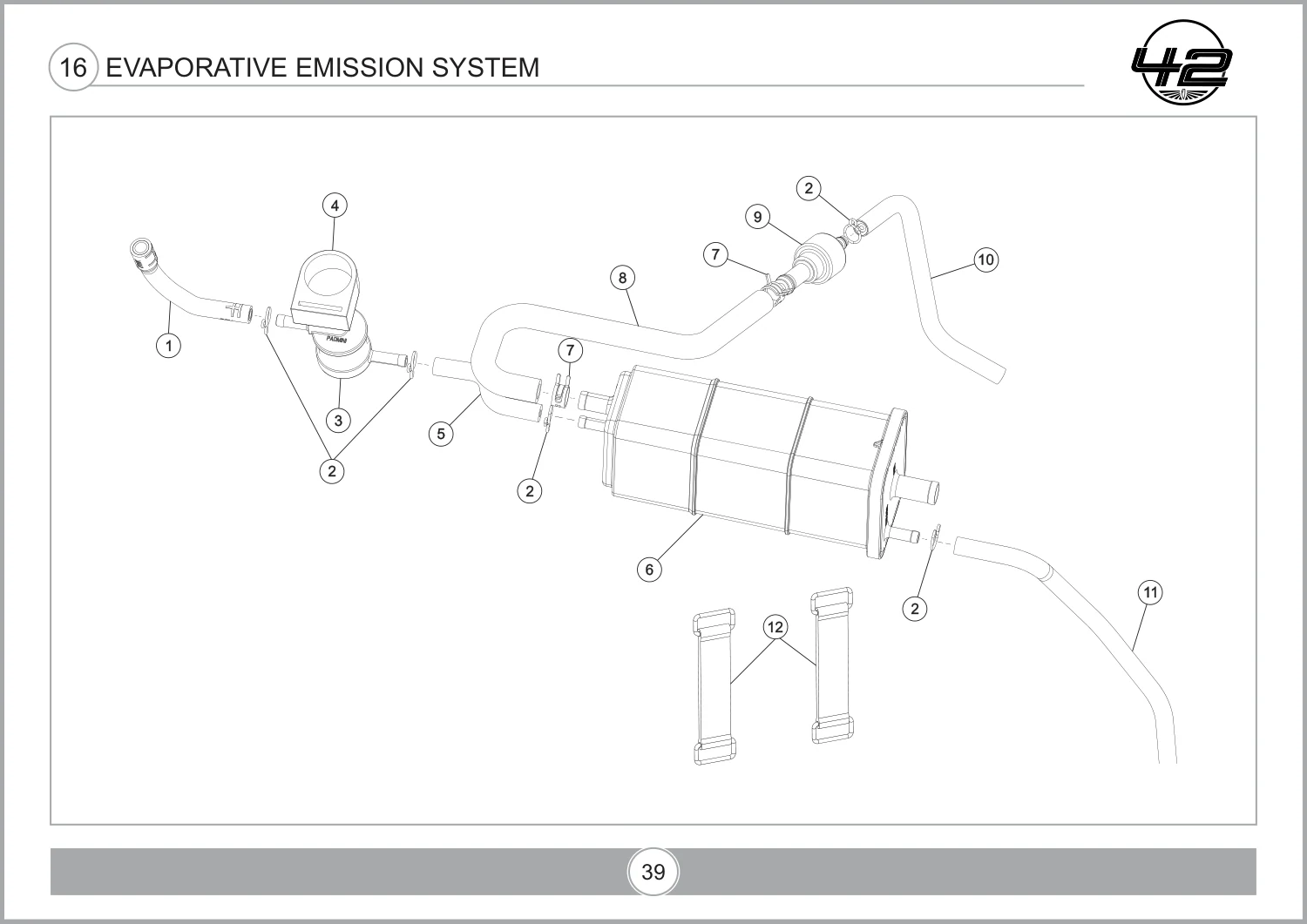

Assembly 16
Evaporative Emission System
Page 39 · 12 parts
Assembly 17
Air Filter Assembly
Page 41 · 29 parts
Assembly 18

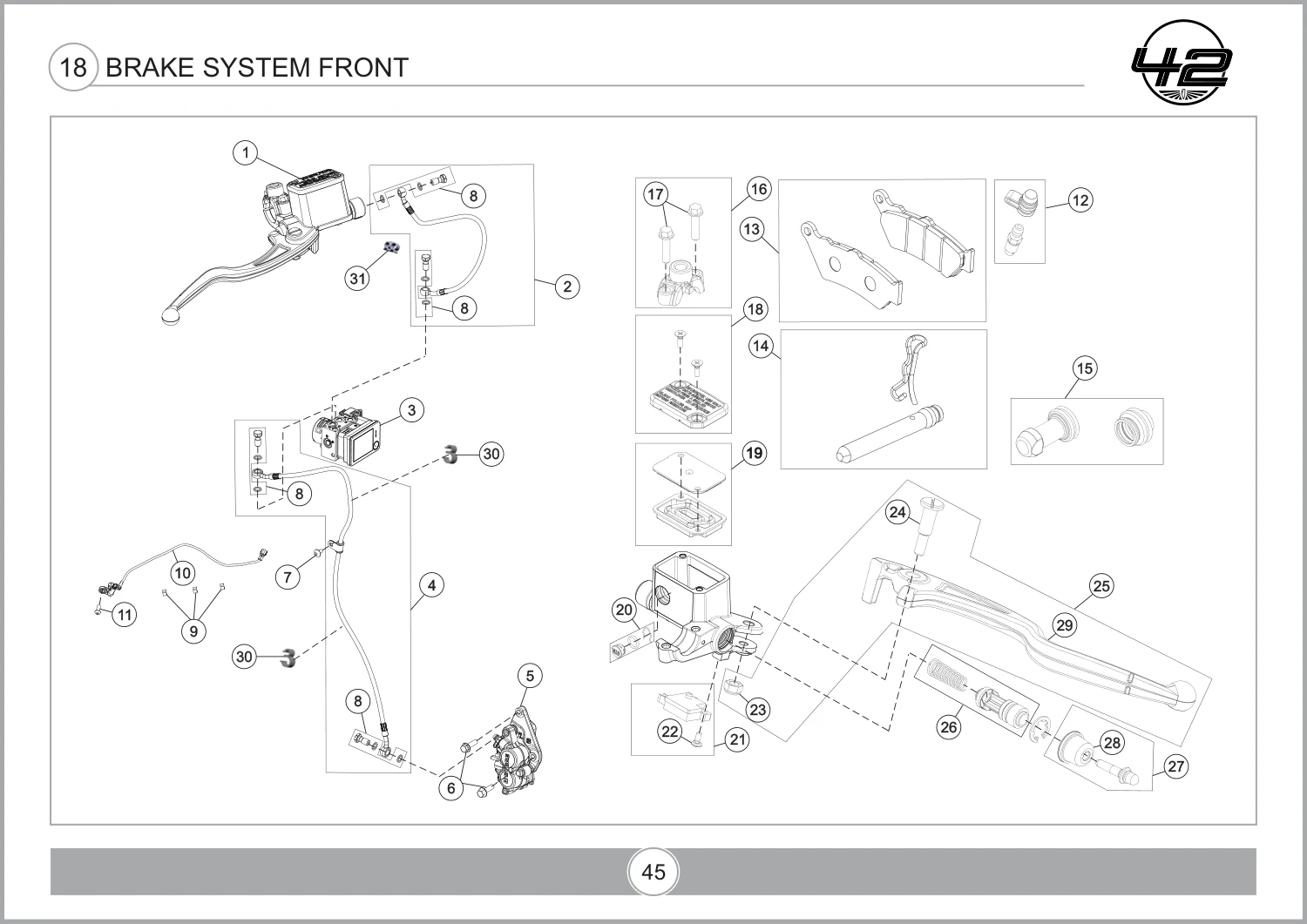

Brake System Front
Page 43 · 30 parts
Assembly 18
Brake System Front
Page 45 · 1 parts
Assembly 19

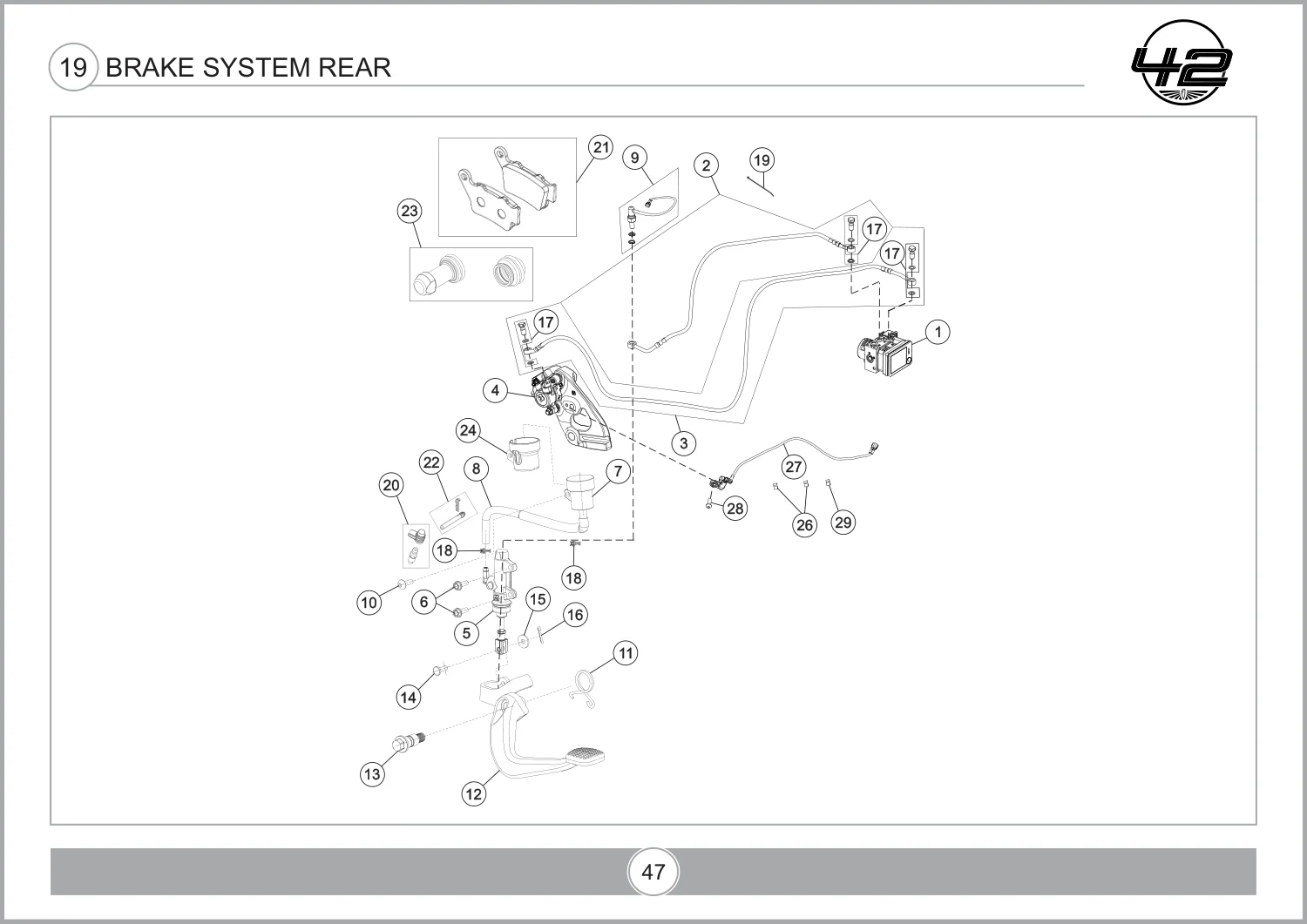

Brake System Rear
Page 47 · 28 parts

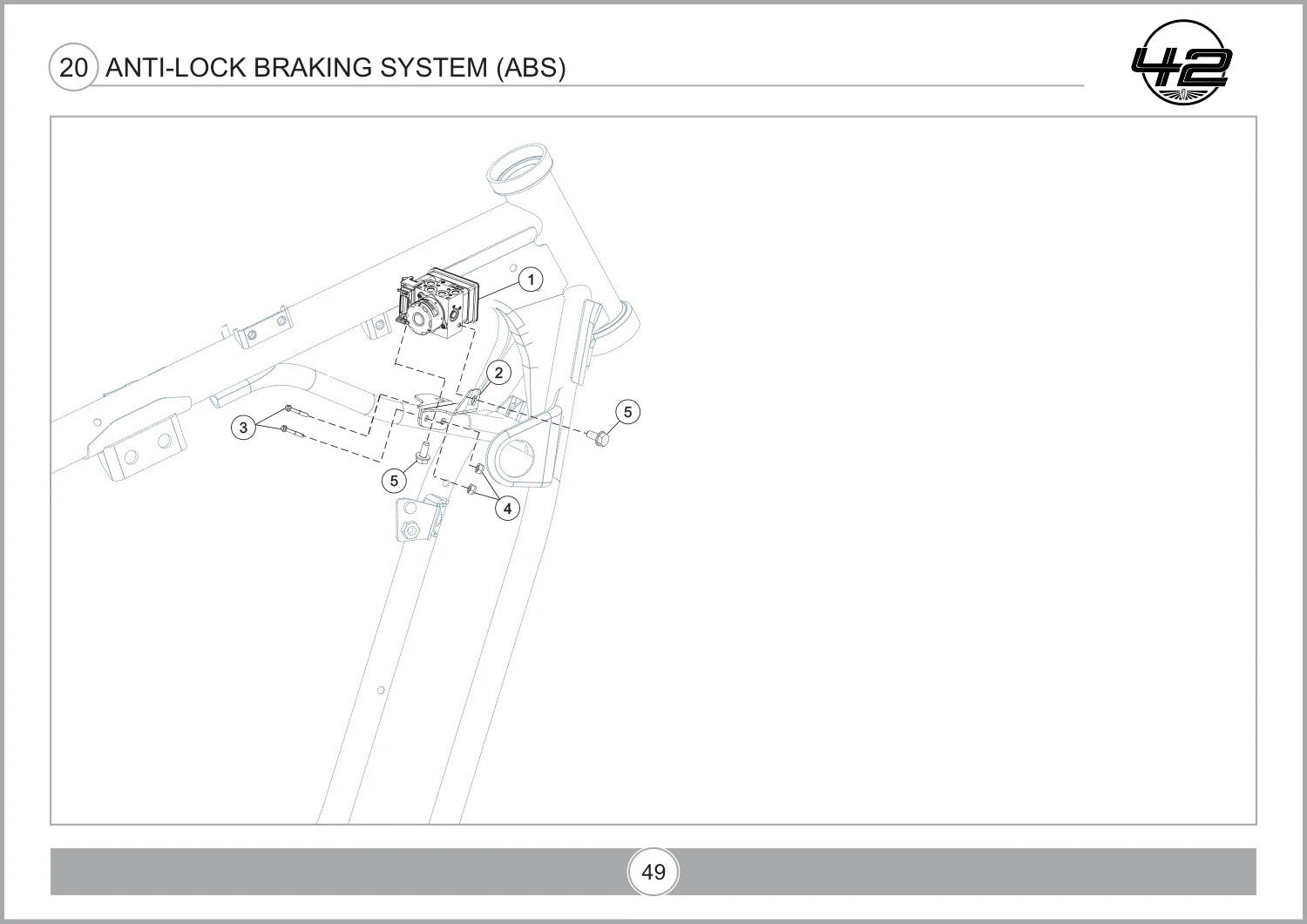

Assembly 20
Anti-Lock Braking System (ABS)
Page 49 · 5 parts
Assembly 21

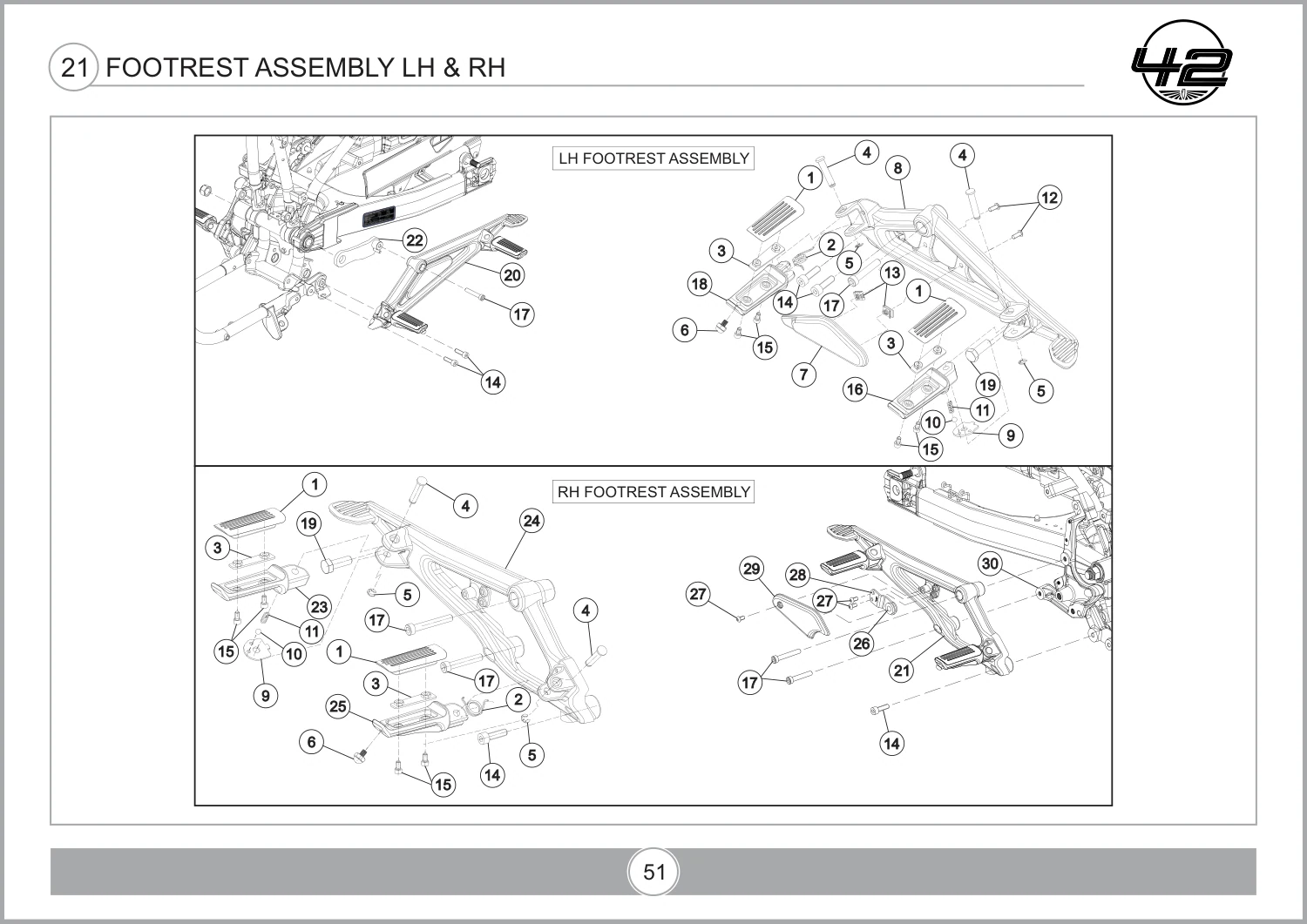

Footrest Assembly LH & RH
Page 51 · 30 parts
Assembly 22
Front Alloy Wheel Assembly
Page 53 · 14 parts
Assembly 23

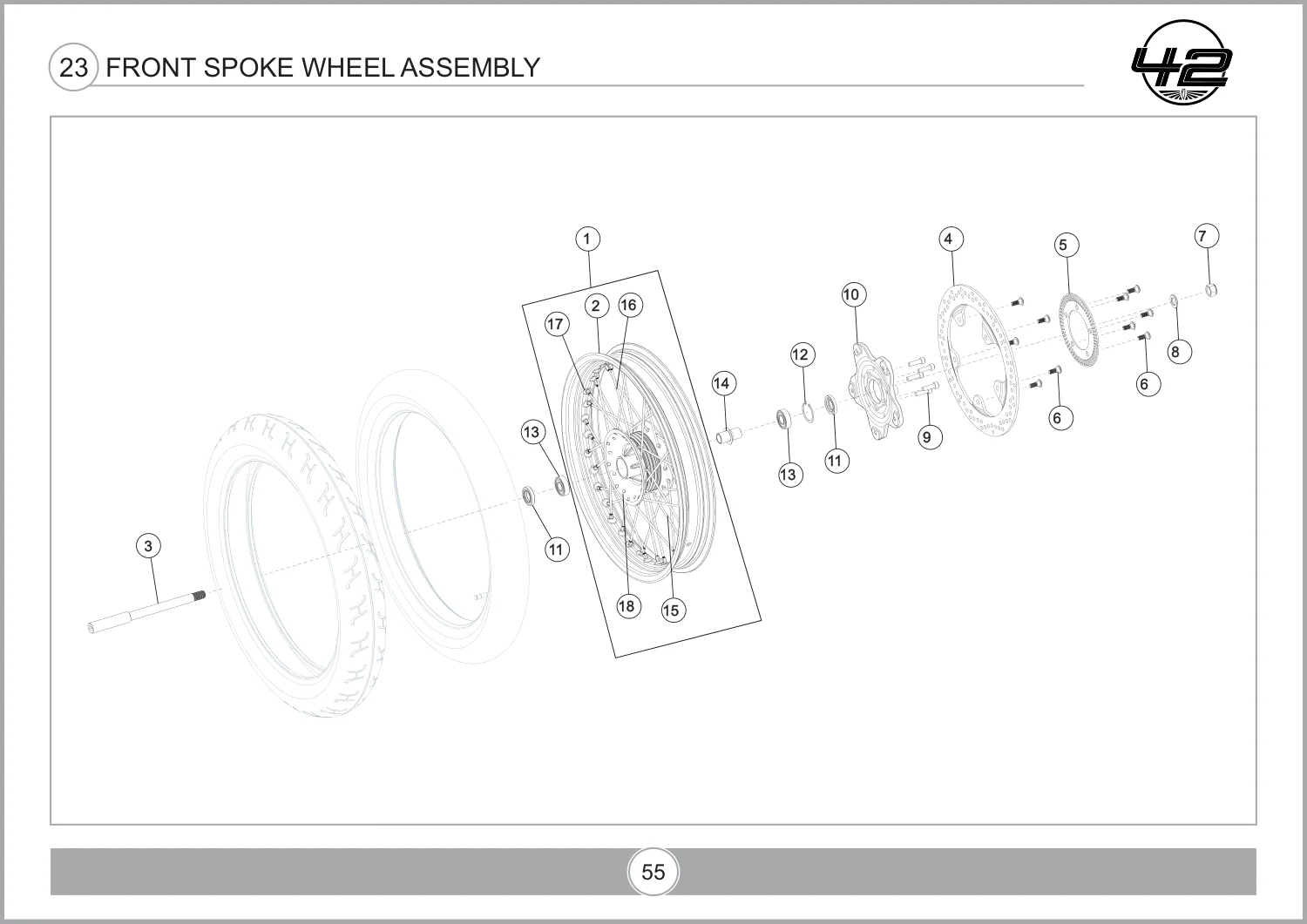

Front Spoke Wheel Assembly
Page 55 · 18 parts

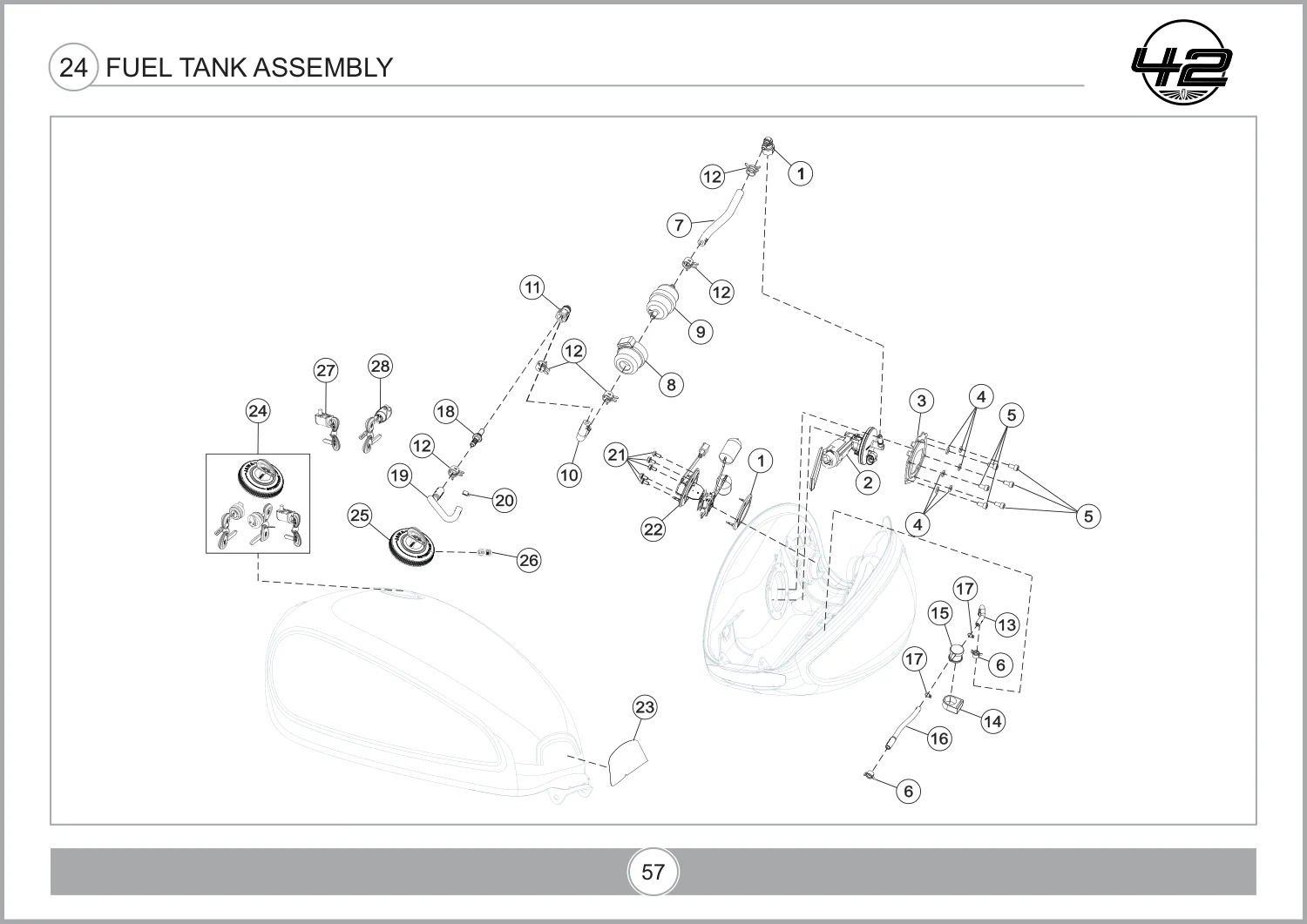

Assembly 24

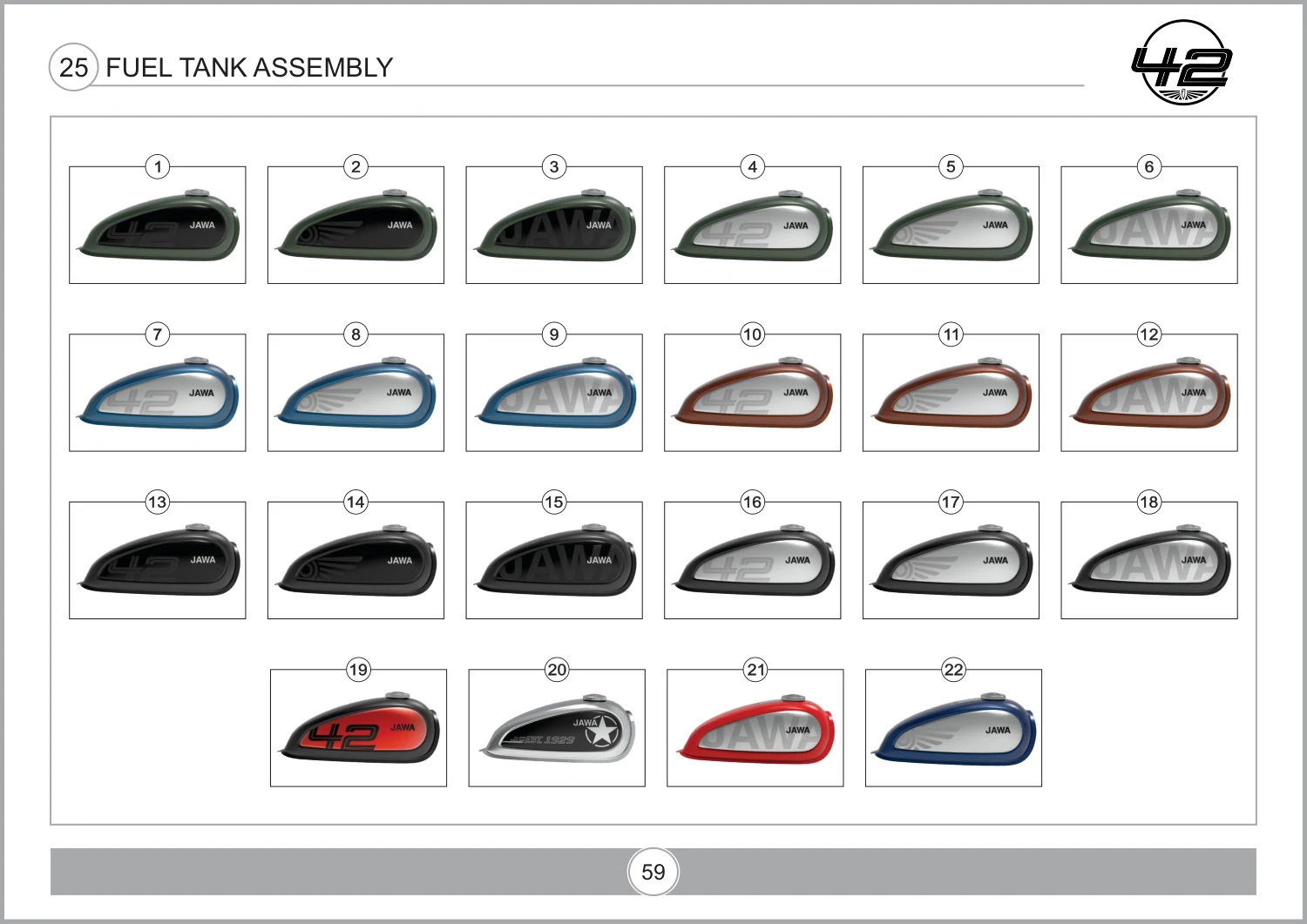

Fuel Tank Assembly
Page 57 · 30 parts
Assembly 25
Fuel Tank Assembly
Page 59 · 22 parts
Assembly 26
Front Fender Assembly
Page 61 · 14 parts

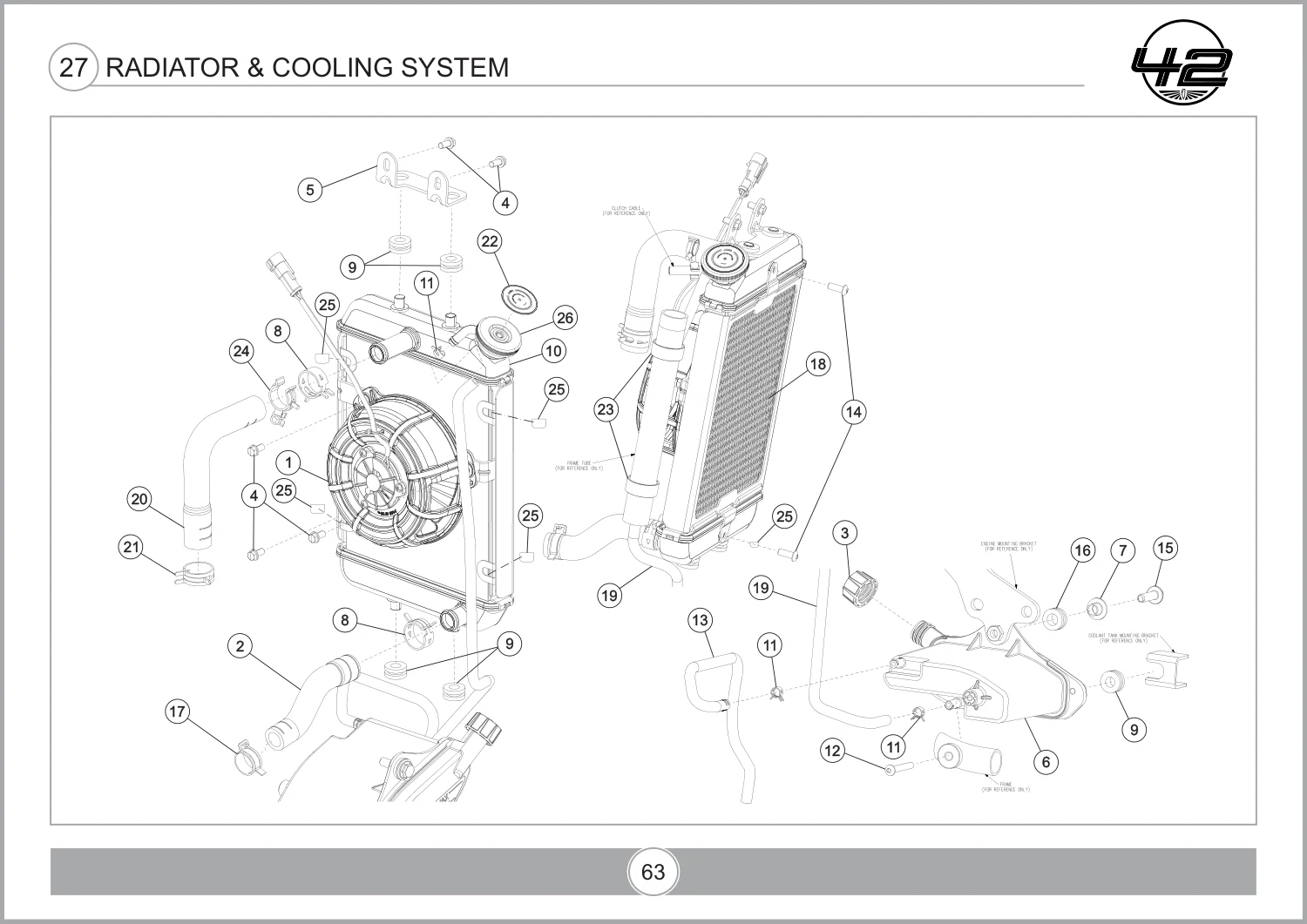

Assembly 27
Radiator & Cooling System
Page 63 · 26 parts
Assembly 28
Rear Fender Assembly
Page 65 · 30 parts
Assembly 28
Rear Fender Assembly
Page 67 · 17 parts
Assembly 29

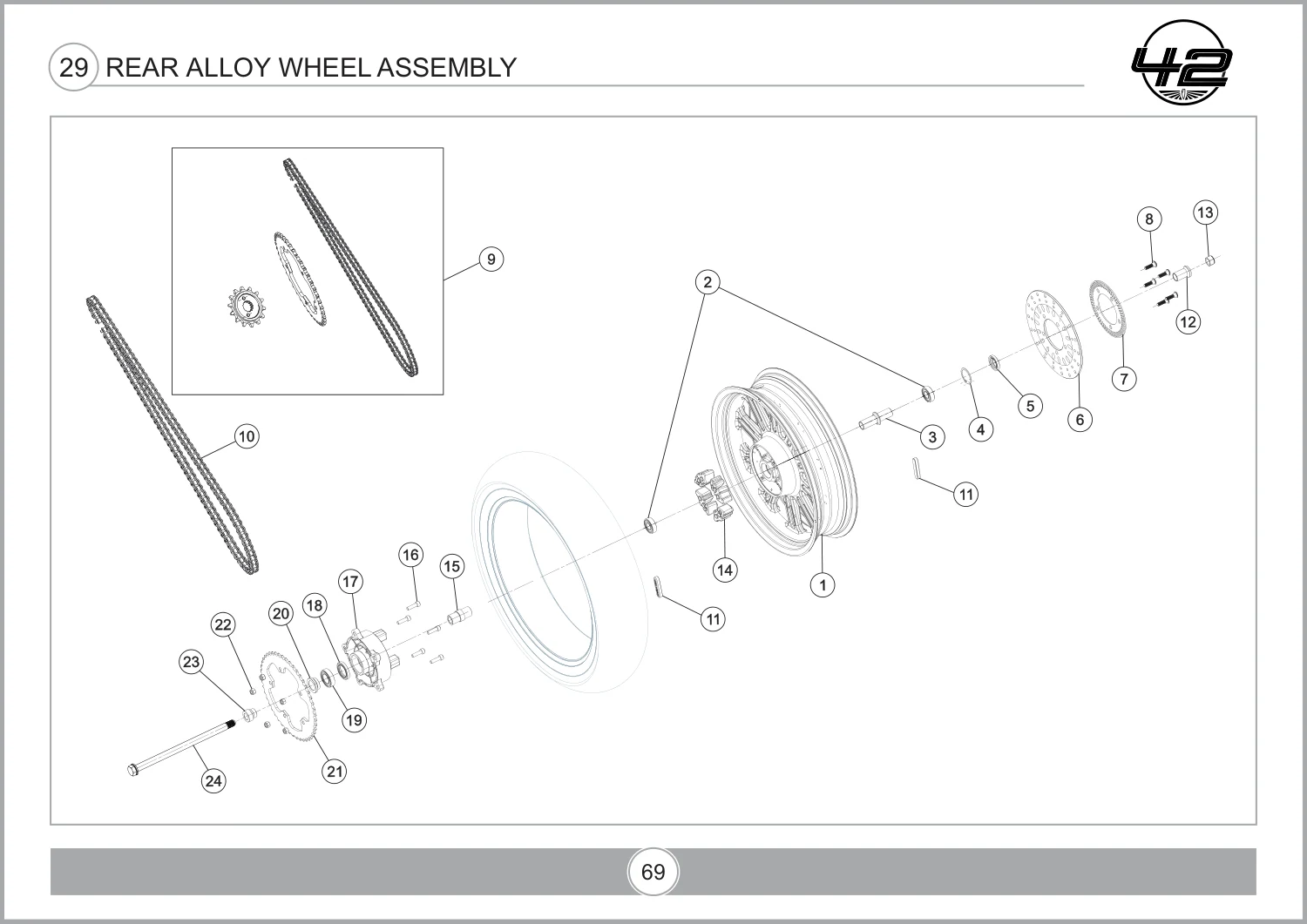

Rear Alloy Wheel Assembly
Page 69 · 24 parts

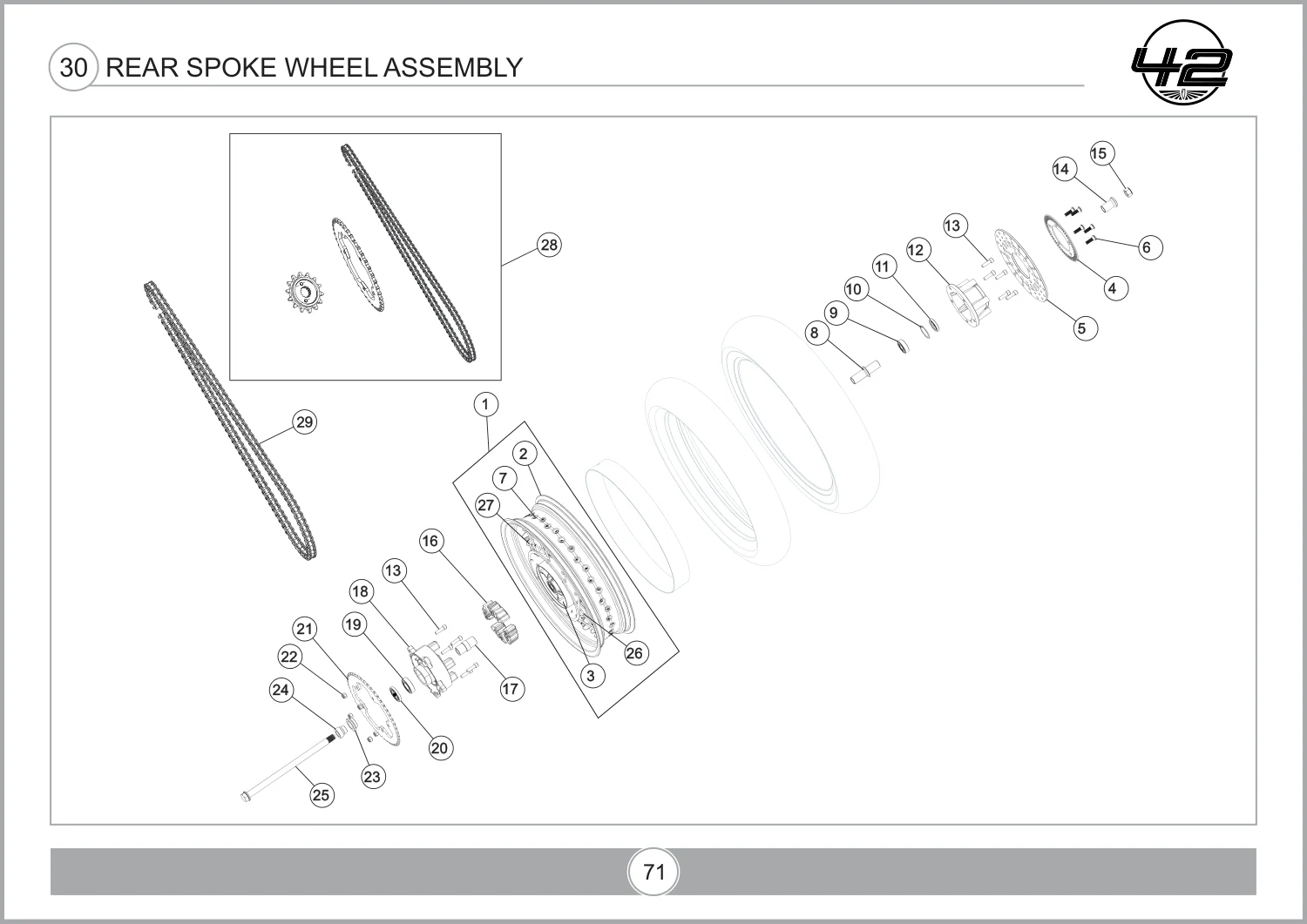

Assembly 30
Rear Spoke Wheel Assembly
Page 71 · 29 parts
Assembly 31
Seat Assembly
Page 73 · 10 parts

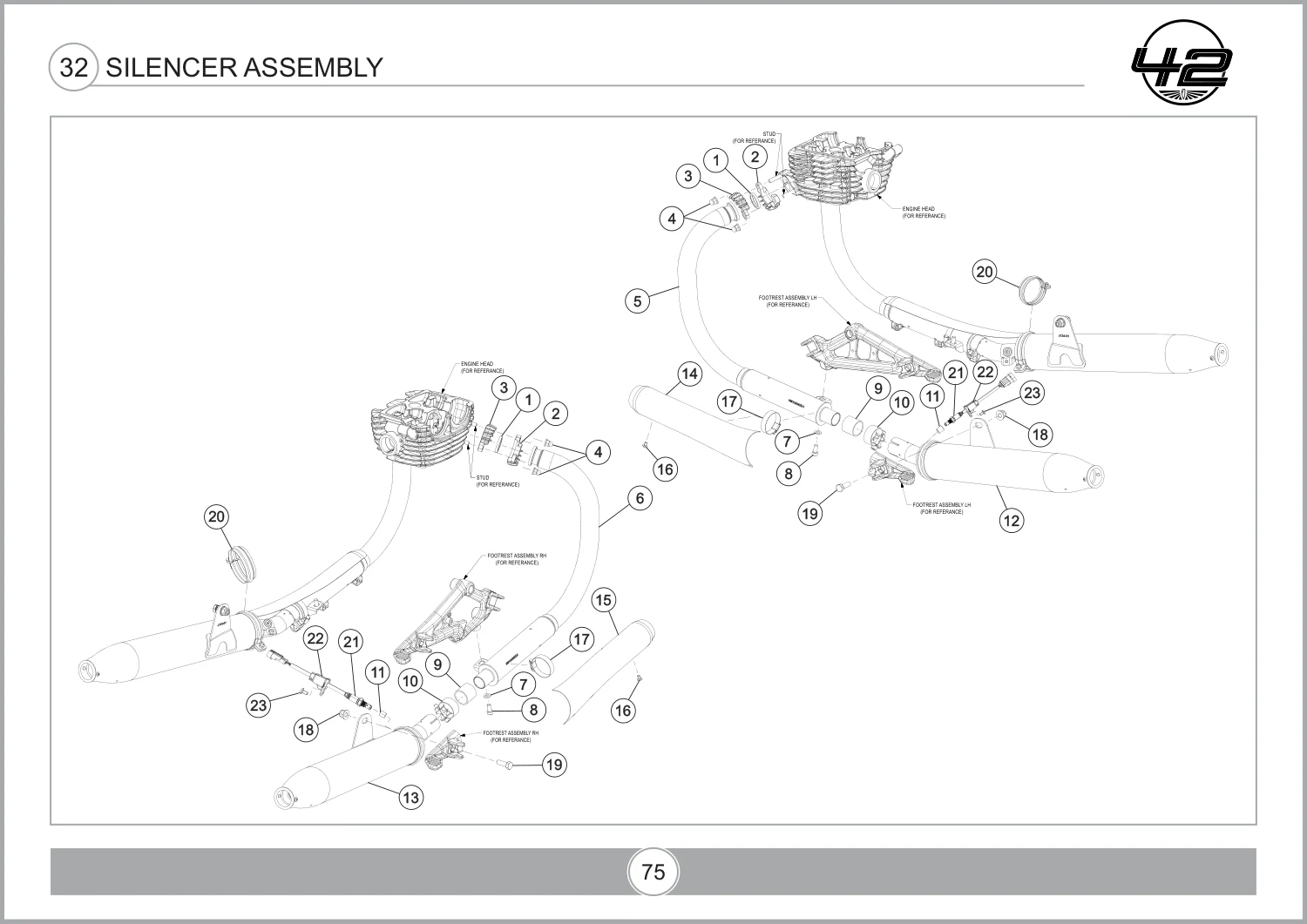

Assembly 32
Silencer Assembly
Page 75 · 23 parts
Assembly 33

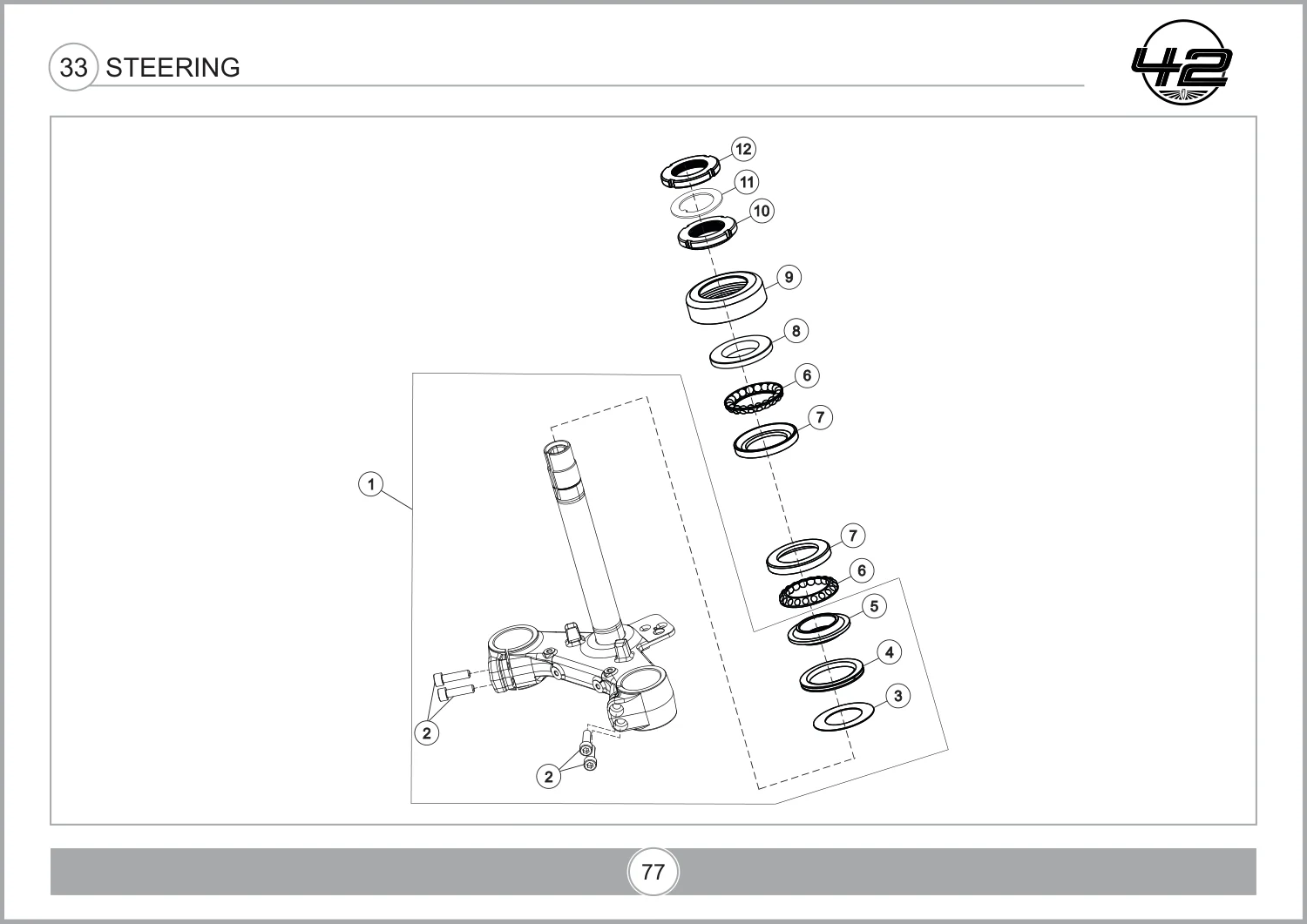

Steering
Page 77 · 12 parts
Assembly 34
Front Fork Assembly
Page 79 · 23 parts
Assembly 35
Front Fork Mountings
Page 81 · 8 parts
Assembly 36

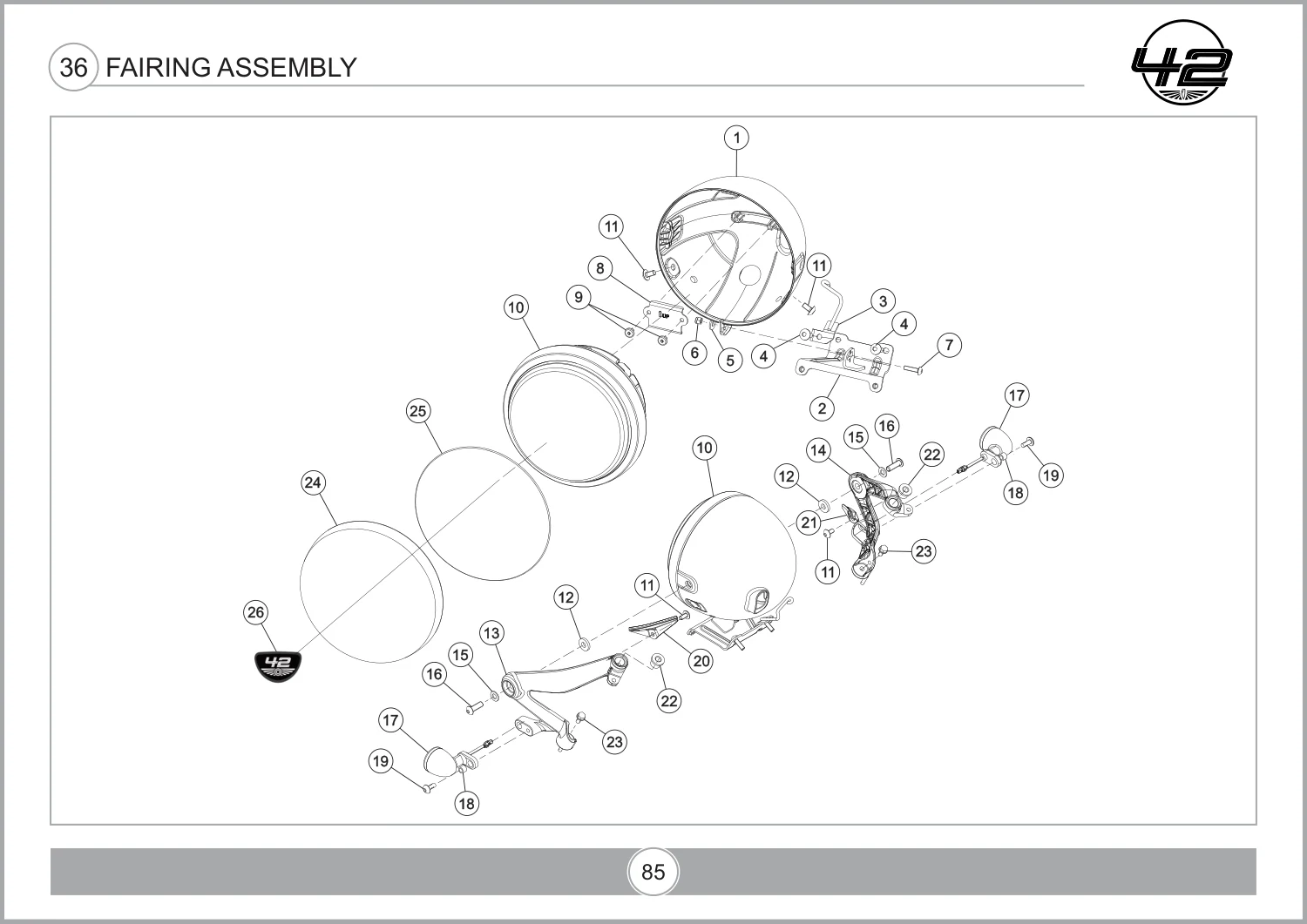

Fairing Assembly
Page 83 · 30 parts
Assembly 36
Fairing Assembly
Page 85 · 2 parts

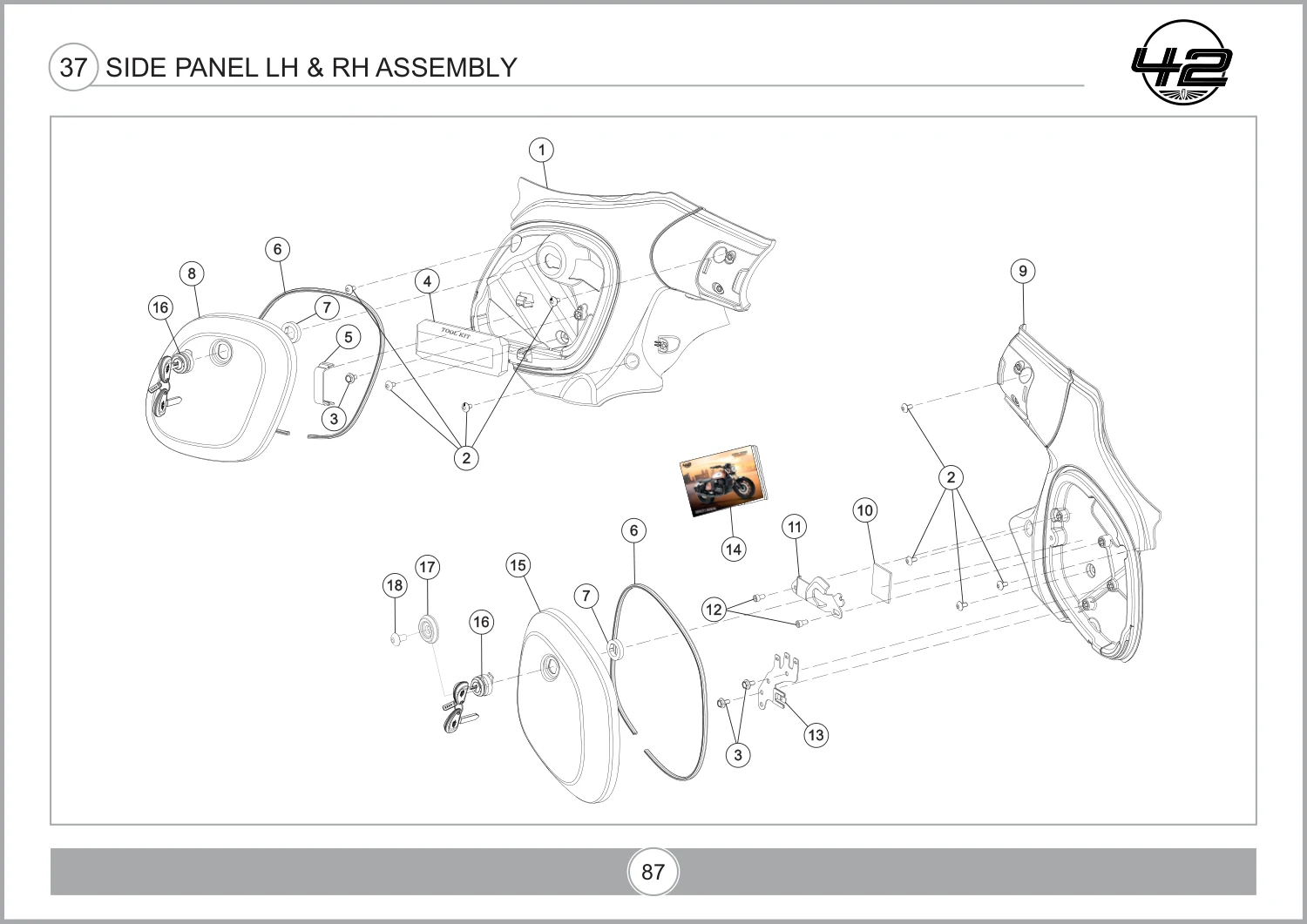

Assembly 37
Side Panel LH & RH Assembly
Page 87 · 30 parts
Assembly 37
Side Panel LH & RH Assembly
Page 89 · 1 parts

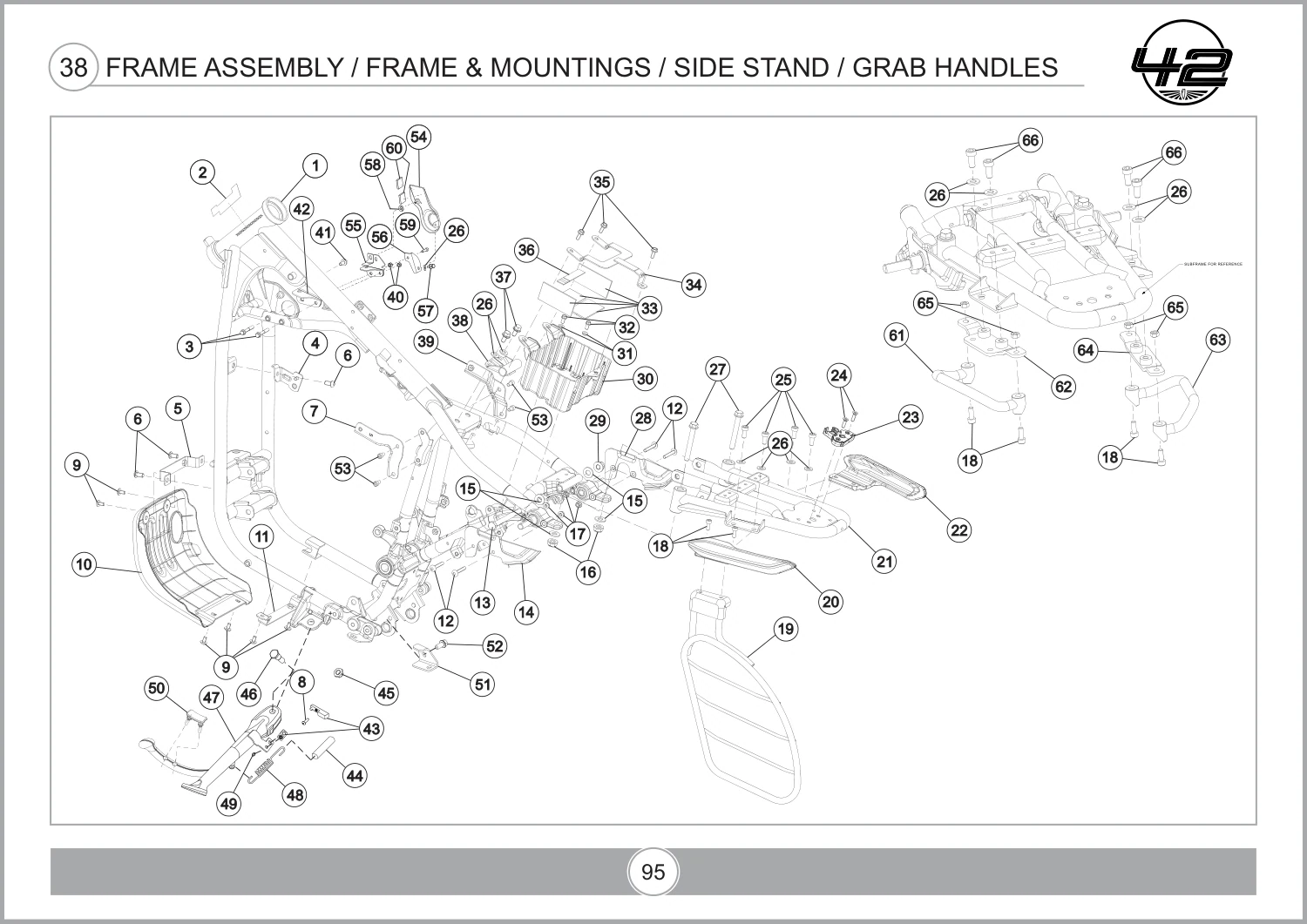

Assembly 38

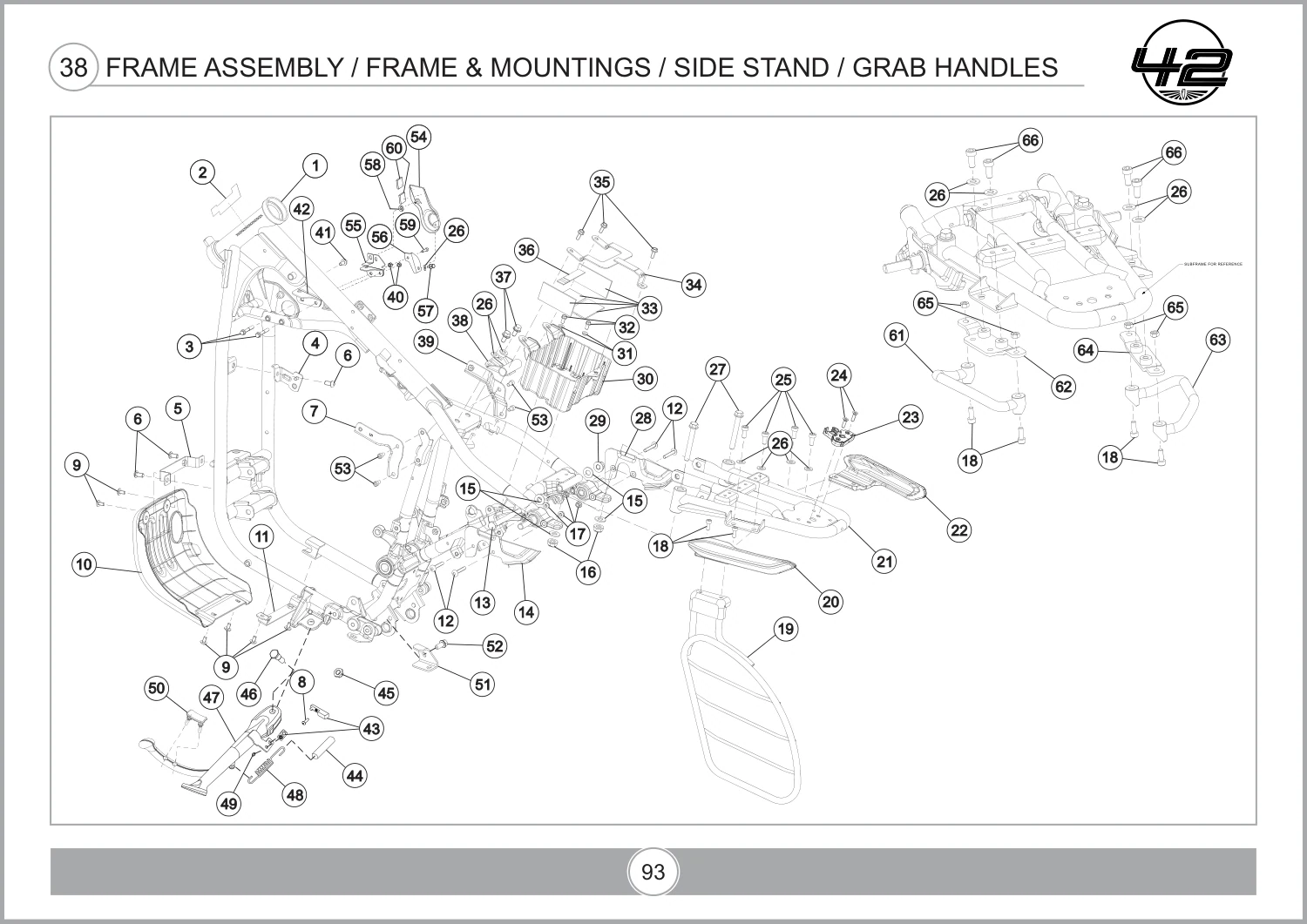

Frame Assembly / Frame & Mountings / Side Stand / Grab Handles
Page 91 · 30 parts
Assembly 38
Frame Assembly / Frame & Mountings / Side Stand / Grab Handles
Page 93 · 30 parts
Assembly 38
Frame Assembly / Frame & Mountings / Side Stand / Grab Handles
Page 95 · 6 parts
Assembly 39
Engine Mounting System
Page 97 · 17 parts
Assembly 40

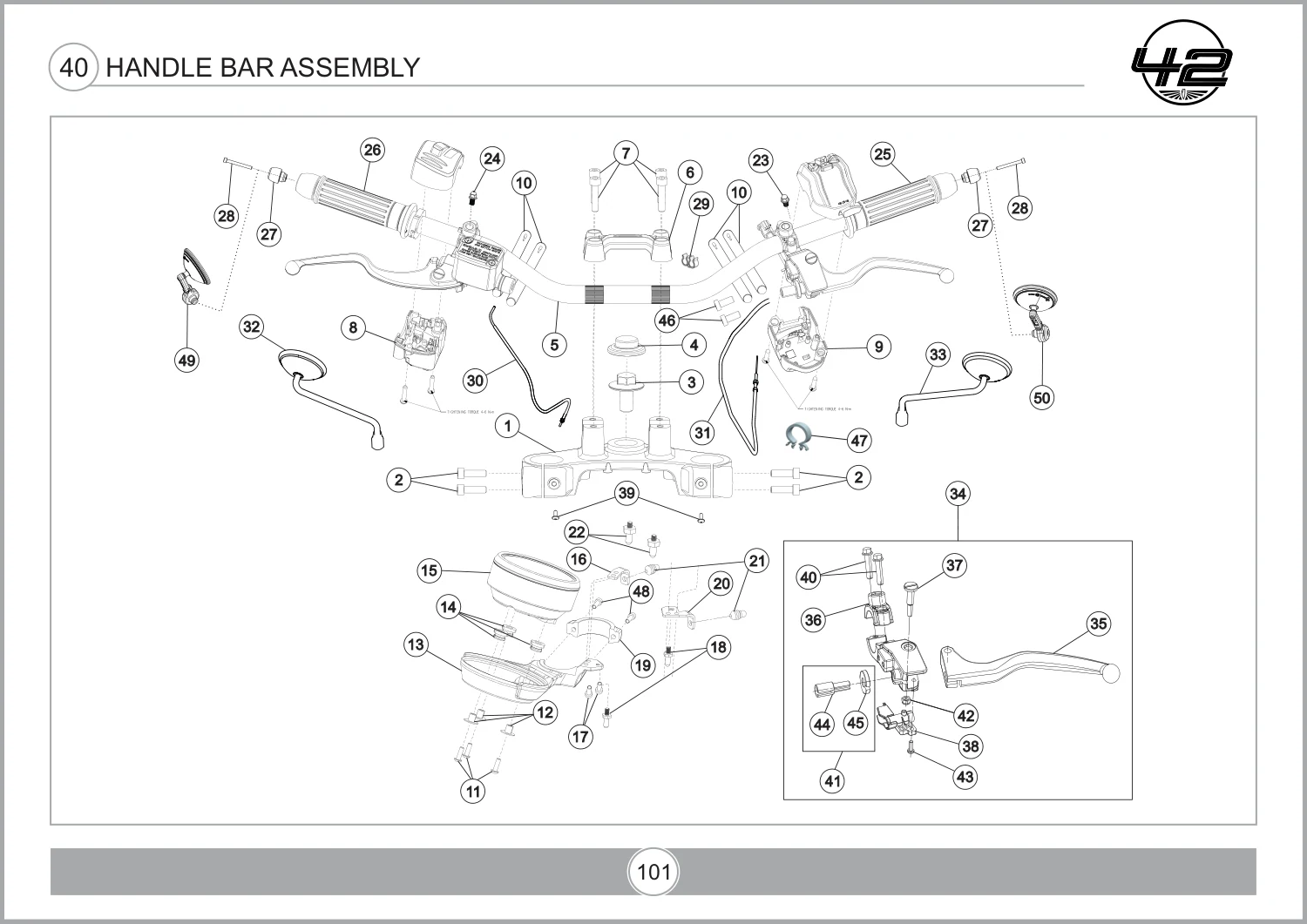

Handle Bar Assembly
Page 99 · 30 parts
Assembly 40
Handle Bar Assembly
Page 101 · 22 parts

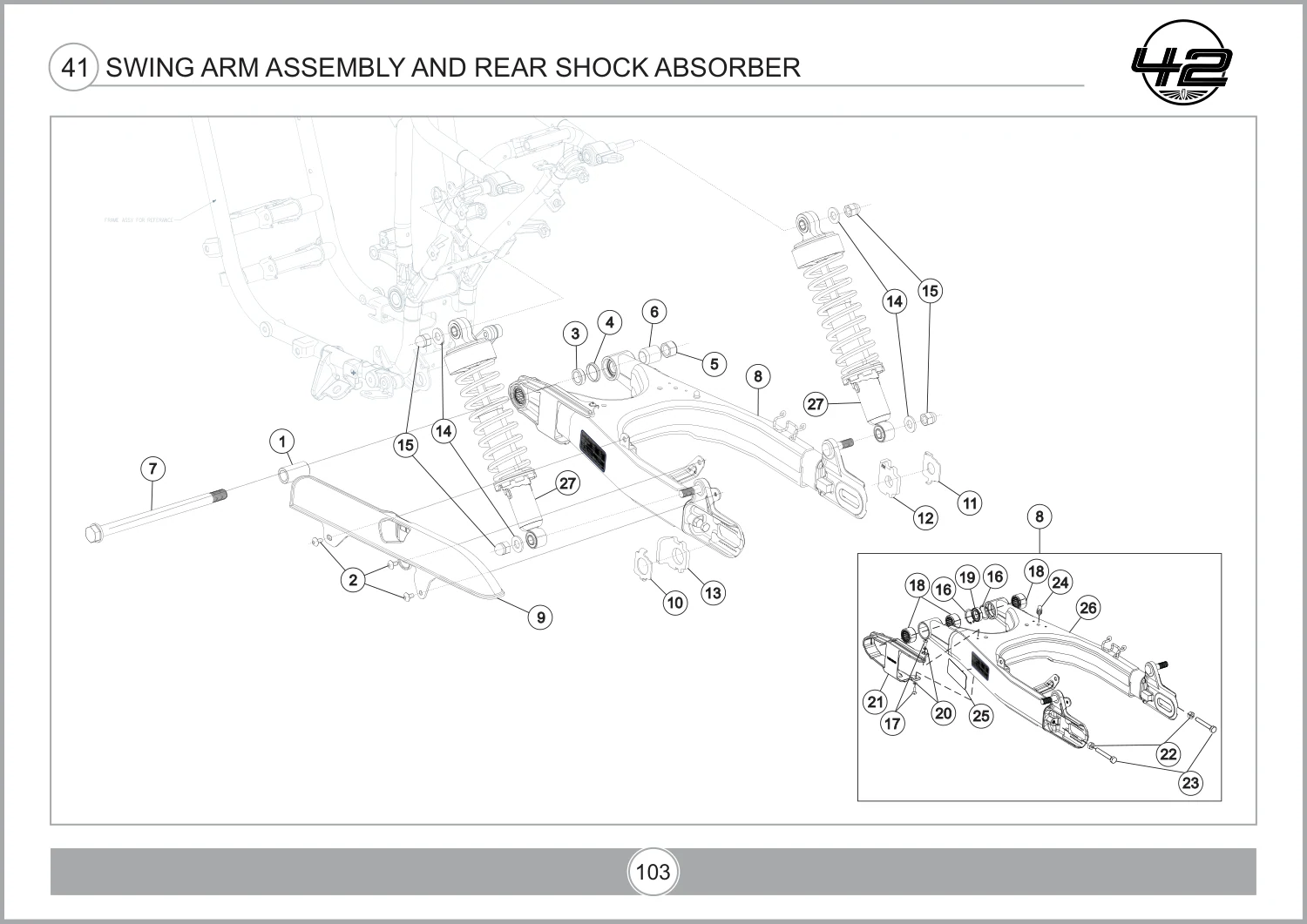

Assembly 41
Swing Arm Assembly And Rear Shock Absorber
Page 103 · 27 parts

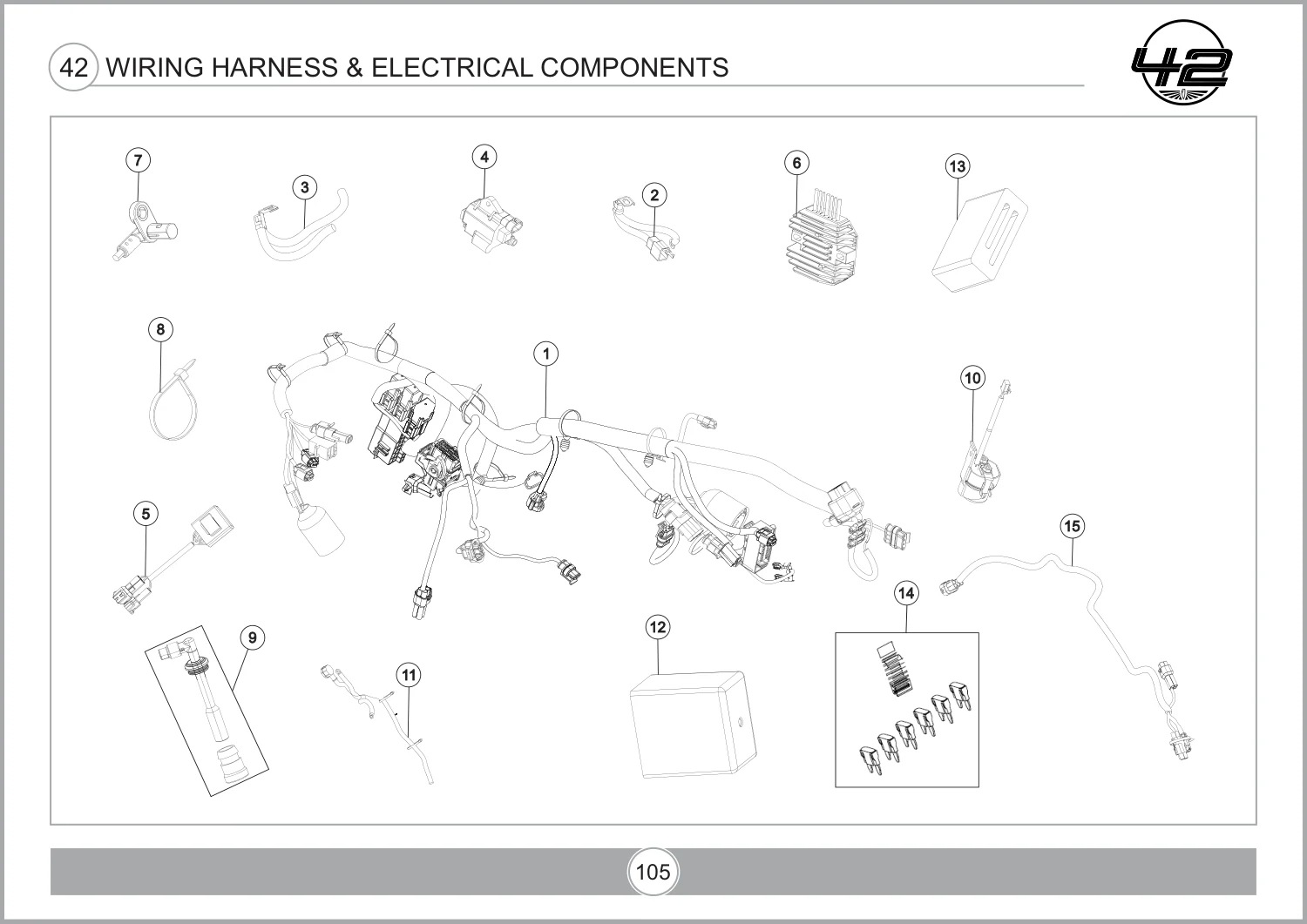

Assembly 42
Wiring Harness & Electrical Components
Page 105 · 21 parts
Assembly 43
Electronic Fuel Injection (EFI) Assembly
Page 107 · 21 parts
Assembly 44
Decals
Page 109 · 15 parts
Assembly 45
Decals - Fuel Tank Cladding
Page 111 · 22 parts
Assembly 46
Decals - Chrome Black (New Ctg)
Page 113 · 24 partsNo matching assemblies. Try a broader name.
