Jawa 42 FJ · ASSEMBLY 37 · REV 09

Side Panel LH & RH Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 FJ Side Panel LH & RH Assembly exploded assembly diagram, catalogue page 87

Jawa 42 FJ · Rev 09 · p. 87Original parts list ↗

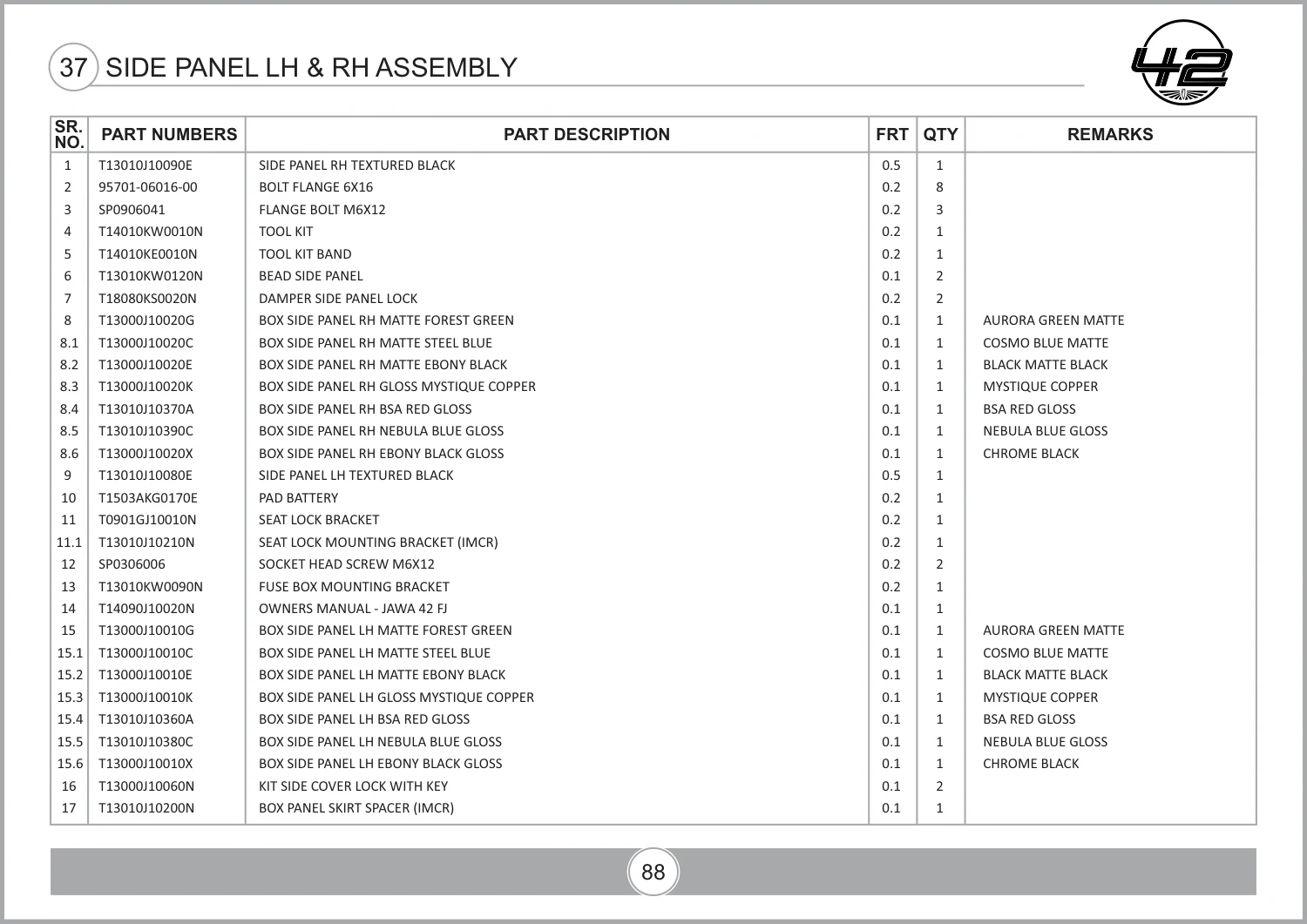

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Side Panel RH Textured BlackT13010J10090E	1	Enquiry ↗
2	Bolt Flange 6X1695701-06016-00	8	Enquiry ↗
3	Flange Bolt M6X12SP0906041	3	Enquiry ↗
4	Tool KitT14010KW0010N	1	Enquiry ↗
5	Tool Kit BandT14010KE0010N	1	Enquiry ↗
6	Bead Side PanelT13010KW0120N	2	Enquiry ↗
7	Damper Side Panel LockT18080KS0020N	2	Enquiry ↗
8	Box Side Panel RH Matte Forest GreenT13000J10020G AURORA GREEN MATTE	1	Enquiry ↗
8.1	Box Side Panel RH Matte Steel BlueT13000J10020C COSMO BLUE MATTE	1	Enquiry ↗
8.2	Box Side Panel RH Matte Ebony BlackT13000J10020E BLACK MATTE BLACK	1	Enquiry ↗
8.3	Box Side Panel RH Gloss Mystique CopperT13000J10020K MYSTIQUE COPPER	1	Enquiry ↗
8.4	Box Side Panel RH BSA Red GlossT13010J10370A BSA RED GLOSS	1	Enquiry ↗
8.5	Box Side Panel RH Nebula Blue GlossT13010J10390C NEBULA BLUE GLOSS	1	Enquiry ↗
8.6	Box Side Panel RH Ebony Black GlossT13000J10020X CHROME BLACK	1	Enquiry ↗
9	Side Panel LH Textured BlackT13010J10080E	1	Enquiry ↗
10	Pad BatteryT1503AKG0170E	1	Enquiry ↗
11	Seat Lock BracketT0901GJ10010N	1	Enquiry ↗
11.1	Seat Lock Mounting Bracket (Imcr)T13010J10210N	1	Enquiry ↗
12	Socket Head Screw M6X12SP0306006	2	Enquiry ↗
13	Fuse Box Mounting BracketT13010KW0090N	1	Enquiry ↗
14	Owners Manual - Jawa 42 FjT14090J10020N	1	Enquiry ↗
15	Box Side Panel LH Matte Forest GreenT13000J10010G AURORA GREEN MATTE	1	Enquiry ↗
15.1	Box Side Panel LH Matte Steel BlueT13000J10010C COSMO BLUE MATTE	1	Enquiry ↗
15.2	Box Side Panel LH Matte Ebony BlackT13000J10010E BLACK MATTE BLACK	1	Enquiry ↗
15.3	Box Side Panel LH Gloss Mystique CopperT13000J10010K MYSTIQUE COPPER	1	Enquiry ↗
15.4	Box Side Panel LH BSA Red GlossT13010J10360A BSA RED GLOSS	1	Enquiry ↗
15.5	Box Side Panel LH Nebula Blue GlossT13010J10380C NEBULA BLUE GLOSS	1	Enquiry ↗
15.6	Box Side Panel LH Ebony Black GlossT13000J10010X CHROME BLACK	1	Enquiry ↗
16	Kit Side Cover Lock With KeyT13000J10060N	2	Enquiry ↗
17	Box Panel Skirt Spacer (Imcr)T13010J10200N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 97, parts table page 98. View original parts table ↗
