Jawa 42 FJ · ASSEMBLY 28 · REV 09

Rear Fender Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

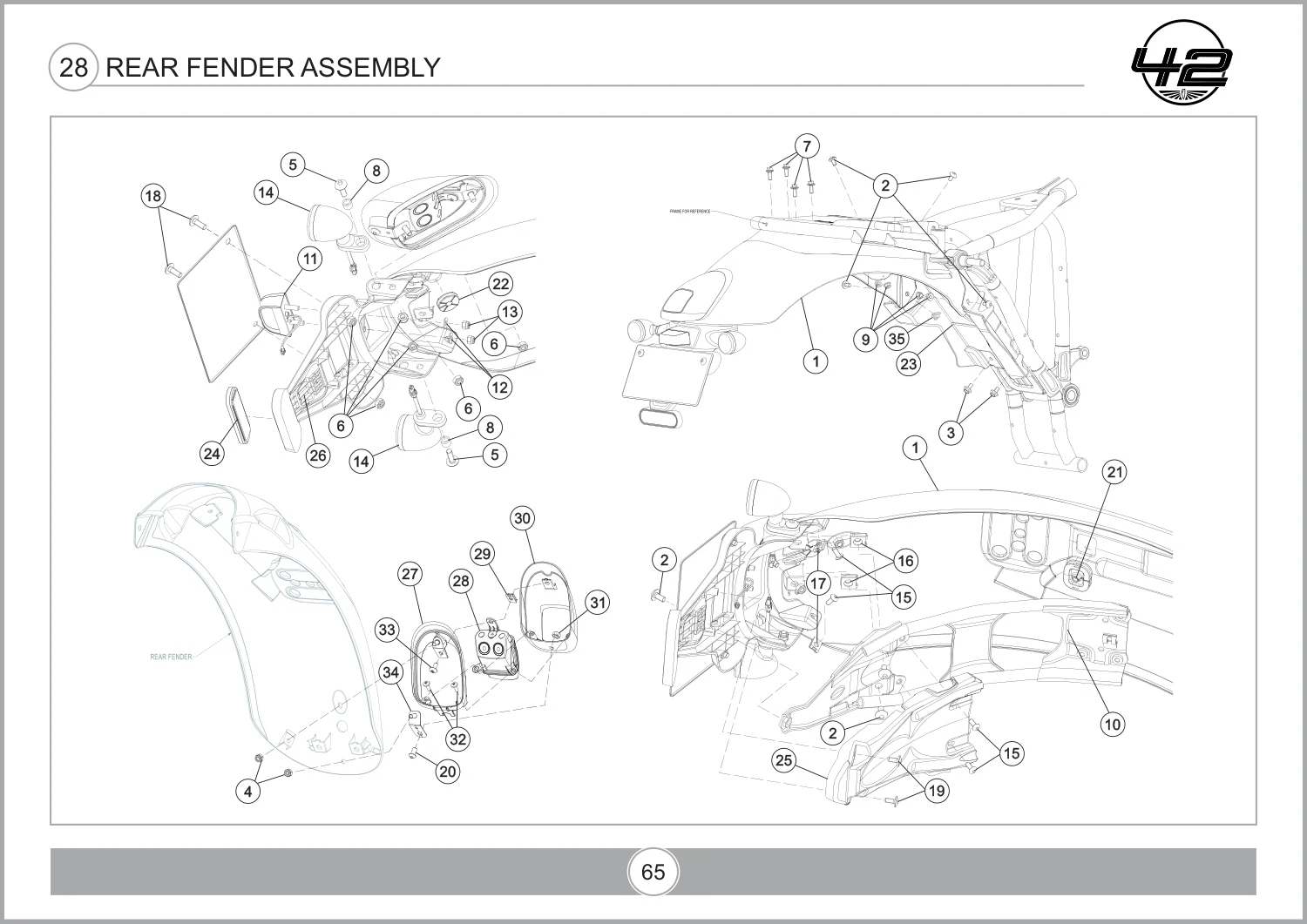

Jawa 42 FJ Rear Fender Assembly exploded assembly diagram, catalogue page 65

Jawa 42 FJ · Rev 09 · p. 65Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Rear Mudguard Matte Forest GreenT13070J10010G AURORA GREEN MATTE	1	Enquiry ↗
1.1	Rear Mudguard Matte BSA SilverT13070J10010Y COSMO BLUE MATTE	1	Enquiry ↗
1.2	Rear Mudguard Matte Ebony BlackT13070J10010E BLACK MATTE BLACK	1	Enquiry ↗
1.3	Rear Mudguard Gloss BSA SilverT13070J10010Z MYSTIQUE COPPER	1	Enquiry ↗
1.4	Rear Mudguard Nebula Blue GlossT13070J10670C NEBULA BLUE GLOSS	1	Enquiry ↗
1.5	Rear Mudguard Ebony Black GlossT13070J10010X CHROME BLACK	1	Enquiry ↗
2	Screw Rdskt M6X1X12X8.8SF0212037	7	Enquiry ↗
3	Flange Bolt M6X12SP0906041	2	Enquiry ↗
4	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
5	Screw Rdskt M6X1X20X8.8SF0212050	2	Enquiry ↗
6	M6 Nyloc Nut (Black)TSF0318007	6	Enquiry ↗
7	Screw Hex Fl M6X1X16X8.8SF0202350	4	Enquiry ↗
8	Collar For M6T13000B10220N	2	Enquiry ↗
9	Nut Flange 6Mm65538380	4	Enquiry ↗
10	Rear Fender StructureT13070J10050N	1	Enquiry ↗
11	Number Plate LampT1501TKW0040N	1	Enquiry ↗
12	Washer M5TSF0401123	2	Enquiry ↗
13	Nut Nyloc M5X0.8X6.8X6SF0302157	2	Enquiry ↗
14	Turn Signal Lamp J302T1501GJ30050N	2	Enquiry ↗
15	Screw Rdskt M5X0.8X12Xa2-70SF0212024	4	Enquiry ↗
16	Nut Clip 6 Mm90305-GK8-0001	2	Enquiry ↗
17	Nut Clip 5Mm (Black)TSF0300022	2	Enquiry ↗
18	Screw Rdskt M6X1X16SF0212041	2	Enquiry ↗
19	Screw Tprf Cr St 4.8X1.6X13 CSF0228003	2	Enquiry ↗
20	Screw Tbei M6X12 Uni 7380SP0706018	1	Enquiry ↗
21	Grommet Rear Fender StructureT13070J10080N	1	Enquiry ↗
22	Grommet Rear Fender Tail Lamp WiringT13070J10070N	1	Enquiry ↗
23	Rear Mudguard FrontT13070KW0030N	1	Enquiry ↗
24	Rear Reflex ReflectorT1501FB10010N	1	Enquiry ↗
25	Rear Mud Flap Wiring CoverT13060J10060N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

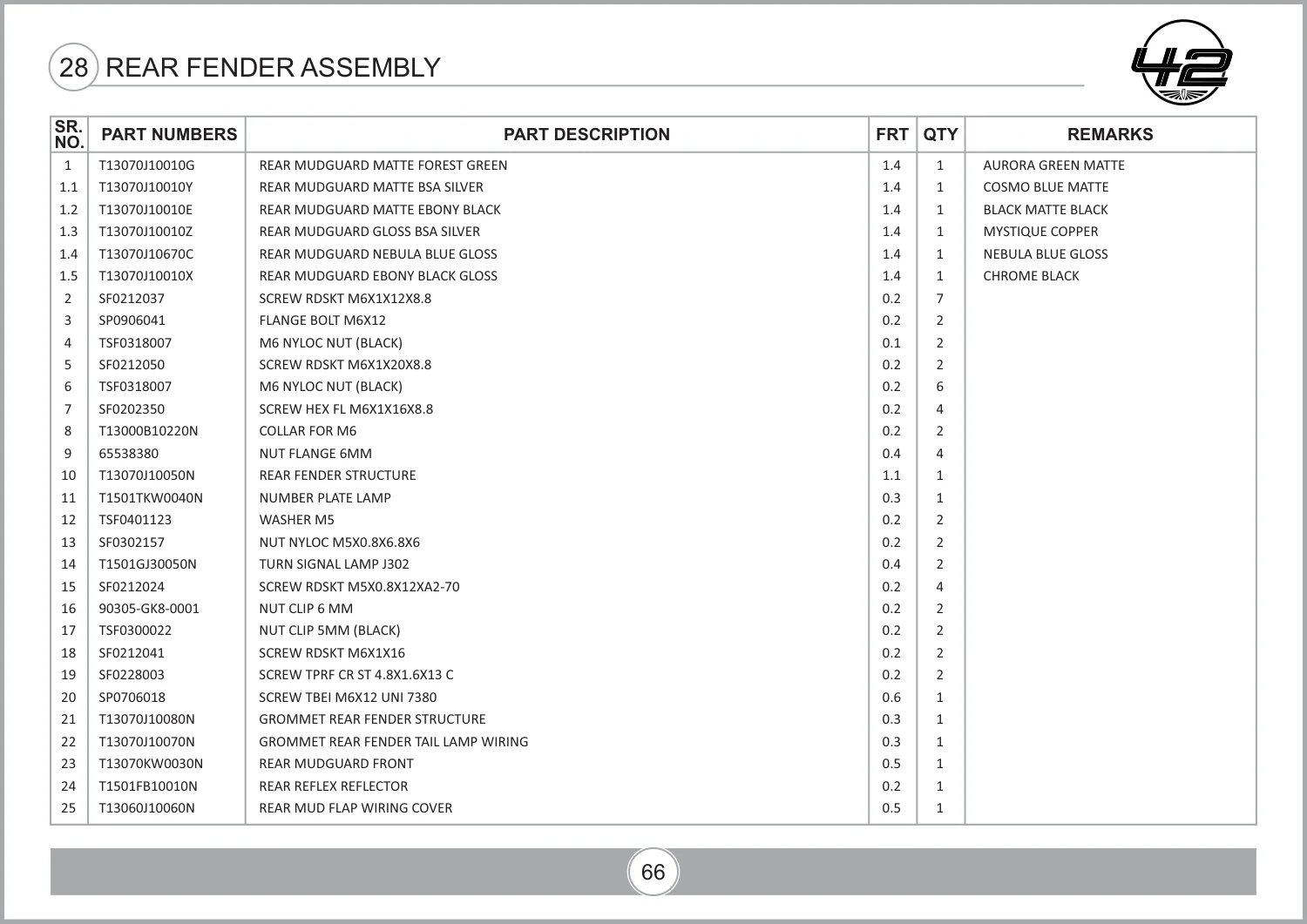

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 75, parts table page 76. View original parts table ↗
