Jawa 42 FJ · ASSEMBLY 27 · REV 09

Radiator & Cooling System

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 FJ · Rev 09 · p. 63Original parts list ↗

26 entries

Ref.	Part name / number	Assembly qty.	Action
1	Radiator FanT0401FKW0020N	1	Enquiry ↗
2	Hose Radiator To PumpT0401DY50060N	1	Enquiry ↗
3	Cap Coolant TankT0401DY50050N	1	Enquiry ↗
4	Screw Hex Fl M6X1X12X8.8SF0202346	5	Enquiry ↗
5	Upper Bracket Radiator LooseT04000KW0090N	1	Enquiry ↗
6	Tank Recovery-Cooling SystemT0401DY50020N	1	Enquiry ↗
7	Collar M8 Rear Side Cover MtgT13030KM0120N	1	Enquiry ↗
8	Spring Band Clamp Dia 24T0401DKE0290N	2	Enquiry ↗
9	Grommet For M6MH01610001700	5	Enquiry ↗
10	Radiator Sub Assembly (Banco)T0401AY50080N	1	Enquiry ↗
11	Spring Band Clamp Dia 11T10050KE0100N	3	Enquiry ↗
12	Screw Rdskt M6X1X45X8.8SF0212051	1	Enquiry ↗
13	Breather HoseT04000Y50020N	1	Enquiry ↗
14	Socket Head Screw M6X16 BlackTSF0224080	2	Enquiry ↗
15	Flange Bolt M8X1.25X25SF0102057	1	Enquiry ↗
16	Grommet M8 Rear Side Cover MtgT13030KM0110N	1	Enquiry ↗
17	Clamp Spring Band 23X12X1.5SF0705047	1	Enquiry ↗
18	Radiator GrillT0401AKW0070N	1	Enquiry ↗
19	Hose Radiator To Recovery TankT0401DJ20090N	1	Enquiry ↗
20	Hose Thermostat To RadiatorT04000KW0030N	1	Enquiry ↗
21	Spring Band Clamp Dia 27T0401DKE0300N	1	Enquiry ↗
22	Radiator Pressure Cap Badge JawaT0401AKW0050N	1	Enquiry ↗
23	Rubber Strap 110 MmT08000B10420N	2	Enquiry ↗
24	Clip Fuel Hose1001CAA13420N	1	Enquiry ↗
25	Radiator Grill DamperT0401BJ20010N	4	Enquiry ↗
26	Pressure Cap 1.4 BarT0401AB10060N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

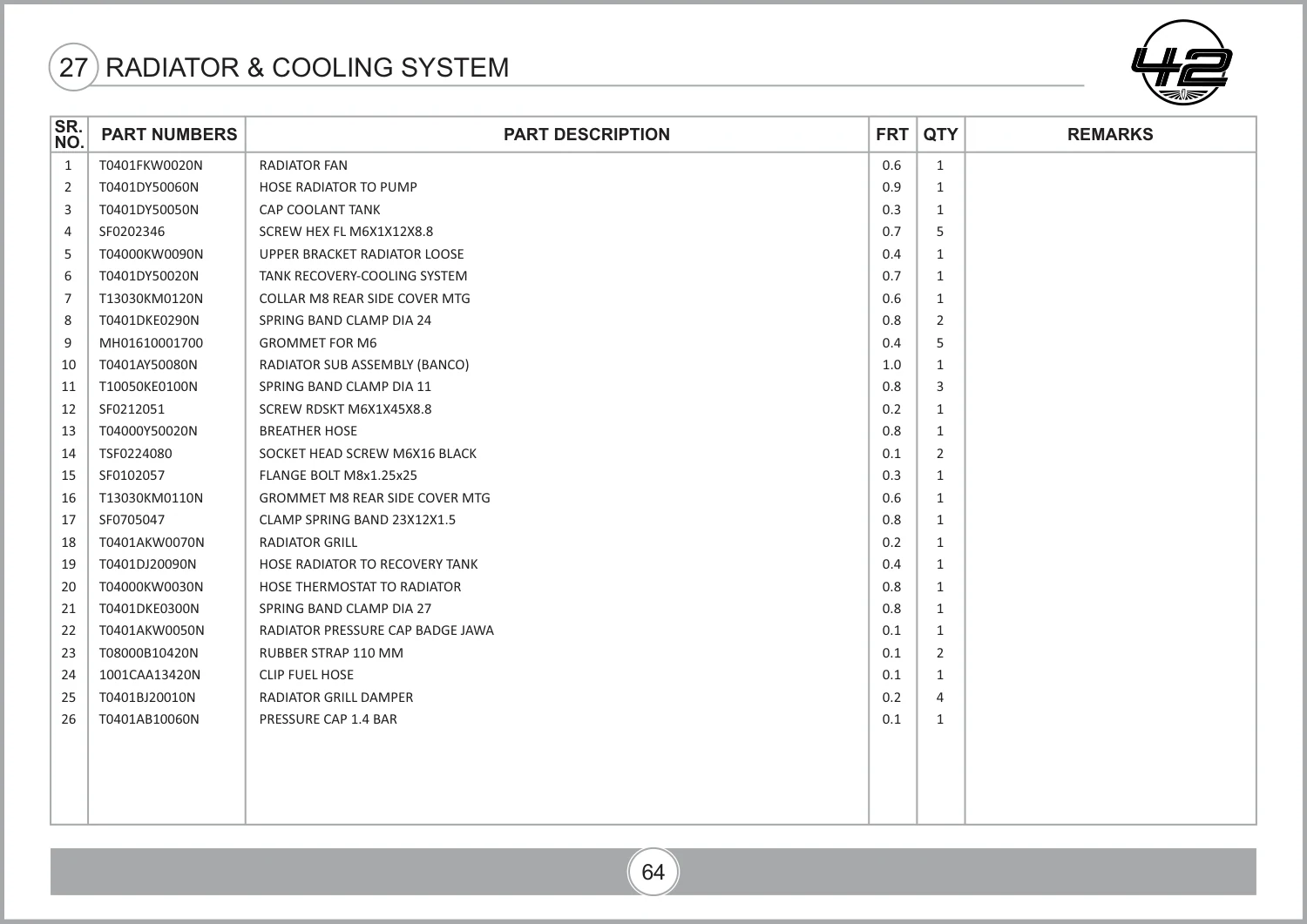

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 73, parts table page 74. View original parts table ↗
