Jawa 42 FJ · ASSEMBLY 38 · REV 09
Frame Assembly / Frame & Mountings / Side Stand / Grab Handles
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 FJ · Rev 09 · p. 95Original parts list ↗
Parts in this drawing
6 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 61 | Pillion Handle LHT08000J10210N | 1 | |
| 62 | Pillion Mounting Plate LHT08000J10230N | 1 | |
| 63 | Pillion Handle RHT08000J10220N | 1 | |
| 64 | Pillion Mounting Plate RHT08000J10240N | 1 | |
| 65 | Nut Hex M6TSF0301091 | 4 | |
| 66 | Socket Head Screw M8X18 (Black)SP0224002 | 4 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

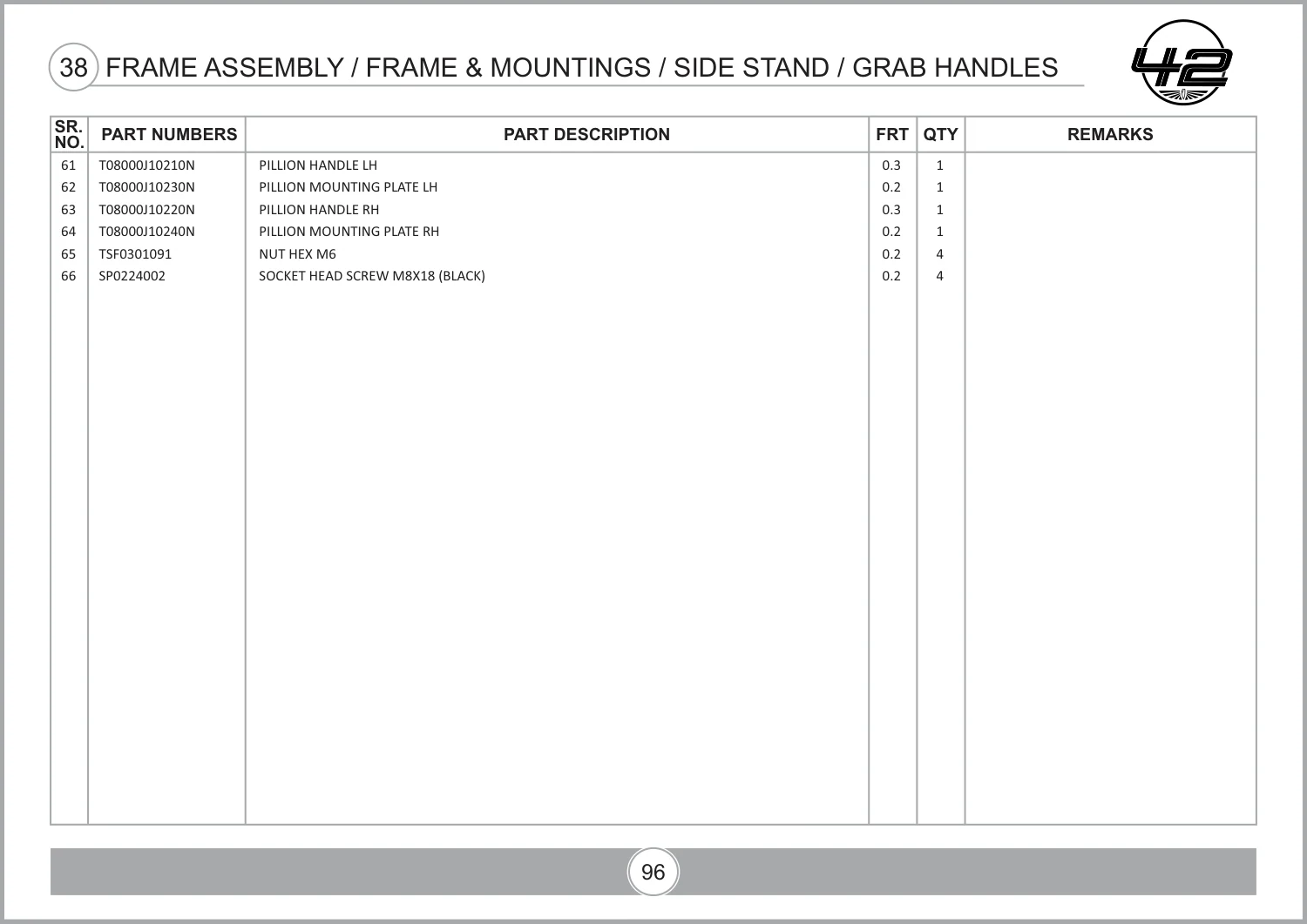

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 105, parts table page 106. View original parts table ↗
