Electronic Fuel Injection (EFI) Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 FJ · Rev 09 · p. 107Original parts list ↗
Parts in this drawing
21 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Fuel Pump AssemblyT10050B10010N | 1 | |
| 2 | Fuel Pump Rubber GasketT10000B10210N | 1 | |
| 3 | Fuel Filter - Fuel PumpT10000B10220N | 1 | |
| 4 | Horn Assembly - 95 Dia (Lt)T1501BKW0050N | 1 | |
| 5 | Ignition Coil With CableT1502CKE0050N | 1 | |
| 6 | Electronic Control Unit - OBD-2AT1502GJ20020N | 1 | |
| 6.1 | Electronic Control Unit Hardware (Single Spark)T1502GJ30080N | 1 | |
| 7 | ECU Mounting BracketT0901GJ10010N | 1 | |
| 8 | Bolt Fl.6X 1295701-06012-00 | 2 | |
| 9 | ECU PadT1503AKG0170E | 1 | |
| 10 | Screw Rdskt M8X1.25X16X8.8SF0212042 | 1 | |
| 11 | Lambda SensorT15000Y50020N | 1 | |
| 12 | Throttle Body Assembly Type B (38 Dia)T0102HY50050N | 1 | |
| 13 | Fastner-MtbT1501PKW0050N | 4 | |
| 14 | Fuel Injector CapT1501PKW0020E | 1 | |
| 15 | Fixing Injector Clip (Dellorto)T0102BKE0050N | 1 | |
| 16 | Fuel Injector Throttle BodyT0102HY50020N | 1 | |
| 17 | Cable Bracket Throttle BodyT0102HKW0040N | 1 | |
| 18 | Iacv Bracket Throttle BodyT0102HY50030N | 1 | |
| 19 | IacvT0102HY50040N | 1 | |
| 20 | Kit 3 In 1 Sensor Throttle BodyT0102HY50060N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

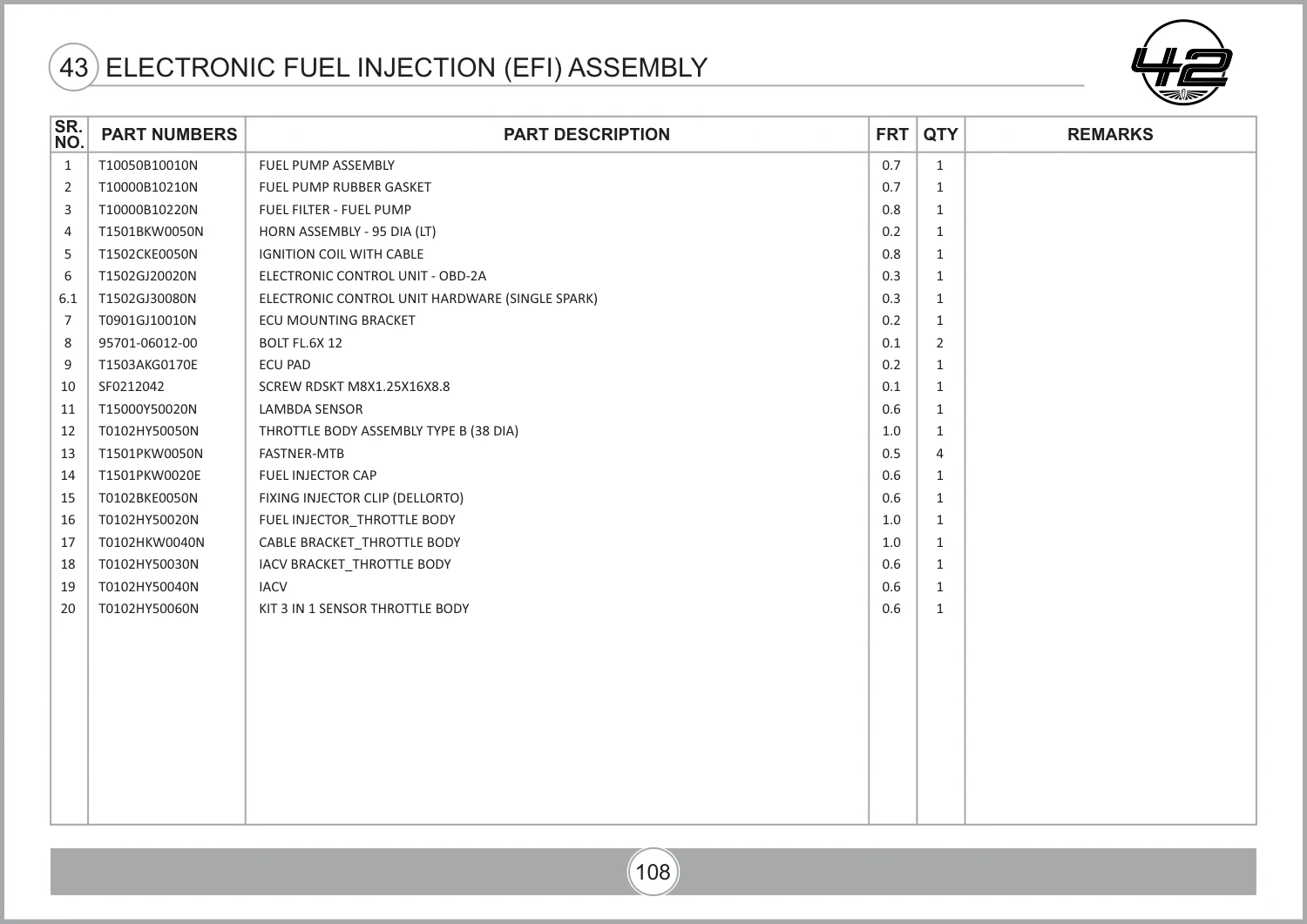

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 117, parts table page 118. View original parts table ↗
