Jawa 42 FJ · ASSEMBLY 1 · REV 09
Camchain And Tensioner & Cylinder Head Cover
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 FJ · Rev 09 · p. 1Original parts list ↗
Parts in this drawing
18 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Guide Chain Slack SideT0202CUF0340N | 1 | |
| 2 | Guide Chain Tight SideT0202AUF0450N | 1 | |
| 3 | Guide Chain Pivot BoltT0202CUF0810N | 2 | |
| 4 | Cyl Head Cover Special BoltT02010VG0010N | 5 | |
| 5 | Rubber WasherT18010UF0050N | 5 | |
| 6 | Guide Chain (Top) With InsertT0208AUF0640N | 1 | |
| 7 | Pan Head Screw (M4*10)93500-04010-OH | 1 | |
| 8 | Timing ChainT0208BUF0390N | 1 | |
| 9 | Asm Tensioner And Mtg Bolts KitT0208EVE0020N | 1 | |
| 10 | Gasket, TensionerT0208EUF0660N | 1 | |
| 11 | Washer, Star Drum Bolt (Ø6.4*Ø15*1)T18010UF0150N | 2 | |
| 12 | Cover Cylinder Head Logo Plate (NVH) BlackT0202DVG0690E | 1 | |
| 13 | Shf Flange Bolt 6*22 BSVI90001-M9Q-0000-IK | 2 | |
| 14 | Gasket/Seal, Cover Cylinder Head 7 LugsT0209AVG0010N | 1 | |
| 15 | Asm Cover Cylinder Head Black Mat Raven TextureT0202DVG1080N | 1 | |
| 16 | Cover Cylinder Head Black Mat Raven TextureT0202DVG1030N | 1 | |
| 17 | Screw Rdskt M6X1X12X8.8 - Black (NVH)SF0212037 | 2 | |
| 18 | Collar M6X3L (NVH)T18000KG0130N | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

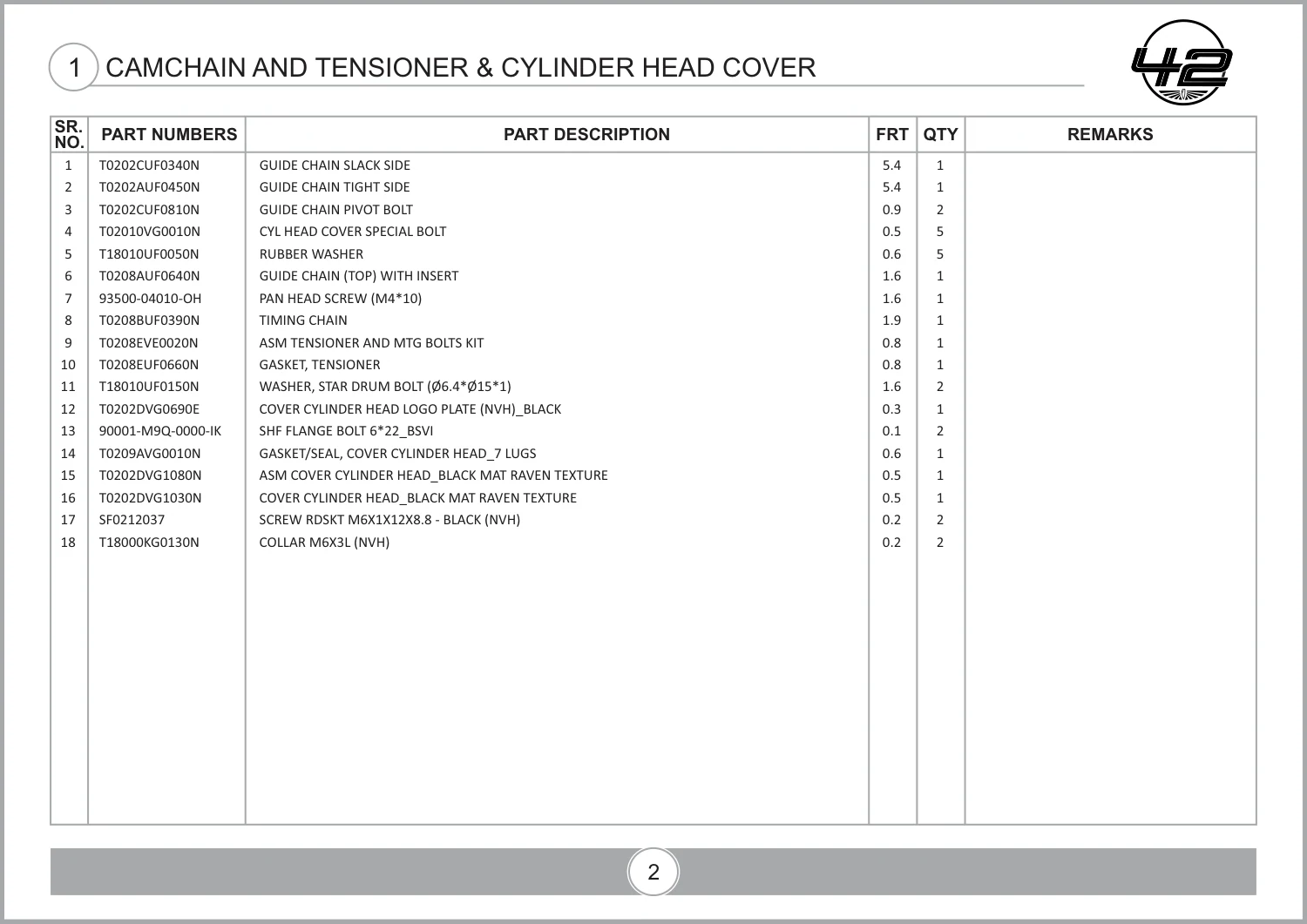

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 11, parts table page 12. View original parts table ↗
