Jawa 42 FJ · ASSEMBLY 35 · REV 09
Front Fork Mountings
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 FJ · Rev 09 · p. 81Original parts list ↗
Parts in this drawing
8 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Front Fork AssemblyT05010J20050N | 1 | |
| 2 | Bolt Fl.6 X 1295701-06012-00 | 2 | |
| 3 | Air Deflector RR MntgT13000KW0060N | 1 | |
| 4 | Screw Rdskt M6X1X12Xa2-70SF0212037 | 2 | |
| 5 | Side Reflex Reflector LumaxT1501FB10020N | 2 | |
| 6 | Wss Mounting Lug BlackT05040J20030E | 1 | |
| 7 | Screw Tbei M6X12 Uni 7380SP0706018 | 2 | |
| 8 | Air Deflector Mounting BracketT05000KW0270N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

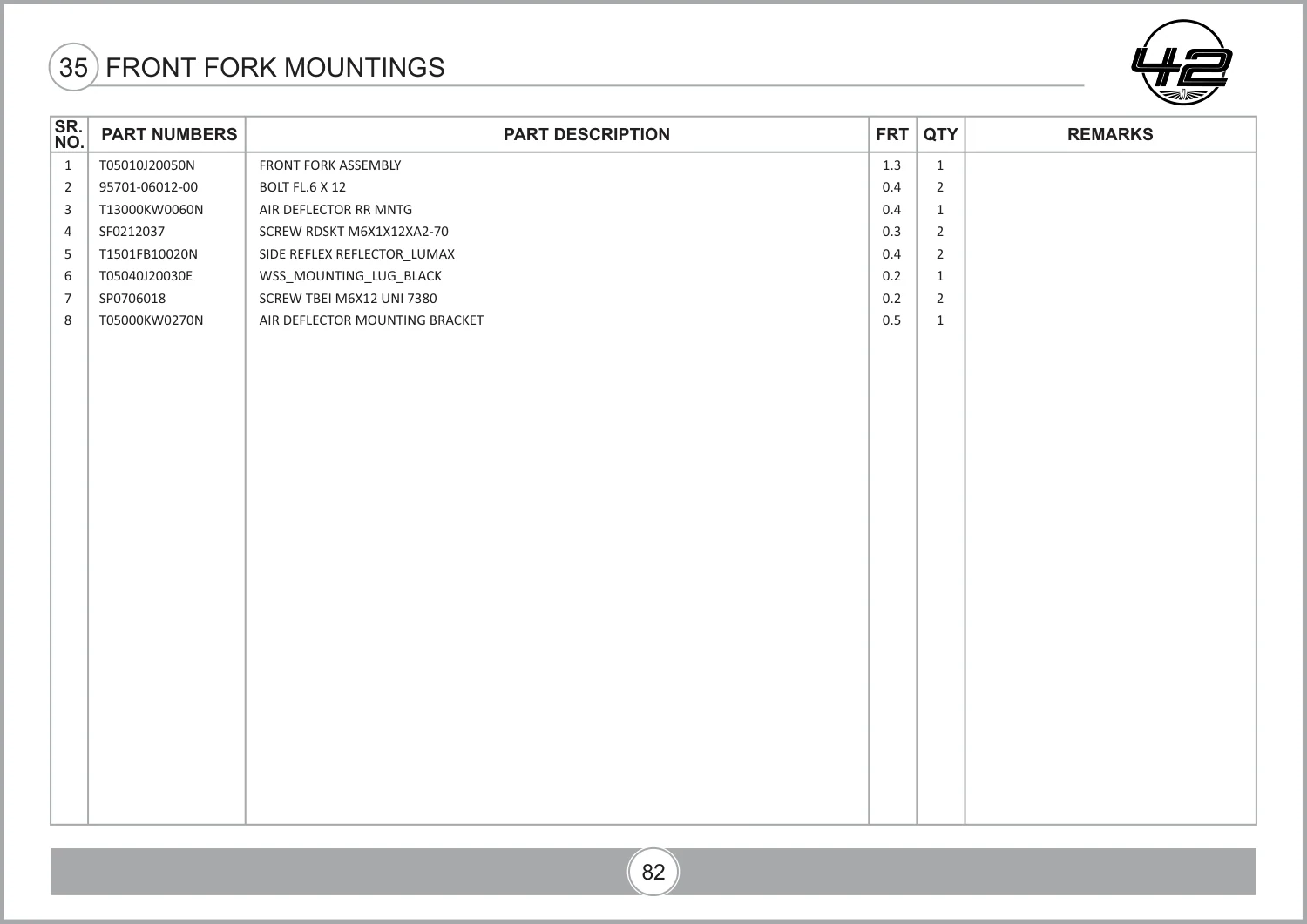

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 91, parts table page 92. View original parts table ↗
