Jawa 42 FJ · ASSEMBLY 22 · REV 09
Front Alloy Wheel Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 FJ · Rev 09 · p. 53Original parts list ↗
Parts in this drawing
14 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Alloy Wheel, Front, Mt 2.5X18T0601AKW0040N | 1 | |
| 2 | Wheel Bearing 6203 (17X40X12)T0601DKW0021N | 2 | |
| 3 | Spacer Assy Inner, Front WheelT0601CKW0050N | 1 | |
| 4 | Circlip I Nt - Lug 40X1.75XphSF0602007 | 1 | |
| 5 | Front Dust Seal (A22X40X7)T0601EKW0021N | 2 | |
| 6 | Coupler For Front Alloy WheelT0601HJ20010N | 1 | |
| 7 | Front Disc (RH, D=320)T1901AB10010N | 1 | |
| 8 | Screw Special M8X1.25X22T0601HB10040N | 5 | |
| 9 | Toner Wheel FrontT0602LKE0010N | 1 | |
| 10 | Screw Special M8X1.25X28Xa2-70SF0200097 | 5 | |
| 11 | Self Lock Nut M16TSF0318003 | 1 | |
| 12 | Washer 16 MmTSF0400010 | 1 | |
| 13 | Plaque Wheel Rim SilverT13200KW0510N | 2 | |
| 14 | Axle, Front WheelT0601GY50010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

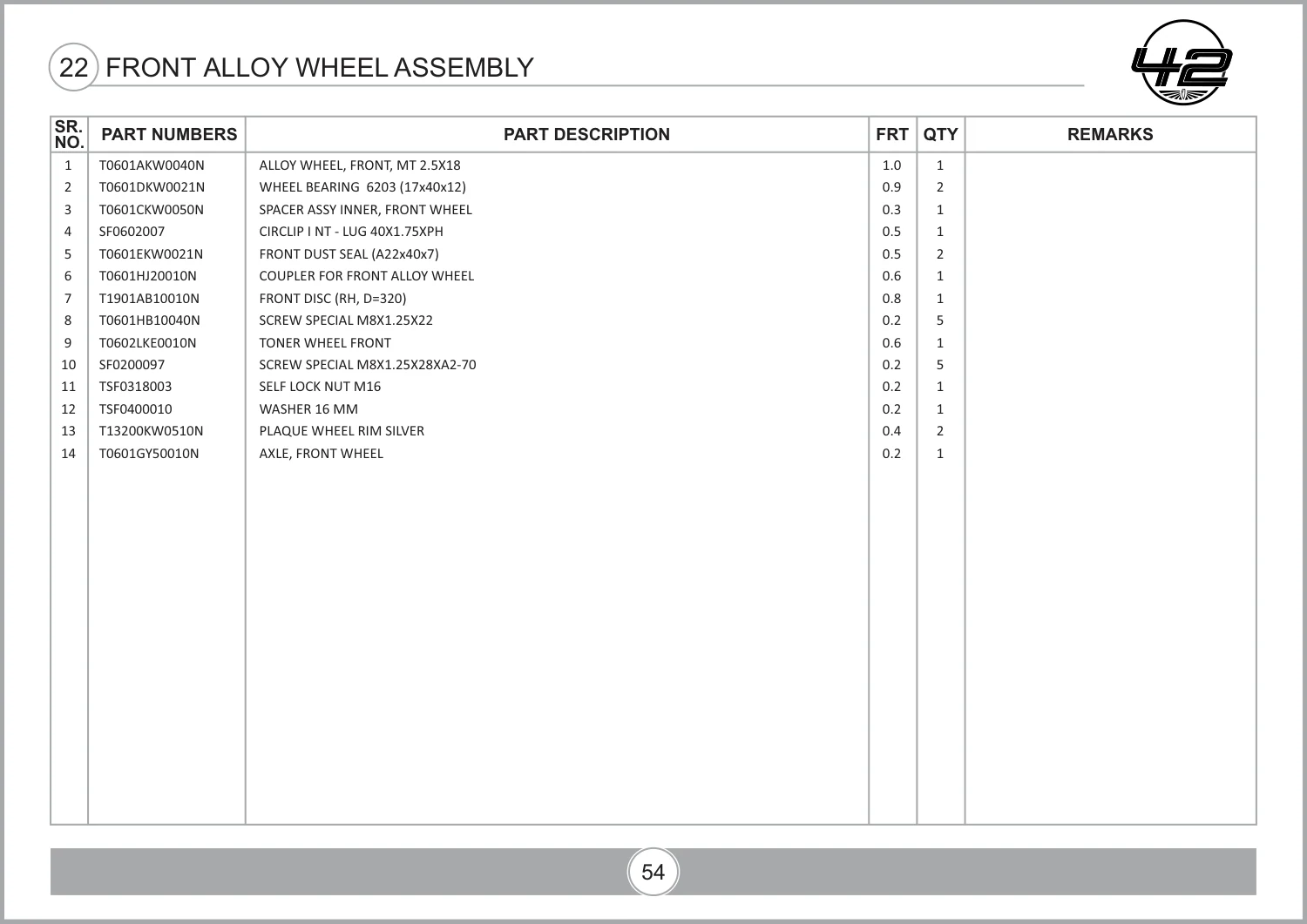

Source: PARTS CATALOGUE - JAWA 42 FJ_REV-09.pdf · PDF diagram page 63, parts table page 64. View original parts table ↗
