Yezdi Scrambler LWE · ASSEMBLY 13 · REV 04

Magneto Cover LH

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Scrambler LWE · Rev 04 · p. 33Original parts list ↗

22 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover LH Front Black Matt Raven TextureT0202DVG1370E	1	Enquiry ↗
2	Needle Brg Starter InterimT18050UF0160N	1	Enquiry ↗
3	Stator Assembly (Higher Inertia)T1502AJ10050N	1	Enquiry ↗
4	Bolt, Hex Socket Head - M5X30TSF0224075	3	Enquiry ↗
5	Bolt, Socket Head M5X0.8X10 White PassivationTSF0224077	2	Enquiry ↗
6	Pan Head Screw - M5X12SP0805020	1	Enquiry ↗
7	Gauge Inspection Cover (Black Mat Texture)T0202DVG1090N	1	Enquiry ↗
8	O-Ring, Gauge Inspection CoverMJ01660001800	1	Enquiry ↗
9	Rubber Grommet Magneto Cover Wire RoutingT0209DVE0010N	1	Enquiry ↗
10	Shaft, Starter CounterT0205BUF0350N	1	Enquiry ↗
11	Washer 10.3200.8 (Starter Intrm Gear)T18010UF0920N	2	Enquiry ↗
12	Cover Starter Counter Mat Raven TextureT0202DVG1420E	1	Enquiry ↗
13	O-Ring, Cover Gear Starter CounterSP040111500	1	Enquiry ↗
14	Flange Bolt Sh M6X32SP0906039	1	Enquiry ↗
15	Assembly, Slipper Clutch With NrbT0205BUF0610N	1	Enquiry ↗
16	Gasket- Magneto CoverT0209DUF0220N	1	Enquiry ↗
17	Bolt Hex Fl M6X1X70X8.8SF0102649	7	Enquiry ↗
18	Screw Hex Fl M6X1X28X8.8 (Sprocket Cover Mtg)SF0202349	2	Enquiry ↗
19	Bolt, Hex Flange Sh - M6X35 (Cover LH Mount) (NVH)TSF0102290	1	Enquiry ↗
20	Flange Head Bolt Sh M6X28SF0102034	1	Enquiry ↗
21	Cover LH Rear Half Plastic (Sprocket Cover)T0202DVG1380E	1	Enquiry ↗
22	Dowel Pin, Hollow (Ø8*12)MJ01760000500	4	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

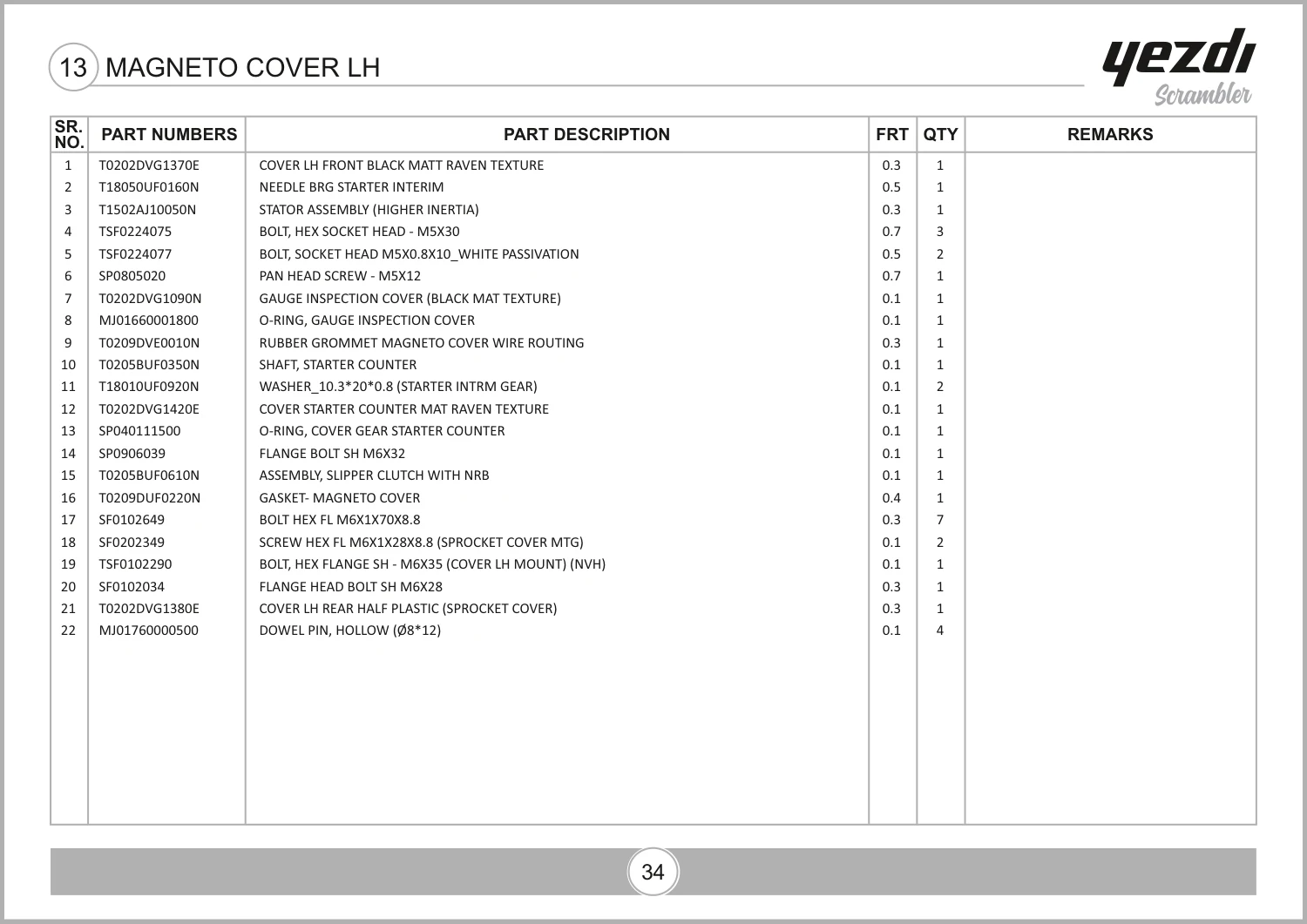

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 44, parts table page 45. View original parts table ↗
