Yezdi Scrambler LWE spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 58 diagram sheets and 1,092 parts entries, including repeated parts used in different assemblies.
Assembly 1

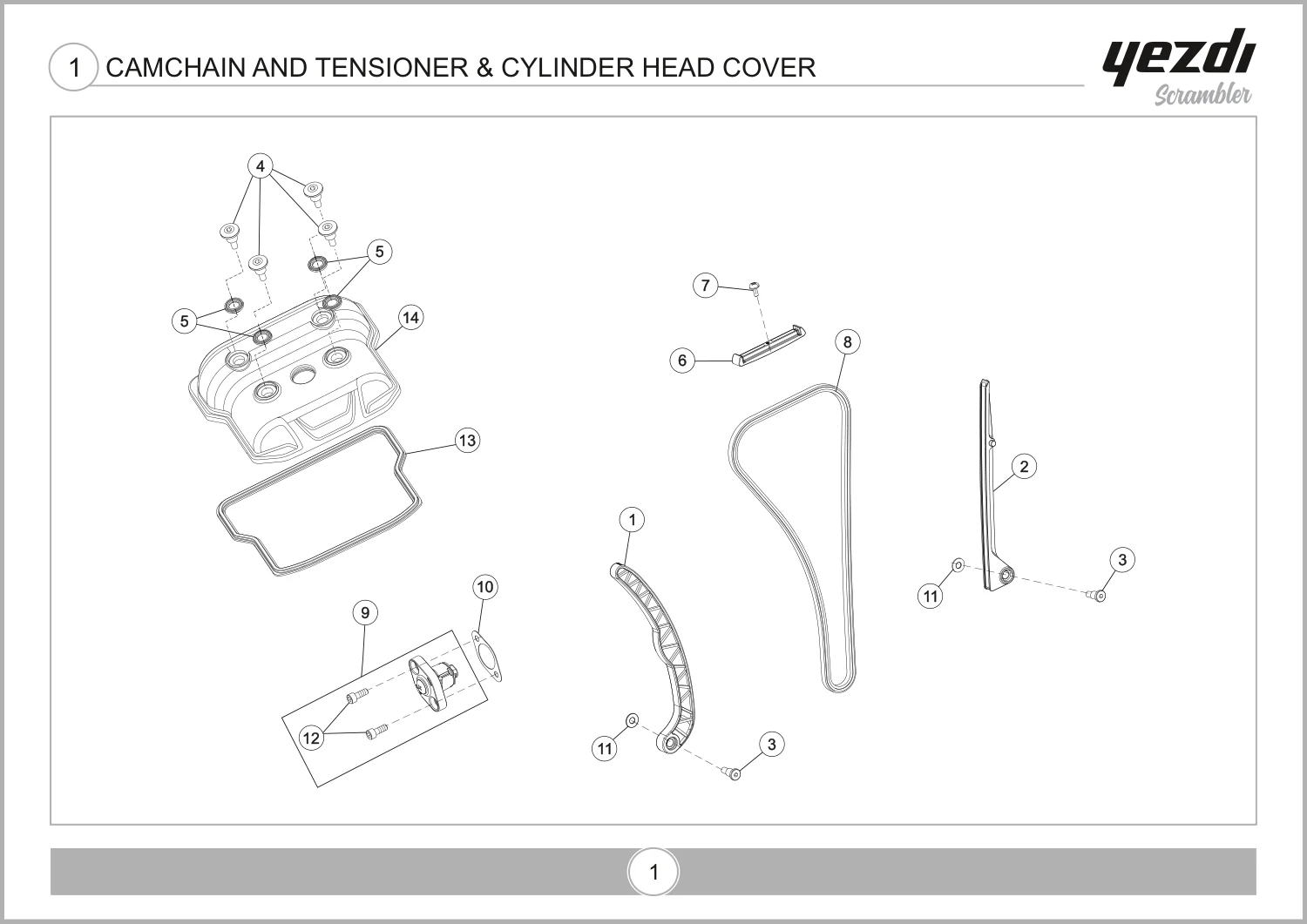

Camchain And Tensioner & Cylinder Head Cover
Page 1 · 14 parts
Assembly 2
Crankcase LH
Page 3 · 25 parts
Assembly 3
Crankcase RH
Page 5 · 19 parts
Assembly 4

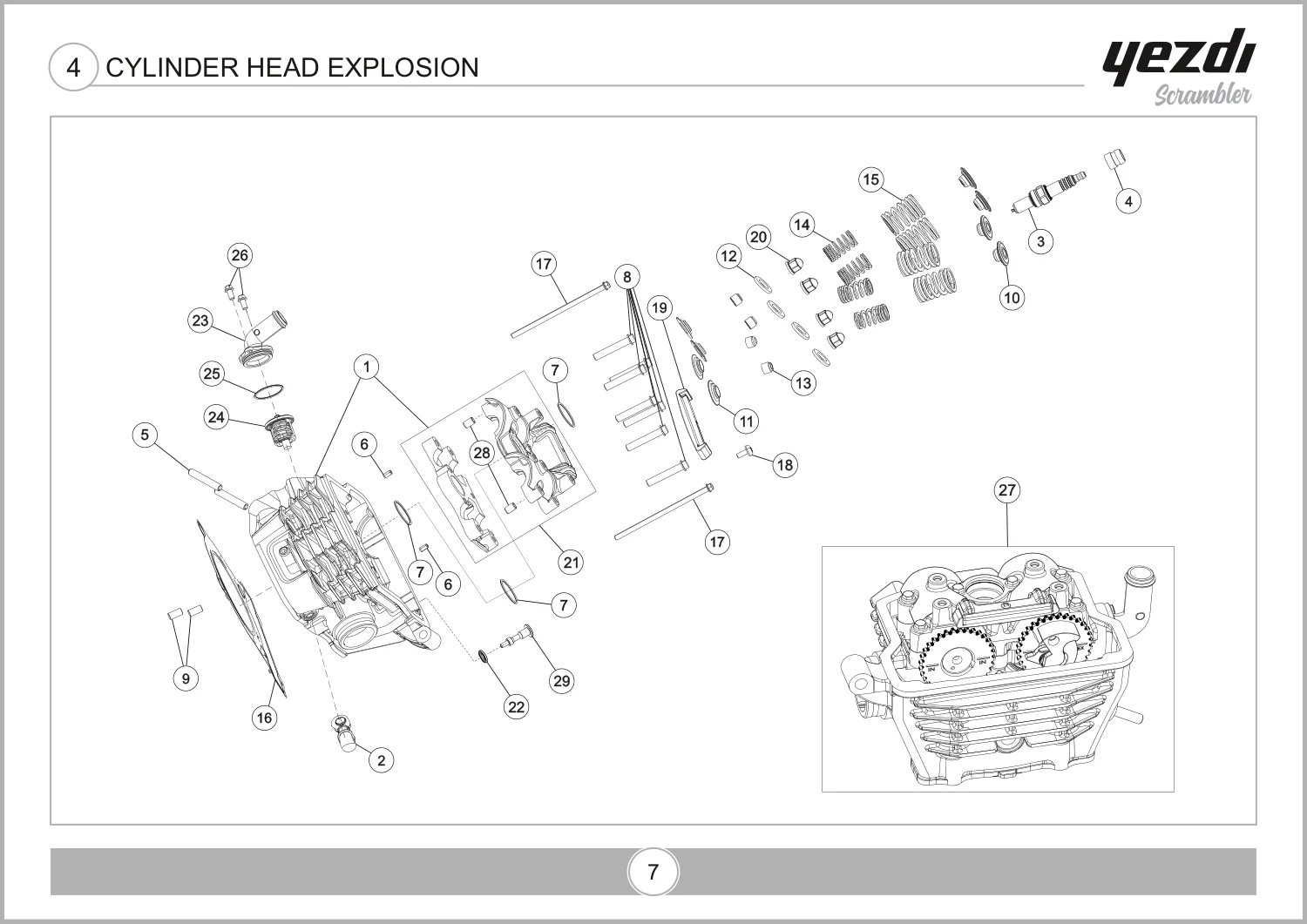

Cylinder Head Explosion
Page 7 · 29 parts
Assembly 5

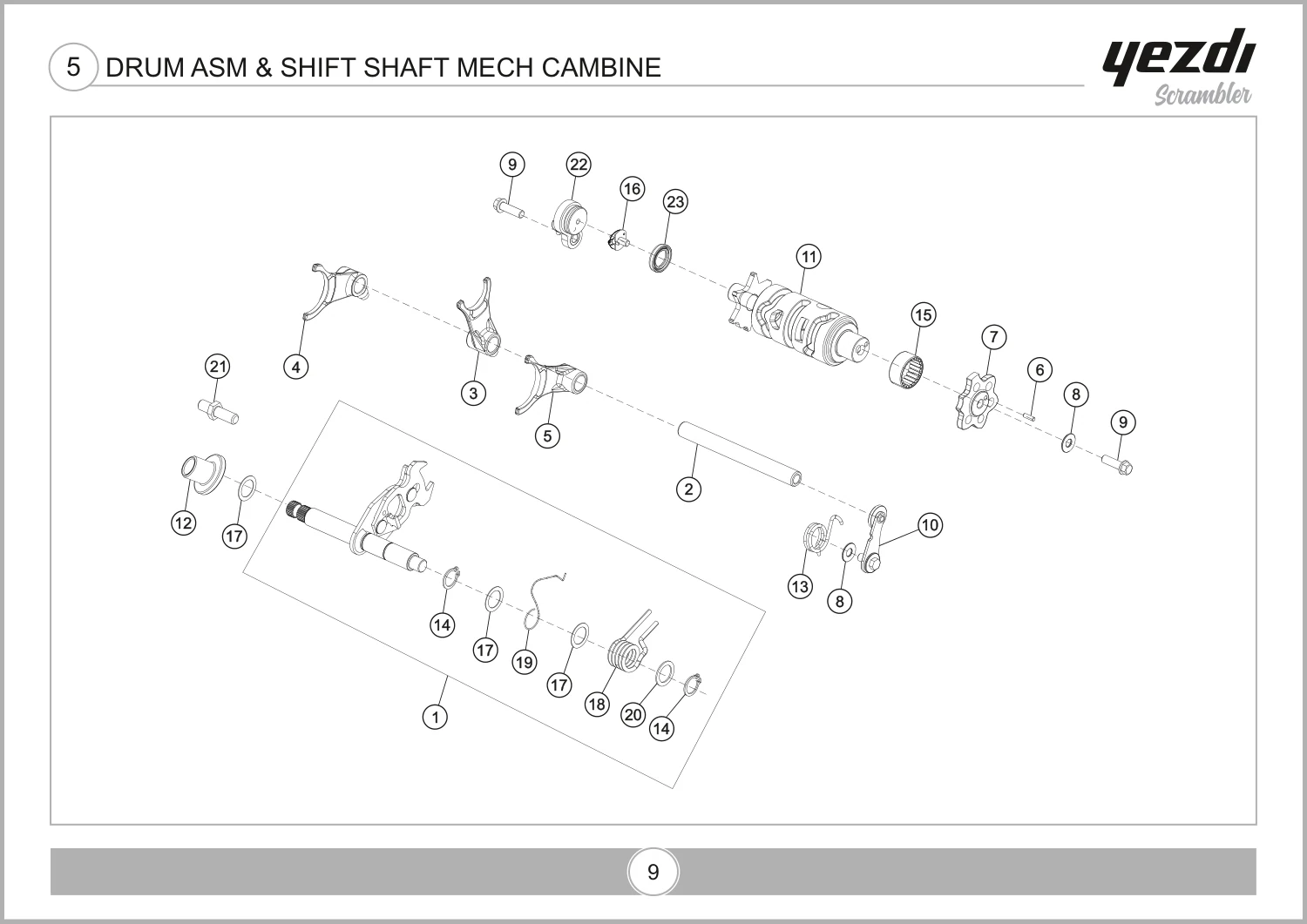

Drum Asm & Shift Shaft Mech Cambine
Page 9 · 23 parts
Assembly 6

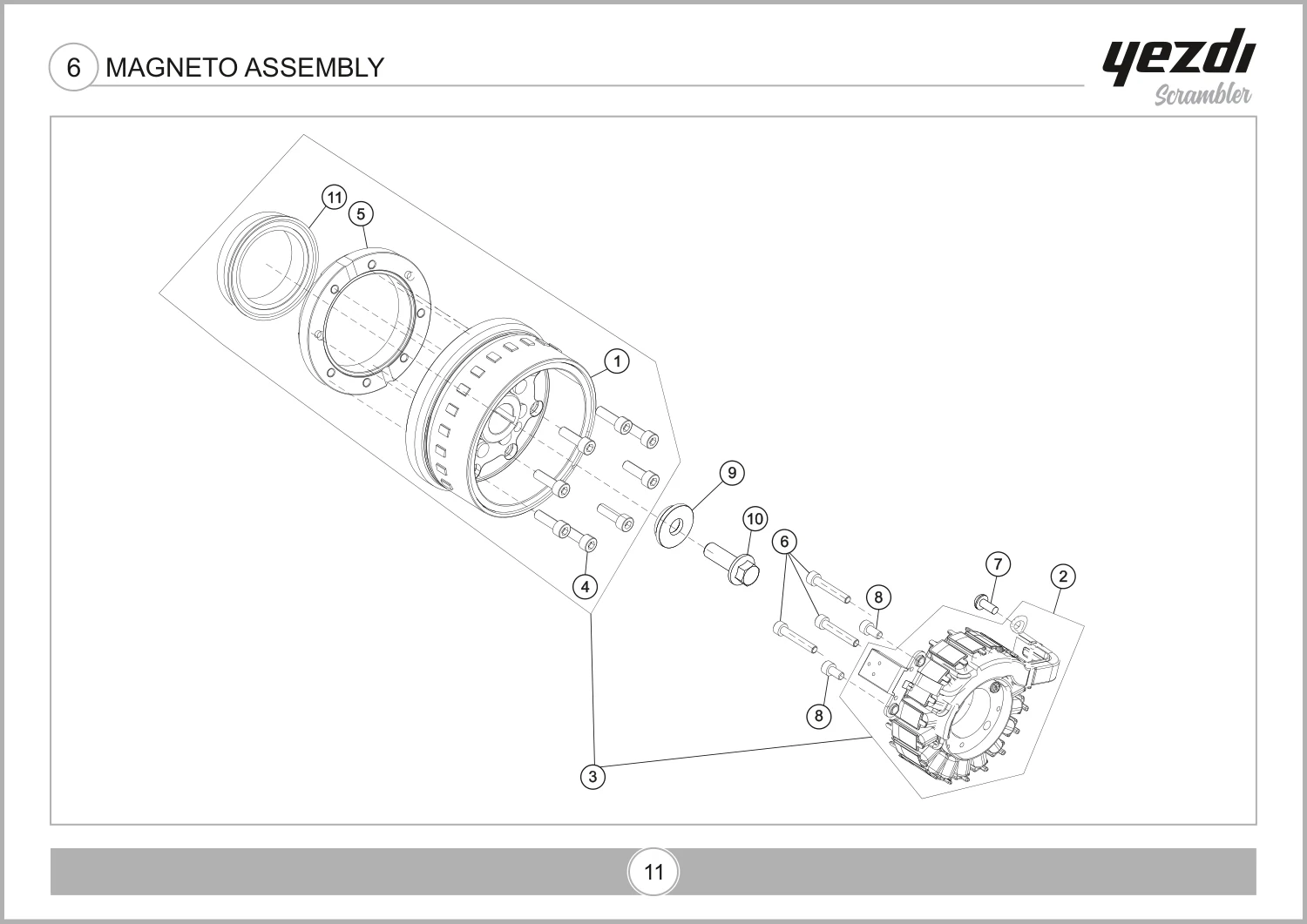

Magneto Assembly
Page 11 · 11 parts
Assembly 7

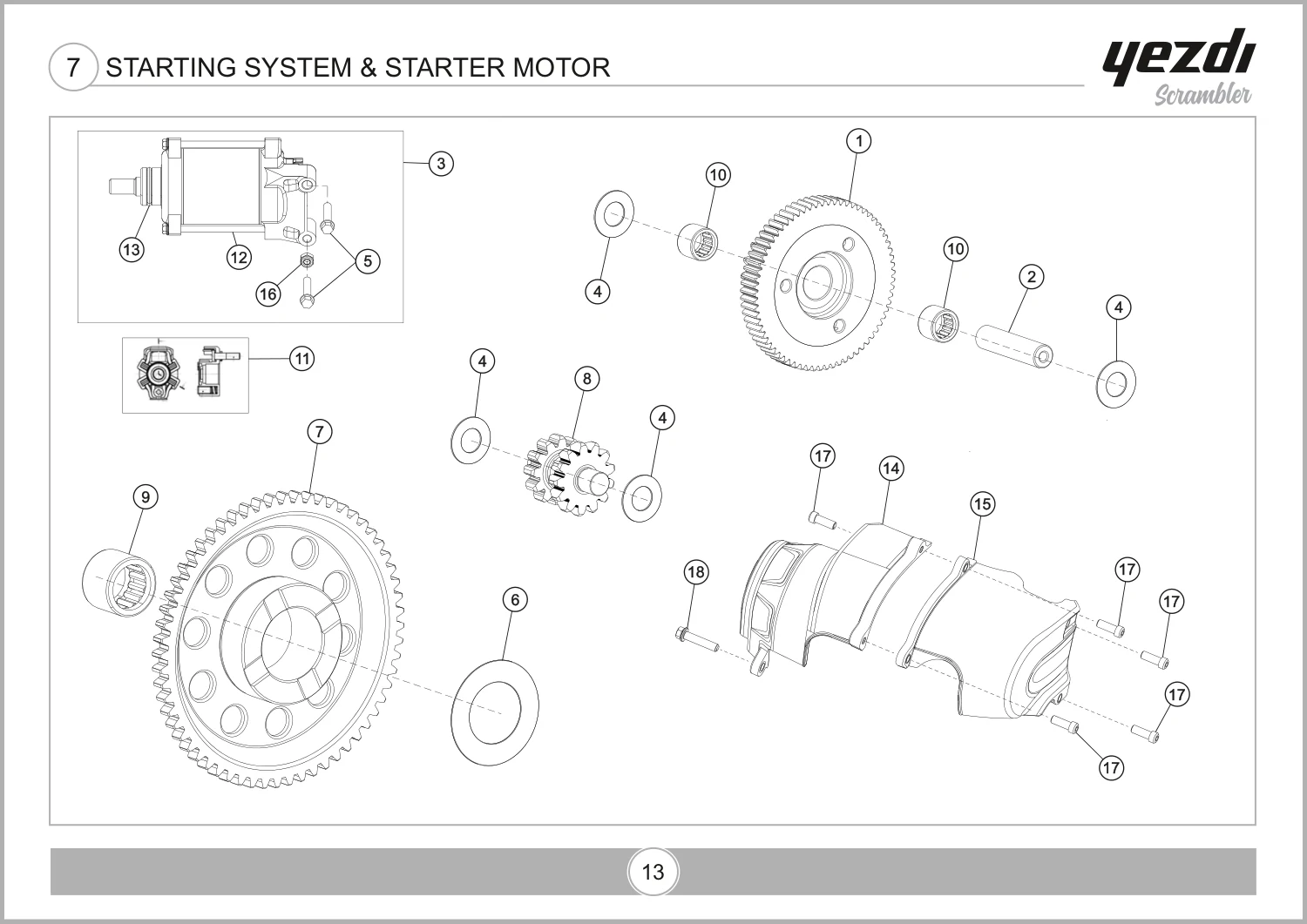

Starting System & Starter Motor
Page 13 · 18 parts
Assembly 8
Valve Train And Cam Shaft
Page 15 · 30 parts
Assembly 8
Valve Train And Cam Shaft
Page 17 · 30 parts
Assembly 8

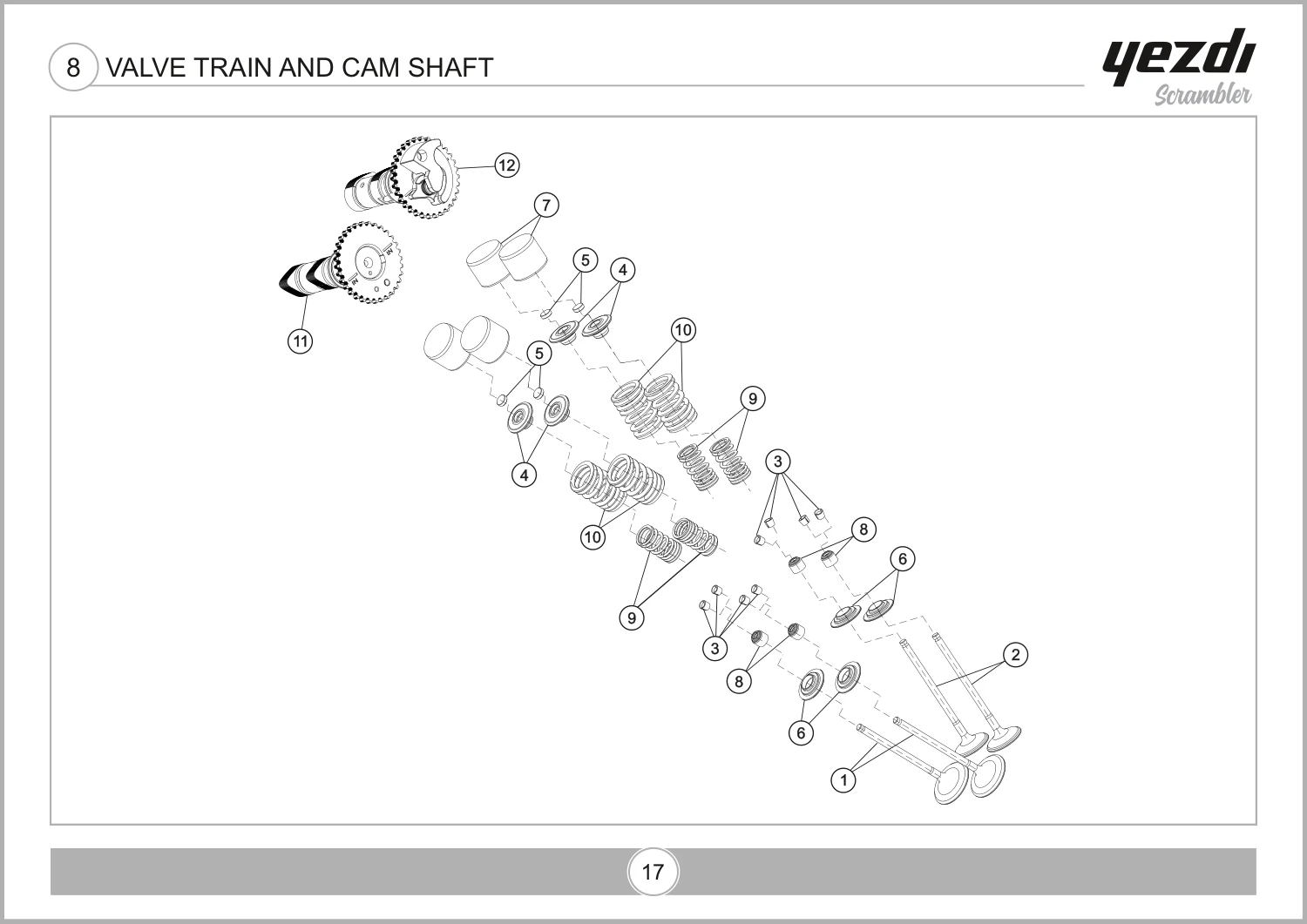

Valve Train And Cam Shaft
Page 19 · 2 parts
Assembly 9
Balancer Shaft Assembly
Page 21 · 7 parts
Assembly 10
Transmission System
Page 23 · 30 parts
Assembly 10
Transmission System
Page 25 · 4 parts
Assembly 11

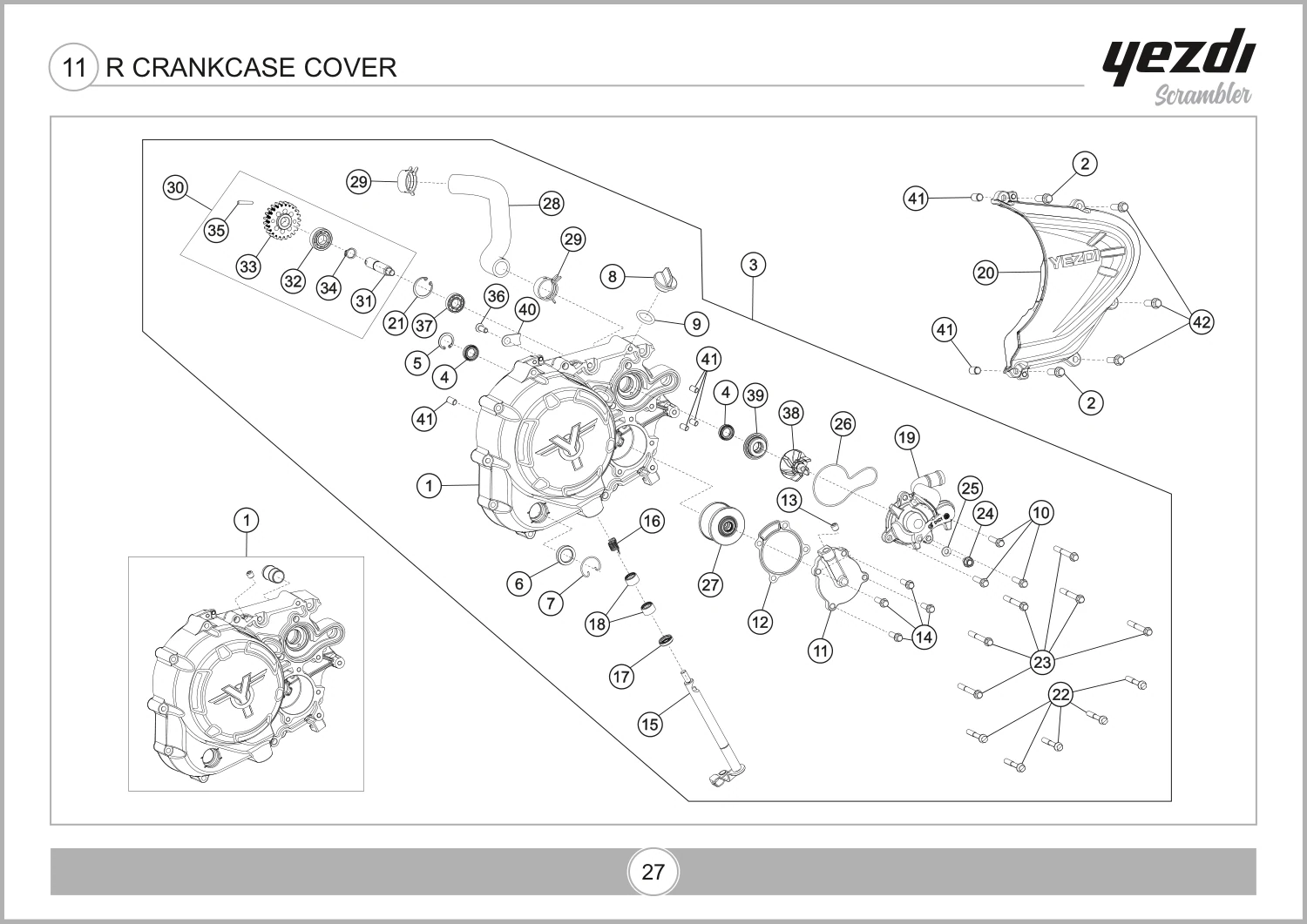

R Crankcase Cover
Page 27 · 30 parts
Assembly 11
R Crankcase Cover
Page 29 · 12 parts
Assembly 12

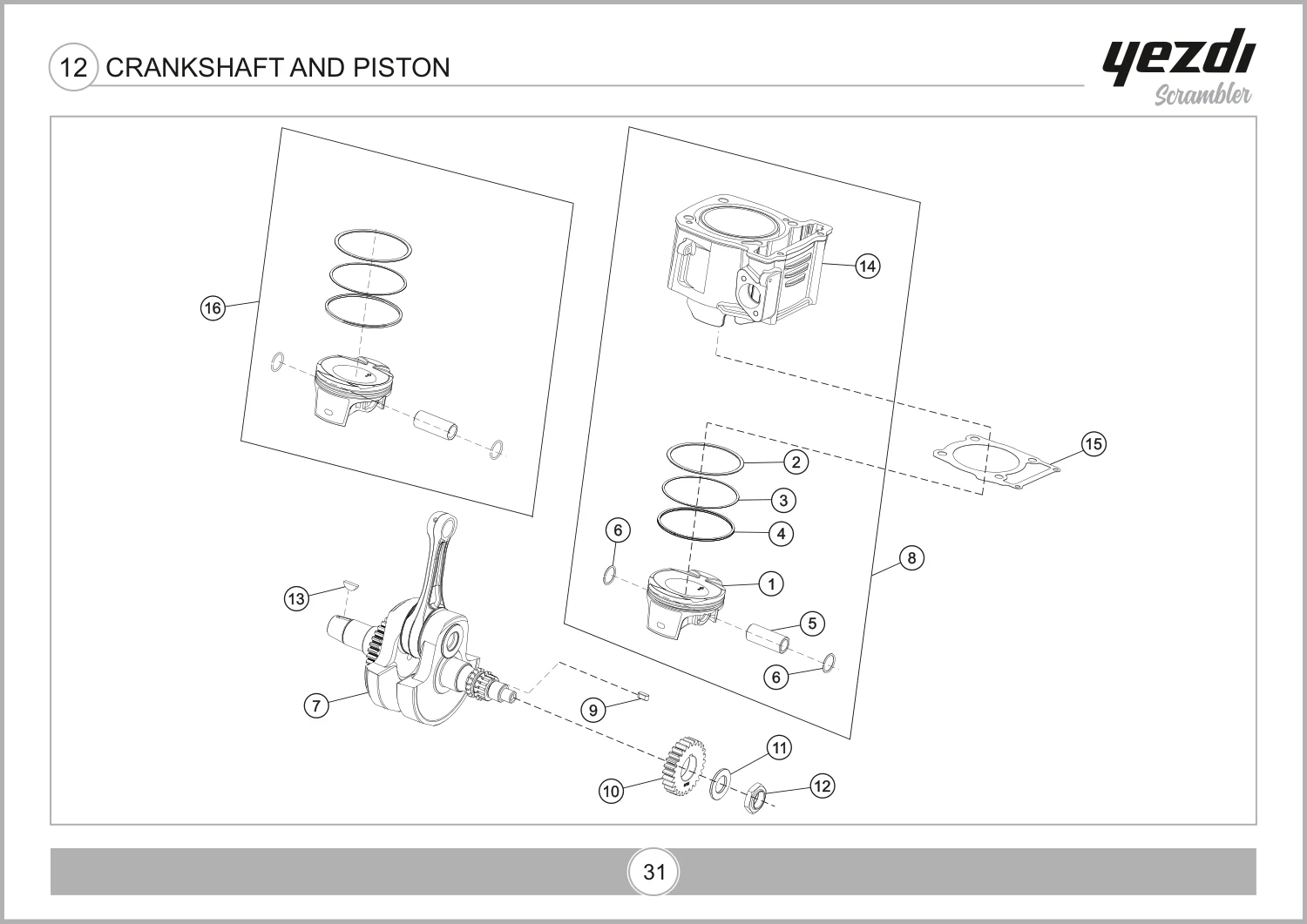

Crankshaft And Piston
Page 31 · 20 parts
Assembly 13
Magneto Cover LH
Page 33 · 22 parts
Assembly 14
A&S - Clutch Assembly
Page 35 · 24 parts
Assembly 15

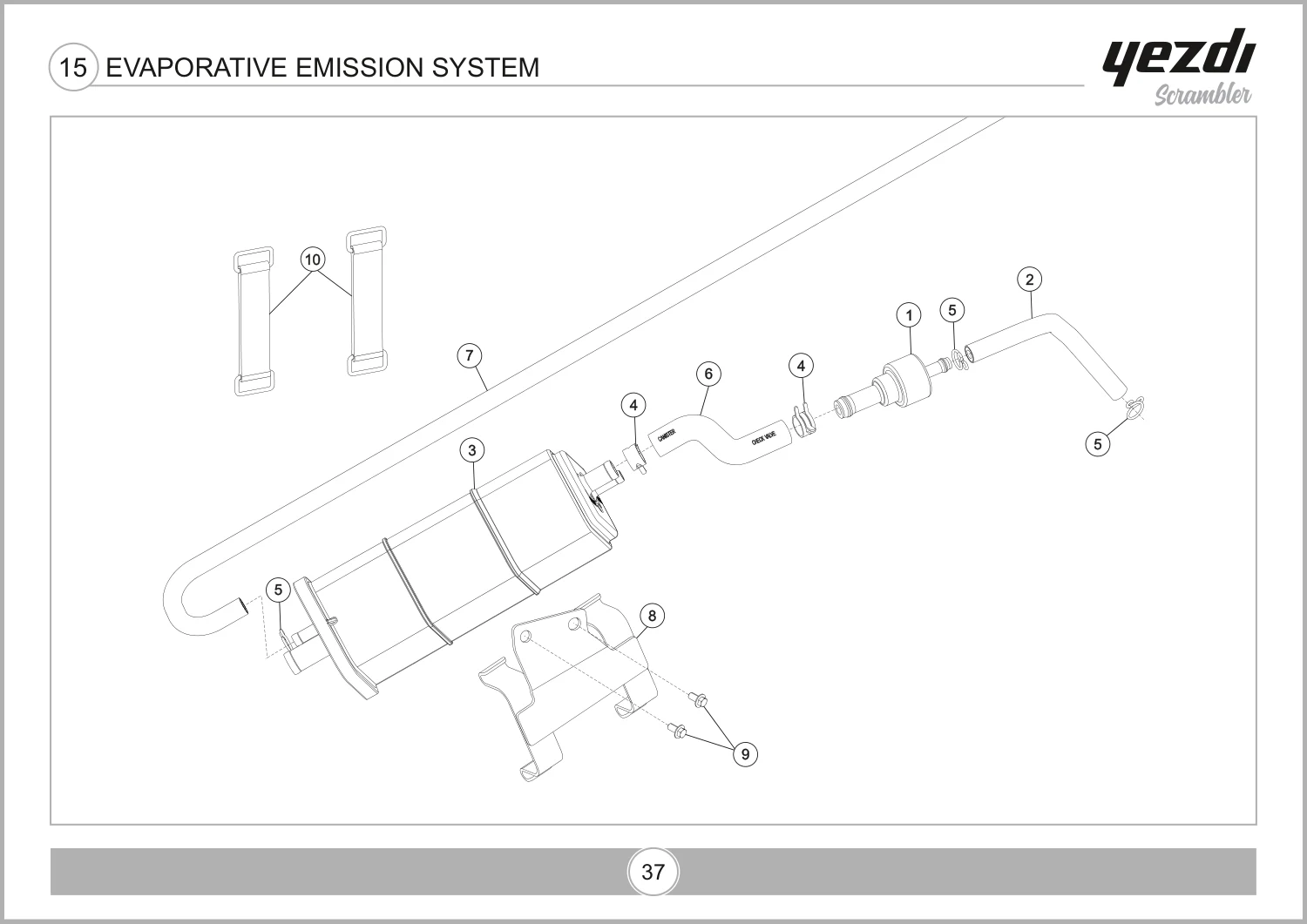

Evaporative Emission System
Page 37 · 10 parts
Assembly 16

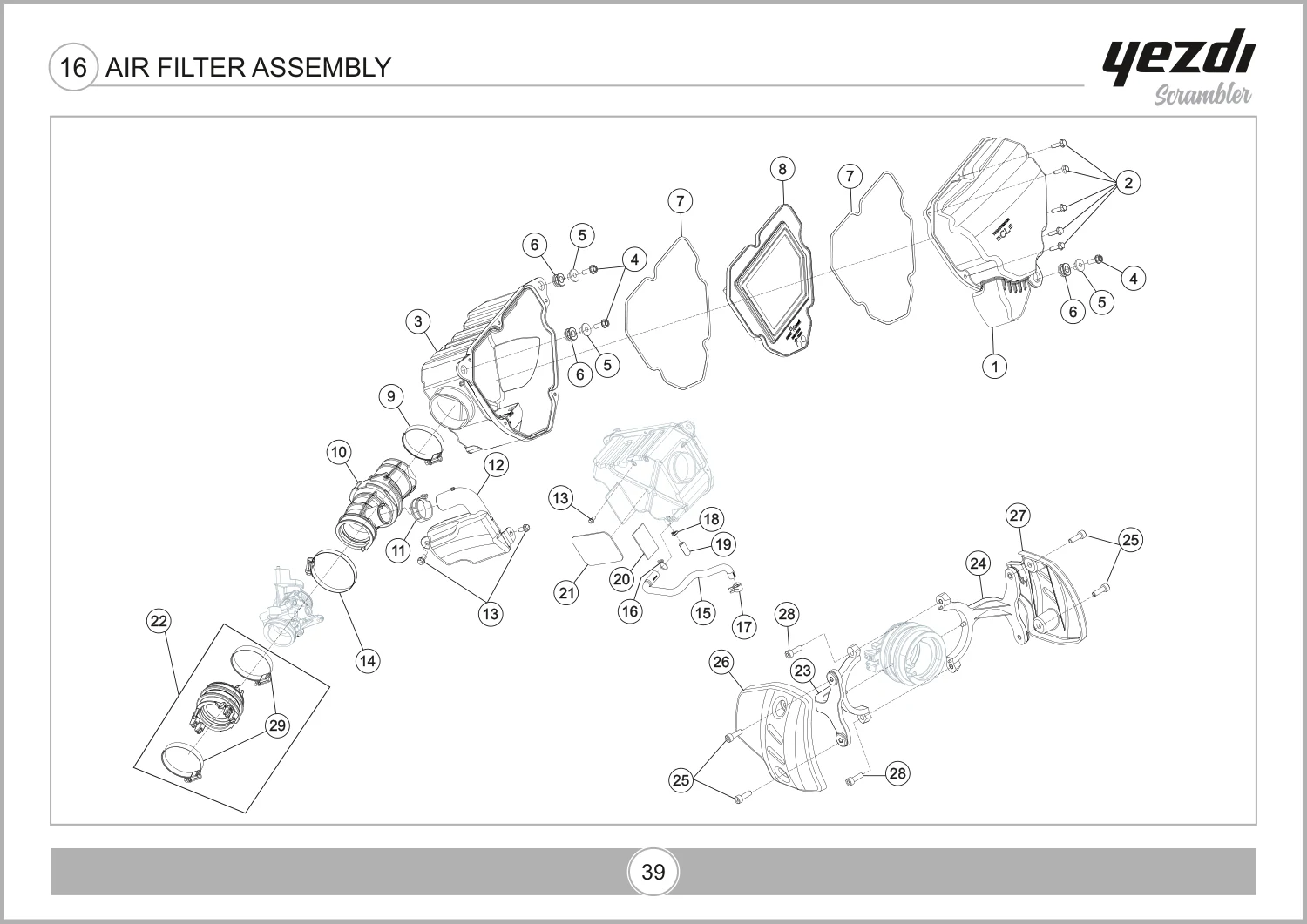

Air Filter Assembly
Page 39 · 29 parts
Assembly 17

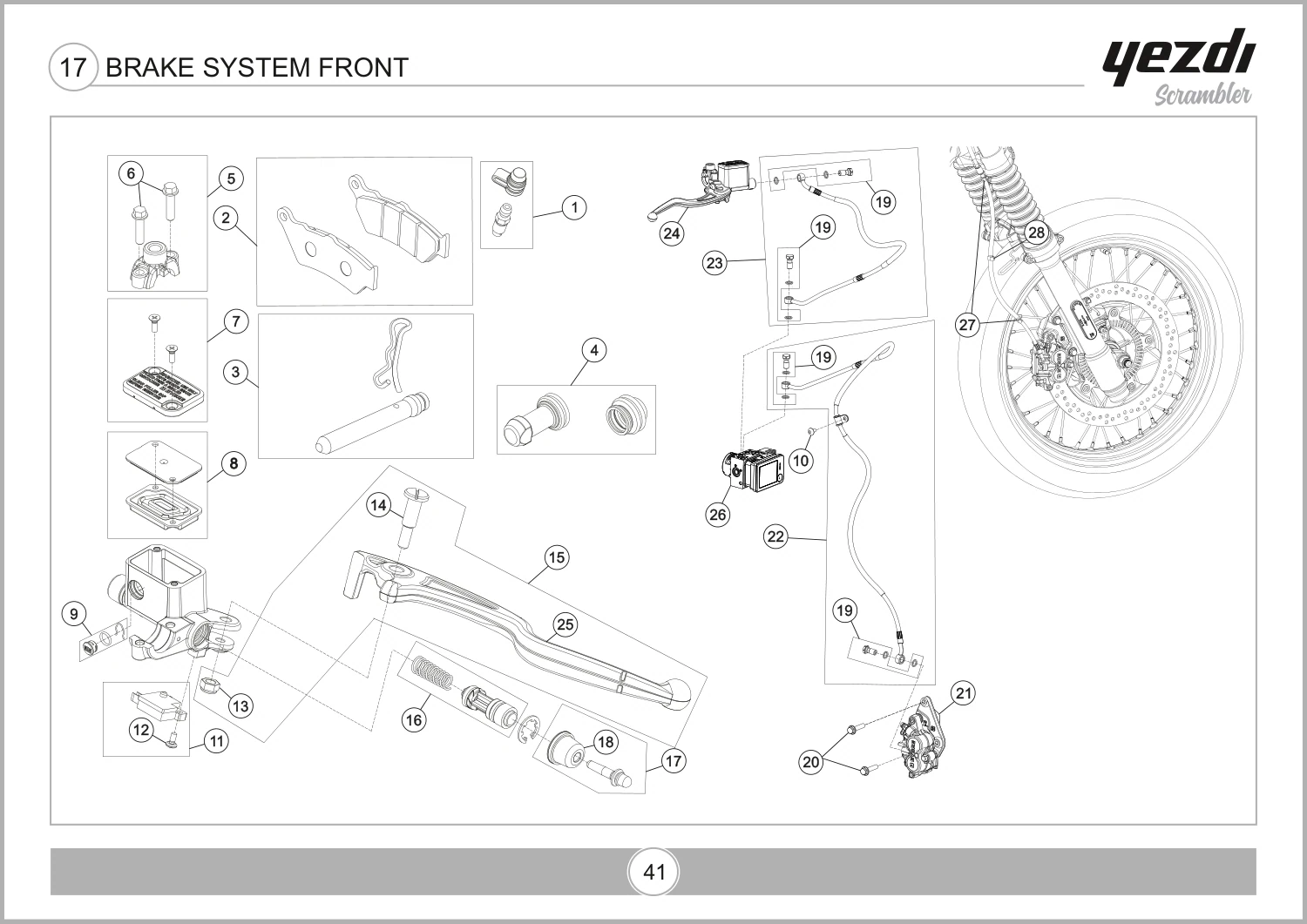

Brake System Front
Page 41 · 28 parts
Assembly 18

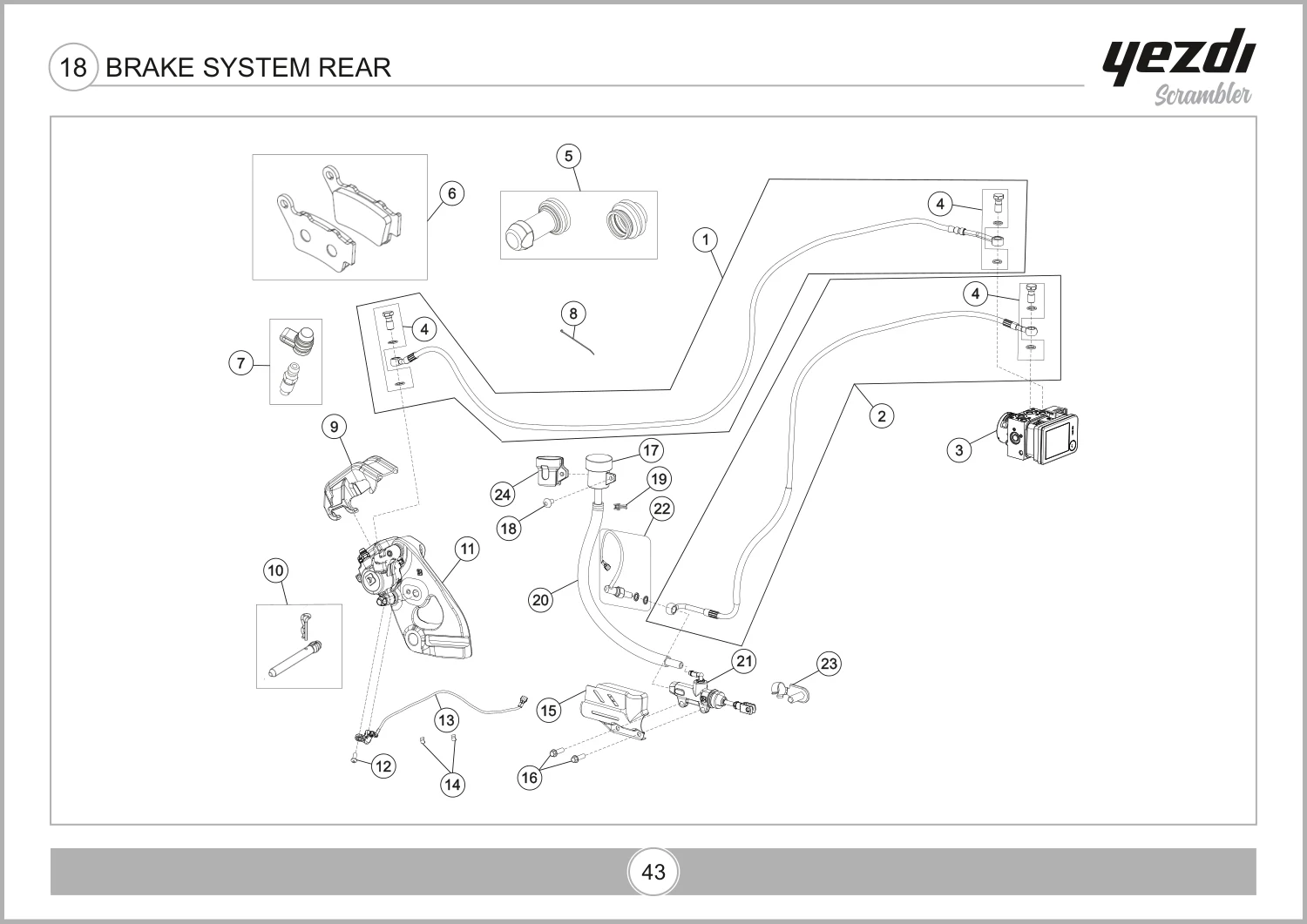

Brake System Rear
Page 43 · 24 parts
Assembly 19
Anti-Lock Braking System (ABS)
Page 45 · 2 parts
Assembly 20

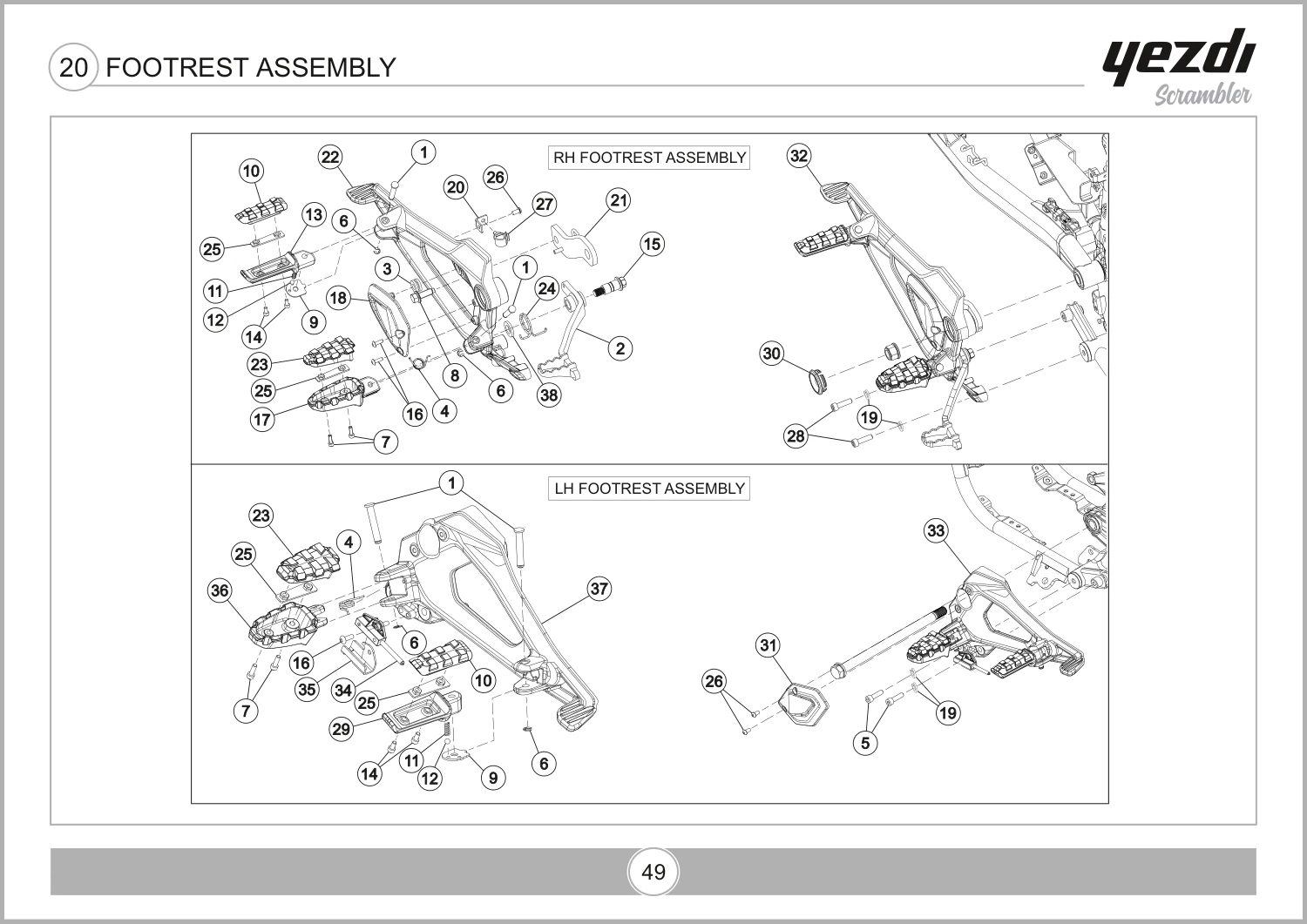

Footrest Assembly
Page 47 · 30 parts
Assembly 20
Footrest Assembly
Page 49 · 8 parts
Assembly 21

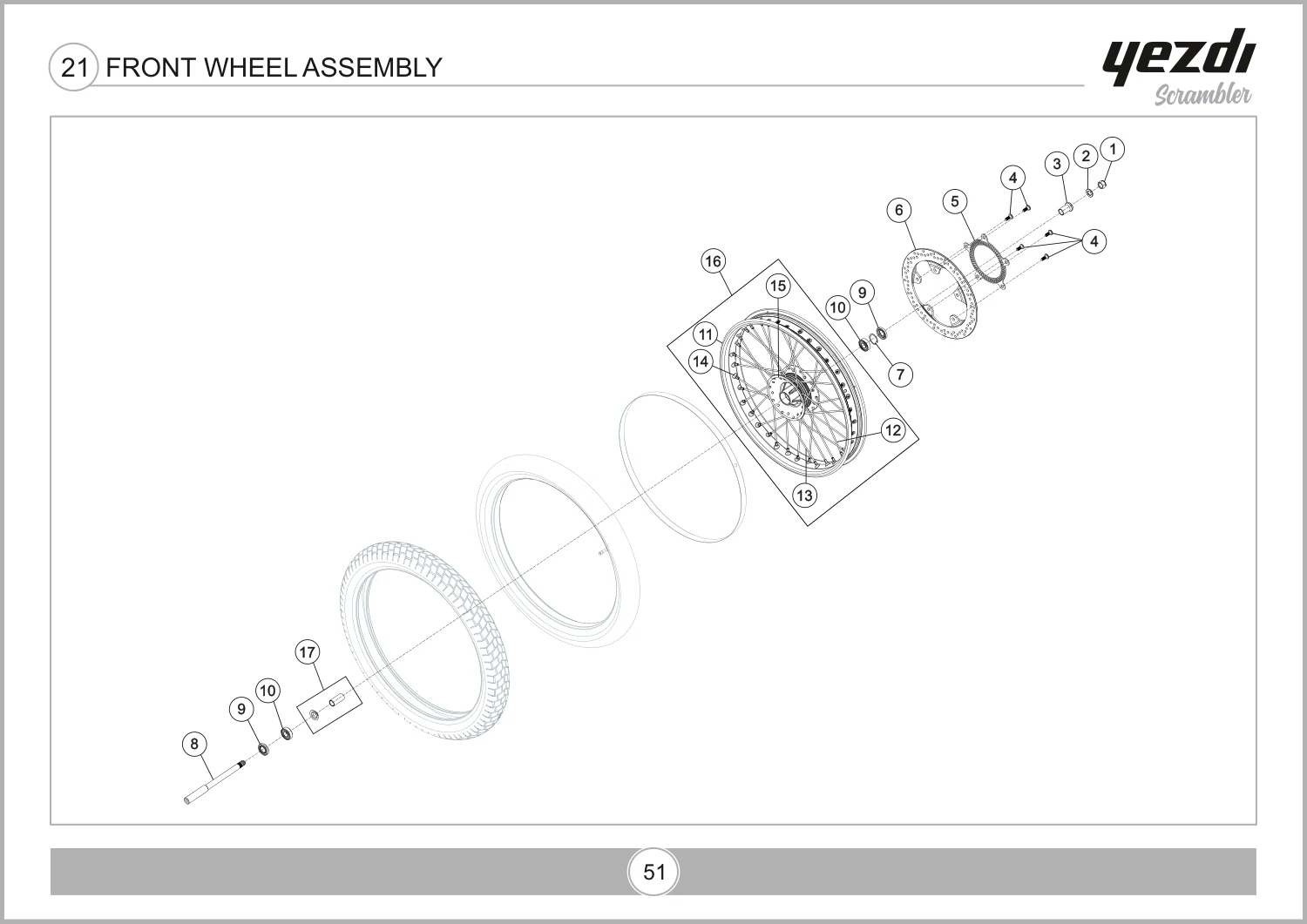

Front Wheel Assembly
Page 51 · 17 parts
Assembly 22

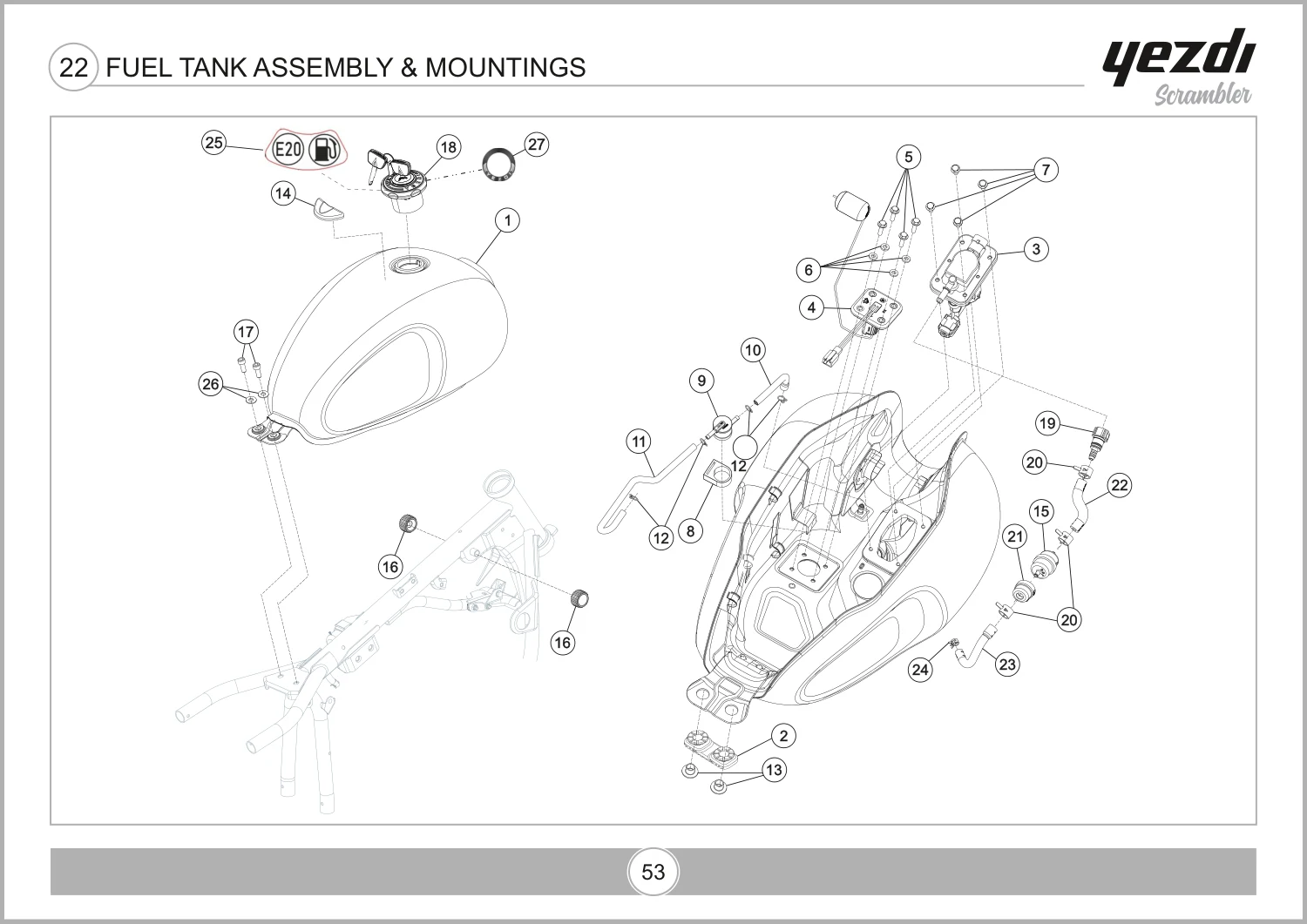

Fuel Tank Assembly & Mountings
Page 53 · 31 parts
Assembly 23
Front Mudguard Assembly
Page 55 · 12 parts
Assembly 24
Radiator & Cooling System
Page 57 · 29 parts
Assembly 25

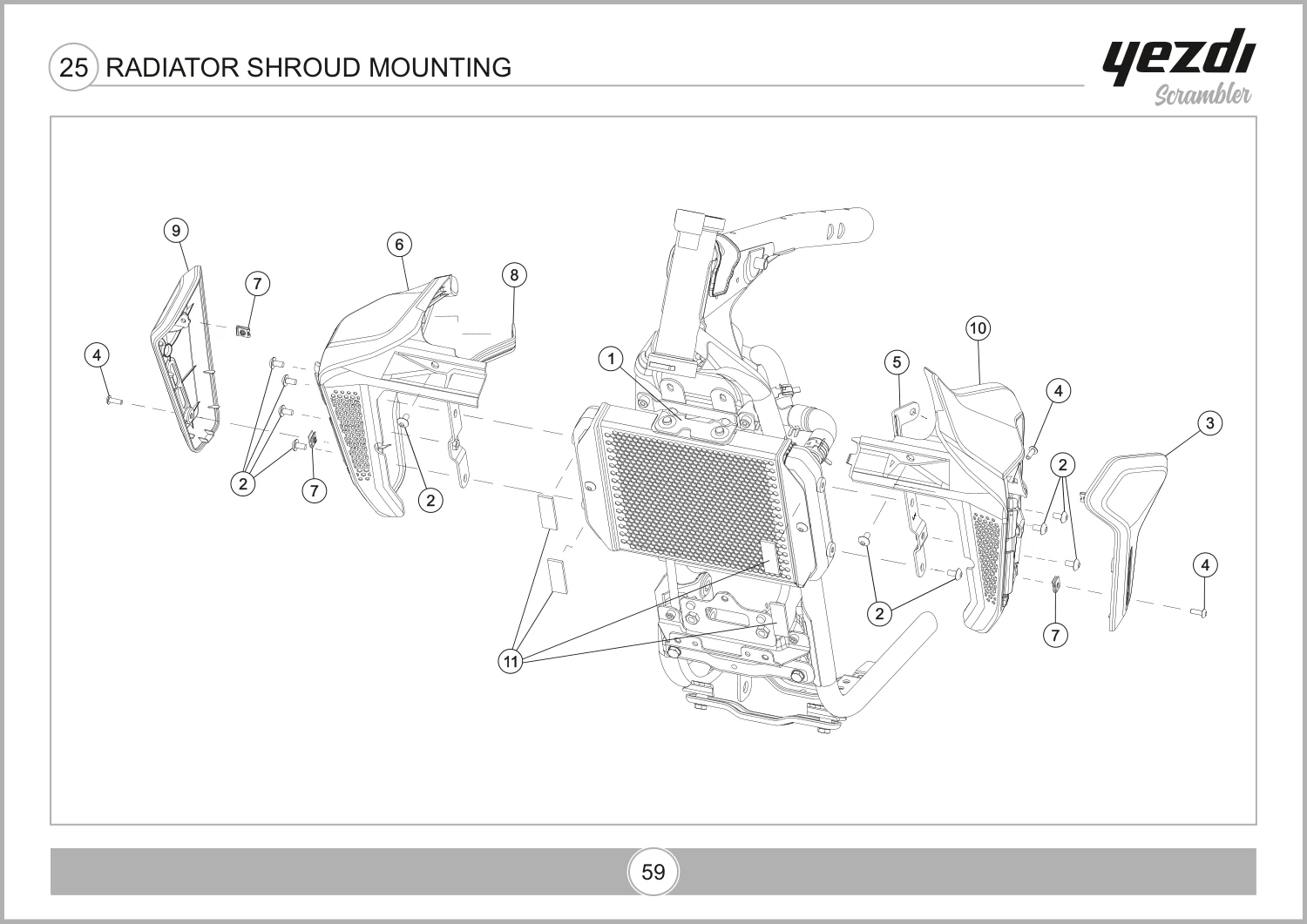

Radiator Shroud Mounting
Page 59 · 19 parts
Assembly 26
Rear Fender Assembly (1/2)
Page 61 · 5 parts
Assembly 27

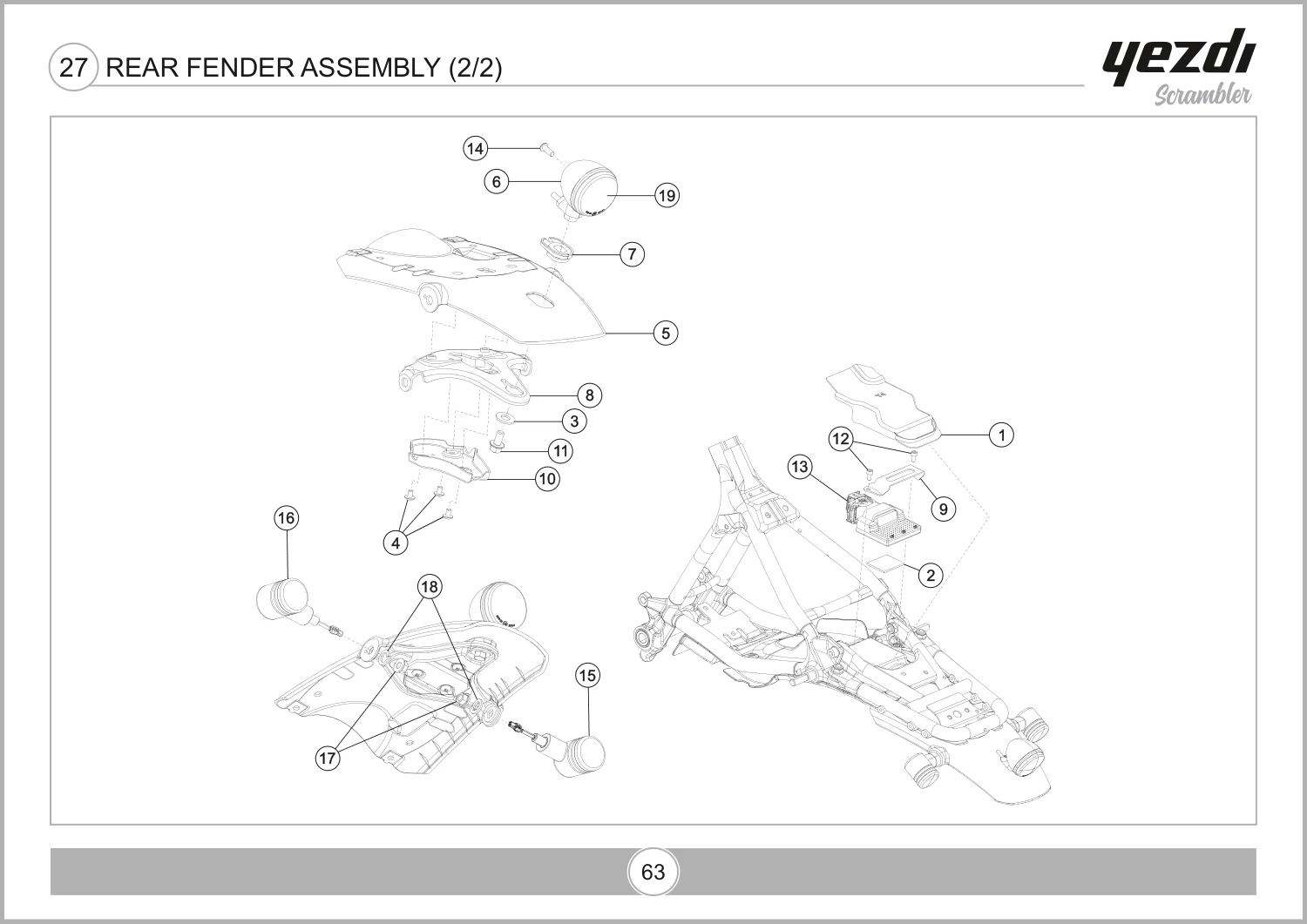

Rear Fender Assembly (2/2)
Page 63 · 23 parts
Assembly 28

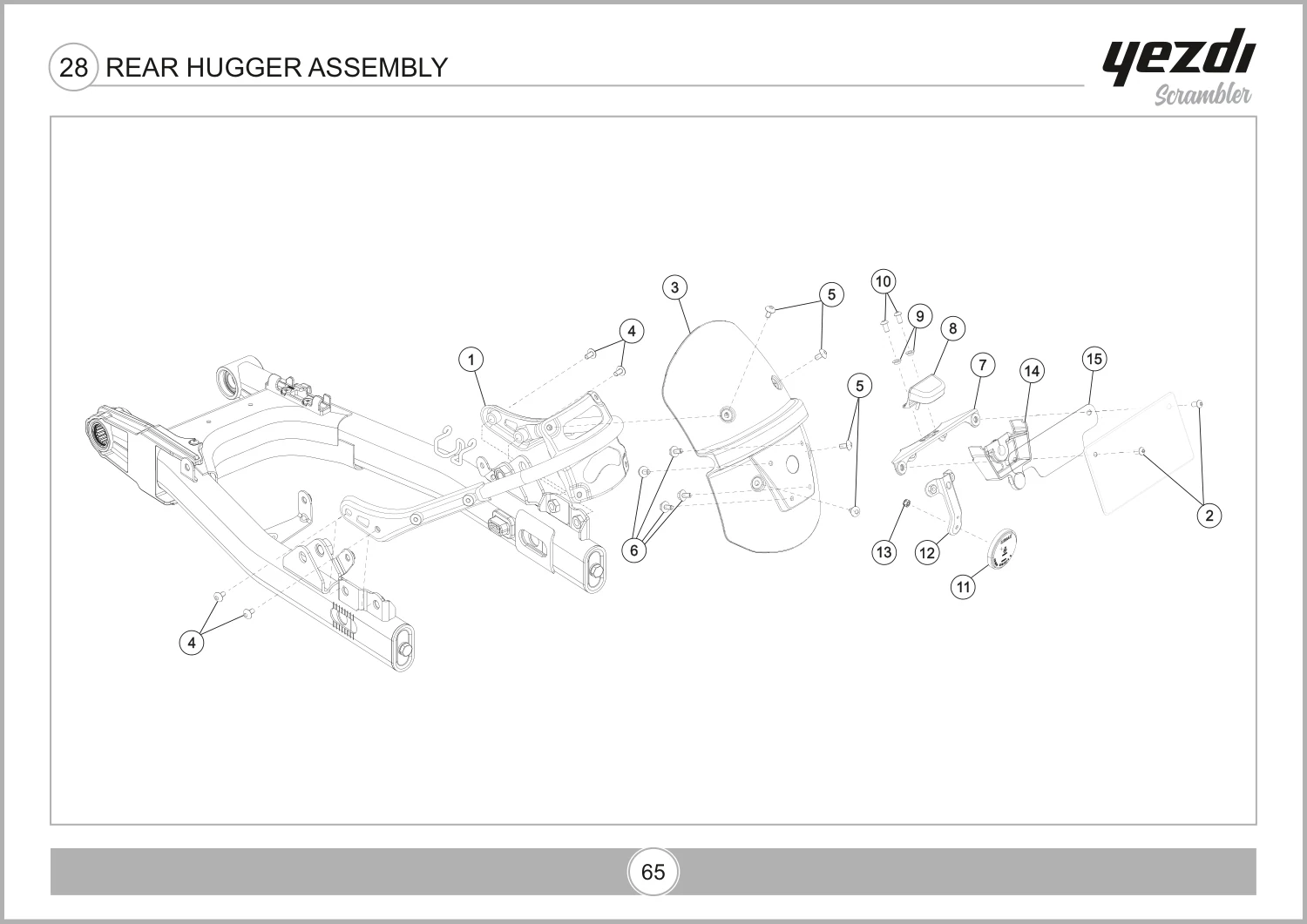

Rear Hugger Assembly
Page 65 · 15 parts
Assembly 29
Rear Wheel Assembly
Page 67 · 29 parts
Assembly 30
Saree Guard
Page 69 · 3 parts
Assembly 31
Seat Assembly
Page 71 · 7 parts
Assembly 32
Silencer Assembly
Page 73 · 25 parts
Assembly 33
Steering
Page 75 · 11 parts
Assembly 34
Front Fork Assembly
Page 77 · 23 parts
Assembly 35

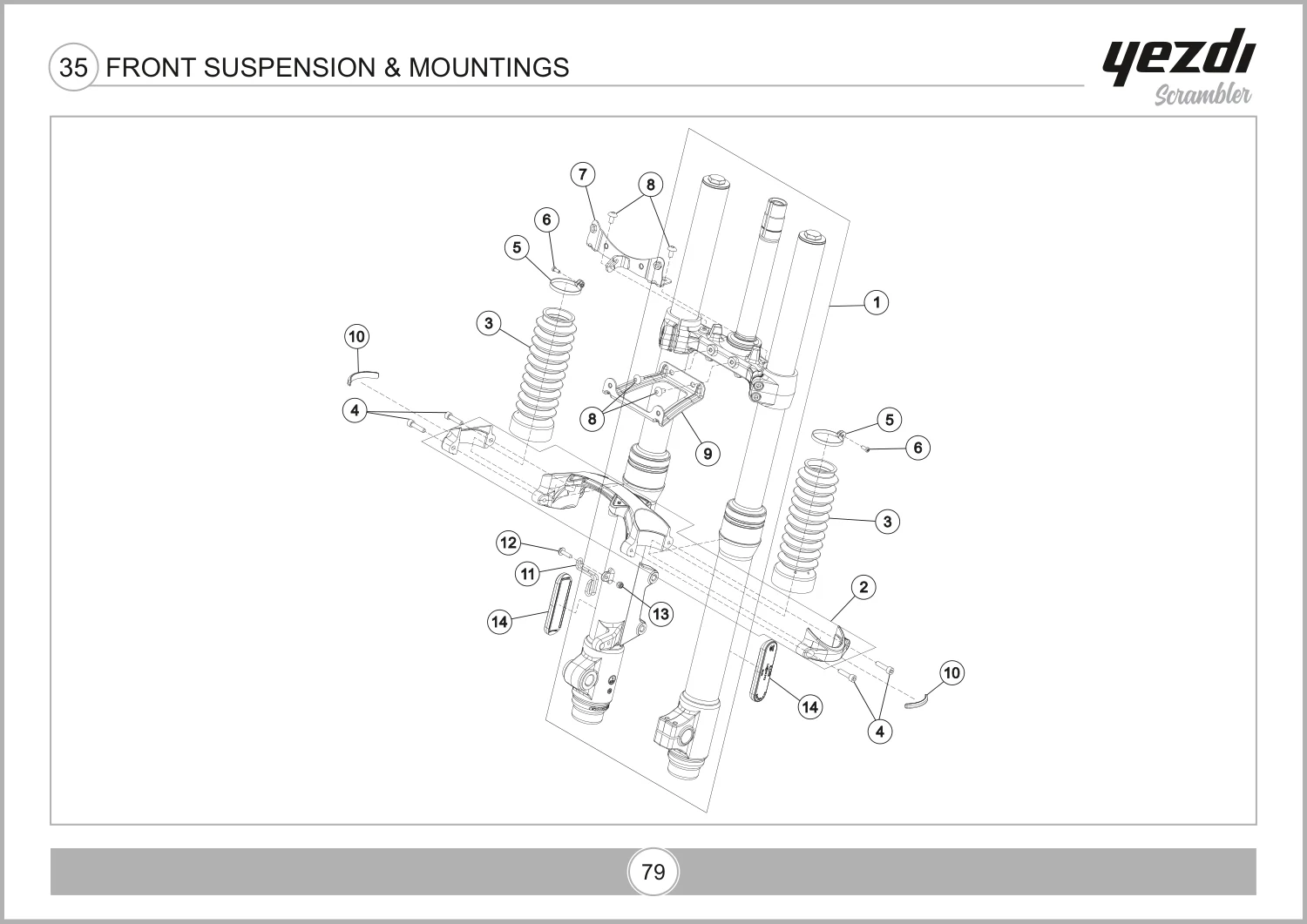

Front Suspension & Mountings
Page 79 · 14 parts
Assembly 36

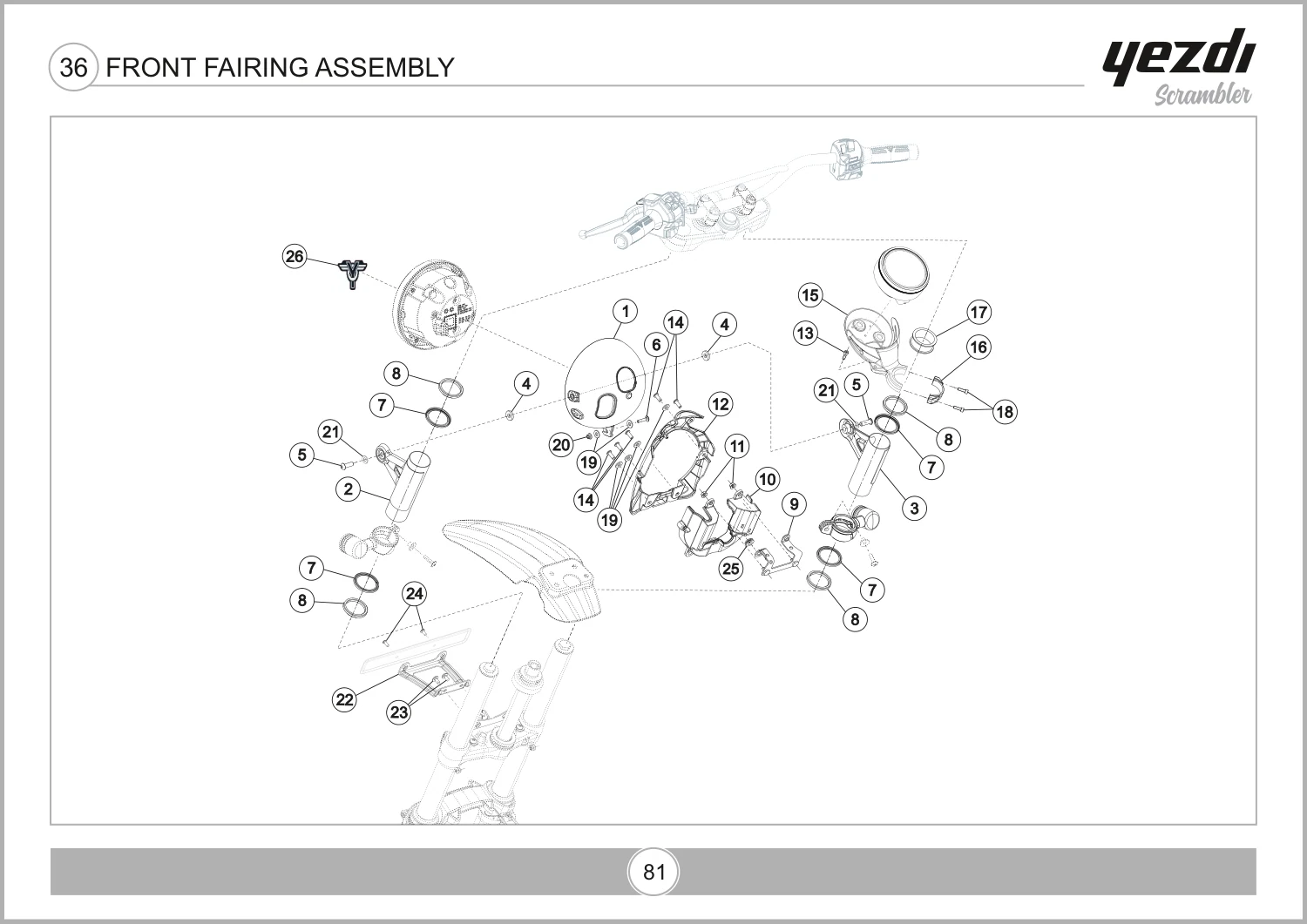

Front Fairing Assembly
Page 81 · 26 parts
Assembly 37
Side Panel LH, RH Assy, Lock Set, Owner’S Manual & Tool Kit
Page 83 · 24 parts
Assembly 38

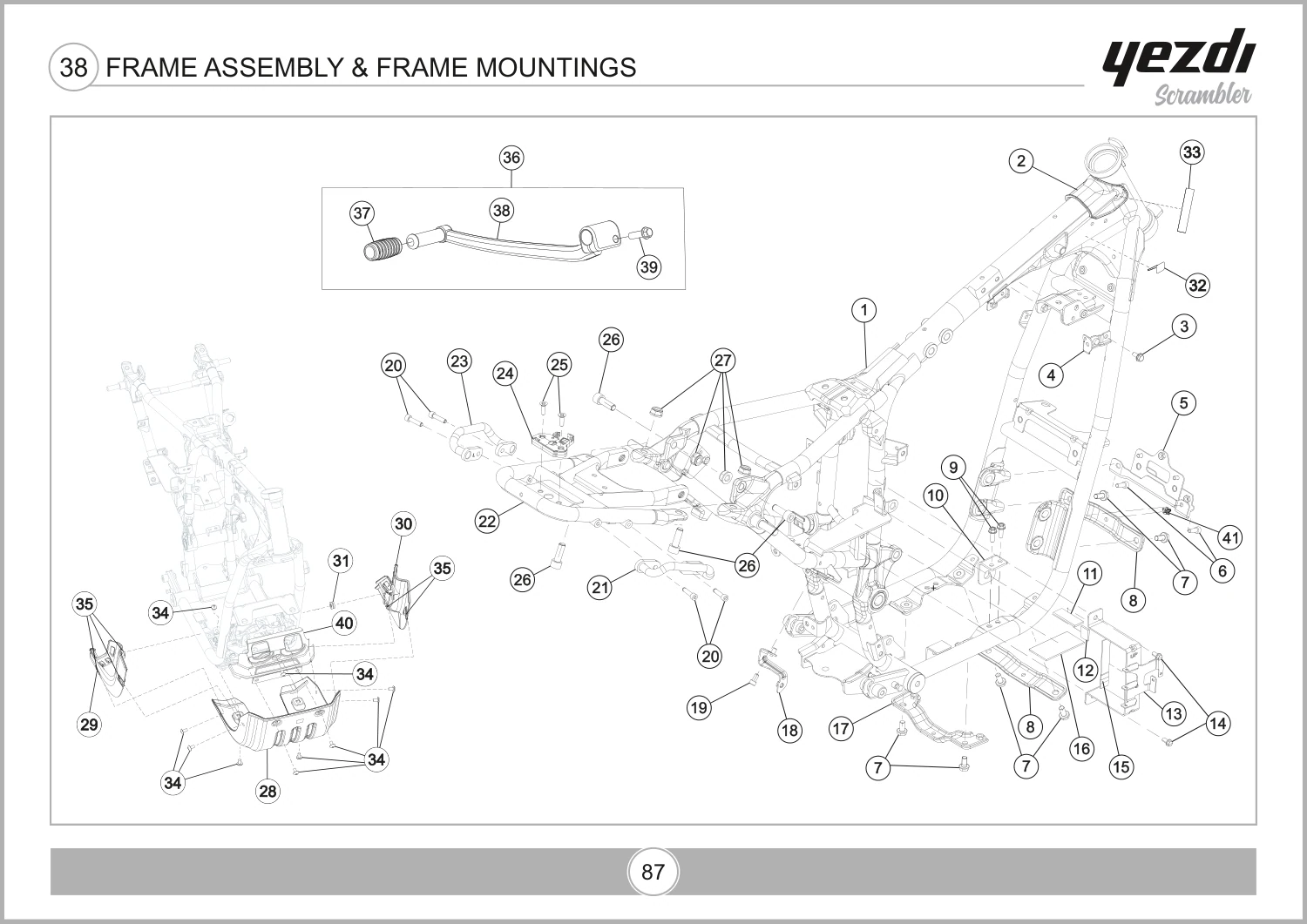

Frame Assembly & Frame Mountings
Page 85 · 30 parts
Assembly 38
Frame Assembly & Frame Mountings
Page 87 · 12 parts
Assembly 39

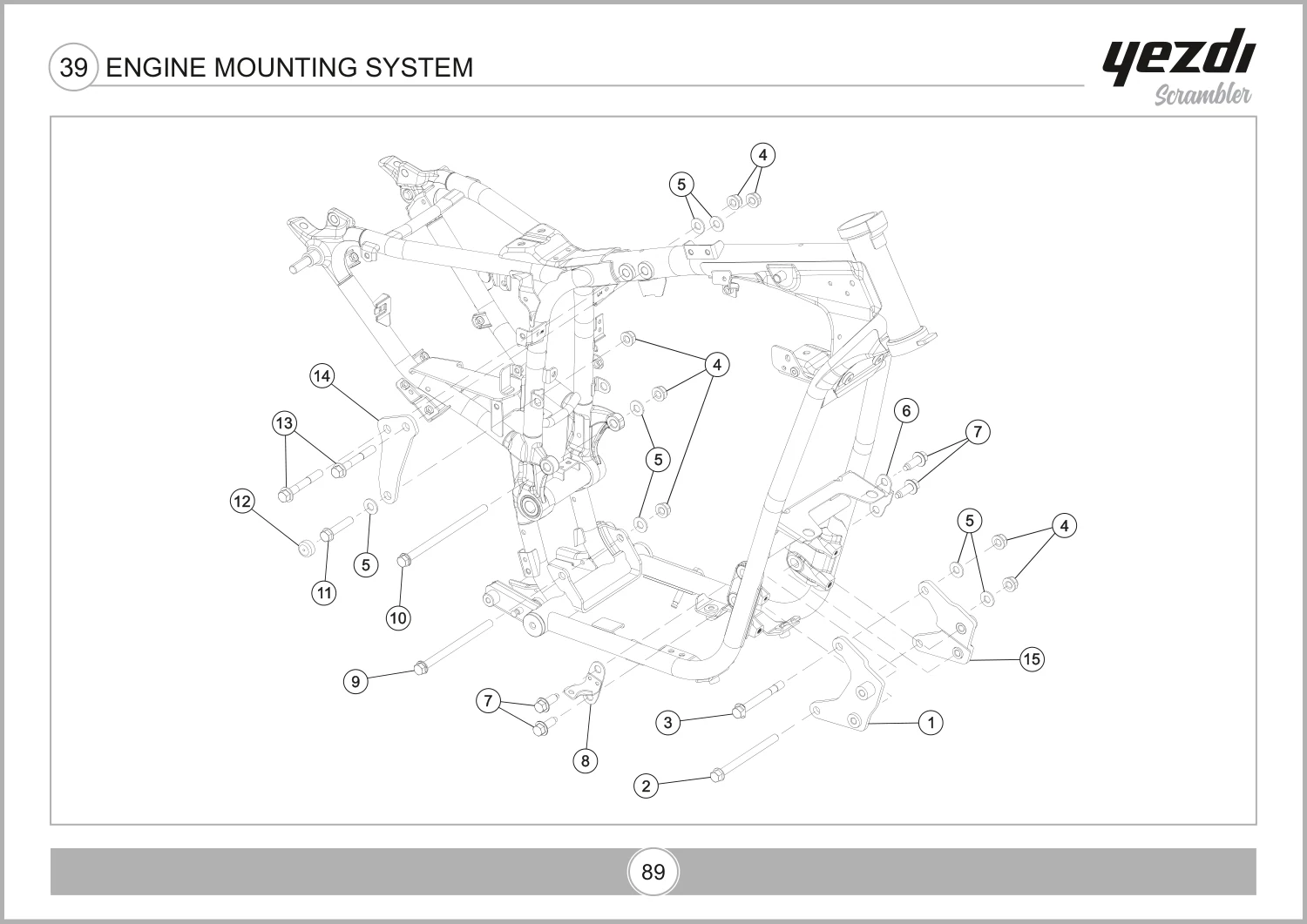

Engine Mounting System
Page 89 · 15 parts
Assembly 40

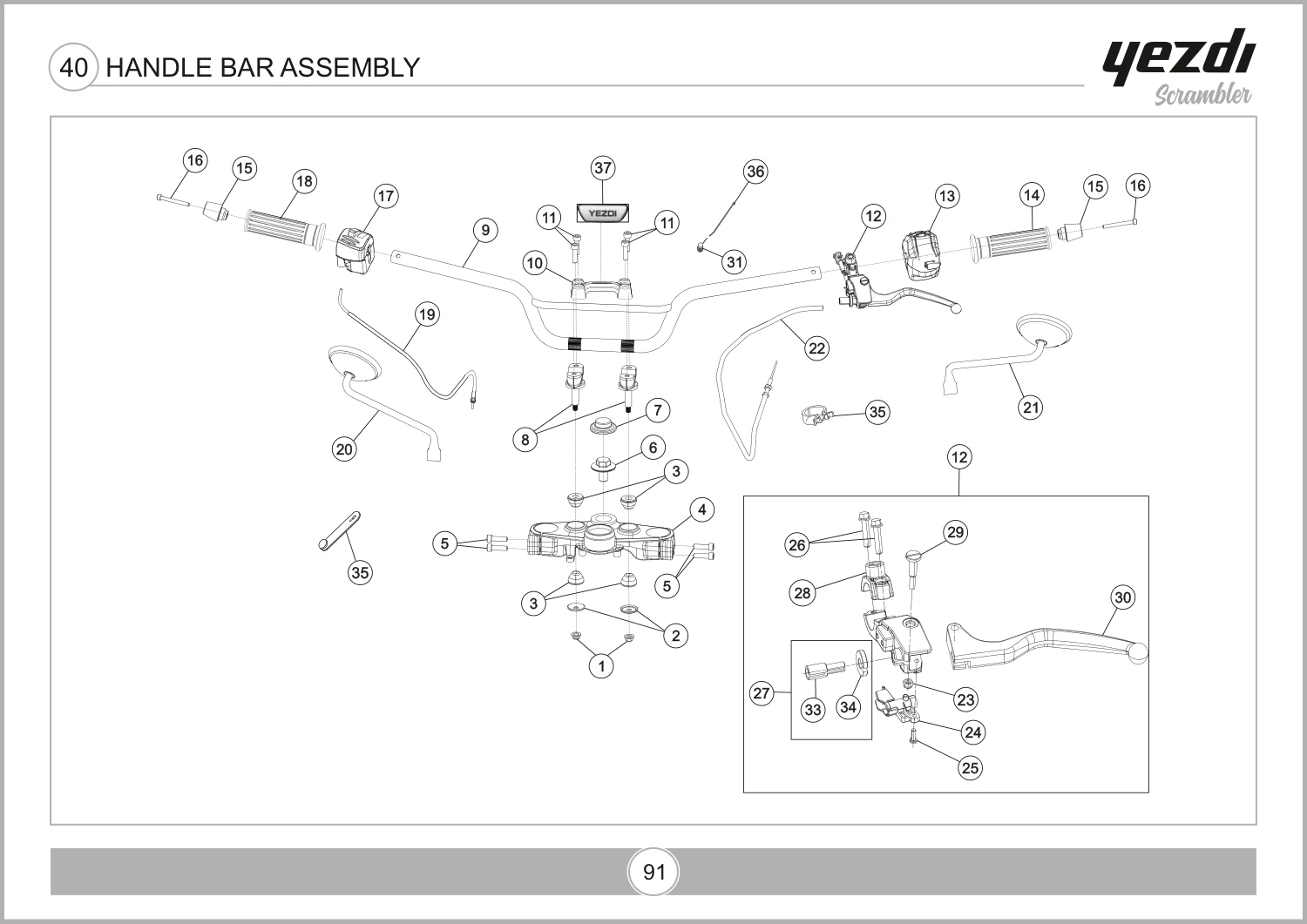

Handle Bar Assembly
Page 91 · 30 parts
Assembly 40
Handle Bar Assembly
Page 93 · 7 parts
Assembly 41

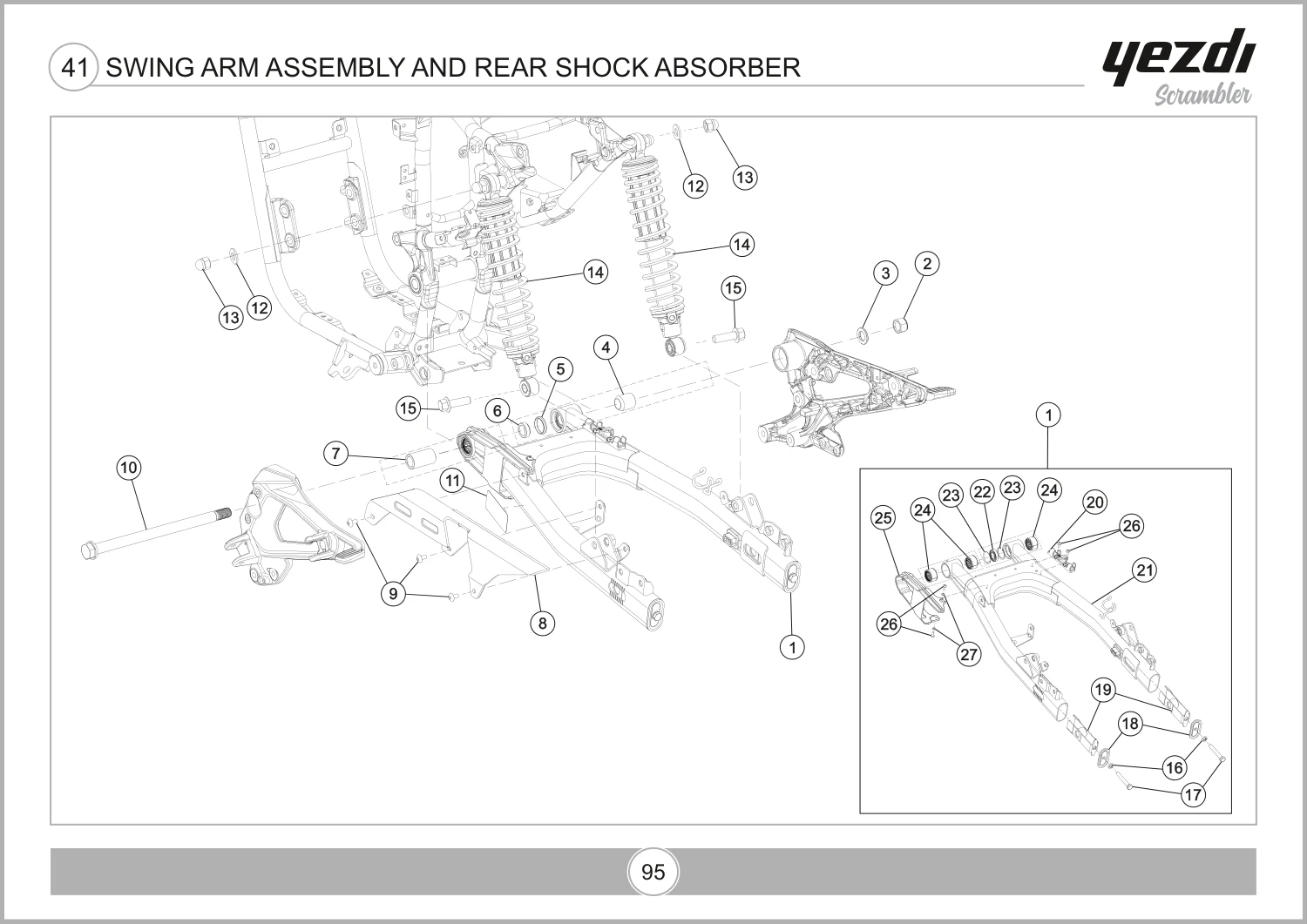

Swing Arm Assembly And Rear Shock Absorber
Page 95 · 27 parts
Assembly 42

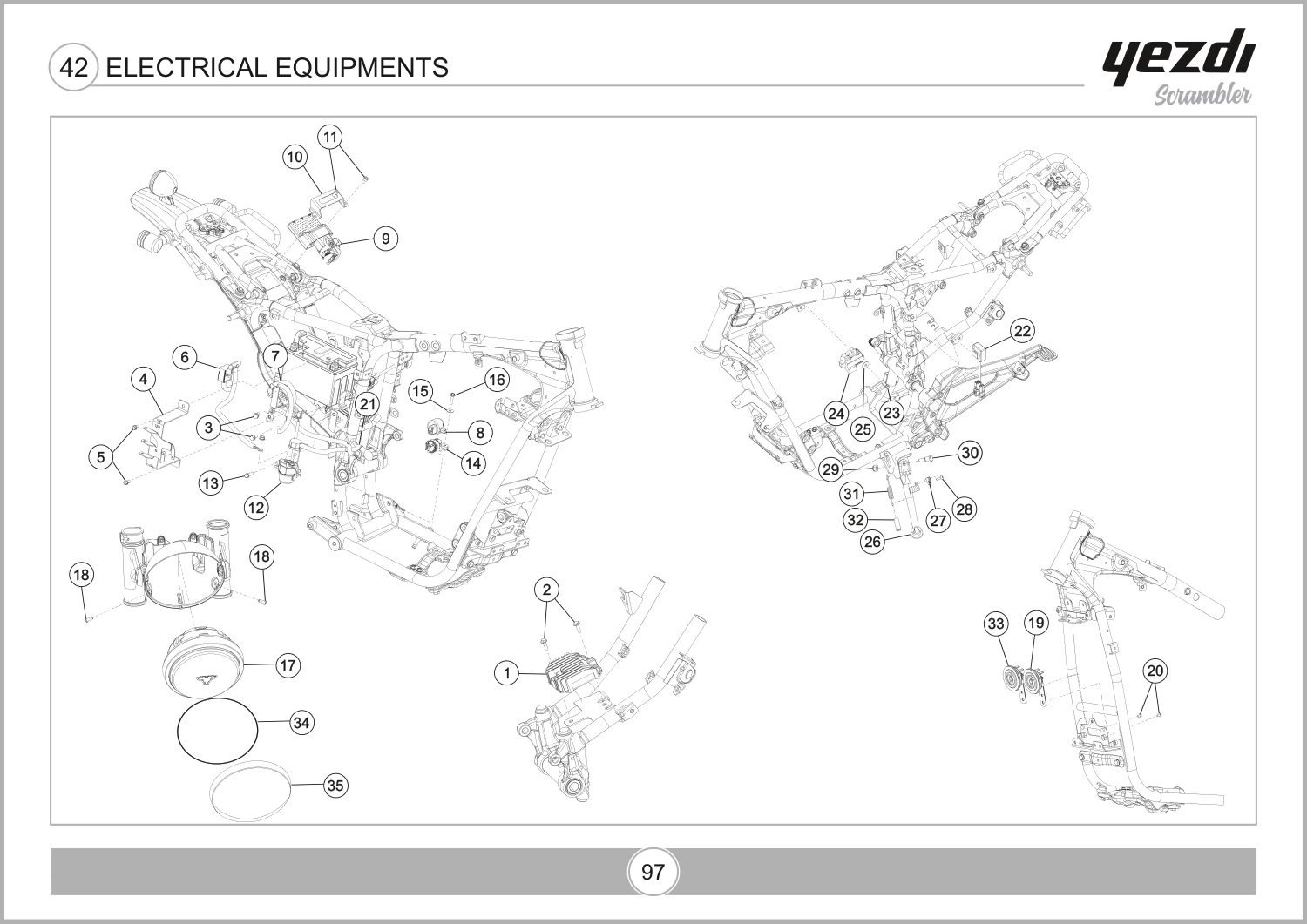

Electrical Equipments
Page 97 · 30 parts
Assembly 42
Electrical Equipments
Page 99 · 5 parts
Assembly 43
Electrical Parts
Page 101 · 24 parts
Assembly 44
Wiring Harness
Page 103 · 21 parts
Assembly 45
Electronic Fuel Injection (EFI) Assembly
Page 105 · 20 parts
Assembly 46
Decals - Og Yellow
Page 107 · 14 parts
Assembly 47

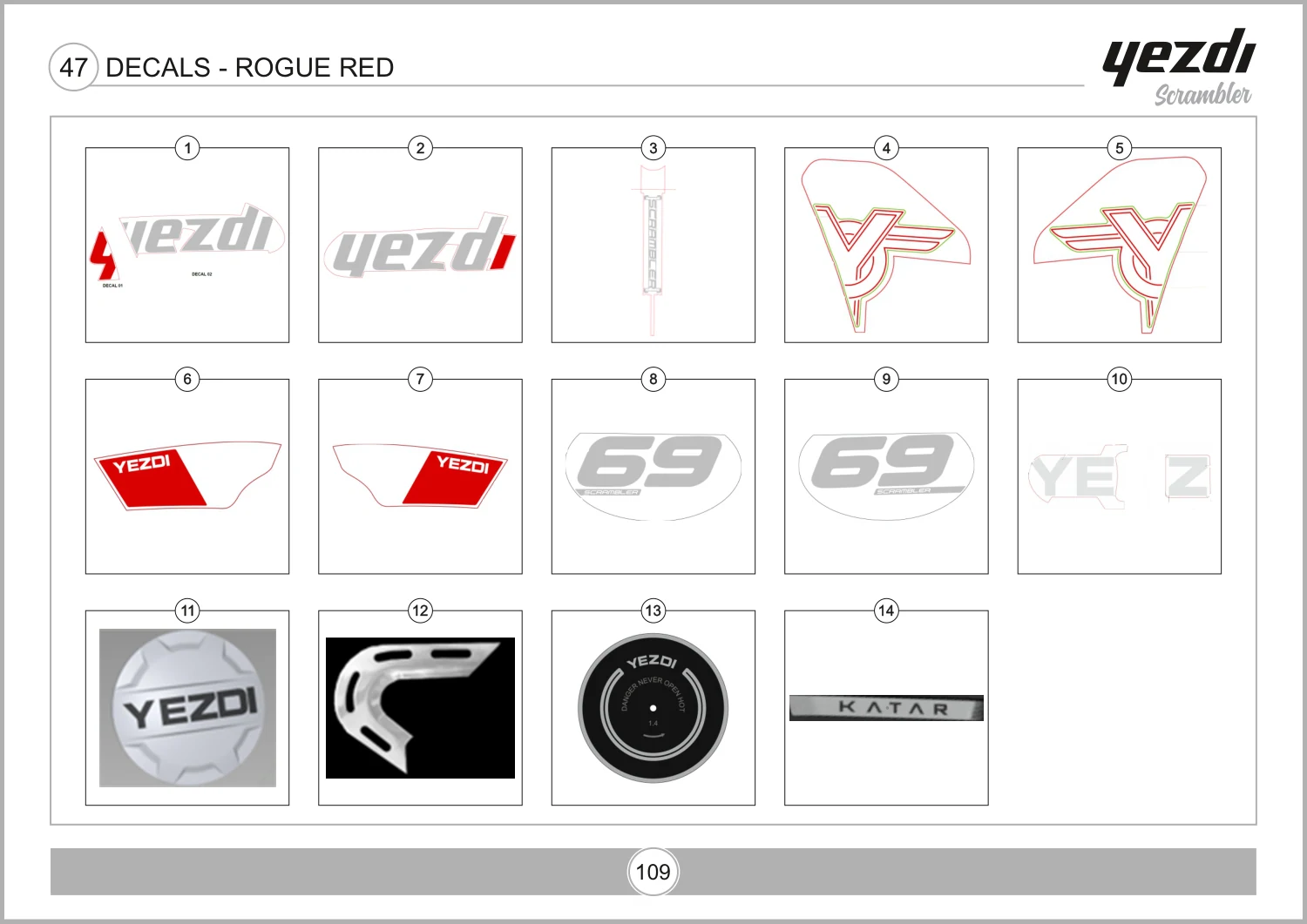

Decals - Rogue Red
Page 109 · 14 parts
Assembly 48

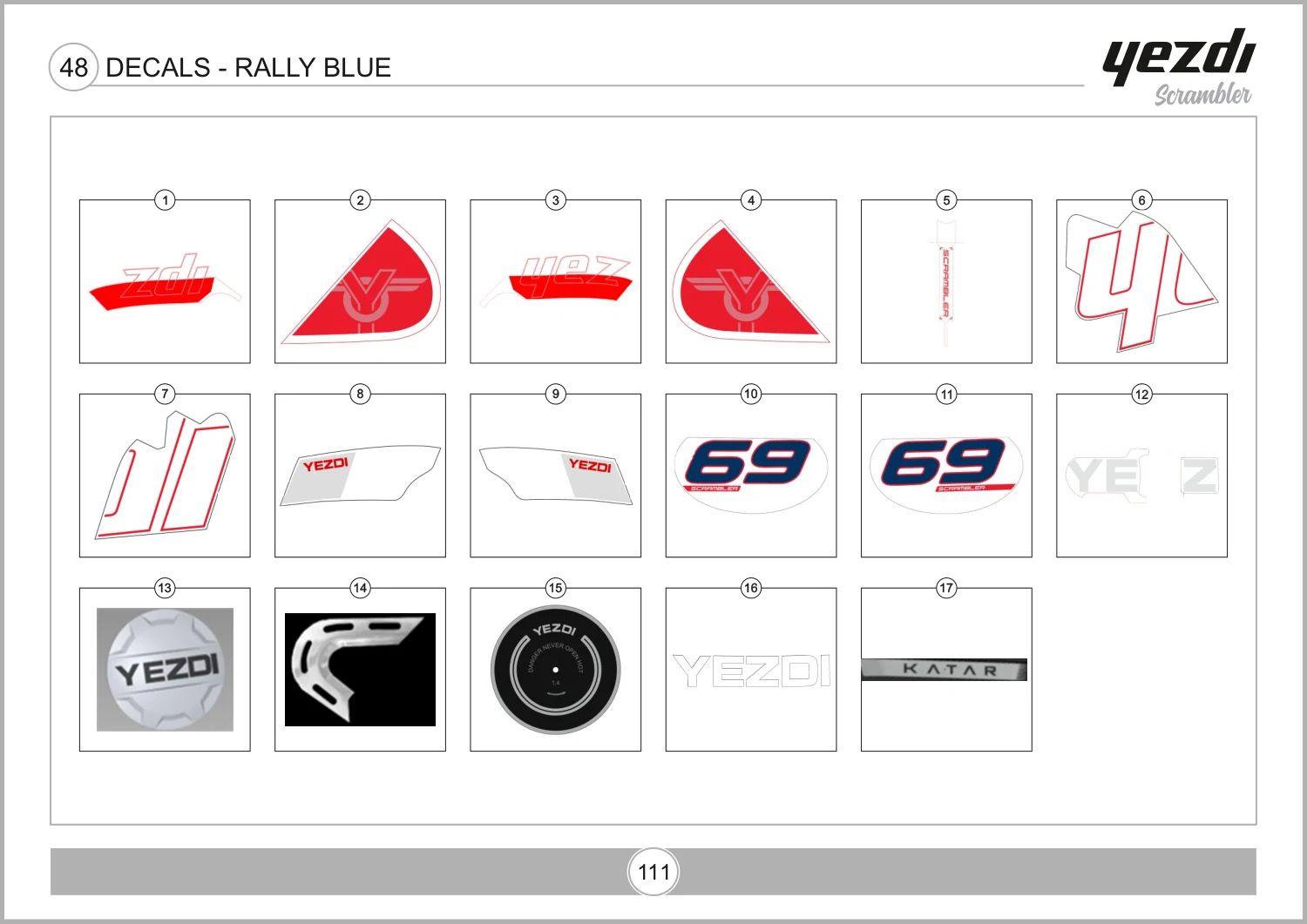

Decals - Rally Blue
Page 111 · 17 parts
Assembly 49
Decals - Legacy Black
Page 113 · 15 parts
Assembly 50
Decals - Grey Panther
Page 115 · 17 partsNo matching assemblies. Try a broader name.
