Yezdi Scrambler LWE · ASSEMBLY 50 · REV 04
Decals - Grey Panther
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 115Original parts list ↗
Parts in this drawing
17 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Tank Top Decal Yellow Roadster Grey MattT13200Y40630D | 1 | |
| 2 | Shroud Decal Grey LHT13200Y40670W | 1 | |
| 3 | Shroud Decal Grey RHT13200Y40680W | 1 | |
| 4 | Front Fender Decal Yell Rdstr Gry Mat LHT13200Y40730D | 1 | |
| 5 | Front Fender Decal Yell Rdstr Gry Mat RHT13200Y40740D | 1 | |
| 6 | Side Panel Decal 69 BSA Red Slvr Glss LHT13200Y40810A | 1 | |
| 7 | Side Panel Decal 69 BSA Red Slvr Glss RHT13200Y40820A | 1 | |
| 8 | Under Tray Decal White GlossT13200Y50580N | 1 | |
| 9 | Magneto Cover BadgeT21000VG0090N | 1 | |
| 10 | Sprocket Cover Badge Brushed Finish SlvrT21000VG0080F | 1 | |
| 11 | Badge Fuel Tank Piano BlackT13200J20080E | 2 | |
| 12 | Cylinder Block BadgeT21000VG0100N | 1 | |
| 13 | Radiator Pressure Cap Badge 1.4 Bar - YezdiT0401AY50120N | 1 | |
| 14 | Y4 Kneepad LHT10010Y40190N | 1 | |
| 15 | Y4 Kneepad RHT10010Y40180N | 1 | |
| 16 | Badge Tank Pad LH (Yezdi)T13200J20280N | 1 | |
| 17 | Badge Tank Pad RH (Yezdi)T13200J20320N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

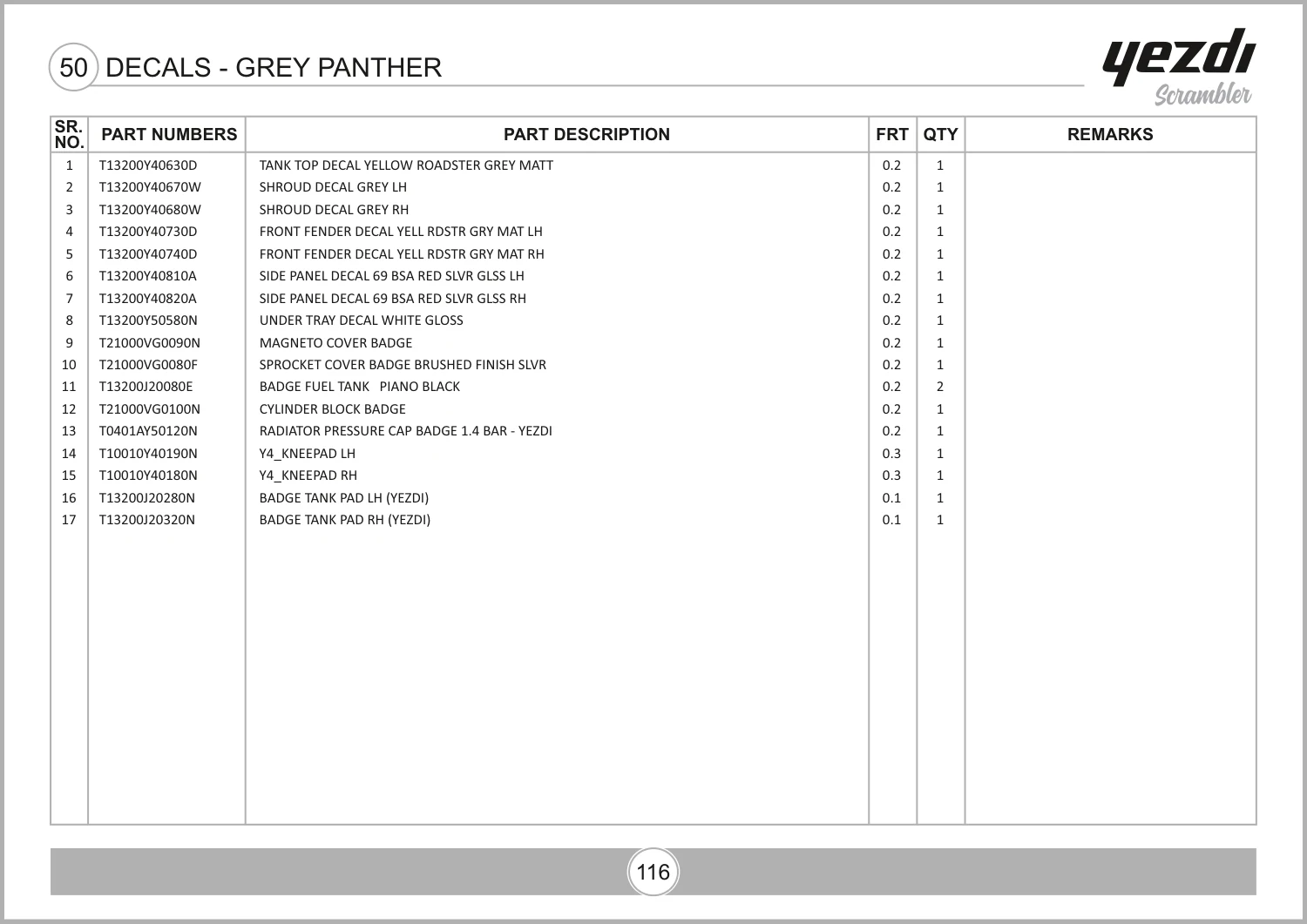

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 126, parts table page 127. View original parts table ↗
