Yezdi Scrambler LWE · ASSEMBLY 3 · REV 04
Crankcase RH
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 5Original parts list ↗
Parts in this drawing
19 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Crankcase RH C334 Black Matt Raven TextureT0202CVG0460N | 1 | |
| 2 | Bolt, Hex Flange Sh - M6X20SP0906029 | 1 | |
| 3 | Stud - M10T0202CUF2560N | 2 | |
| 4 | Bearing Input Shaft (Dia20*Dia47*14) VaveT0215DVG0560N | 1 | |
| 5 | Bearing Output Shaft (Dia17*Dia40*12) VaveT0215DVG0550N | 1 | |
| 6 | Bearing Dg Ball Sr 30X72X19SP010103901 | 1 | |
| 7 | Bearing Ball Balancer (6303.C3) (Ø17*Ø47*14)T18050UF0320N | 1 | |
| 8 | Bearing Needle Skf Hk2012 (Dia20*Dia26*12)T18050UF0190N | 1 | |
| 9 | Dowel Pin, Hollow (Ø8*12)MJ01760000500 | 2 | |
| 10 | Oil StrainerT0203BUF0150N | 1 | |
| 11 | Breather Canopy (Plastic, Ip)T0202CVG0410N | 1 | |
| 12 | Assembly Stopper Comp Gear Shift DrumT0215CUF0650N | 1 | |
| 13 | Lock Plate Input BearingT0202CUF0510N | 1 | |
| 14 | Gasket, Cover RHT0209DUF0210N | 1 | |
| 15 | Oil Pump Complete - AdvikT0203AUF0160N | 1 | |
| 16 | Bolt, Hex Flange Sh - M6X85 (NVH)SP0906034 | 1 | |
| 17 | Drumlock SpringT0202CUF0480N | 1 | |
| 18 | Washer, Star Drum Bolt(Ø6.4*Ø15*1)T18010UF0150N | 2 | |
| 19 | Dowel Pin, Hollow Dia10*14 (Common With E01)MJ01760000600 | 5 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

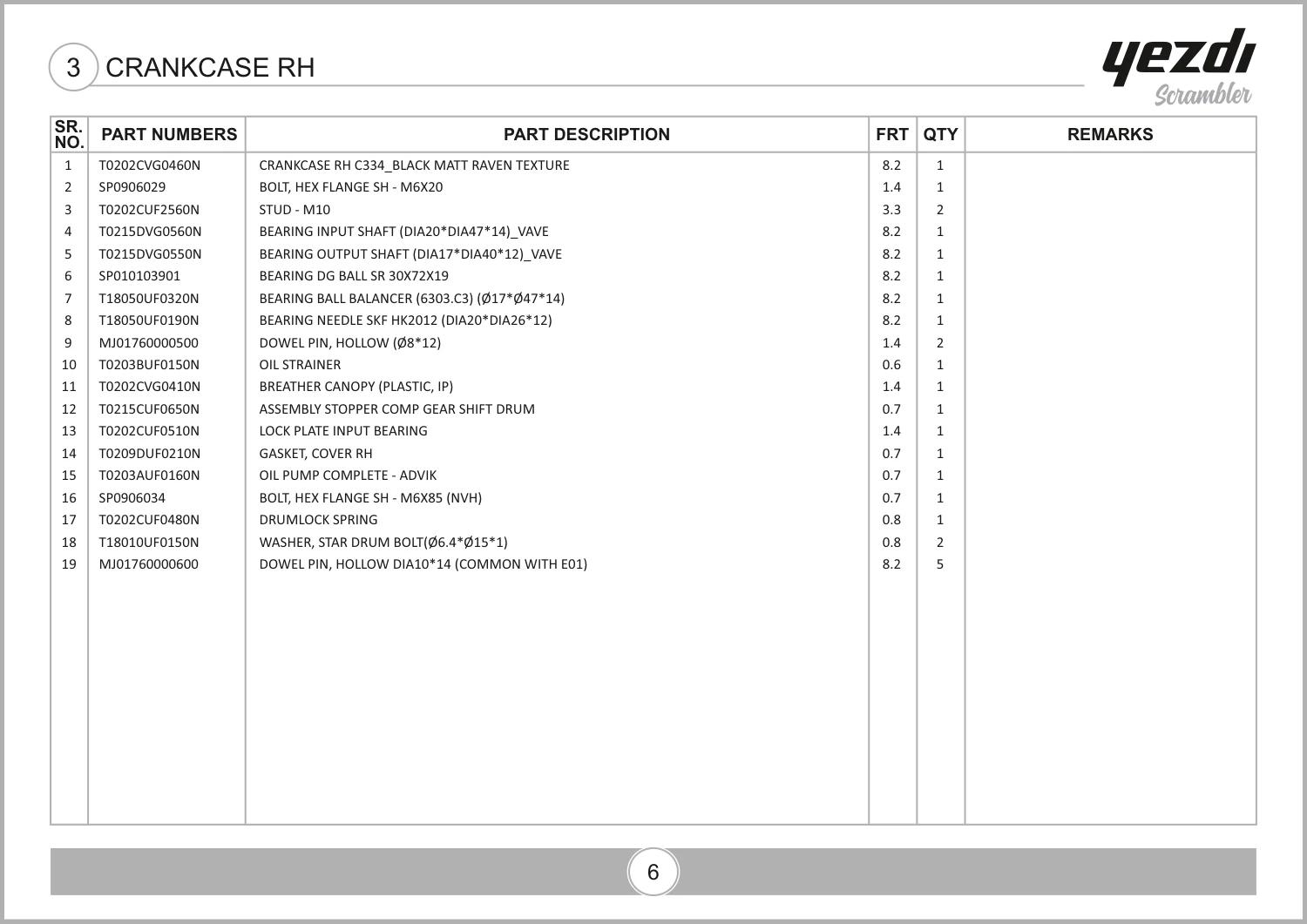

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 16, parts table page 17. View original parts table ↗
