Yezdi Scrambler LWE · ASSEMBLY 4 · REV 04

Cylinder Head Explosion

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Scrambler LWE Cylinder Head Explosion exploded assembly diagram, catalogue page 7

Yezdi Scrambler LWE · Rev 04 · p. 7Original parts list ↗

Parts in this drawing

29 entries

Ref.	Part name / number	Assembly qty.	Action
1	Sub Asm Cylinder HeadT0202BVG0590E	1	Enquiry ↗
2	Water SensorT1502HUF0060N	1	Enquiry ↗
3	Spark Plug (Fm)T1502DVG0010N	1	Enquiry ↗
4	Gromate, Spark PlugT02010J10020N	1	Enquiry ↗
5	Stud Muffler (M8X48)T0202BVG0040N	2	Enquiry ↗
6	Hollow Drive Pin (Dowel) Dia. 5Xl10 (Cylinder Head To Cam Holder Lower)T0202CVF0470N	2	Enquiry ↗
7	O-Ring, Camshaft HolderT18040UF0090N	3	Enquiry ↗
8	Bolt, Hex Flange Sh - M6X35 (Camshaft Holder Mount) (NVH)SP0102001	7	Enquiry ↗
9	Dowel Pin, Solid (Ø6X14)T0202AUF0820N	2	Enquiry ↗
10	Upper Valve Spring RetainerT0202BUF0420N	4	Enquiry ↗
11	Lower Valve Spring RetainerT0202BUF0410N	4	Enquiry ↗
12	Head Nut Washer Cylinder Head (Ø10.2Ø182)T0202BUF1660N	4	Enquiry ↗
13	Valve Stem SealT0208BUF0510N	4	Enquiry ↗
14	Inner Valve Spring(C334)T0202BVG0240N	4	Enquiry ↗
15	Outer Valve Spring(C334)T0202BVG0250N	4	Enquiry ↗
16	Gasket Cylinder Head 334T02090VG0020N	1	Enquiry ↗
17	Bolt, Hex Flange Sh - M6X130 (Head Mount)TSF0102293	2	Enquiry ↗
18	Pan Head Screw (M4*10)93500-04010-OH	1	Enquiry ↗
19	Guide Chain (Top) With InsertT0208AUF0640N	1	Enquiry ↗
20	Head Nut Cap TypeT0202BUF2140N	4	Enquiry ↗
21	Asm Camshaft Holders MachiningT0208AVG0600N	1	Enquiry ↗
22	Rubber WasherT18010UF0050N	1	Enquiry ↗
23	Cover Thermostat Black Mat Raven TextureT04000VG0010N	1	Enquiry ↗
24	Thermostat Valve Two WayT0401EVE0030N	1	Enquiry ↗
25	O Ring Themostat 1.78X33.05T0209BVE0020N	1	Enquiry ↗
26	Screw Hex Fl M6X1X12X8.8SF0202346	2	Enquiry ↗
27	Asm Cylinder HeadT0202BVG0600E	1	Enquiry ↗
28	Dowel Pin, Hollow (Ø8*12)MJ01760000500	2	Enquiry ↗
29	Bolt Special Stiffner Cylinder Head (Cp Side)T0202BVG0700N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

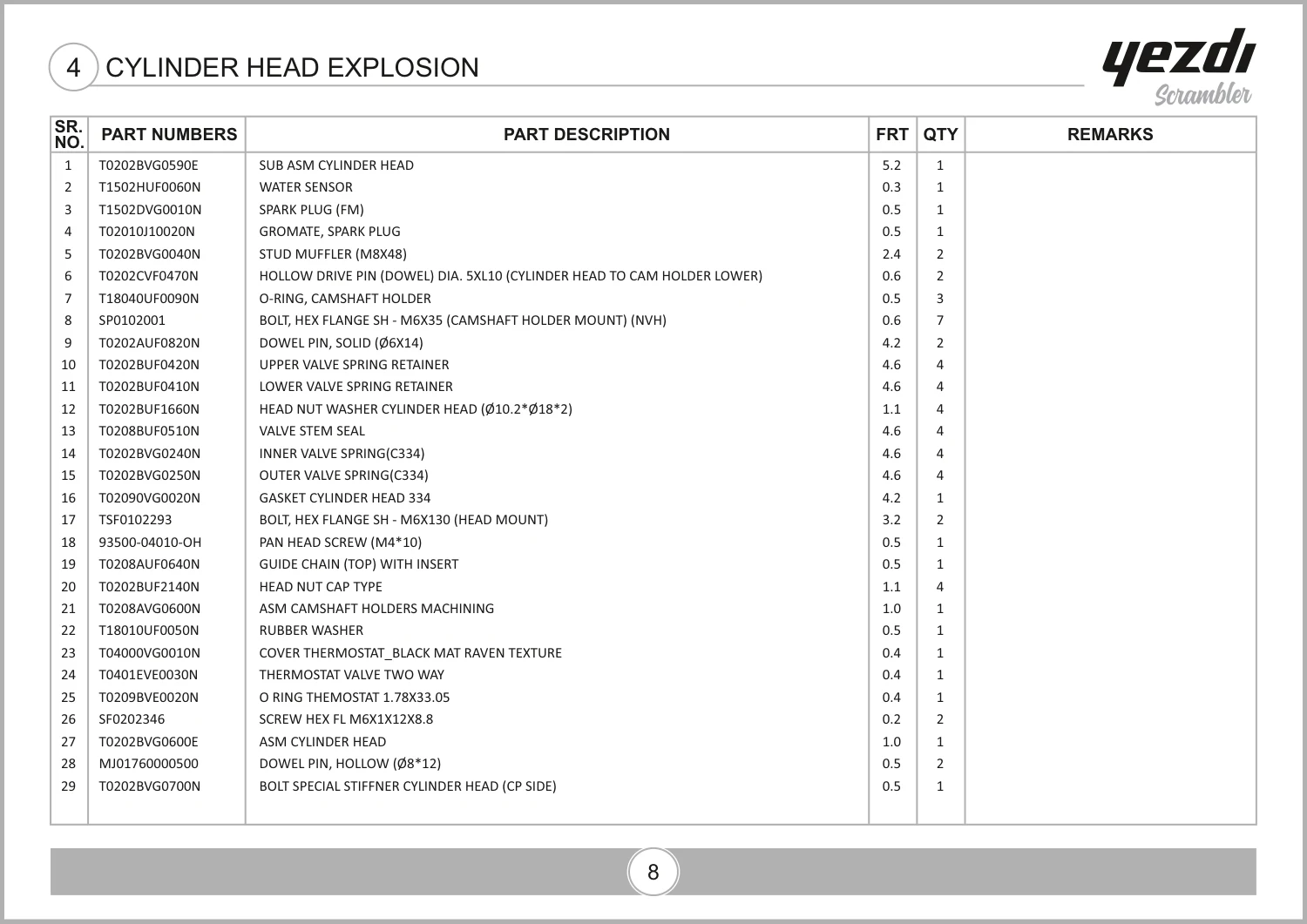

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 18, parts table page 19. View original parts table ↗
