Yezdi Scrambler LWE · ASSEMBLY 5 · REV 04
Drum Asm & Shift Shaft Mech Cambine
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 9Original parts list ↗
Parts in this drawing
23 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Lever Complete Gear Shift With Torsion SpringT0215CUF0580N | 1 | |
| 2 | Shaft Fork Gear ShiftT0215CUF0430N | 1 | |
| 3 | Fork Gear Shift InputT0215CVG0020N | 1 | |
| 4 | Fork Gear Shift Output LeftT0215CVG0030N | 1 | |
| 5 | Fork Gear Shift Output RightT0215CVG0040N | 1 | |
| 6 | Pin Star DrumT0215CUF0400N | 1 | |
| 7 | Star DrumT0215CVG0080N | 1 | |
| 8 | Washer, Star Drum Bolt(Ø6.4*Ø15*1)T18010UF0150N | 1 | |
| 9 | Flange Bolt M6 X 20SP0906029 | 2 | |
| 10 | Assembly Stopper Gear Shift DrumT0215CUF0650N | 1 | |
| 11 | Assembly Drum ShiftT0215CVG0050N | 1 | |
| 12 | Chain Slider BushT02200KE0010N | 1 | |
| 13 | Spring DrumlockT0202CUF0480N | 1 | |
| 14 | Circlip, Ø12*Ø20*0.5T0215CUF0350N | 2 | |
| 15 | Needle Bearing (20*26*12)T18050UF0190N | 1 | |
| 16 | Sliding Contact Neutral SwitchT0217AUF0030N | 1 | |
| 17 | Washer Change Shaft D20X14T18010UF0120N | 3 | |
| 18 | Slector Torsion SpringT0215CUF0340N | 1 | |
| 19 | Torsion SpringT0215CUF0570N | 1 | |
| 20 | Washer- Change Shaft (14*20*1)T18010UF1000N | 1 | |
| 21 | Bolt Shifter Stopper (M8)T0202CUF0780N | 1 | |
| 22 | Gear Indicator SwitchT0217AVG0010N | 1 | |
| 23 | Oil Seal Neutral Switch (14*22*4)T18020UF0100N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

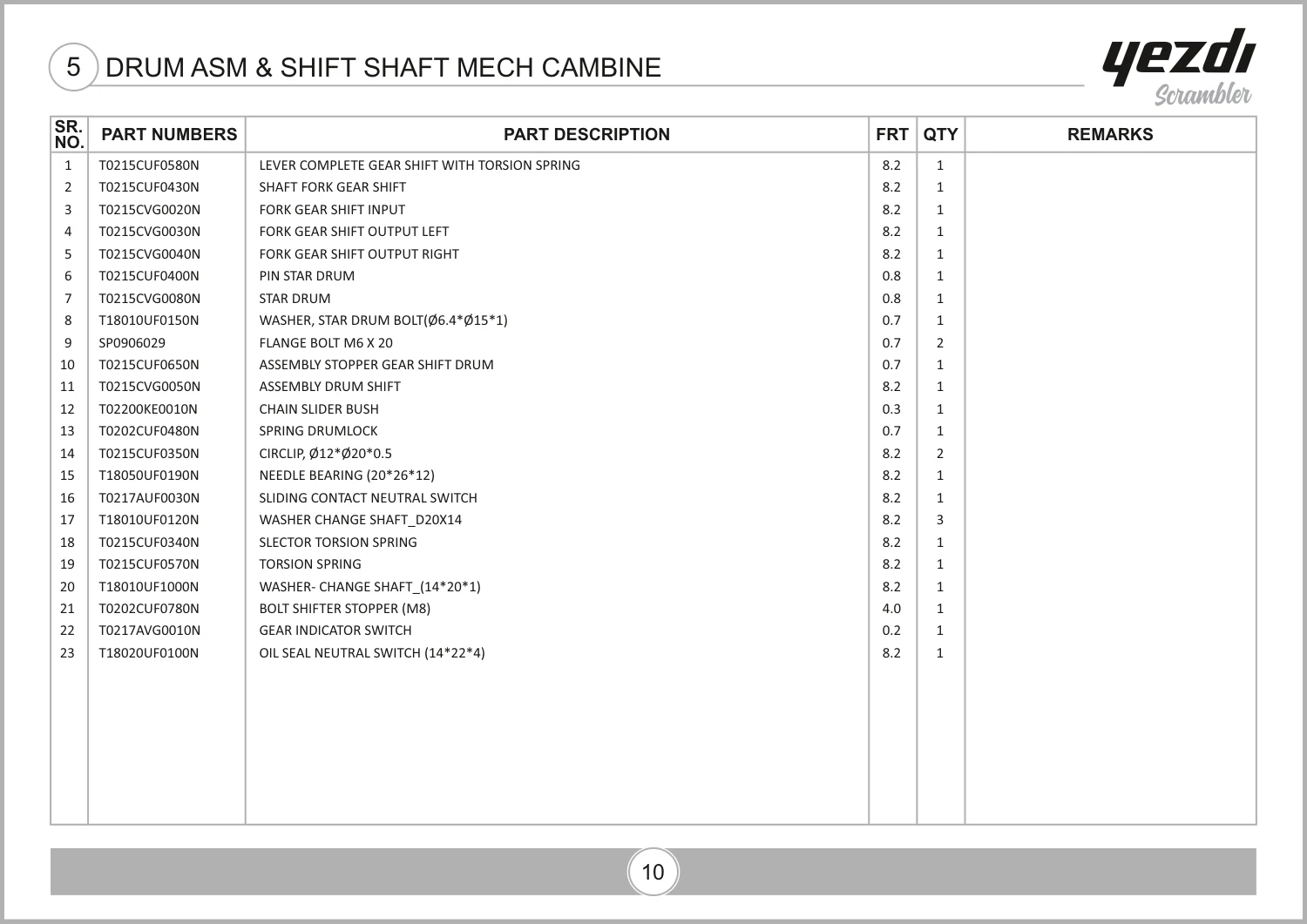

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 20, parts table page 21. View original parts table ↗
