Yezdi Scrambler LWE · ASSEMBLY 6 · REV 04
Magneto Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 11Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Rotor Assembly (Higher Inertia)T1502AVG0040N | 1 | |
| 2 | Stator Assembly (Higher Inertia)T1502AVG0060N | 1 | |
| 3 | Magneto Assembly (Higher Inertia)T1502AVG0070N | 1 | |
| 4 | Bolt, Socket Head M6X1X20TSF0224076 | 8 | |
| 5 | Flange One Way ClutchT1502AUF0190N | 1 | |
| 6 | Bolt, Hex Socket Head - M5X30 (Stator Mount)TSF0224075 | 3 | |
| 7 | Pan Head Screw - M5X12SP0805020 | 1 | |
| 8 | Bolt, Hex Socket Head - M5*10TSF0224077 | 2 | |
| 9 | Step Bush (H I Magneto)T0202DVG0810N | 1 | |
| 10 | Bolt Special, Magneto (M10X1.25)T1502AVG0050N | 1 | |
| 11 | One Way Clutch ComponentT1502AUF0120N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

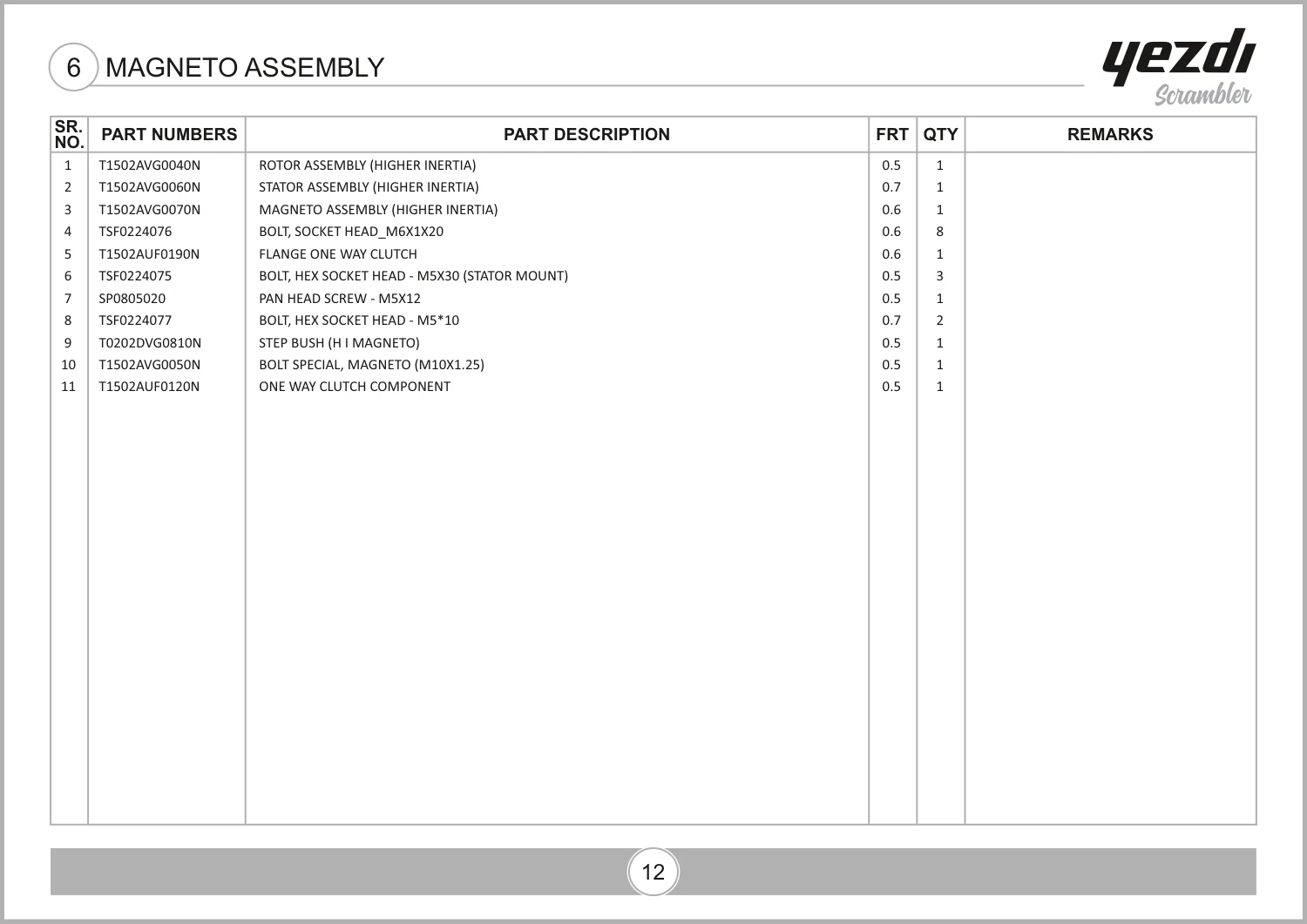

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 22, parts table page 23. View original parts table ↗
