Yezdi Scrambler LWE · ASSEMBLY 42 · REV 04
Electrical Equipments
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 99Original parts list ↗

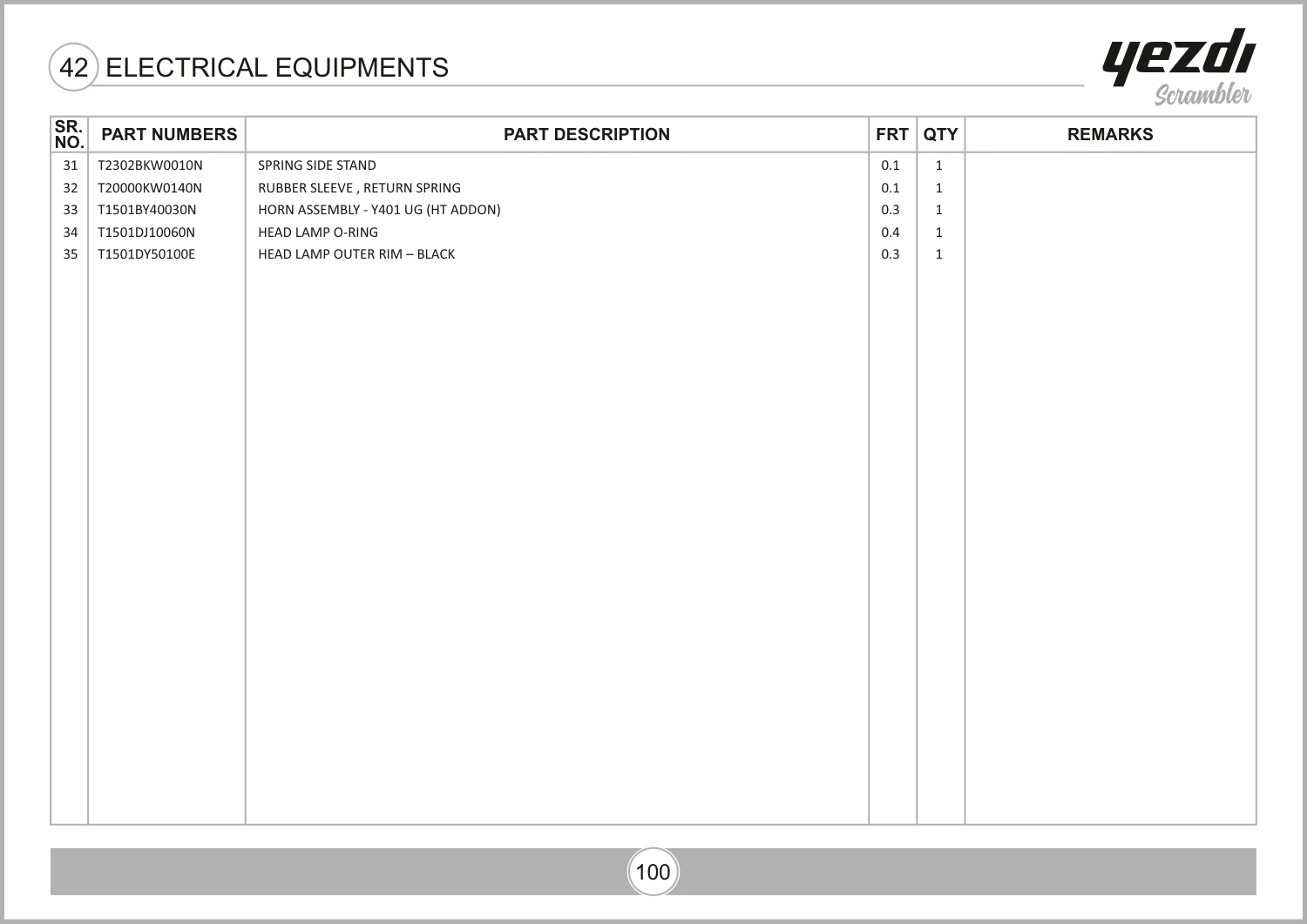

Parts in this drawing
5 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Spring Side StandT2302BKW0010N | 1 | |
| 32 | Rubber Sleeve , Return SpringT20000KW0140N | 1 | |
| 33 | Horn Assembly - Y401 Ug (Ht Addon)T1501BY40030N | 1 | |
| 34 | Head Lamp O-RingT1501DJ10060N | 1 | |
| 35 | Head Lamp Outer Rim – BlackT1501DY50100E | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 110, parts table page 111. View original parts table ↗
