Yezdi Scrambler LWE · ASSEMBLY 44 · REV 04
Wiring Harness
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 103Original parts list ↗

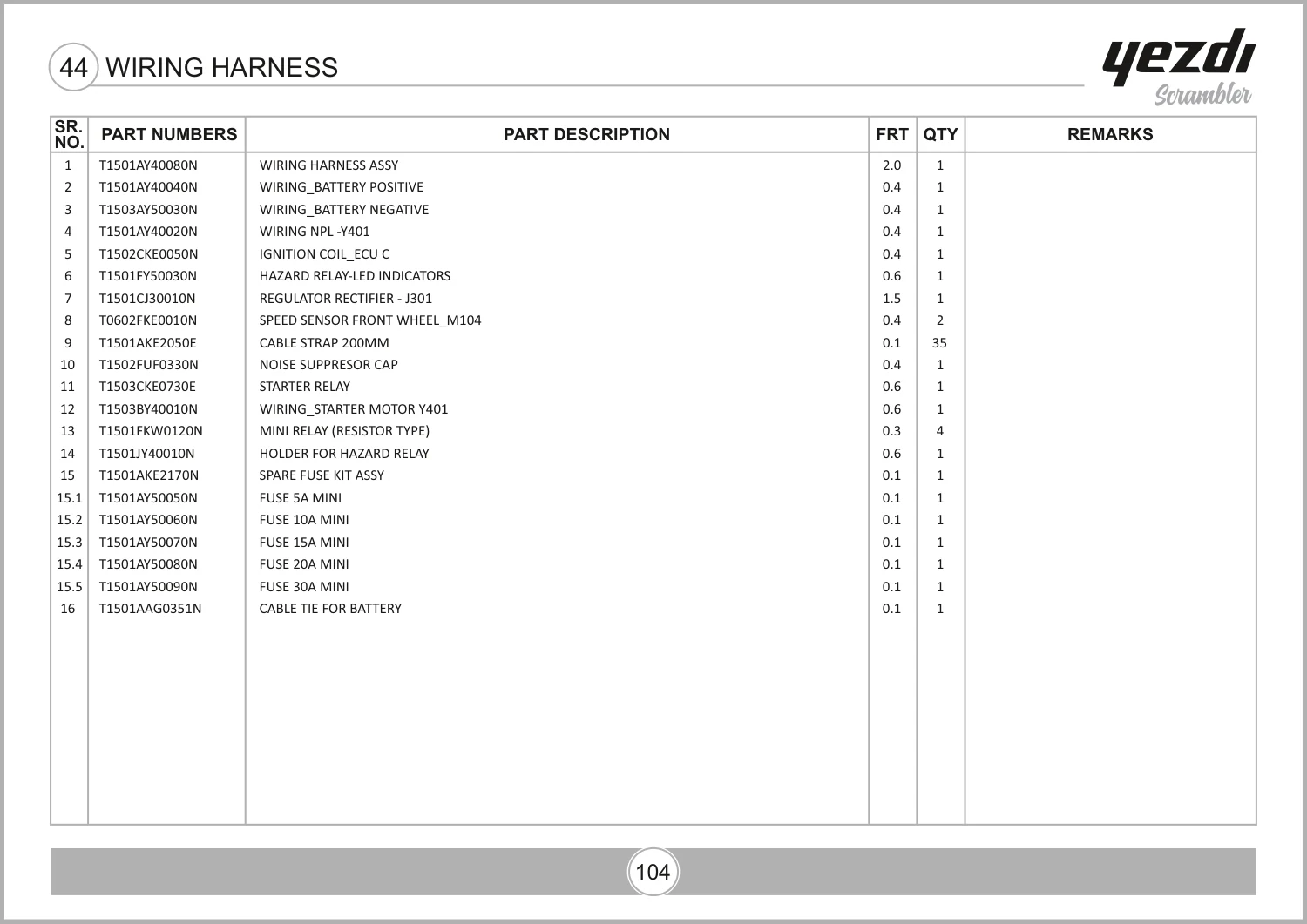

Parts in this drawing
21 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Wiring Harness AssyT1501AY40080N | 1 | |
| 2 | Wiring Battery PositiveT1501AY40040N | 1 | |
| 3 | Wiring Battery NegativeT1503AY50030N | 1 | |
| 4 | Wiring Npl -Y401T1501AY40020N | 1 | |
| 5 | Ignition Coil ECU CT1502CKE0050N | 1 | |
| 6 | Hazard Relay-Led IndicatorsT1501FY50030N | 1 | |
| 7 | Regulator Rectifier - J301T1501CJ30010N | 1 | |
| 8 | Speed Sensor Front Wheel M104T0602FKE0010N | 2 | |
| 9 | Cable Strap 200MmT1501AKE2050E | 35 | |
| 10 | Noise Suppresor CapT1502FUF0330N | 1 | |
| 11 | Starter RelayT1503CKE0730E | 1 | |
| 12 | Wiring Starter Motor Y401T1503BY40010N | 1 | |
| 13 | Mini Relay (Resistor Type)T1501FKW0120N | 4 | |
| 14 | Holder For Hazard RelayT1501JY40010N | 1 | |
| 15 | Spare Fuse Kit AssyT1501AKE2170N | 1 | |
| 15.1 | Fuse 5A MiniT1501AY50050N | 1 | |
| 15.2 | Fuse 10A MiniT1501AY50060N | 1 | |
| 15.3 | Fuse 15A MiniT1501AY50070N | 1 | |
| 15.4 | Fuse 20A MiniT1501AY50080N | 1 | |
| 15.5 | Fuse 30A MiniT1501AY50090N | 1 | |
| 16 | Cable Tie For BatteryT1501AAG0351N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 114, parts table page 115. View original parts table ↗
