Yezdi Scrambler LWE · ASSEMBLY 25 · REV 04
Radiator Shroud Mounting
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 59Original parts list ↗
Parts in this drawing
19 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Top Radiator Mounting BracketT08000Y40490N | 1 | |
| 2 | Screw Rdskt M6X1X12Xa2-70SF0212023 | 10 | |
| 3 | Radiator Shroud LH Og Yellow MatteT13000Y40120L | 1 | |
| 3.1 | Radiator Shroud LH Rogue Red GlossT13000Y40120F | 1 | |
| 3.2 | Radiator Shroud LH Rally Blue GlossT13000Y40120A | 1 | |
| 3.3 | Radiator Shroud LH Legacy Black GlossT13000Y40120E | 1 | |
| 3.4 | Radiator Shroud LH Grey PantherT13000Y40120B | 1 | |
| 4 | Screw Rdsktm5X0. 8X 16Xa2- 70SF0212055 | 4 | |
| 5 | Radiator Shroud Mounting Bracket LHT13010Y40220N | 1 | |
| 6 | Radiator Shroud Panel RHT13000Y40300N | 1 | |
| 7 | Nut Clip 5Mm (Black)TSF0300022 | 4 | |
| 8 | Radiator Shroud Mounting Bracket RHT13010Y40240N | 1 | |
| 9 | Radiator Shroud RH Og Yellow MatteT13000Y40130L | 1 | |
| 9.1 | Radiator Shroud RH Rogue Red GlossT13000Y40130F | 1 | |
| 9.2 | Radiator Shroud RH Rally Blue GlossT13000Y40130A | 1 | |
| 9.3 | Radiator Shroud RH Legacy Black GlossT13000Y40130E | 1 | |
| 9.4 | Radiator Shroud RH Grey PantherT13000Y40130B | 1 | |
| 10 | Radiator Shroud Panel LHT13000Y40280N | 1 | |
| 11 | Foam Battery ClampT1503AKG0460N | 4 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

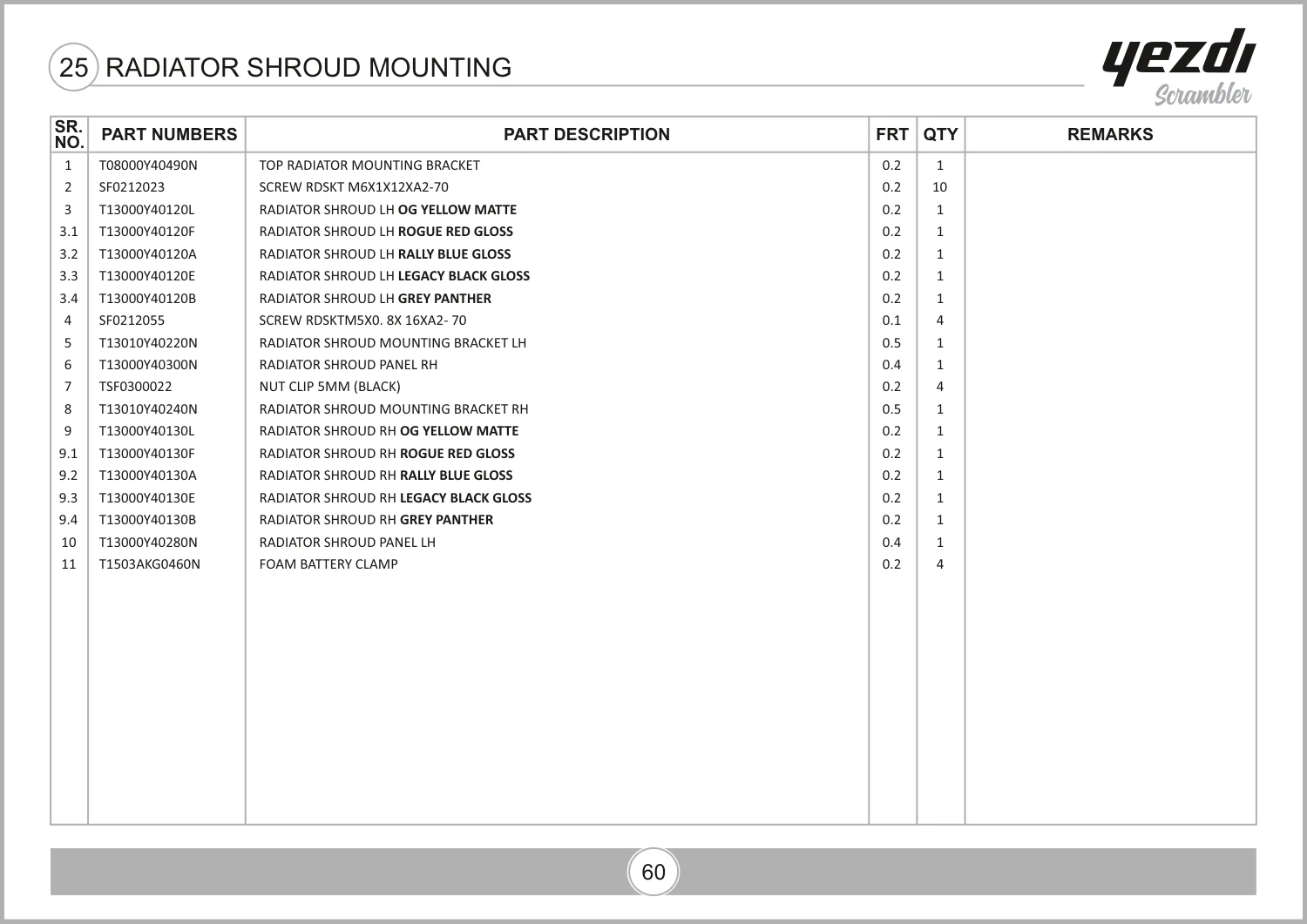

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 70, parts table page 71. View original parts table ↗
