Yezdi Scrambler LWE · ASSEMBLY 11 · REV 04
R Crankcase Cover
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 29Original parts list ↗

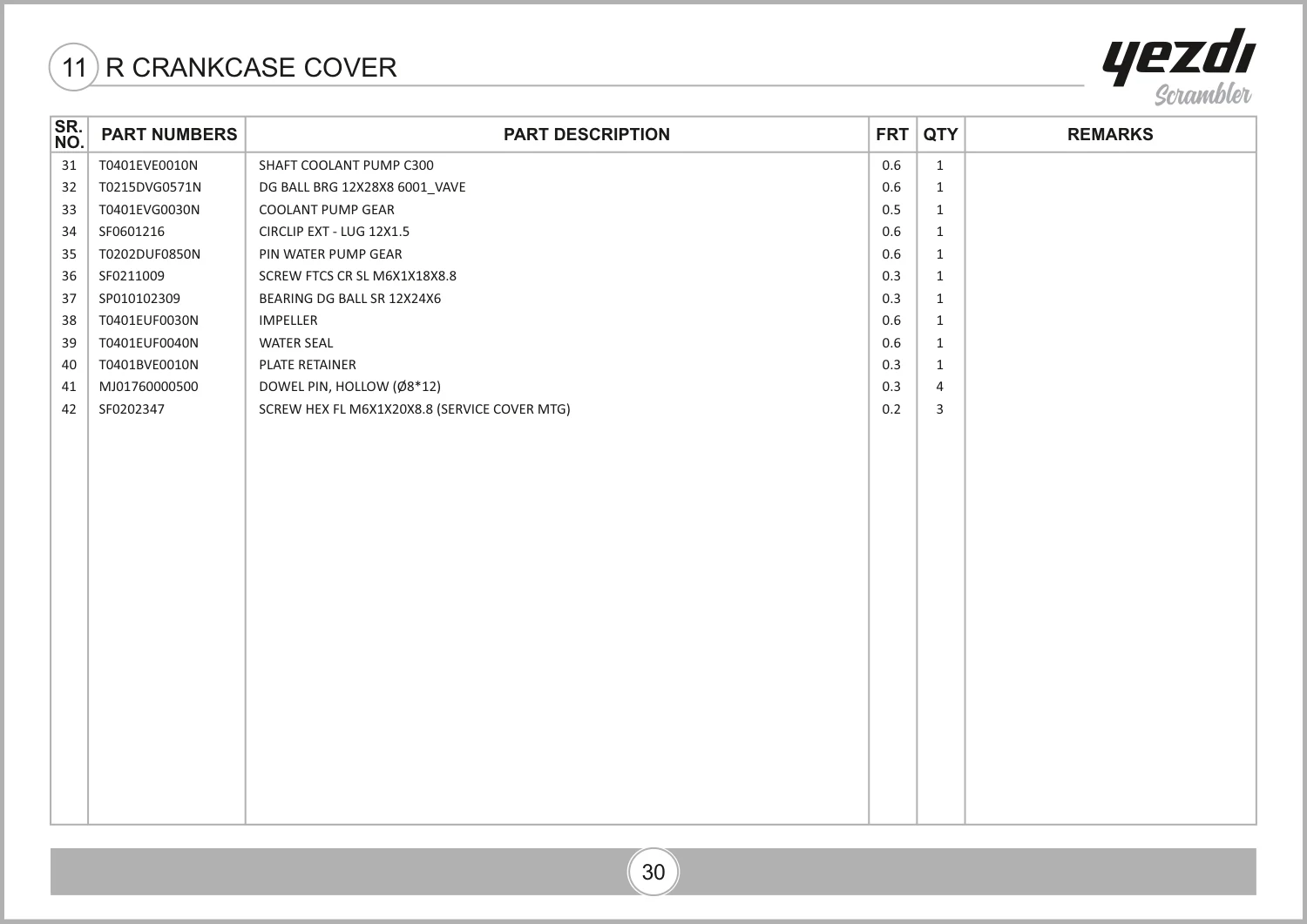

Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Shaft Coolant Pump C300T0401EVE0010N | 1 | |
| 32 | Dg Ball Brg 12X28X8 6001 VaveT0215DVG0571N | 1 | |
| 33 | Coolant Pump GearT0401EVG0030N | 1 | |
| 34 | Circlip Ext - Lug 12X1.5SF0601216 | 1 | |
| 35 | Pin Water Pump GearT0202DUF0850N | 1 | |
| 36 | Screw Ftcs Cr Sl M6X1X18X8.8SF0211009 | 1 | |
| 37 | Bearing Dg Ball Sr 12X24X6SP010102309 | 1 | |
| 38 | ImpellerT0401EUF0030N | 1 | |
| 39 | Water SealT0401EUF0040N | 1 | |
| 40 | Plate RetainerT0401BVE0010N | 1 | |
| 41 | Dowel Pin, Hollow (Ø8*12)MJ01760000500 | 4 | |
| 42 | Screw Hex Fl M6X1X20X8.8 (Service Cover Mtg)SF0202347 | 3 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 40, parts table page 41. View original parts table ↗
