Yezdi Scrambler LWE · ASSEMBLY 28 · REV 04
Rear Hugger Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 65Original parts list ↗
Parts in this drawing
15 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Rear Hugger Stay AssemblyT13070Y40060N | 1 | |
| 2 | Screw Rdskt M6X1X12Xa2-70SF0212026 | 2 | |
| 3 | Rear HuggerT13070Y40010N | 1 | |
| 4 | Screw Socket M8X1.25X30X10.9SF0224176 | 4 | |
| 5 | Screw Rdskt M6X1X12X8.8SF0212037 | 4 | |
| 6 | Bolt Fl.6 X 1295701-06012-00 | 4 | |
| 7 | Rear Number Plate Mounting Bracket (Matt Black)T13070KW0050W | 1 | |
| 8 | Number Plate Lamp - J1T1501TKW0010N | 1 | |
| 9 | Spacer H=6 For M6MH01790003300 | 2 | |
| 10 | Button Head Socket Screw M6X16TSF0212011 | 2 | |
| 11 | Rear Reflex ReflectorT1501FKW0060N | 1 | |
| 12 | Reflex Reflector Mounting Bracket (Black Glossy)T08020KW0030W | 1 | |
| 13 | Nyloc Nut M5SF0302015 | 1 | |
| 14 | Rear Mudguard Wiring HolderT15000KW0040N | 1 | |
| 15 | Cover Rear Number Plate BracketT13030KW0010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

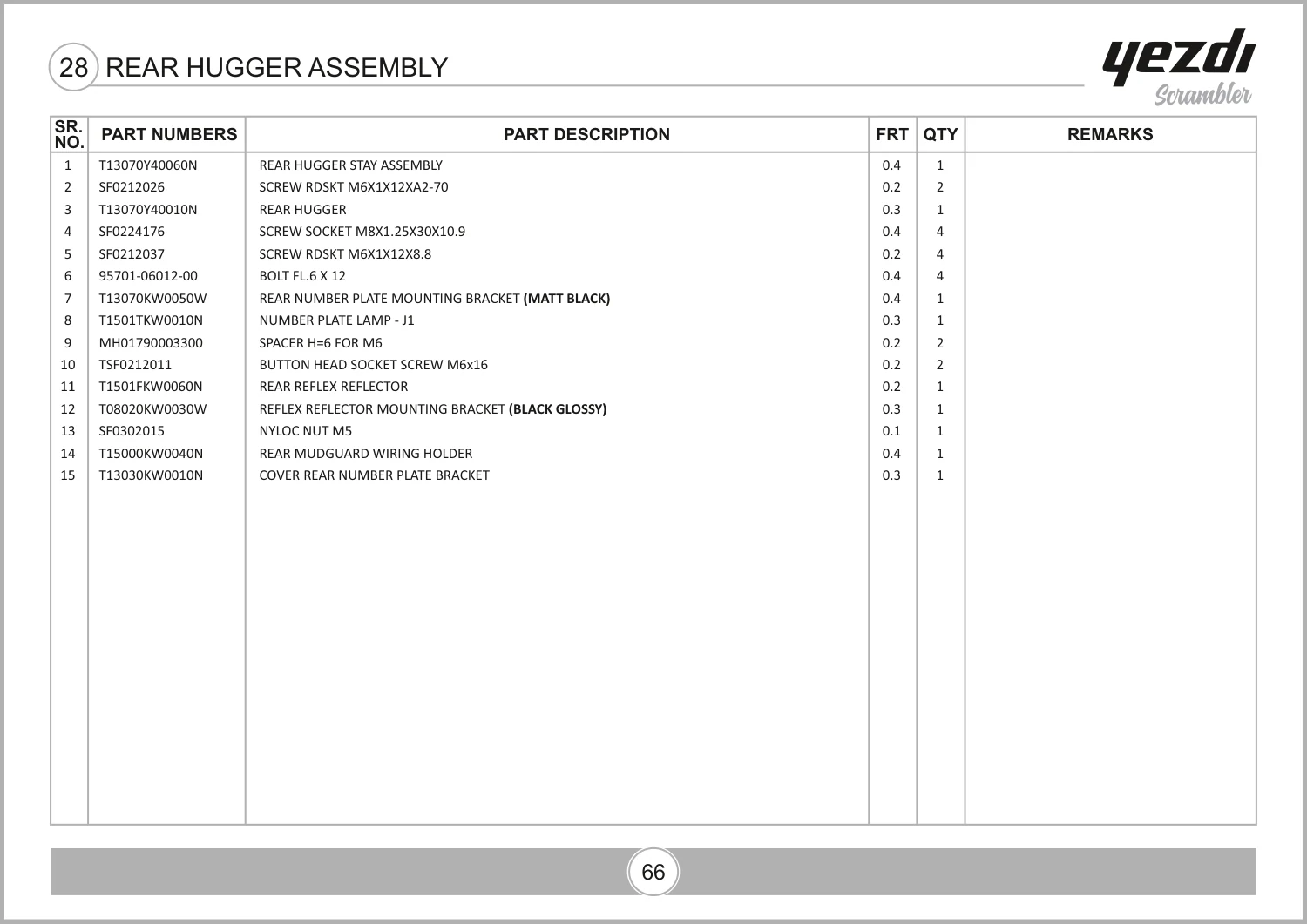

Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 76, parts table page 77. View original parts table ↗
