Yezdi Scrambler LWE · ASSEMBLY 34 · REV 04
Front Fork Assembly
Select a diagram reference or a row below to enquire about the exact part.

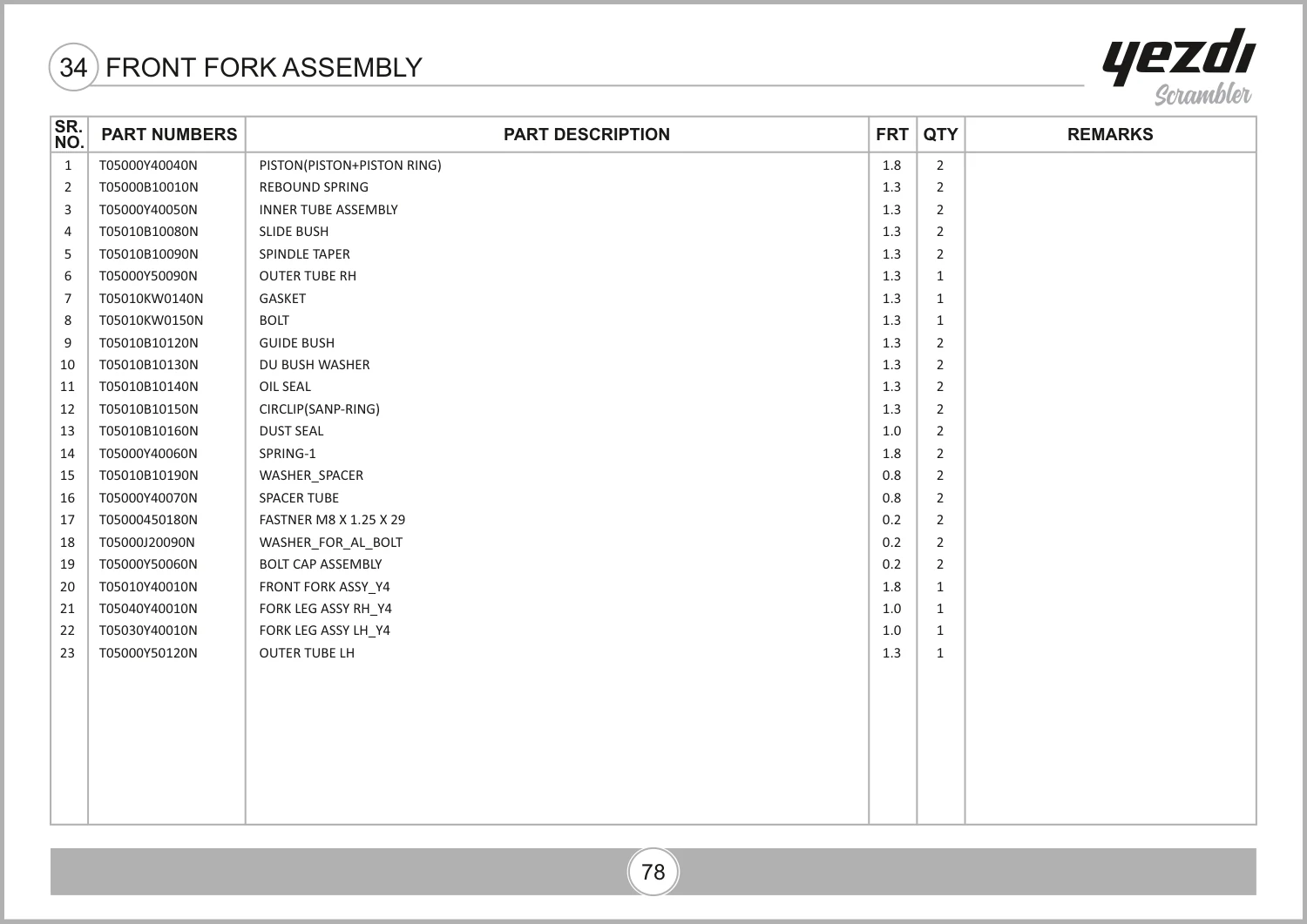

CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Scrambler LWE · Rev 04 · p. 77Original parts list ↗
Parts in this drawing
23 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Piston(Piston+Piston Ring)T05000Y40040N | 2 | |
| 2 | Rebound SpringT05000B10010N | 2 | |
| 3 | Inner Tube AssemblyT05000Y40050N | 2 | |
| 4 | Slide BushT05010B10080N | 2 | |
| 5 | Spindle TaperT05010B10090N | 2 | |
| 6 | Outer Tube RHT05000Y50090N | 1 | |
| 7 | GasketT05010KW0140N | 1 | |
| 8 | BoltT05010KW0150N | 1 | |
| 9 | Guide BushT05010B10120N | 2 | |
| 10 | Du Bush WasherT05010B10130N | 2 | |
| 11 | Oil SealT05010B10140N | 2 | |
| 12 | Circlip(Sanp-Ring)T05010B10150N | 2 | |
| 13 | Dust SealT05010B10160N | 2 | |
| 14 | Spring-1T05000Y40060N | 2 | |
| 15 | Washer SpacerT05010B10190N | 2 | |
| 16 | Spacer TubeT05000Y40070N | 2 | |
| 17 | Fastner M8 X 1.25 X 29T05000450180N | 2 | |
| 18 | Washer For Al BoltT05000J20090N | 2 | |
| 19 | Bolt Cap AssemblyT05000Y50060N | 2 | |
| 20 | Front Fork Assy Y4T05010Y40010N | 1 | |
| 21 | Fork Leg Assy RH Y4T05040Y40010N | 1 | |
| 22 | Fork Leg Assy LH Y4T05030Y40010N | 1 | |
| 23 | Outer Tube LHT05000Y50120N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI SCRAMBLER_LWE_REV_04.pdf · PDF diagram page 88, parts table page 89. View original parts table ↗
