Yezdi Adventure · ASSEMBLY 18 · REV 22

Magneto Cover LH - OBD II

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Adventure Magneto Cover LH - OBD II exploded assembly diagram, catalogue page 47

Yezdi Adventure · Rev 22 · p. 47Original parts list ↗

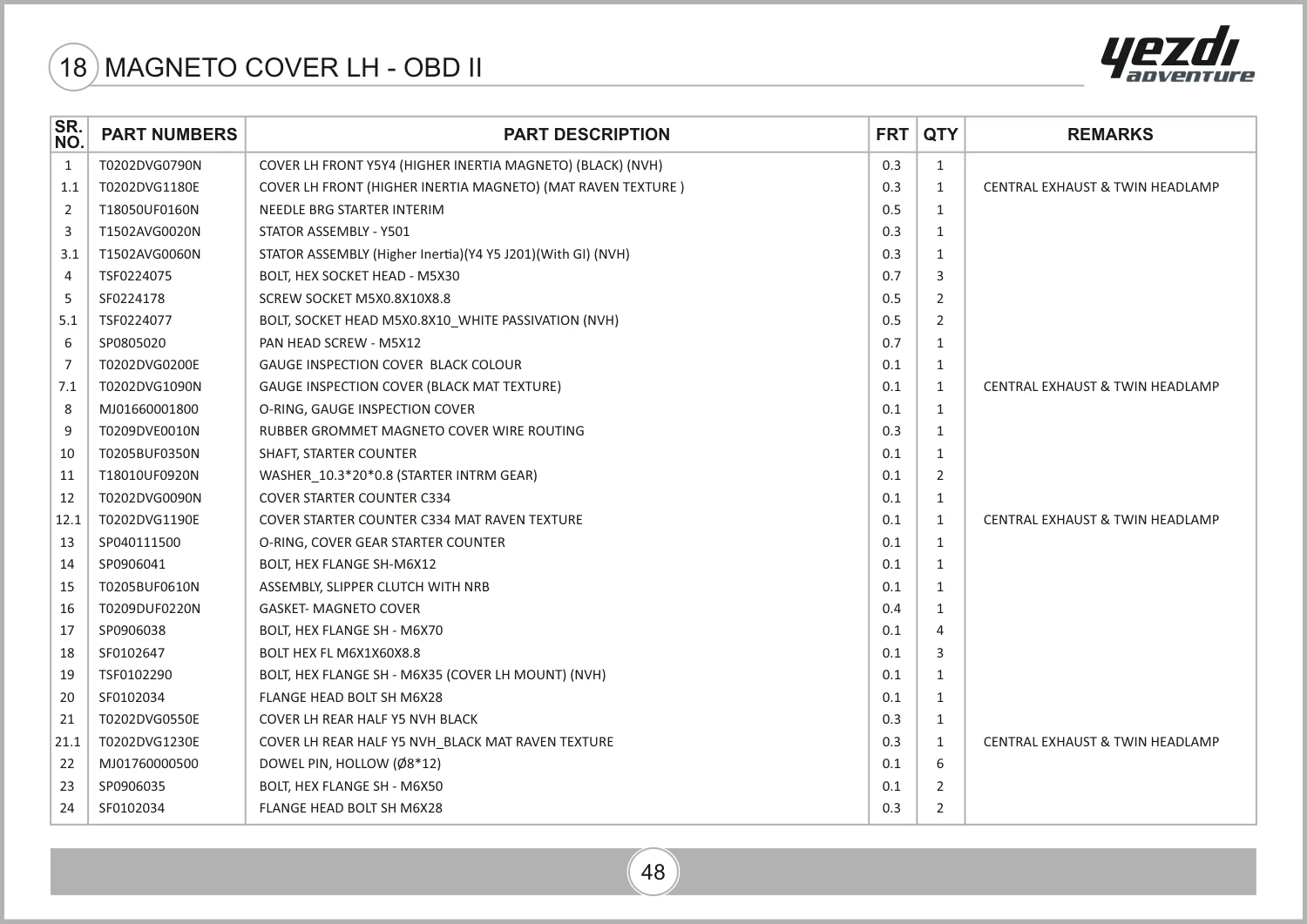

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover LH Front Y5Y4 (Higher Inertia Magneto) (Black) (NVH)T0202DVG0790N	1	Enquiry ↗
1.1	Cover LH Front (Higher Inertia Magneto) (Mat Raven Texture )T0202DVG1180E CENTRAL EXHAUST & TWIN HEADLAMP	1	Enquiry ↗
2	Needle Brg Starter InterimT18050UF0160N	1	Enquiry ↗
3	Stator Assembly - Y501T1502AVG0020N	1	Enquiry ↗
3.1	Stator Assembly (Higher Inerɵa)(Y4 Y5 J201)(With Gi) (NVH)T1502AVG0060N	1	Enquiry ↗
4	Bolt, Hex Socket Head - M5X30TSF0224075	3	Enquiry ↗
5	Screw Socket M5X0.8X10X8.8SF0224178	2	Enquiry ↗
5.1	Bolt, Socket Head M5X0.8X10 White Passivation (NVH)TSF0224077	2	Enquiry ↗
6	Pan Head Screw - M5X12SP0805020	1	Enquiry ↗
7	Gauge Inspection Cover Black ColourT0202DVG0200E	1	Enquiry ↗
7.1	Gauge Inspection Cover (Black Mat Texture)T0202DVG1090N CENTRAL EXHAUST & TWIN HEADLAMP	1	Enquiry ↗
8	O-Ring, Gauge Inspection CoverMJ01660001800	1	Enquiry ↗
9	Rubber Grommet Magneto Cover Wire RoutingT0209DVE0010N	1	Enquiry ↗
10	Shaft, Starter CounterT0205BUF0350N	1	Enquiry ↗
11	Washer 10.3200.8 (Starter Intrm Gear)T18010UF0920N	2	Enquiry ↗
12	Cover Starter Counter C334T0202DVG0090N	1	Enquiry ↗
12.1	Cover Starter Counter C334 Mat Raven TextureT0202DVG1190E CENTRAL EXHAUST & TWIN HEADLAMP	1	Enquiry ↗
13	O-Ring, Cover Gear Starter CounterSP040111500	1	Enquiry ↗
14	Bolt, Hex Flange Sh-M6X12SP0906041	1	Enquiry ↗
15	Assembly, Slipper Clutch With NrbT0205BUF0610N	1	Enquiry ↗
16	Gasket- Magneto CoverT0209DUF0220N	1	Enquiry ↗
17	Bolt, Hex Flange Sh - M6X70SP0906038	4	Enquiry ↗
18	Bolt Hex Fl M6X1X60X8.8SF0102647	3	Enquiry ↗
19	Bolt, Hex Flange Sh - M6X35 (Cover LH Mount) (NVH)TSF0102290	1	Enquiry ↗
20	Flange Head Bolt Sh M6X28SF0102034	1	Enquiry ↗
21	Cover LH Rear Half Y5 NVH BlackT0202DVG0550E	1	Enquiry ↗
21.1	Cover LH Rear Half Y5 NVH Black Mat Raven TextureT0202DVG1230E CENTRAL EXHAUST & TWIN HEADLAMP	1	Enquiry ↗
22	Dowel Pin, Hollow (Ø8*12)MJ01760000500	6	Enquiry ↗
23	Bolt, Hex Flange Sh - M6X50SP0906035	2	Enquiry ↗
24	Flange Head Bolt Sh M6X28SF0102034	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 62, parts table page 63. View original parts table ↗
