Yezdi • CATALOGUE REV 22
Yezdi Adventure spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 98 diagram sheets and 1,744 parts entries, including repeated parts used in different assemblies.
Assembly 1
Camchain And Tensioner & Cylinder Head Cover
Page 1 · 21 parts
Assembly 2
Crankcase LH
Page 3 · 29 parts

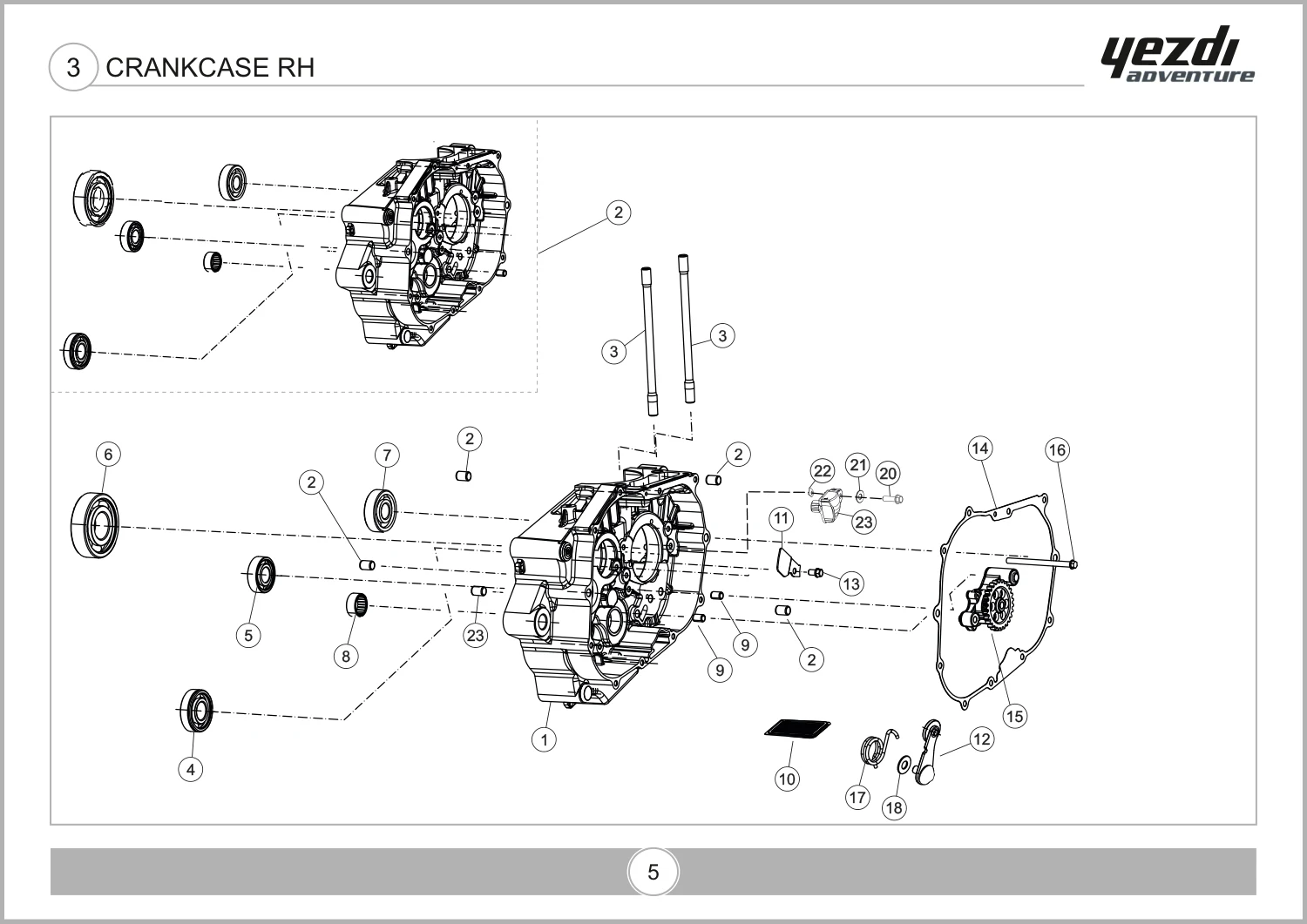

Assembly 3
Crankcase RH
Page 5 · 27 parts
Assembly 4
Cylinder Head Explosion
Page 7 · 30 parts
Assembly 5
Drum Asm & Shift Shaft Mech Cambine
Page 9 · 24 parts
Assembly 6
Magneto Assembly - Bs Vi
Page 11 · 11 parts
Assembly 7
Magneto Assembly -OBD II
Page 13 · 11 parts
Assembly 8
Starting System & Starter Motor
Page 15 · 17 parts
Assembly 9
Valve Train And Cam Shaft
Page 17 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 19 · 30 parts
Assembly 9
Valve Train And Cam Shaft
Page 21 · 2 parts
Assembly 10

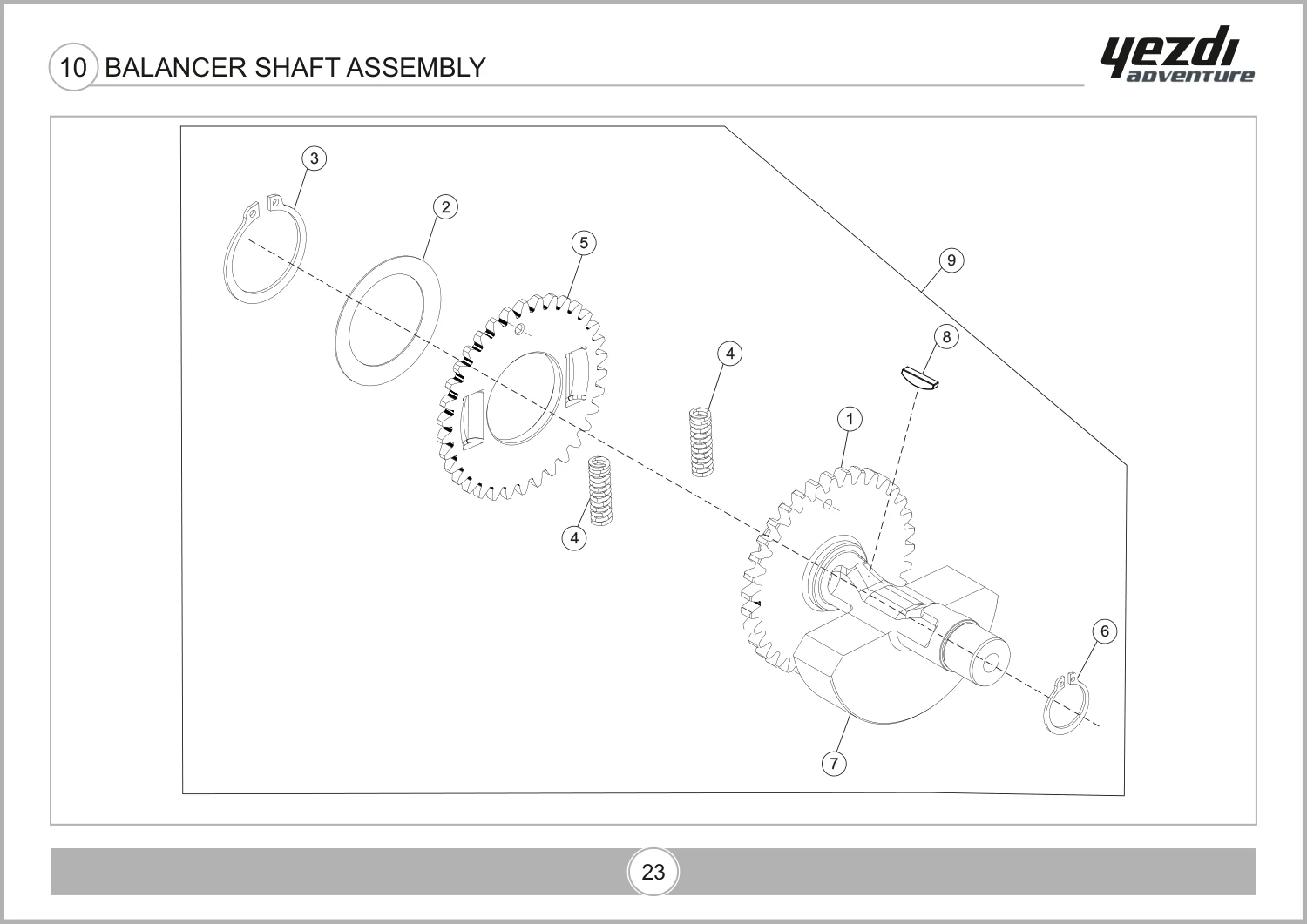

Balancer Shaft Assembly
Page 23 · 10 parts
Assembly 11
Balancer Shaft Assembly - Central Exhaust & Twin Headlamp
Page 25 · 7 parts
Assembly 12
Transmission System - Bs Vi
Page 27 · 30 parts
Assembly 12
Transmission System - Bs Vi
Page 29 · 12 parts![Transmission System - OBD II [Fitted Till-Mzdy51C16R1E08191] drawing](/jawa-spare/assets/diagrams/yezdi-adventure-p046.webp)

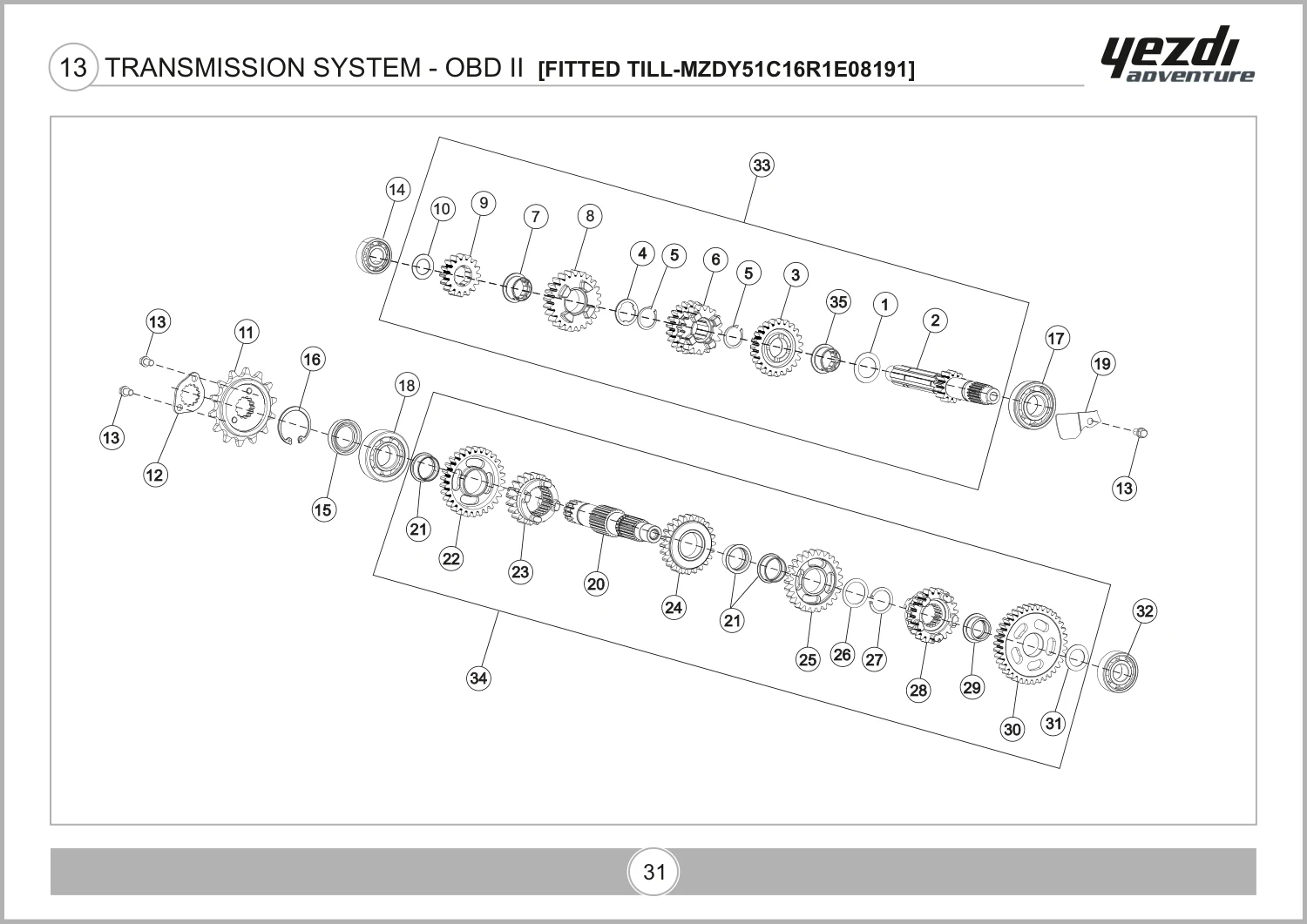

Assembly 13
Transmission System - OBD II [Fitted Till-Mzdy51C16R1E08191]
Page 31 · 30 parts![Transmission System - OBD II [Fitted Till-Mzdy51C16R1E08191] drawing](/jawa-spare/assets/diagrams/yezdi-adventure-p048.webp)
Assembly 13
Transmission System - OBD II [Fitted Till-Mzdy51C16R1E08191]
Page 33 · 13 parts![Transmission System - Central Exhaust & Twin Headlamp [Fitted From-Mzdy51C16R1E08192] drawing](/jawa-spare/assets/diagrams/yezdi-adventure-p050.webp)

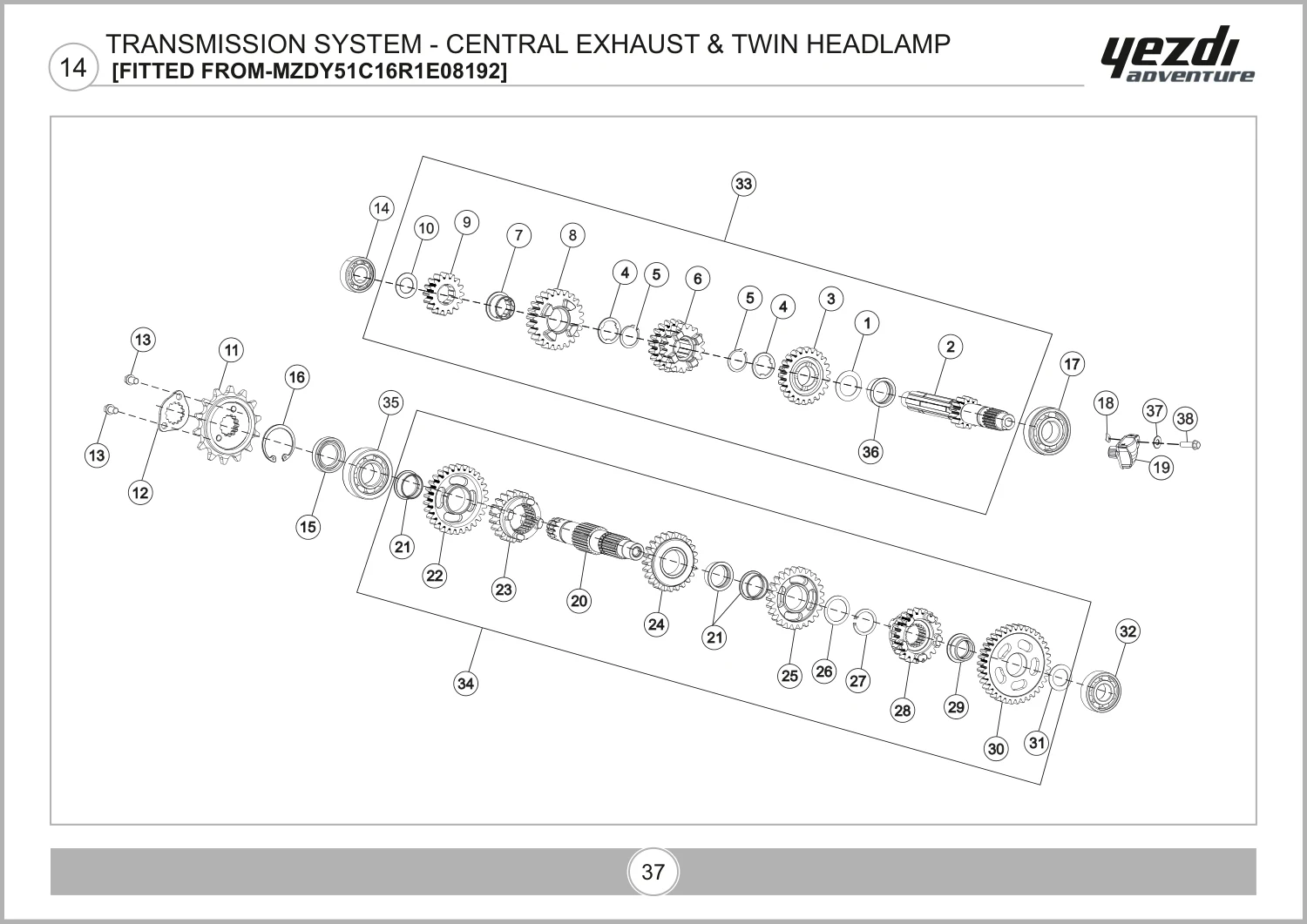

Assembly 14
Transmission System - Central Exhaust & Twin Headlamp [Fitted From-Mzdy51C16R1E08192]
Page 35 · 30 parts![Transmission System - Central Exhaust & Twin Headlamp [Fitted From-Mzdy51C16R1E08192] drawing](/jawa-spare/assets/diagrams/yezdi-adventure-p052.webp)
Assembly 14
Transmission System - Central Exhaust & Twin Headlamp [Fitted From-Mzdy51C16R1E08192]
Page 37 · 8 parts
Assembly 15
R Crankcase Cover
Page 39 · 30 parts
Assembly 15
R Crankcase Cover
Page 41 · 21 parts
Assembly 16

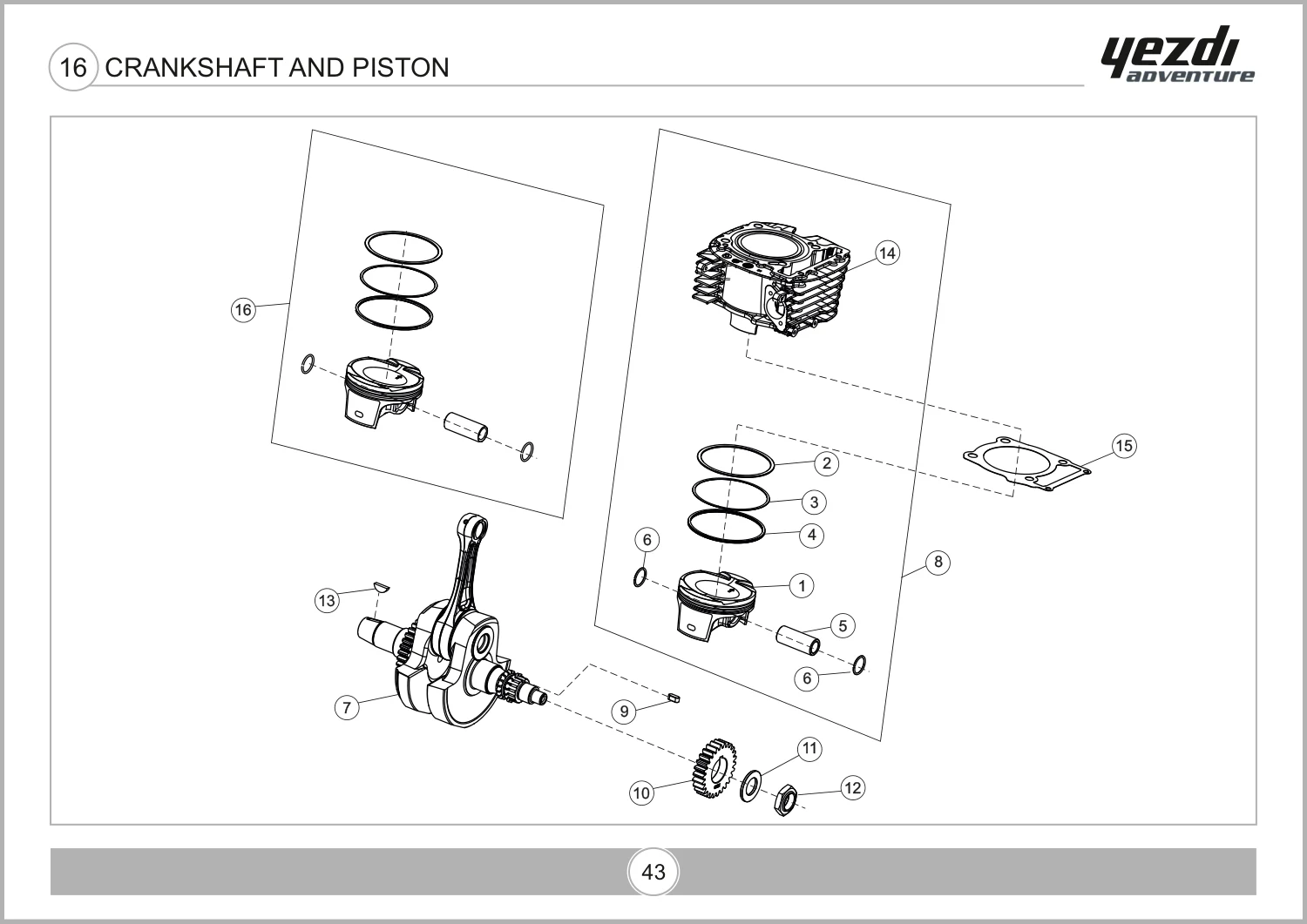

Crankshaft And Piston
Page 43 · 24 parts
Assembly 17

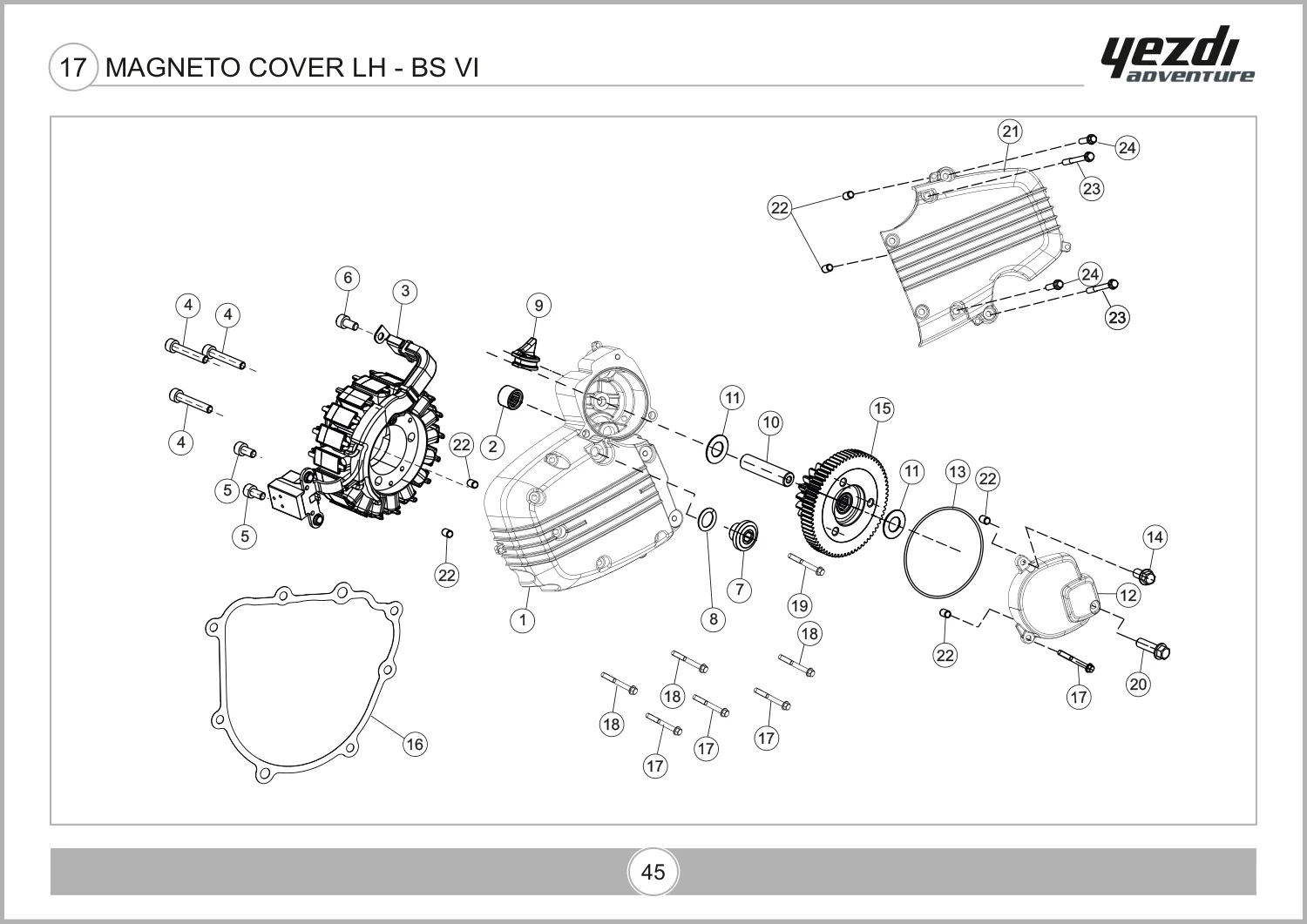

Magneto Cover LH - Bs Vi
Page 45 · 24 parts
Assembly 18
Magneto Cover LH - OBD II
Page 47 · 30 parts![Conventional - Clutch Assembly [Fitted Till - Mzdy51C16N1F02658] drawing](/jawa-spare/assets/diagrams/yezdi-adventure-p064.webp)
Assembly 19
Conventional - Clutch Assembly [Fitted Till - Mzdy51C16N1F02658]
Page 49 · 17 parts![A&S - Clutch Assembly [Fitted From - Mzdy51C16N1F02659] drawing](/jawa-spare/assets/diagrams/yezdi-adventure-p066.webp)
Assembly 20
A&S - Clutch Assembly [Fitted From - Mzdy51C16N1F02659]
Page 51 · 24 parts
Assembly 21
Evaporative Emission System
Page 53 · 10 parts
Assembly 22
Air Filter Assembly
Page 55 · 30 parts
Assembly 22
Air Filter Assembly
Page 57 · 5 parts
Assembly 23
Brake System Front
Page 59 · 26 parts
Assembly 24

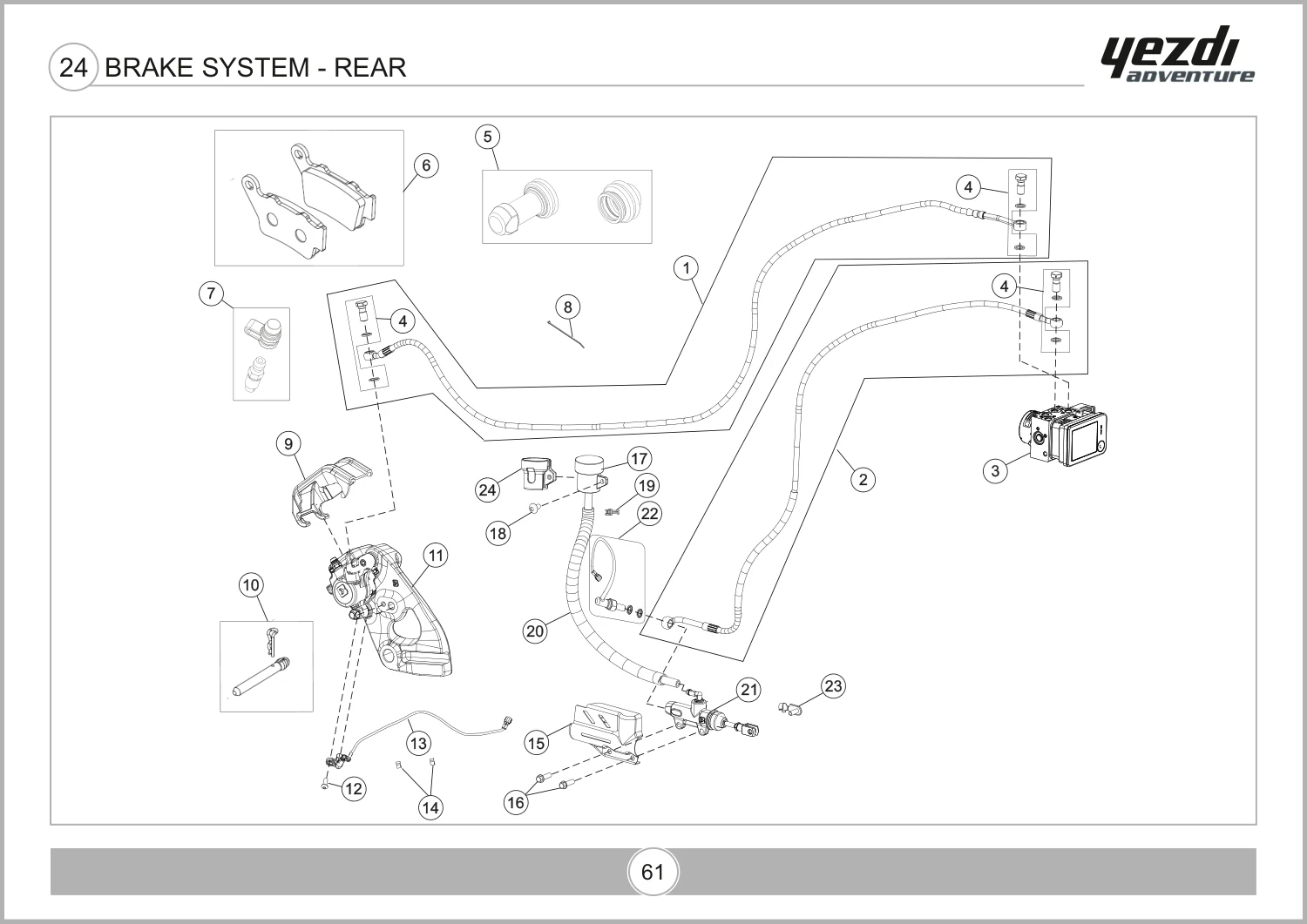

Brake System - Rear
Page 61 · 24 parts
Assembly 25
Anti-Lock Braking System (ABS)
Page 63 · 2 parts
Assembly 26

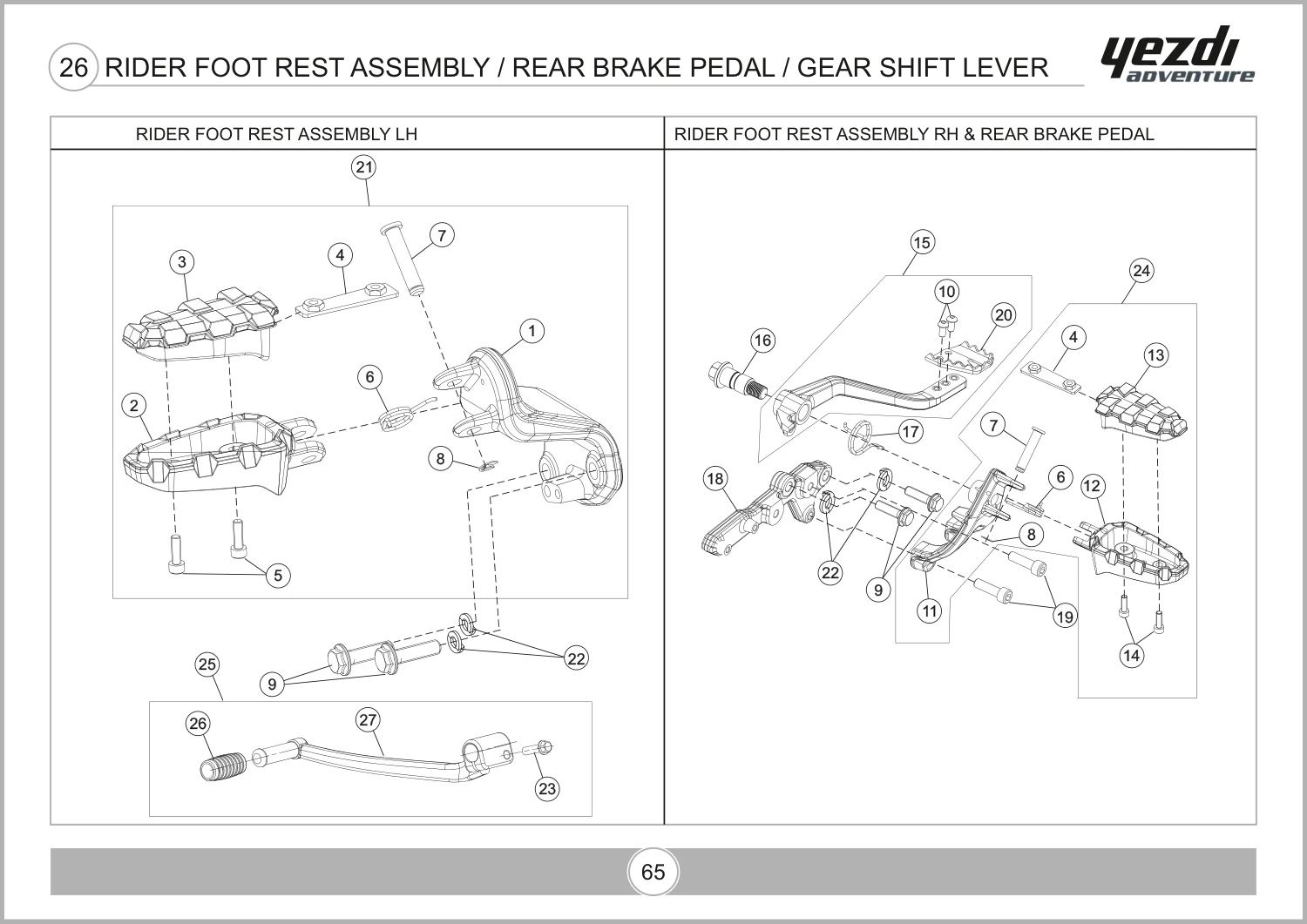

Rider Foot Rest Assembly / Rear Brake Pedal / Gear Shift Lever
Page 65 · 30 parts
Assembly 26
Rider Foot Rest Assembly / Rear Brake Pedal / Gear Shift Lever
Page 67 · 1 parts
Assembly 27
Pillion Foot Rest Assembly LH & RH
Page 69 · 13 parts
Assembly 28
Front Wheel Assembly (Tube Tyre Version)
Page 71 · 19 parts
Assembly 29

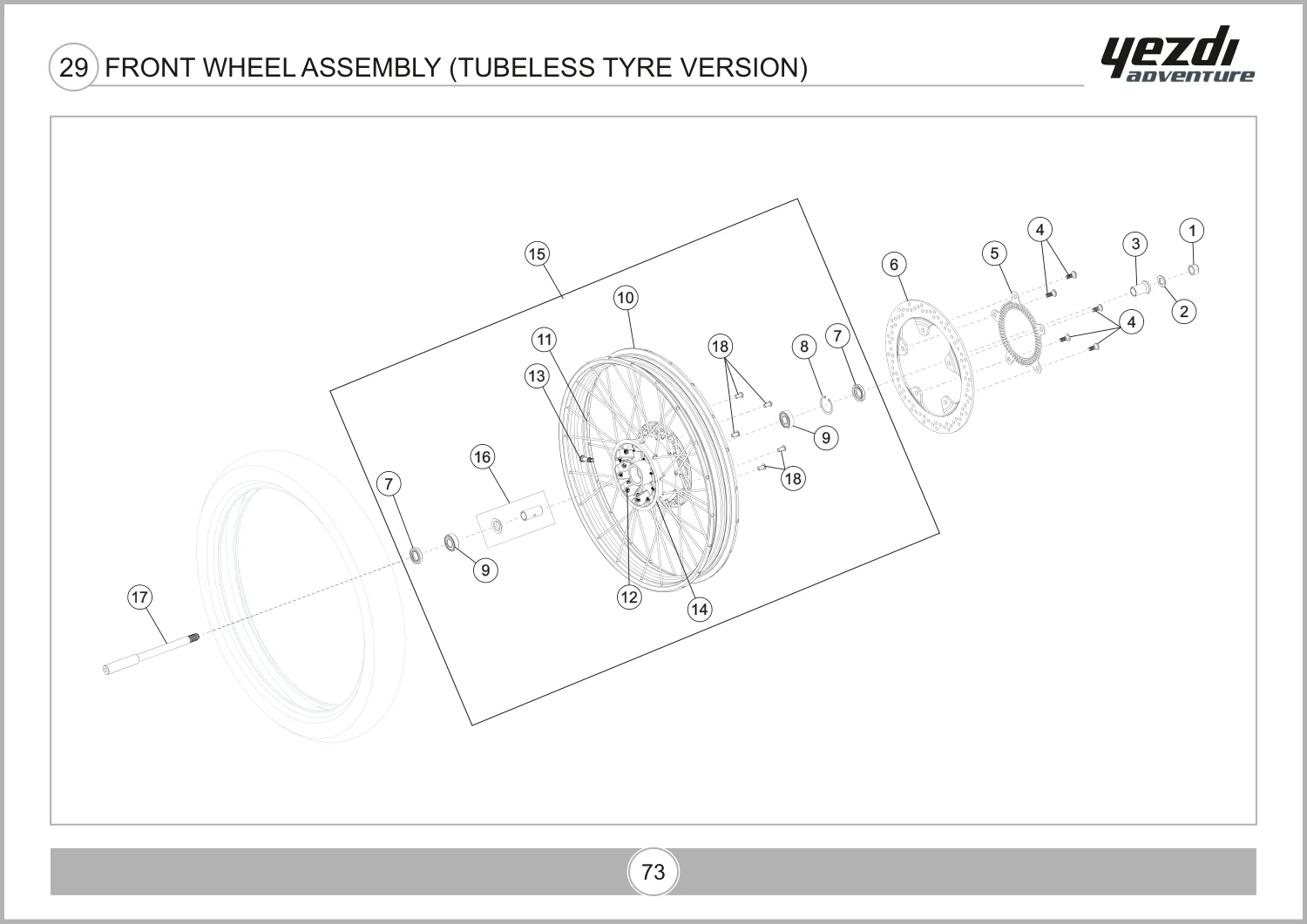

Front Wheel Assembly (Tubeless Tyre Version)
Page 73 · 18 parts
Assembly 30
Fuel Tank Assembly
Page 75 · 30 parts
Assembly 30
Fuel Tank Assembly
Page 77 · 10 parts
Assembly 31
Fuel Tank Mountings
Page 79 · 11 parts
Assembly 32
Front Fender Assembly
Page 81 · 26 parts
Assembly 33
Radiator & Cooling System (1/2)
Page 83 · 16 parts
Assembly 34
Radiator & Cooling System (2/2)
Page 85 · 12 parts
Assembly 35
Radiator & Cooling System Central Exhaust & Twin Headlamp (1/2)
Page 87 · 20 parts
Assembly 36
Radiator & Cooling System Central Exhaust & Twin Headlamp (2/2)
Page 89 · 12 parts
Assembly 37
Rear Fender Assembly & Mountings (1/3)
Page 91 · 4 parts
Assembly 38

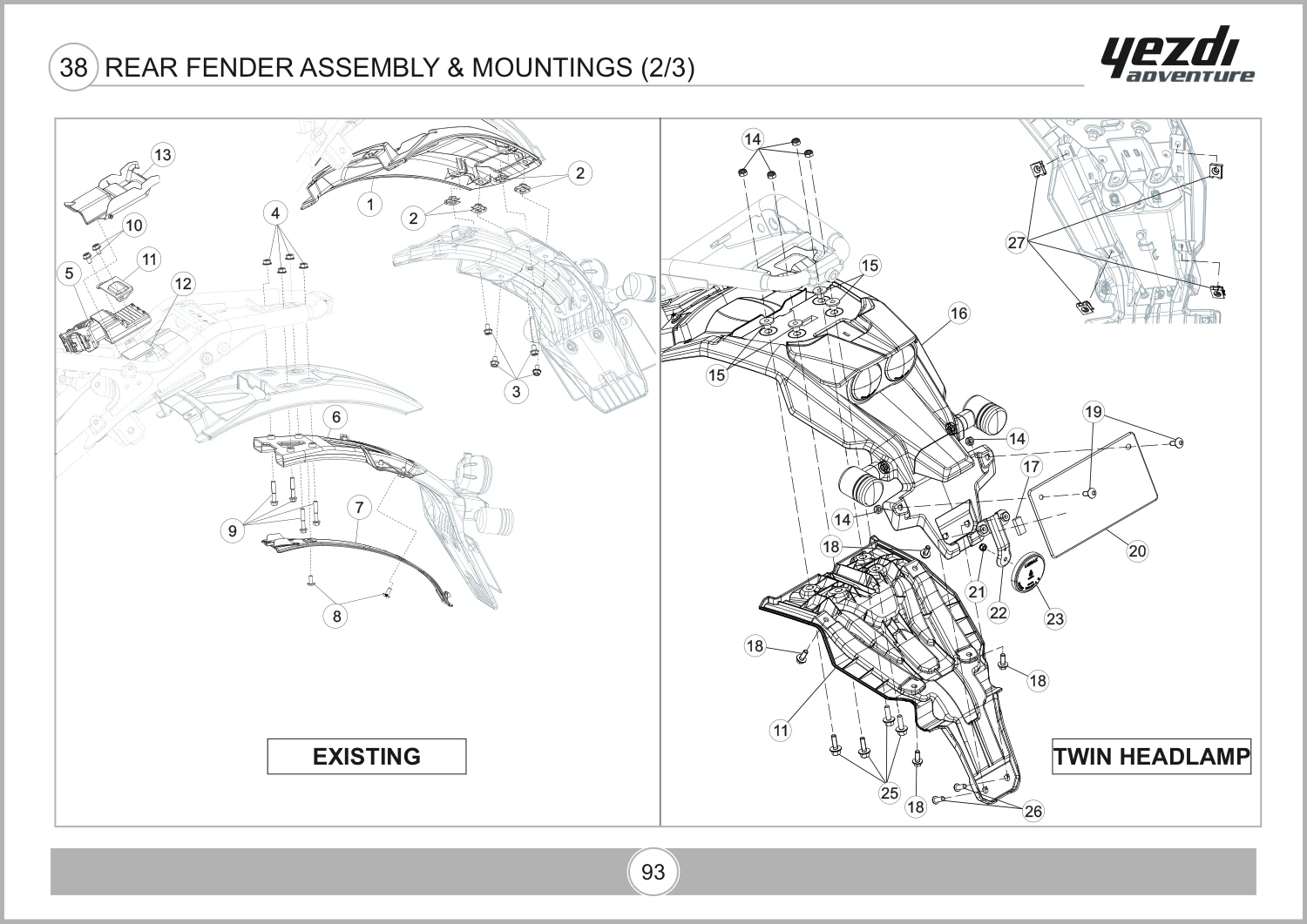

Rear Fender Assembly & Mountings (2/3)
Page 93 · 30 parts
Assembly 38
Rear Fender Assembly & Mountings (2/3)
Page 95 · 3 parts
Assembly 39
Rear Fender Assembly & Mountings (3/3)
Page 97 · 30 parts
Assembly 39
Rear Fender Assembly & Mountings (3/3)
Page 99 · 6 parts
Assembly 40

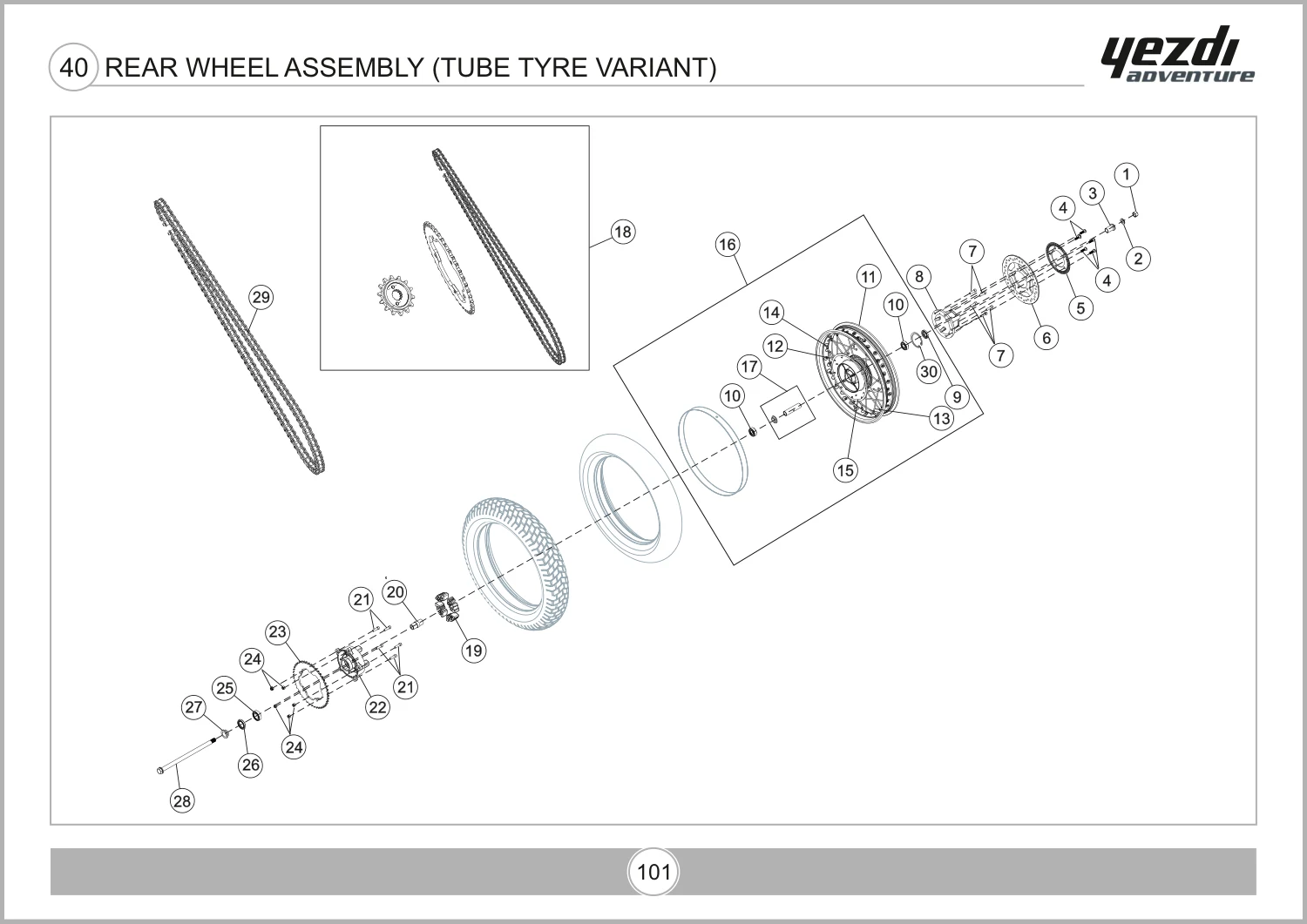

Rear Wheel Assembly (Tube Tyre Variant)
Page 101 · 30 parts
Assembly 40
Rear Wheel Assembly (Tube Tyre Variant)
Page 103 · 3 parts
Assembly 41

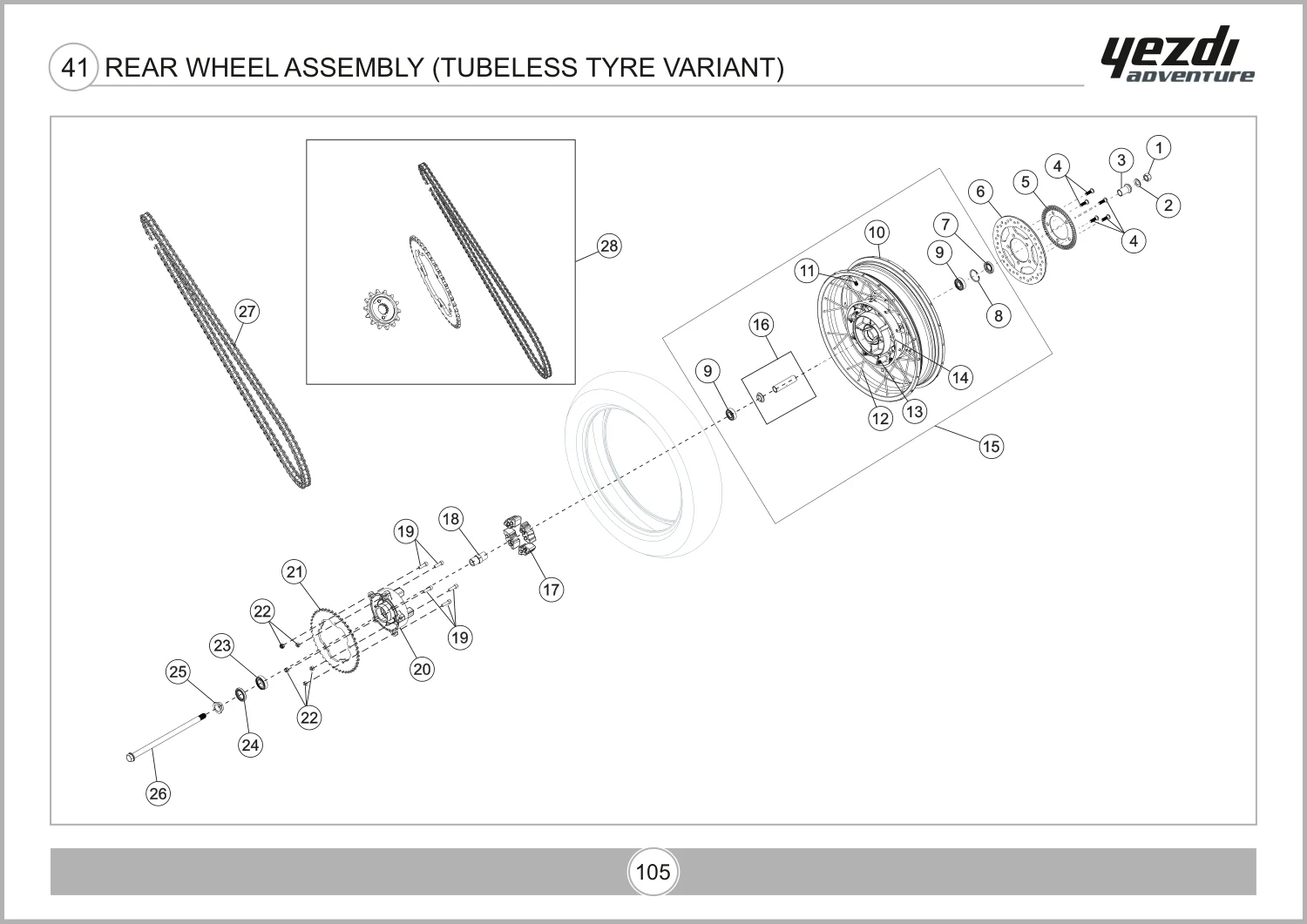

Rear Wheel Assembly (Tubeless Tyre Variant)
Page 105 · 28 parts
Assembly 42
Seat Assembly - Rider & Pillion
Page 107 · 12 parts
Assembly 43

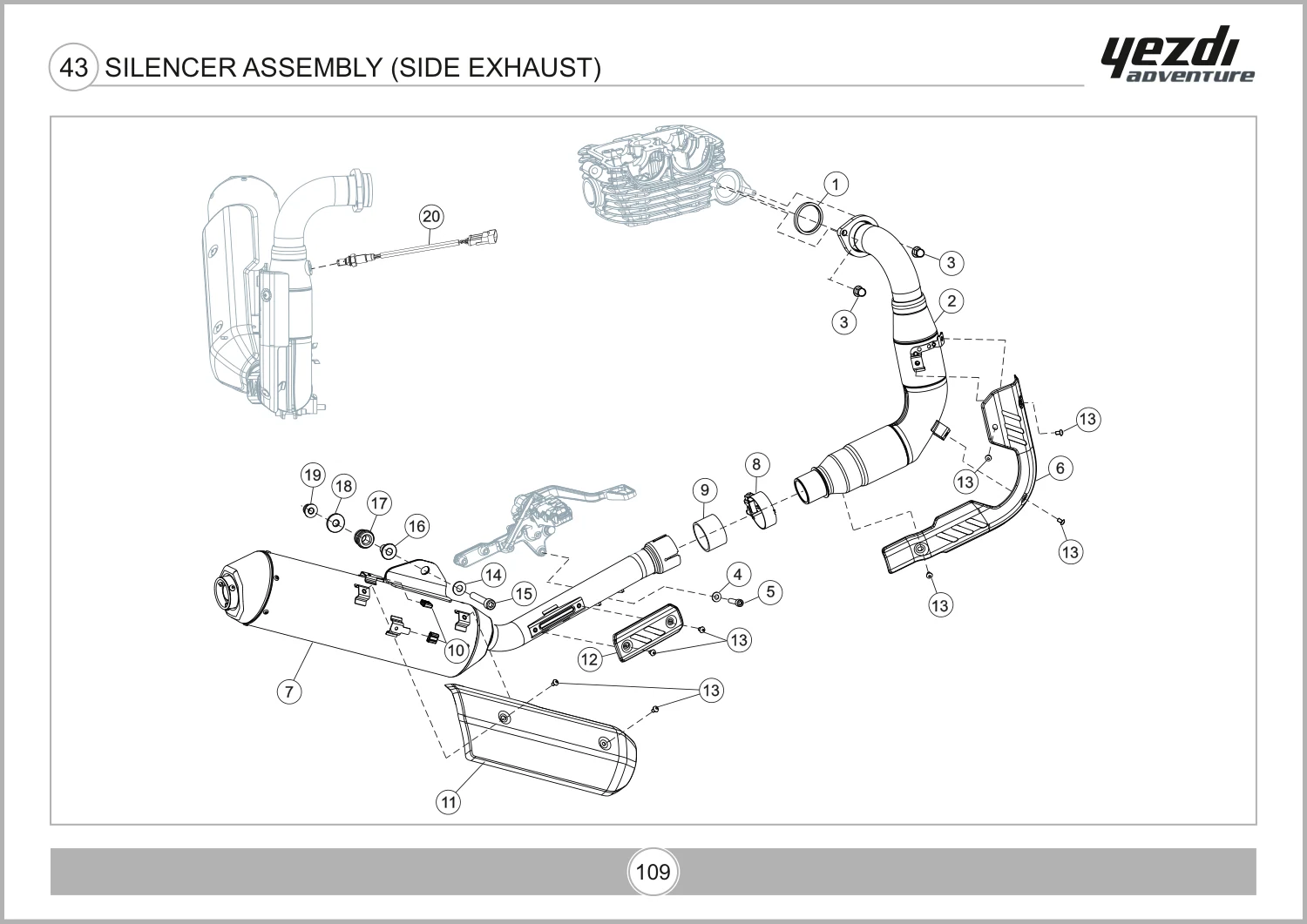

Silencer Assembly (Side Exhaust)
Page 109 · 20 parts
Assembly 44
Silencer Assembly Central Exhaust & Twin Headlamp
Page 111 · 24 parts
Assembly 45
Steering
Page 113 · 11 parts

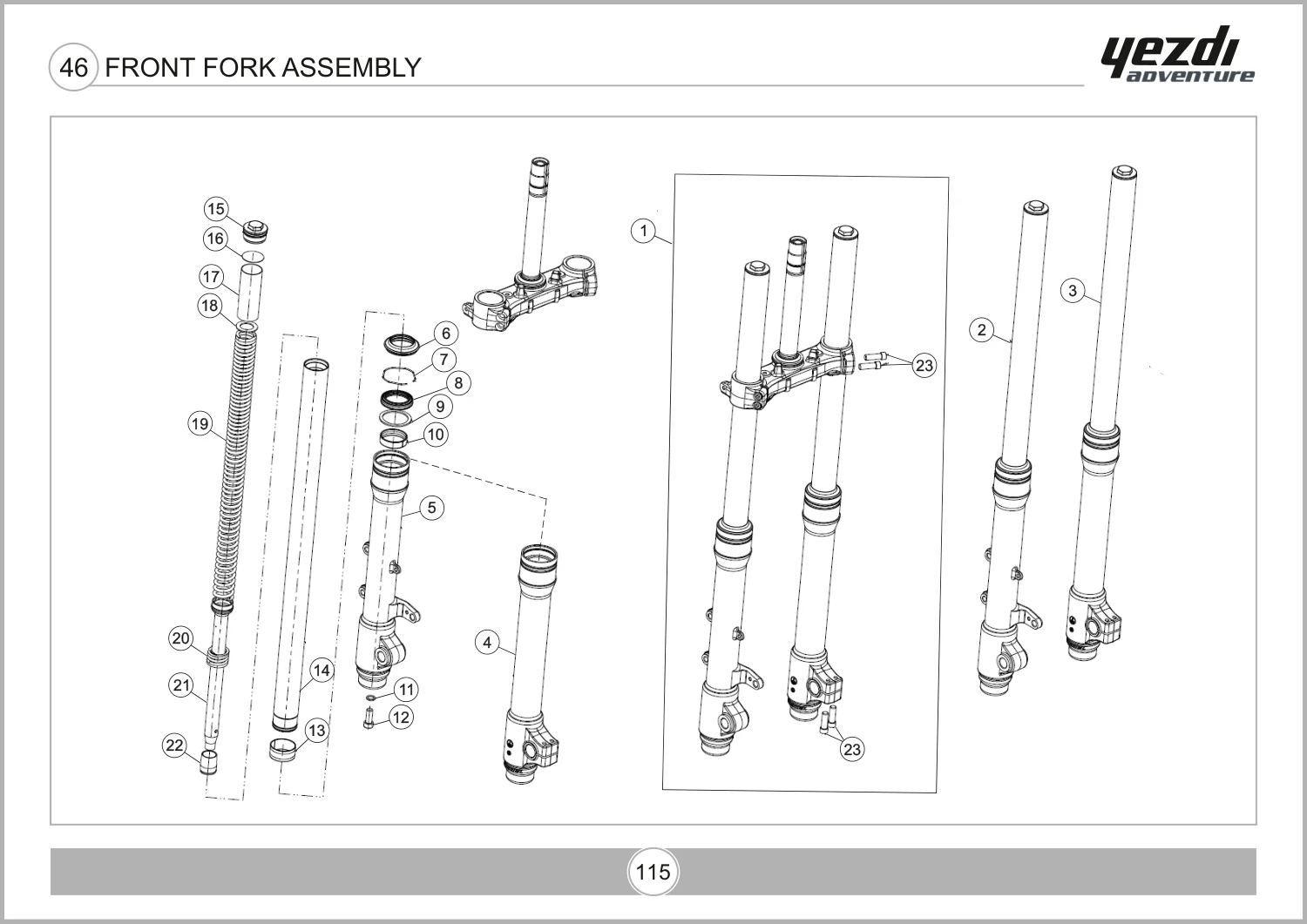

Assembly 46
Front Fork Assembly
Page 115 · 23 parts
Assembly 47
Front Fork And Its Mountings
Page 117 · 14 parts
Assembly 48

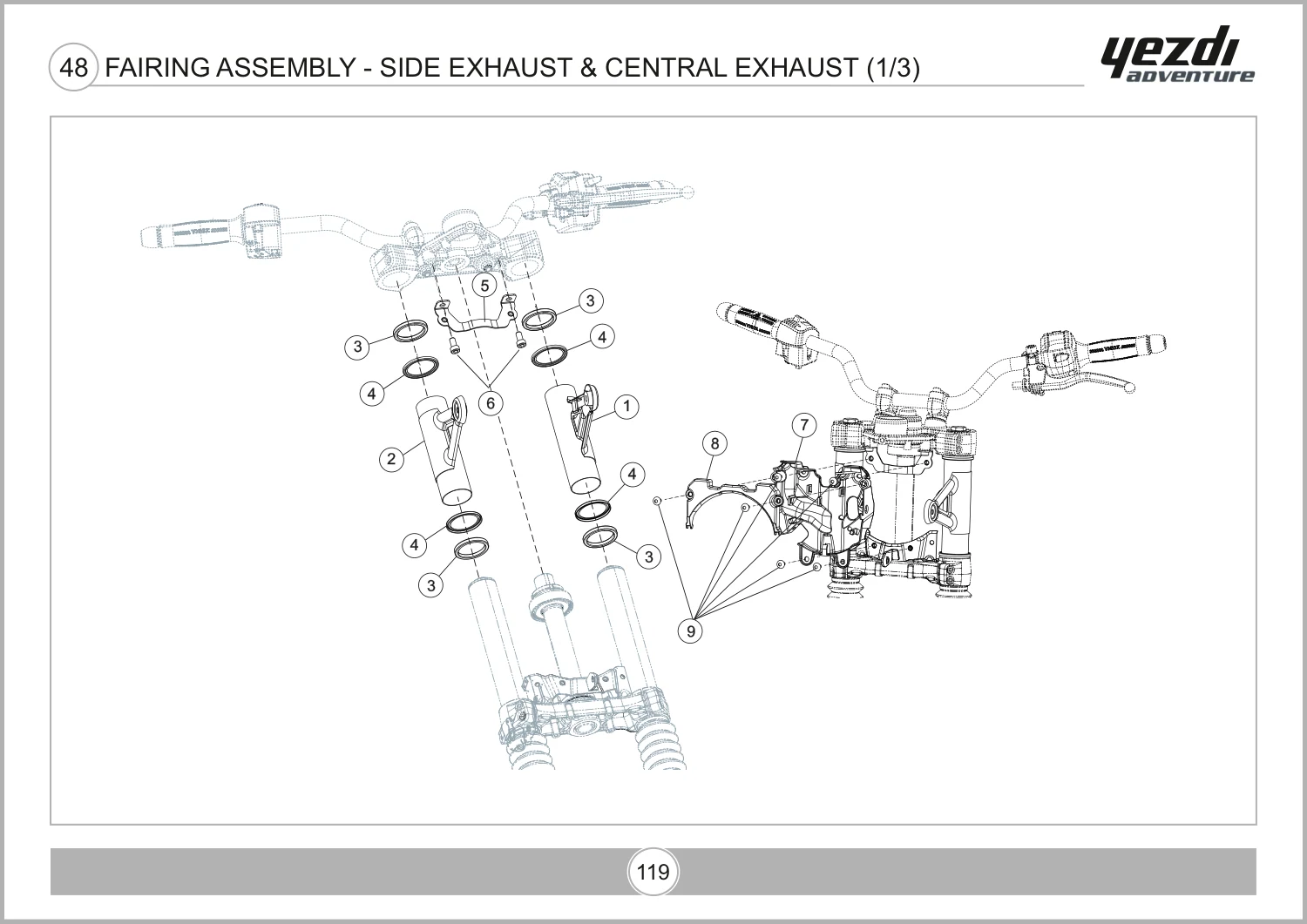

Fairing Assembly - Side Exhaust & Central Exhaust (1/3)
Page 119 · 11 parts
Assembly 49

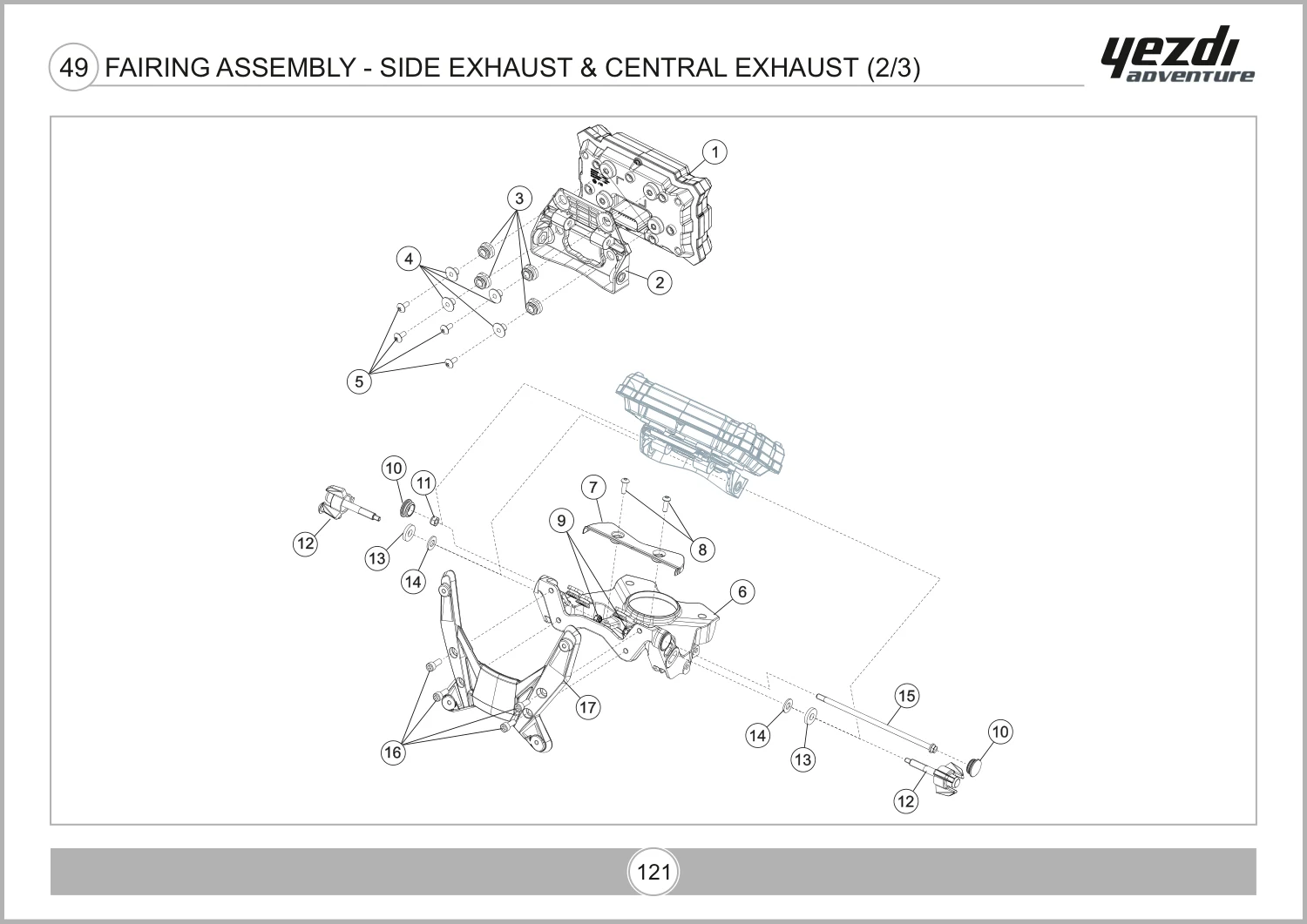

Fairing Assembly - Side Exhaust & Central Exhaust (2/3)
Page 121 · 19 parts
Assembly 50
Fairing Assembly - Side Exhaust & Central Exhaust (3/3)
Page 123 · 25 parts
Assembly 51
Fairing Assembly Twin Headlamp (1/3)
Page 125 · 10 parts

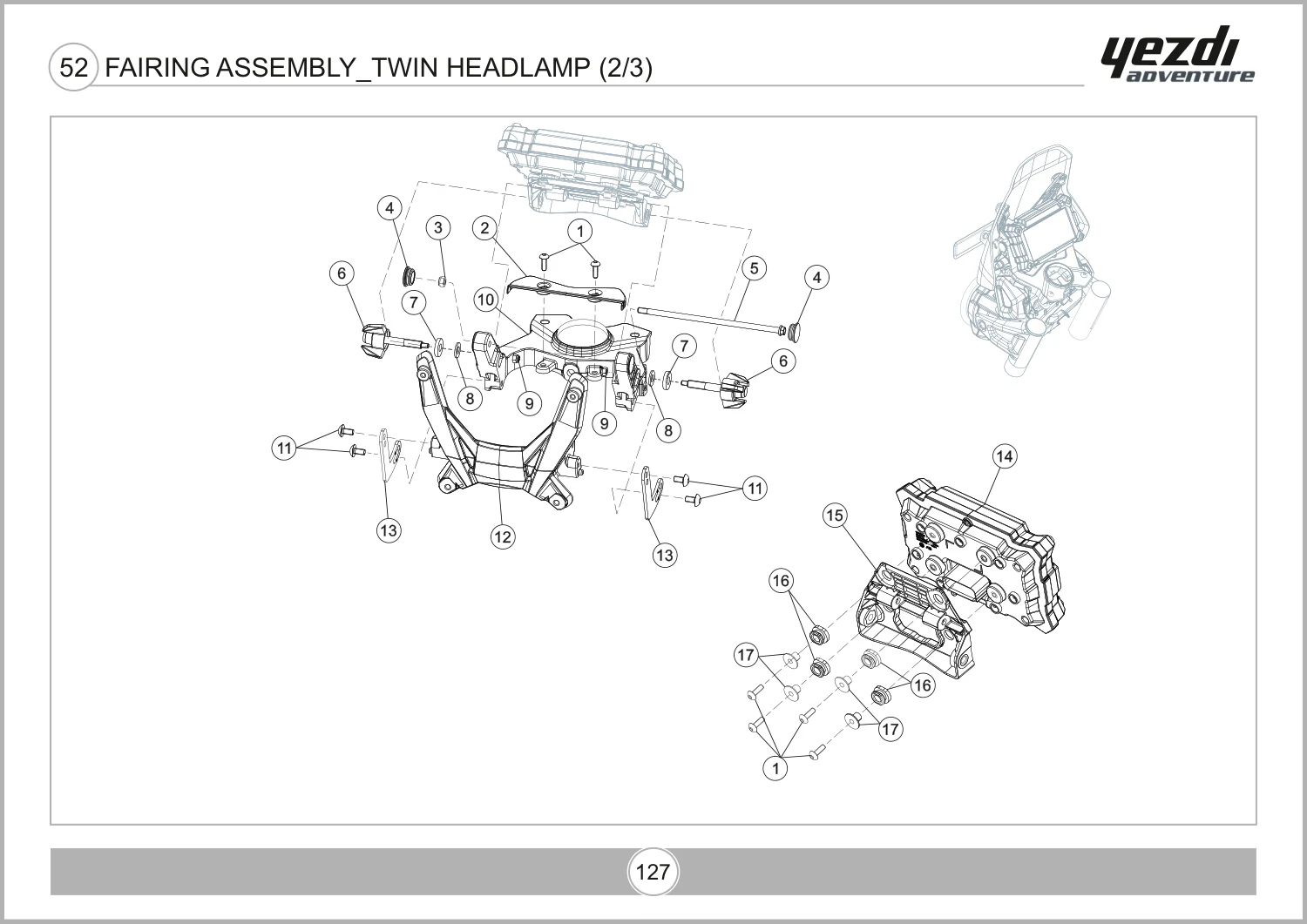

Assembly 52
Fairing Assembly Twin Headlamp (2/3)
Page 127 · 17 parts
Assembly 53
Fairing Assembly Twin Headlamp (3/3)
Page 129 · 30 parts
Assembly 53
Fairing Assembly Twin Headlamp (3/3)
Page 131 · 6 parts
Assembly 54
Luggage Rack & Saree Guard Assembly
Page 133 · 20 parts

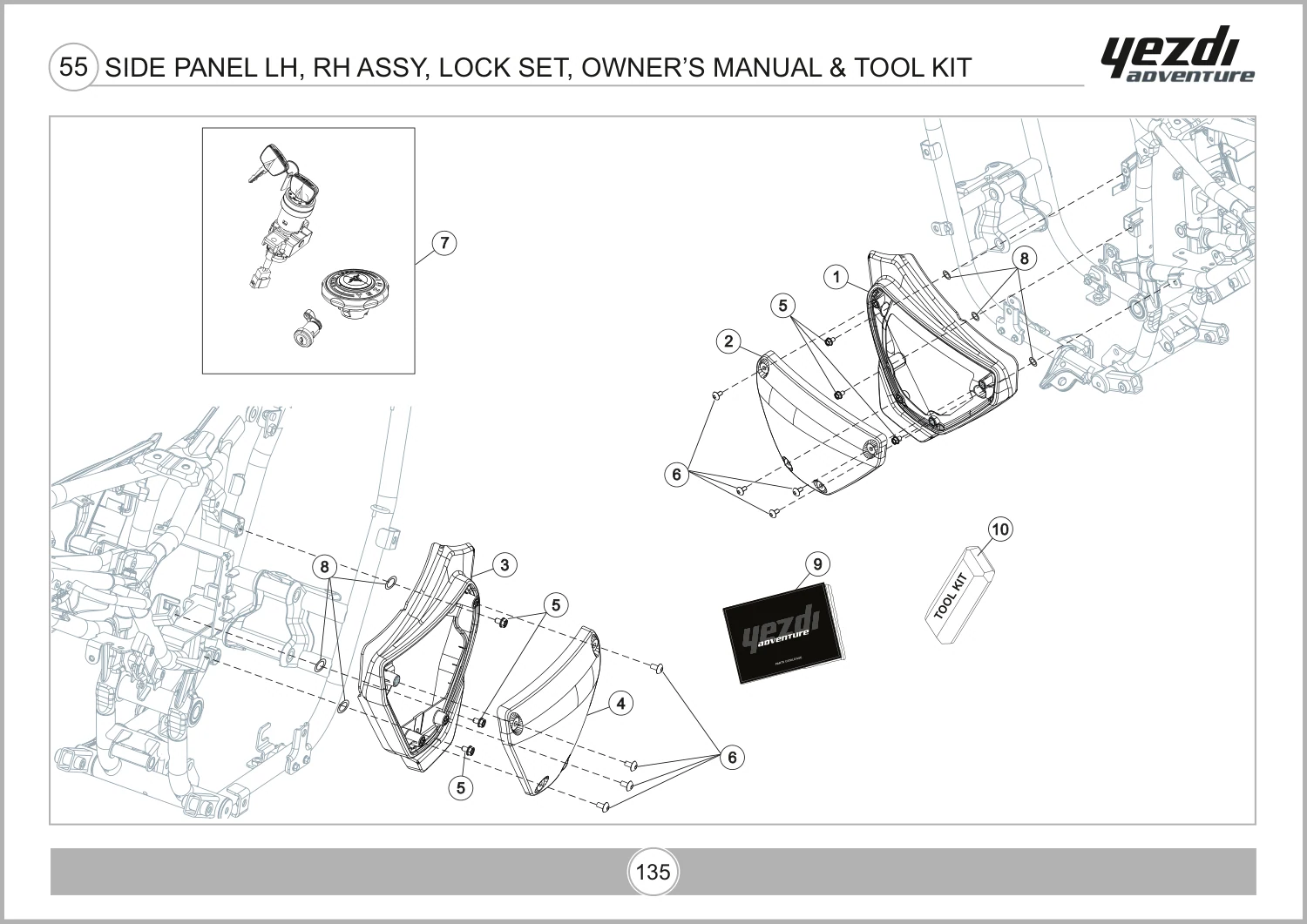

Assembly 55
Side Panel LH, RH Assy, Lock Set, Owner’S Manual & Tool Kit
Page 135 · 30 parts
Assembly 55
Side Panel LH, RH Assy, Lock Set, Owner’S Manual & Tool Kit
Page 137 · 7 parts
Assembly 56
Frame Assembly & Frame Mountings - Side Exhaust
Page 139 · 26 parts
Assembly 57

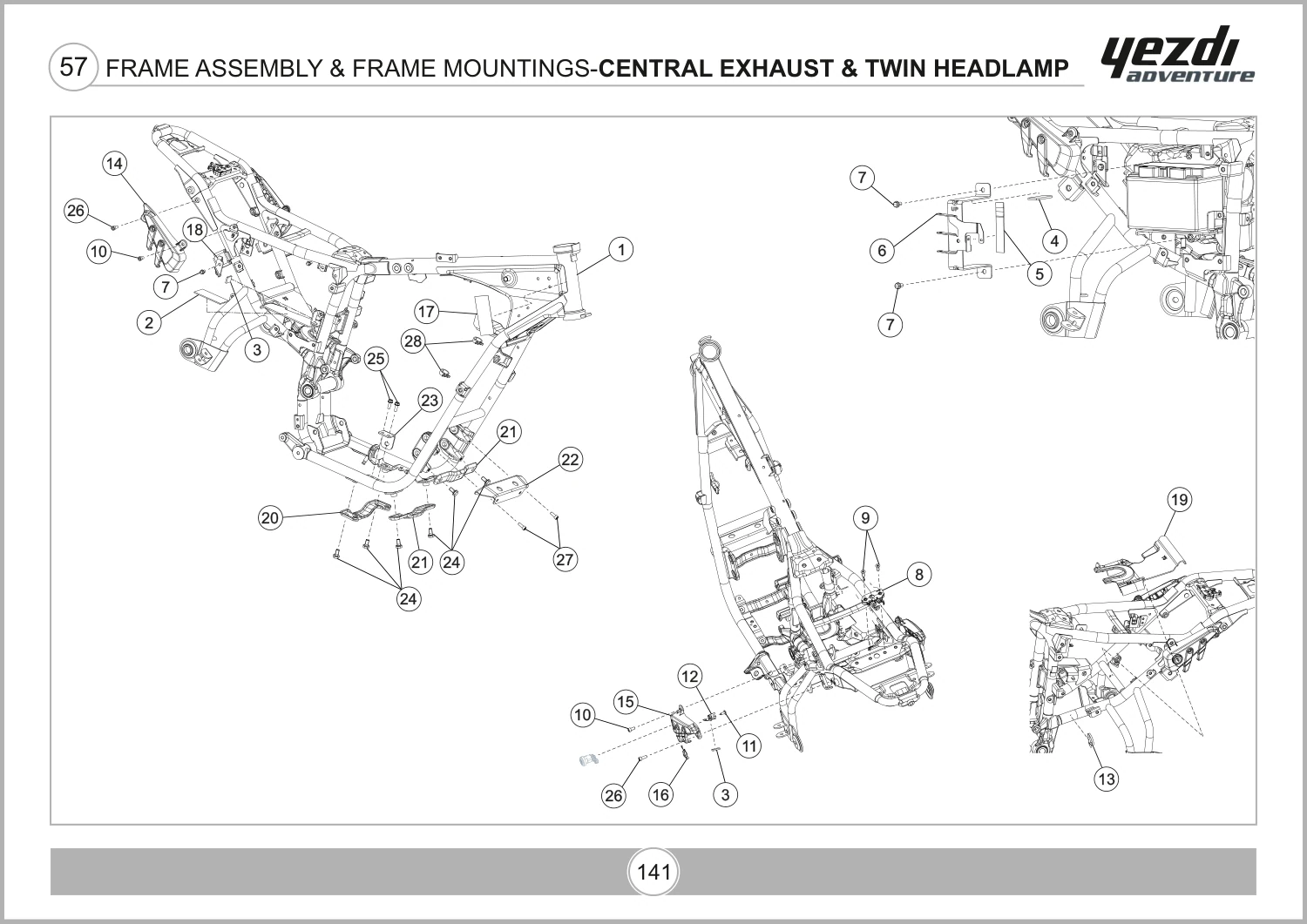

Frame Assembly & Frame Mountings-Central Exhaust & Twin Headlamp
Page 141 · 28 parts
Assembly 58

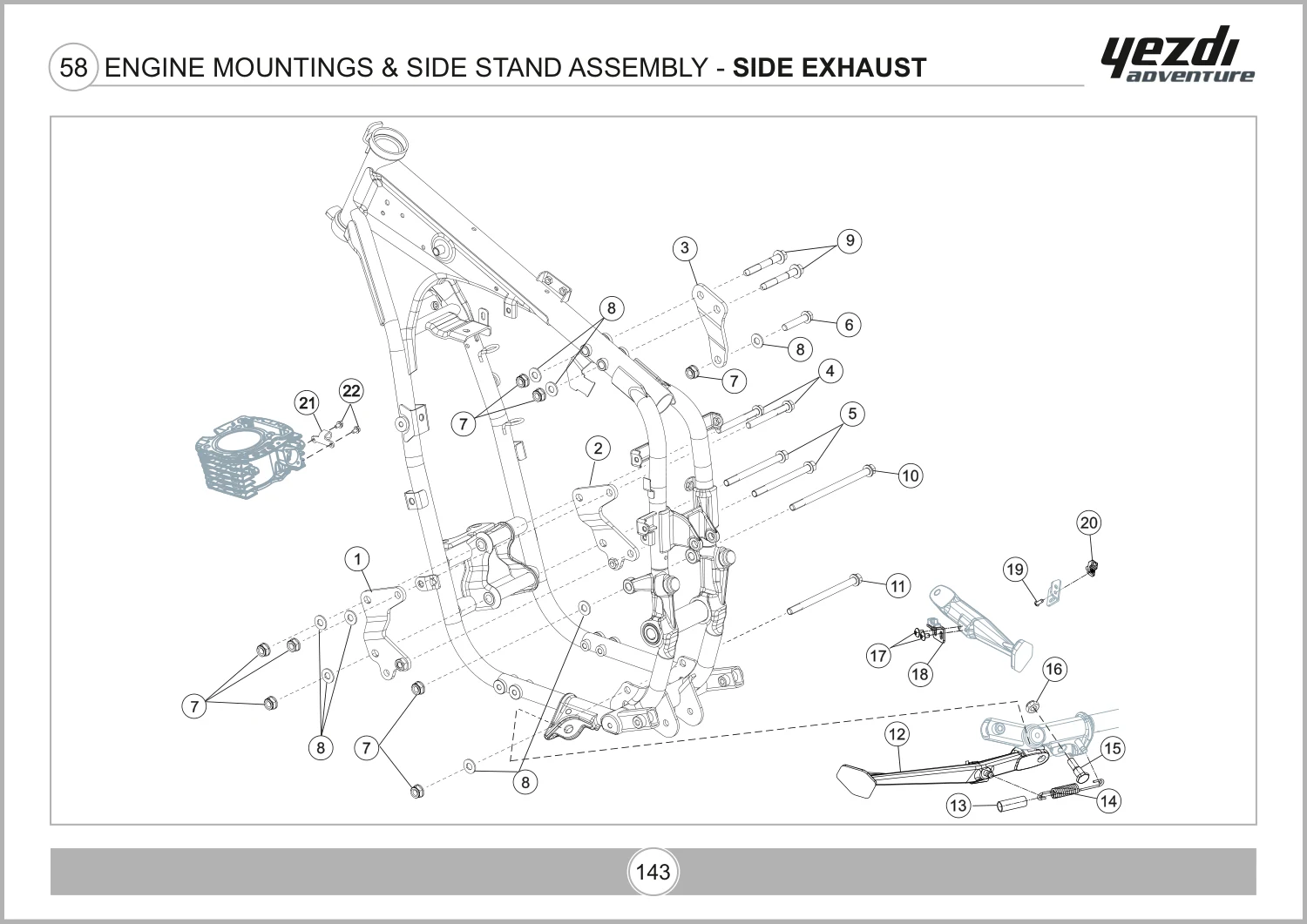

Engine Mountings & Side Stand Assembly - Side Exhaust
Page 143 · 22 parts
Assembly 59
Engine Mountings & Side Stand Assembly- Central Exhaust & Twin Headlamp
Page 145 · 25 parts
Assembly 60
Handle Bar Assembly
Page 147 · 30 parts
Assembly 60
Handle Bar Assembly
Page 149 · 12 parts
Assembly 61
Rear Shock Absorber
Page 151 · 15 parts
Assembly 62
Swing Arm Assembly
Page 153 · 28 parts
Assembly 63
Electrical Parts Mounted On Frame (ECU, Relays, Horn, Side Stand Switch, Headlamp And RR Unit)
Page 155 · 30 parts
Assembly 63
Electrical Parts Mounted On Frame (ECU, Relays, Horn, Side Stand Switch, Headlamp And RR Unit)
Page 157 · 1 parts
Assembly 64

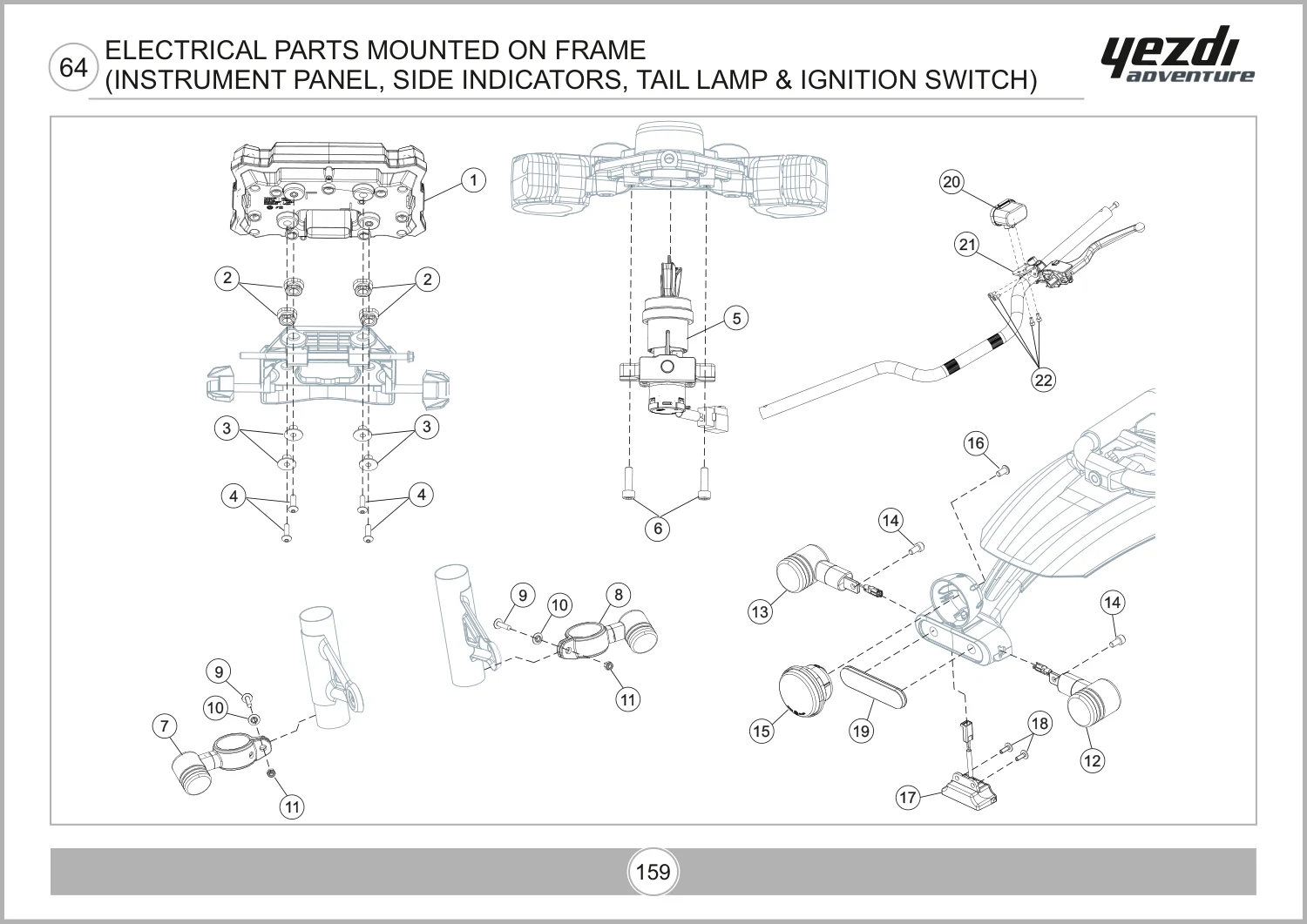

Electrical Parts Mounted On Frame (Instrument Panel, Side Indicators, Tail Lamp & Ignition Switch)
Page 159 · 23 parts
Assembly 65
Wiring Harness & Electrical Components
Page 161 · 22 parts
Assembly 66
Electronic Fuel Injection (EFI) Assembly
Page 163 · 21 parts
Assembly 67
Decals
Page 165 · 8 parts
Assembly 68
Decals
Page 167 · 4 parts
Assembly 69
Decals
Page 169 · 4 parts

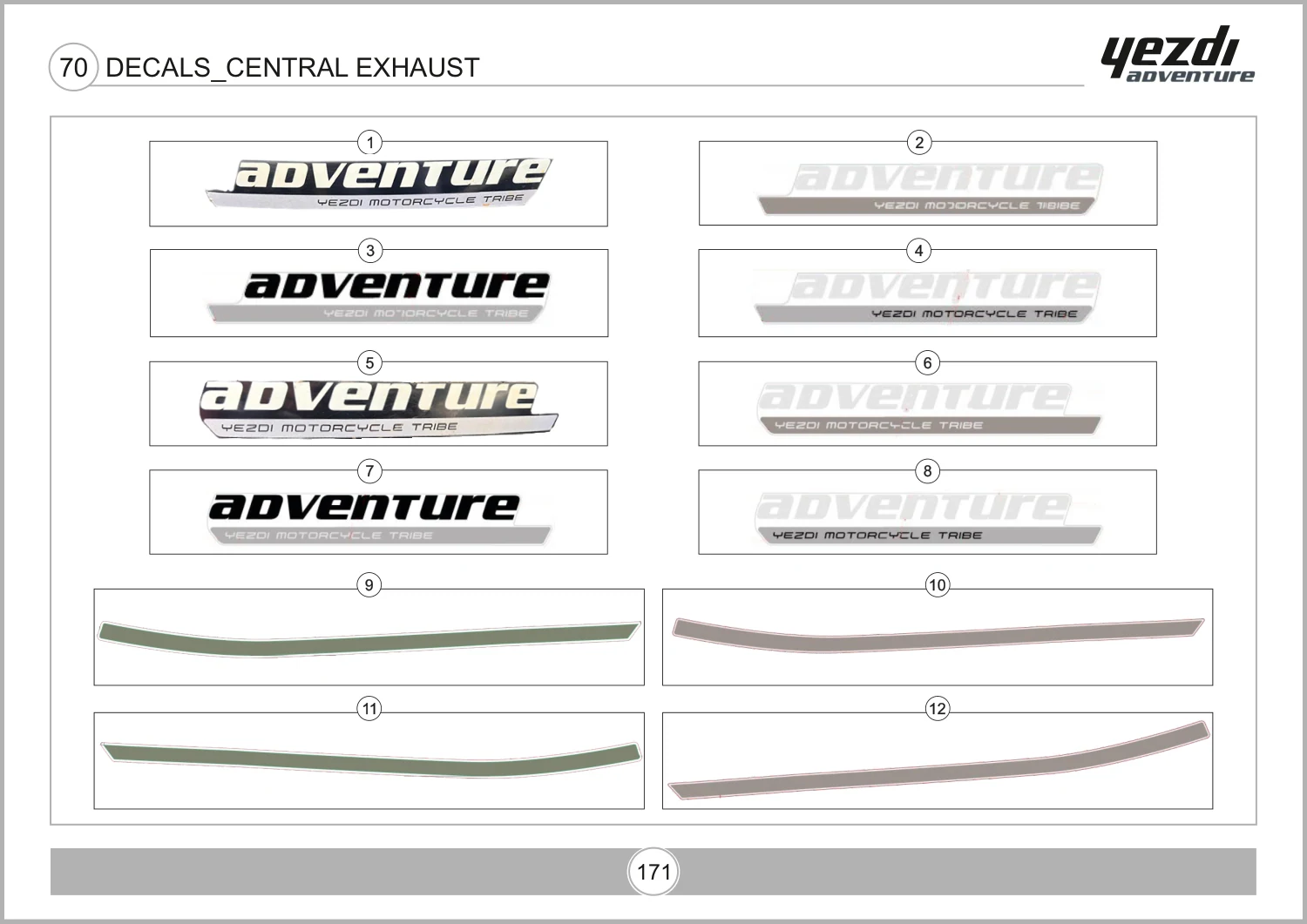

Assembly 70
Decals Central Exhaust
Page 171 · 12 parts
Assembly 71
Decals Central Exhaust
Page 173 · 10 parts
Assembly 72
Decals Tank Twin Headlamp
Page 175 · 12 parts
Assembly 73
Decals Side Cover Twin Headlamp
Page 177 · 12 parts
Assembly 74

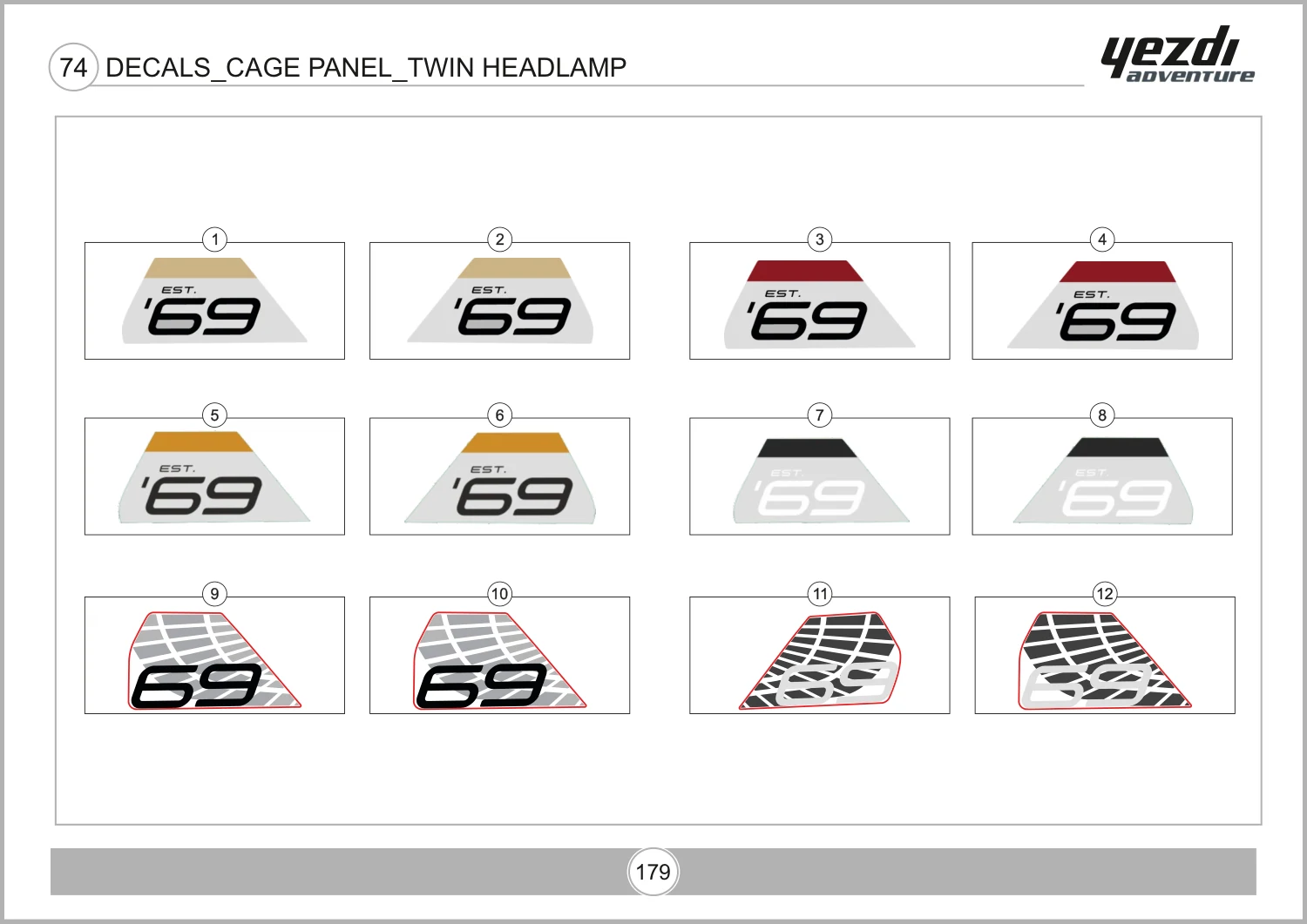

Decals Cage Panel Twin Headlamp
Page 179 · 12 parts
Assembly 75
Decals Twin Headlamp
Page 181 · 7 parts
Assembly 76
Decals Falcon Yellow (Twin Headlamp)
Page 183 · 10 parts
Assembly 77
Accessory - Main Cage Assembly
Page 185 · 19 parts
Assembly 78
Accessory - Main Cage Assembly Central Exhaust
Page 187 · 16 parts
Assembly 79
Accessory - Main Cage Assembly Twin Headlamp
Page 189 · 30 parts
Assembly 79
Accessory - Main Cage Assembly Twin Headlamp
Page 191 · 17 parts

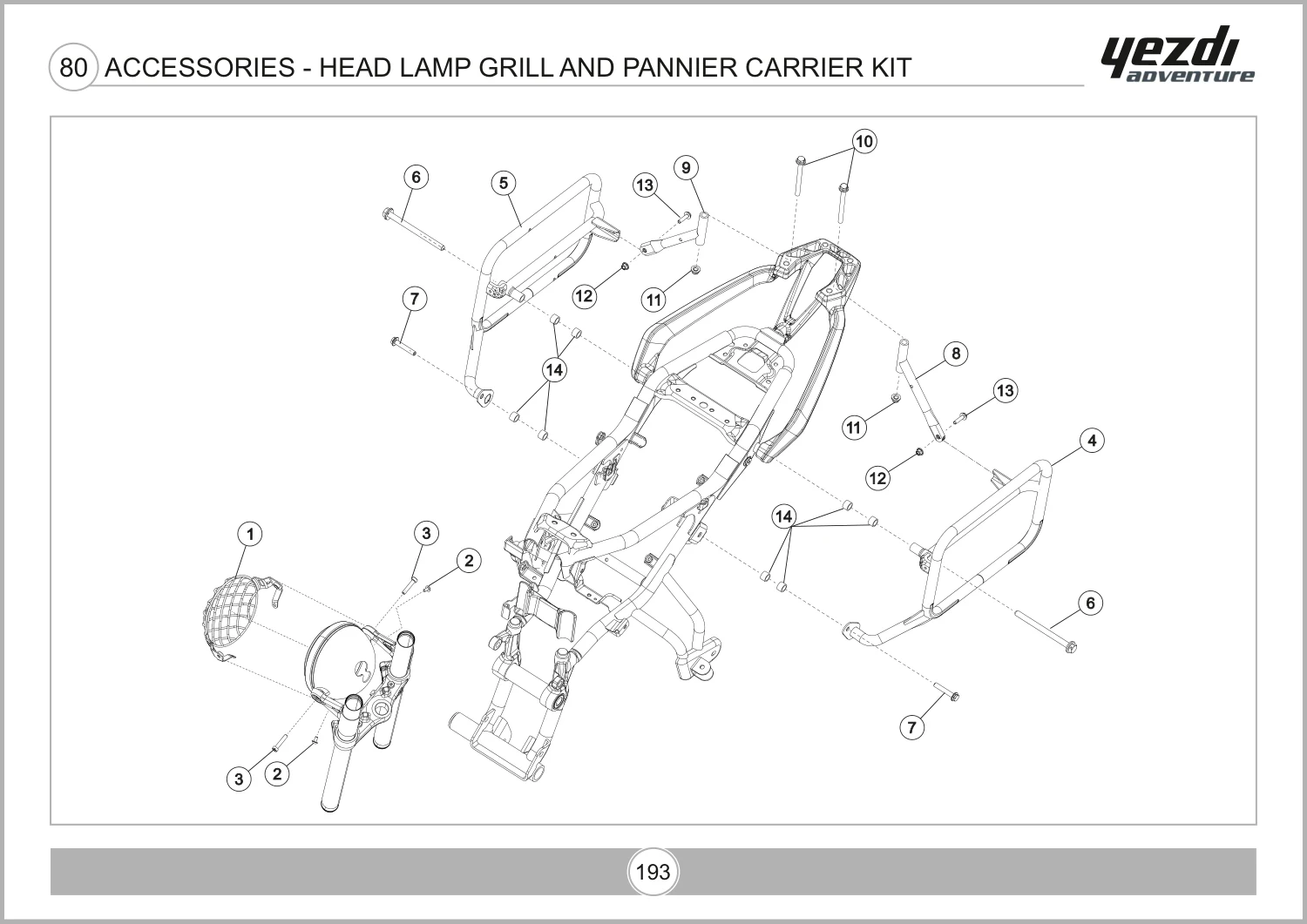

Assembly 80
Accessories - Head Lamp Grill And Pannier Carrier Kit
Page 193 · 14 parts
Assembly 81

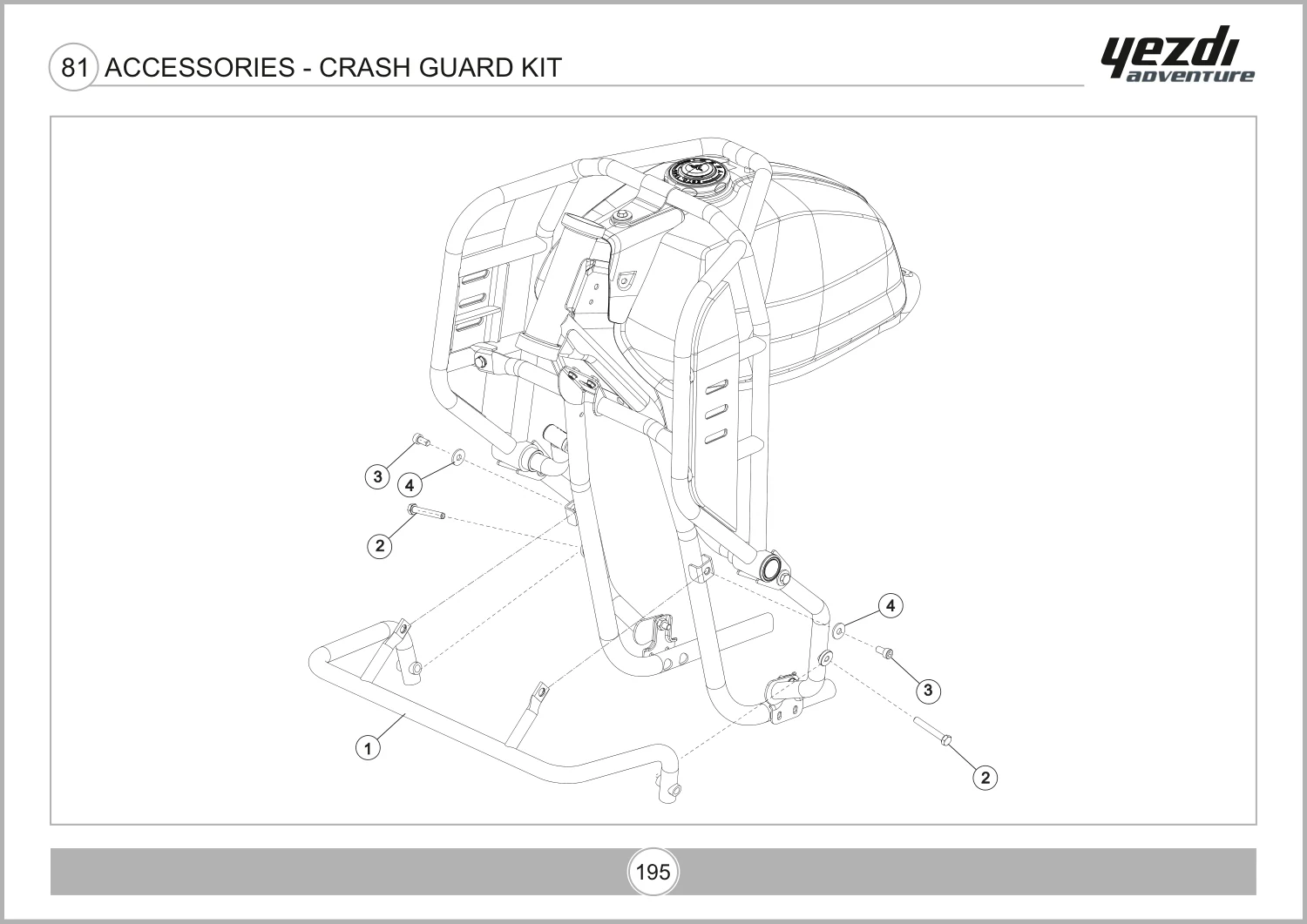

Accessories - Crash Guard Kit
Page 195 · 4 partsNo matching assemblies. Try a broader name.
Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf. Check the BS/OBD and variant notes in each drawing before requesting a part.
