Yezdi Adventure · ASSEMBLY 55 · REV 22
Side Panel LH, RH Assy, Lock Set, Owner’S Manual & Tool Kit
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Adventure · Rev 22 · p. 137Original parts list ↗

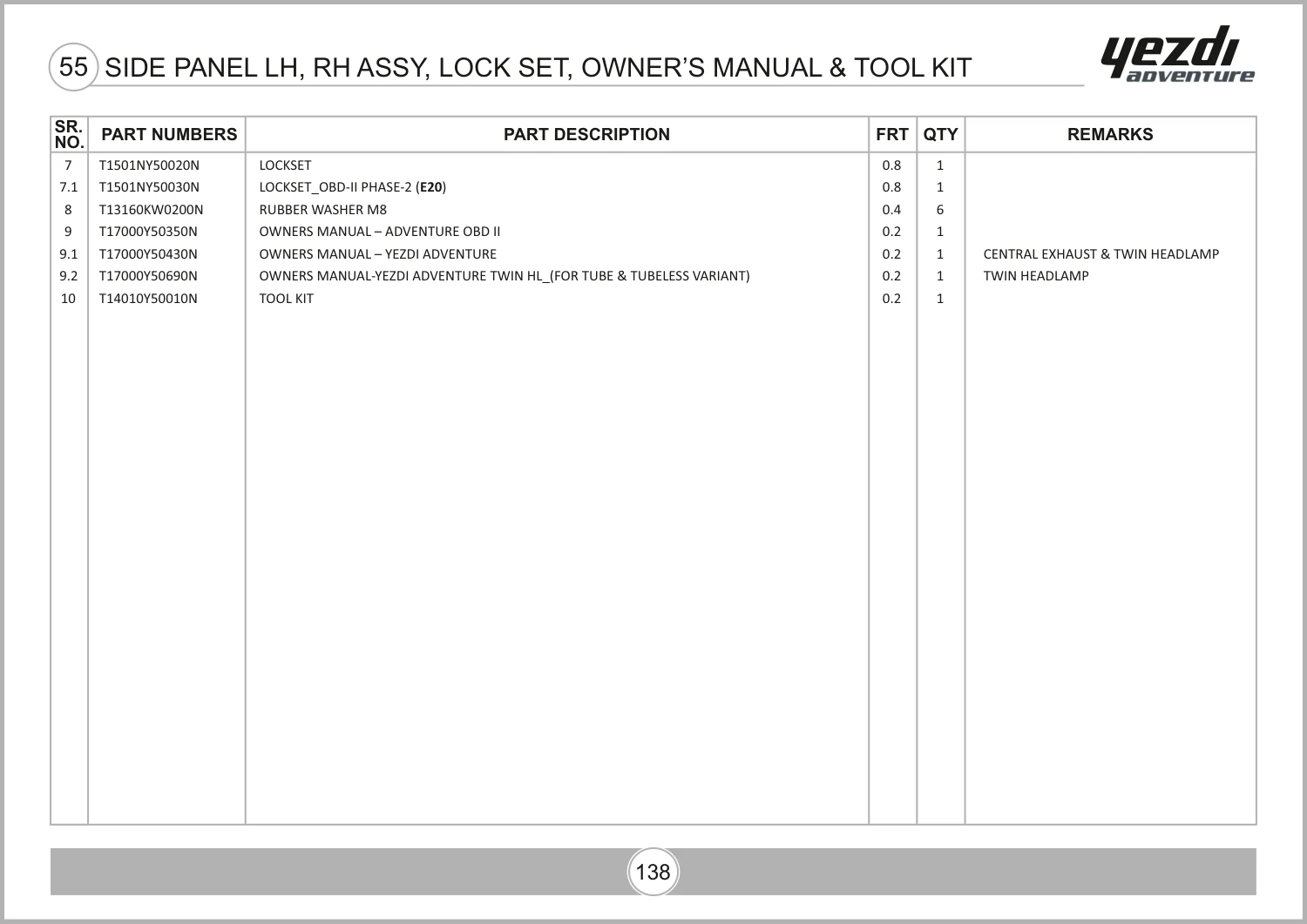

Parts in this drawing
7 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 7 | LocksetT1501NY50020N | 1 | |
| 7.1 | Lockset OBD-II Phase-2 (E20)T1501NY50030N | 1 | |
| 8 | Rubber Washer M8T13160KW0200N | 6 | |
| 9 | Owners Manual – Adventure OBD IIT17000Y50350N | 1 | |
| 9.1 | Owners Manual – Yezdi AdventureT17000Y50430N CENTRAL EXHAUST & TWIN HEADLAMP | 1 | |
| 9.2 | Owners Manual-Yezdi Adventure Twin Hl (For Tube & Tubeless Variant)T17000Y50690N TWIN HEADLAMP | 1 | |
| 10 | Tool KitT14010Y50010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 152, parts table page 153. View original parts table ↗
