Yezdi Adventure · ASSEMBLY 70 · REV 22
Decals Central Exhaust
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Adventure · Rev 22 · p. 171Original parts list ↗

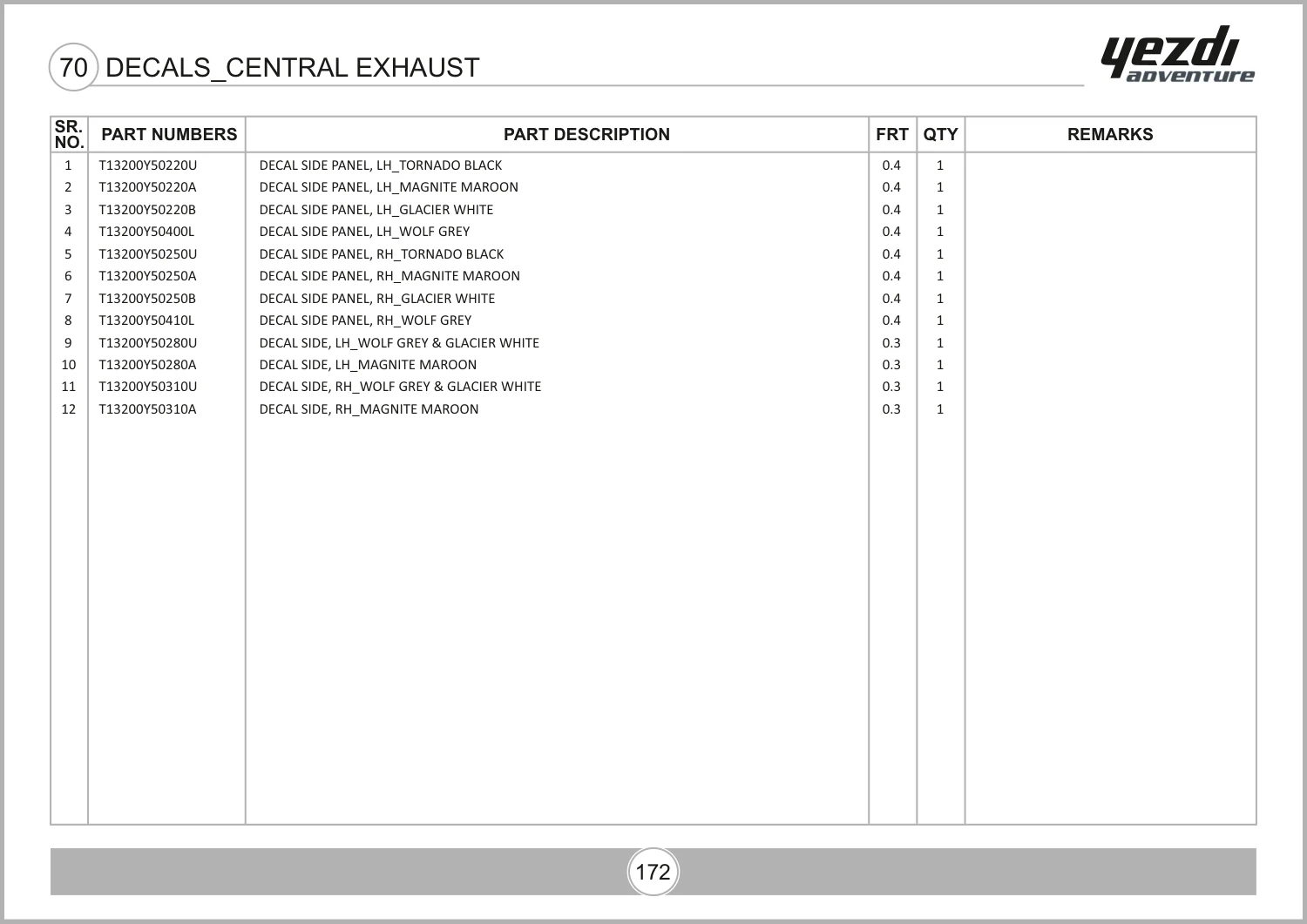

Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Decal Side Panel, LH Tornado BlackT13200Y50220U | 1 | |
| 2 | Decal Side Panel, LH Magnite MaroonT13200Y50220A | 1 | |
| 3 | Decal Side Panel, LH Glacier WhiteT13200Y50220B | 1 | |
| 4 | Decal Side Panel, LH Wolf GreyT13200Y50400L | 1 | |
| 5 | Decal Side Panel, RH Tornado BlackT13200Y50250U | 1 | |
| 6 | Decal Side Panel, RH Magnite MaroonT13200Y50250A | 1 | |
| 7 | Decal Side Panel, RH Glacier WhiteT13200Y50250B | 1 | |
| 8 | Decal Side Panel, RH Wolf GreyT13200Y50410L | 1 | |
| 9 | Decal Side, LH Wolf Grey & Glacier WhiteT13200Y50280U | 1 | |
| 10 | Decal Side, LH Magnite MaroonT13200Y50280A | 1 | |
| 11 | Decal Side, RH Wolf Grey & Glacier WhiteT13200Y50310U | 1 | |
| 12 | Decal Side, RH Magnite MaroonT13200Y50310A | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 186, parts table page 187. View original parts table ↗
